7 inch LVDS TFT Display 1024*600 product image
Standard TFT LCD Displays Model FZ7001L40

7 inch LVDS TFT-LCD Display 1024x600

This 7 inch TFT record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

  • TFT
  • LVDS
  • CTP (capacitive touch panel)
Screen Size
7 inch
Resolution
1024*600
Technology
TFT
Interface
LVDS
Touch
CTP (capacitive touch panel)
Brightness
260
Request a Quote Request a Sample
WhatsApp an Engineer

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Buyer advantages

Exact-record review
Source-matched media and published values remain attached to this product record.
Integration context
Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry
Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.
Product details

Review the module around published evidence.

This 7 inch TFT record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies 1024*600 resolution, LVDS interface, CTP (capacitive touch panel) touch information, 260 brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

Standard-format TFT LCD modules represented in the current catalog, covering compact embedded displays through larger landscape panels. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

Product views

Inspect the module from the available source imagery.

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

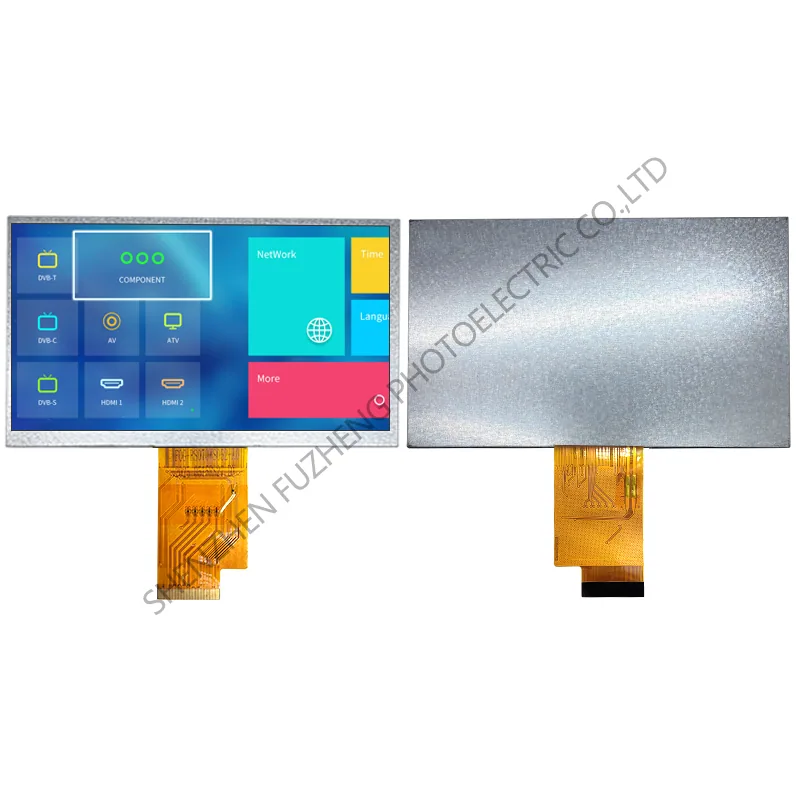

7 inch LVDS TFT Display 1024*600 product image
7 inch LVDS TFT-LCD Display 1024x600 · product view 01

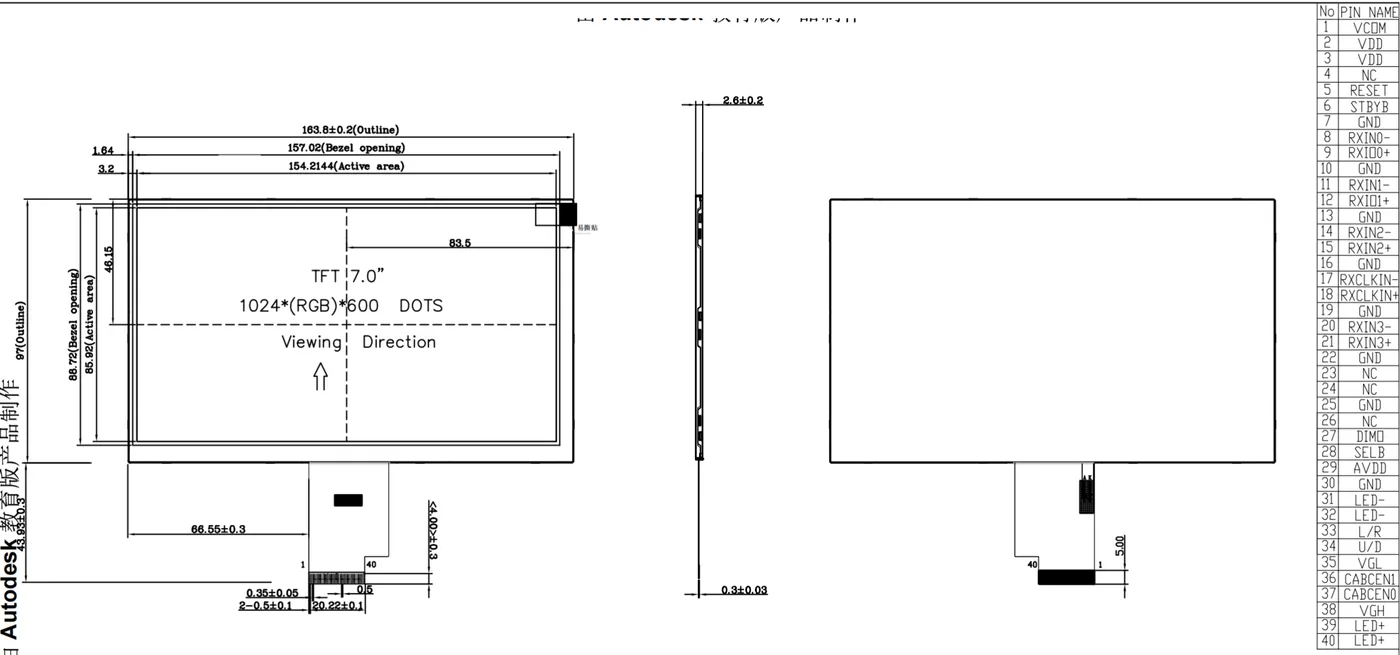

7 inch LVDS TFT Display 1024*600 product image
7 inch LVDS TFT-LCD Display 1024x600 · product view 02

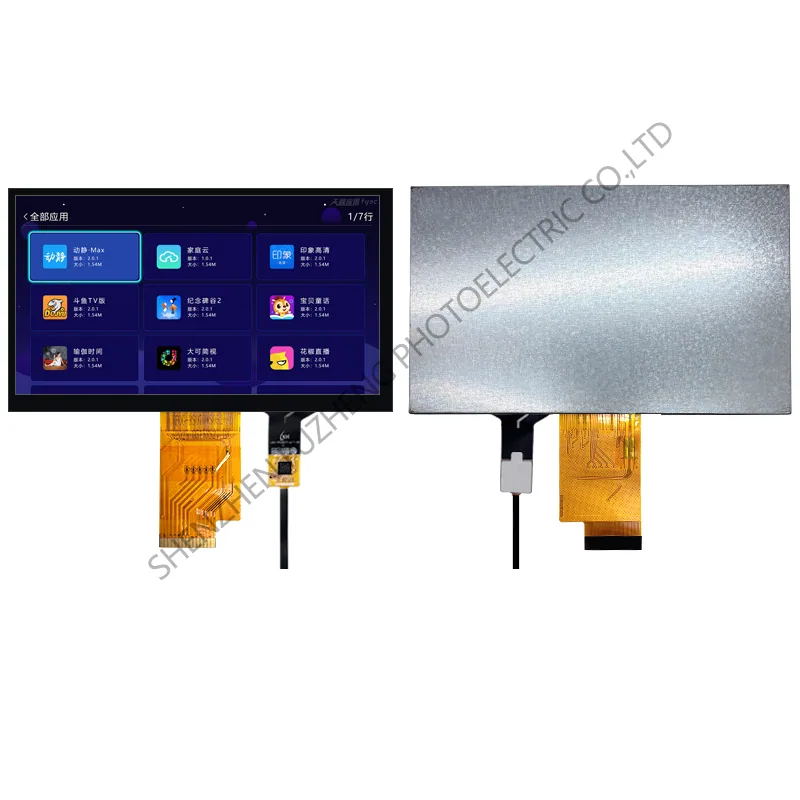

7 inch LVDS TFT Display 1024*600 product image
7 inch LVDS TFT-LCD Display 1024x600 · product view 03

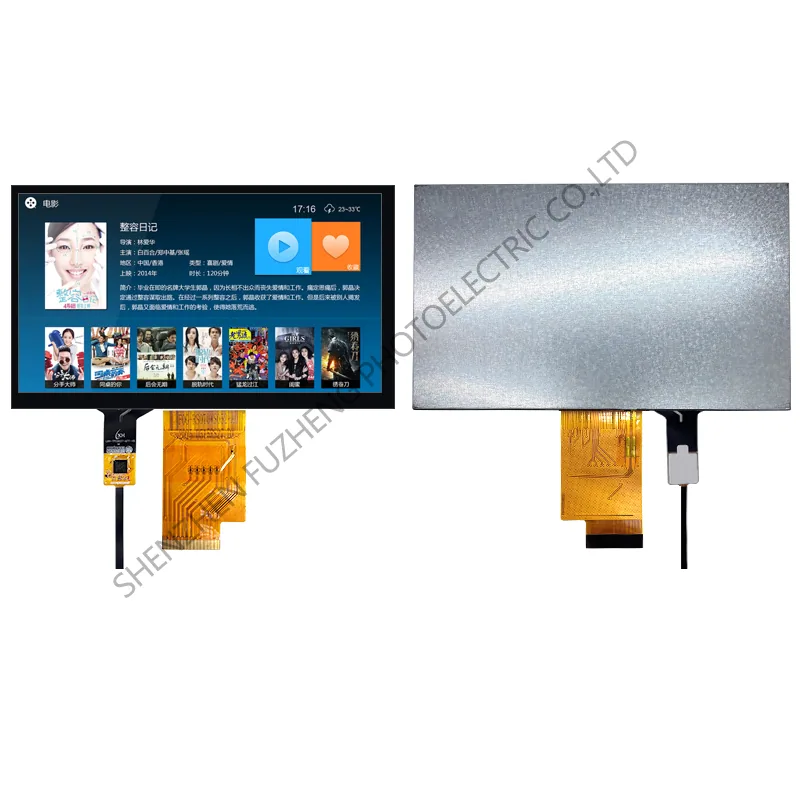

7 inch LVDS TFT Display 1024*600 product image
7 inch LVDS TFT-LCD Display 1024x600 · product view 04
Published product data

Specifications in one consistent format.

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 7 inch LVDS TFT-LCD Display 1024x600
SpecificationPublished valueReview status
Screen Size 7 inch Current source record
Resolution 1024*600 Current source record
Technology TFT Current source record
Interface LVDS Current source record
Touch CTP (capacitive touch panel) Current source record
Brightness 260 Current source record
Viewing Angle ALL Current source record
Driver IC HX8282/HX8696 Current source record
Backlight 3*6 chips white LEDS Current source record
Module Dimensions 165(H) ×100(V) × 3.5(T) Current source record
Active Area 154.2144(H) *85.92(V) Current source record
Input Voltage 3.3 / VDD Multiple source values — confirm
Operating Temperature -20 -- 70 °C Current source record
Storage Temperature -30 -- 80 °C Current source record
Model FZ7001L40 Current source record
LED Life span 25000 Current source record
Analog supply voltage AVDD Current source record
TFT Gate ON Voltage VGH Current source record

Published technical data

Published technical data for 7 inch LVDS TFT-LCD Display 1024x600
ItemContentsUnit
ModelFZ7001L40—
LCD TypeTFT/
Viewing DirectionALLO' Clock
Size7 inchinch
Module Outline (W x HxD)165(H) ×100(V) × 3.5(T)mm
Active Area (WxH)154.2144(H) *85.92(V)mm
Resolution (pixels)1024*600/
Interface TypeLVDS/
Input Voltage3.3V
Luminance260cd/m2
Backlight Type And Color:3*6 chips white LEDS—
Controller IC:HX8282/HX8696—
Touch Type:CTP (capacitive touch panel)—
LED Life span:25000hour
Operating Temperature Range:-20 -- 70 °C—
Storage Temperature Range:-30 -- 80 °C—

Published technical data

Published technical data for 7 inch LVDS TFT-LCD Display 1024x600
P arameterSymbolValuesUnitRemarkColumn 6
Min.Typ.Max.———
Digital supply voltageVDD33.33.6V
Analog supply voltageAVDD-10.0-V
TFT Gate ON VoltageVGH-18-V
TFT Gate OFF VoltageVGL--6-V
TFT Common Electrode VoltageVCOM3.13.2-3.3V

Published technical data

Published technical data for 7 inch LVDS TFT-LCD Display 1024x600
ItemSymbolValuesUnitRemarkColumn 6
Min.Typ.Max.———
Current for DriverIGH-0.5010mA
IGL-0.5010mA—
IVDD-35140mA—
IAVDD-3570mA—

Published technical data

Published technical data for 7 inch LVDS TFT-LCD Display 1024x600
ItemSymbolMinTypMaxUnitCondition
Forward voltageVf-9.0-VIf= 1 2 0 mA
LuminanceLv-260-cd/m2If= 1 2 0 mA
Number of LED--18Piece--——
Connection modeP3chips serial *6----——

Published technical data

Published technical data for 7 inch LVDS TFT-LCD Display 1024x600
Pin.NoSymbolFunction
1VCOMCommon Voltage
2-3VDDPower ground
4NCNC
5RESETGloble reset pin
6U/DVertical inversion
7L/RHorizontal inversion
8STBYBStandby mode,Normally pulled high STBYB=”1”,normal operation STBYB=”0”,timing controller,source driver will turn off,all output are High-Z
9GNDGround
10RXCLKIN--LVDS differential clock input
11RXCLKIN++LVDS differential clock input
12GNDGround
13RXIN0--LVDS differential data input
14RXIN0++LVDS differential data input
15GNDGround
16RXIN1--LVDS differential data input
17RXIN1++LVDS differential data input
18GNDGround
19RXIN2--LVDS differential data input
20RXIN2++LVDS differential data input
21GNDGround
22RXIN3--LVDS differential data input
23RXIN3++LVDS differential data input
24GNDGround
25SELB6bit/8bit mode select
26GNDGround
27AVDDPower for Anglog Circuit
28GNDGround
29VGHGete ON Voltage
30-31NCNC
32VGLGete OFF Voltage
33GNDGround
34NCNC
35-36LED-LED Cathode
37-38NCNC
39-40LED+LED Anode

Published technical data

Published technical data for 7 inch LVDS TFT-LCD Display 1024x600
ParameterPublished valueNotes
1RSTTouch Reset Signal
2VDDTouch Power supply
3GNDGround
4INTTouch Interrupt
5SDAouch IIC Data signal
6SCATouch IIC Clock signal
Design-in review

Move from a catalog match to a controlled sample evaluation.

Format and image area

Published screen size: 7 inch. Resolution: 1024*600. Module dimensions: 165(H) ×100(V) × 3.5(T). Active area: 154.2144(H) *85.92(V).

Electrical connection

Published interface: LVDS. Driver IC: HX8282/HX8696. Backlight: 3*6 chips white LEDS.

Optical and front assembly

Published touch information: CTP (capacitive touch panel). Brightness: 260. Viewing angle: ALL. Operating temperature: -20 -- 70 °C.

Configuration discussion

Define the requirements that the catalog record cannot decide alone.

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements
  • Review interface, connector and FPC alignment against the host electronics.
  • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
  • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product FAQ

Planning the next engineering step.

Answers stay within the published record and the information needed for a useful RFQ.

Which product details should be confirmed before design-in?

Confirm the final drawing, interface and pin assignment, connector or FPC, touch stack, optical target and operating environment against the supplied sample and approved documentation.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
