Model no.FZ005HPC02

5-Inch 800x480 LVDS Touch TFT-LCD

FZ005HPC02 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 800x 480pixels. This product accords with RoHS environmental criterion.

  • TFT TRANSMISSIVE
  • LVDS
  • CTP (capacitive touch panel)
Screen Size
5
Resolution
800(RGB) x480
Technology
TFT TRANSMISSIVE
Interface
LVDS
Touch
Capacitive touch
Viewing Direction
ALL
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm the complete model and touch assembly against the latest Fuzheng specification when requesting a sample.

Product overview

FZ005HPC02 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 800x 480pixels. This product accords with RoHS environmental criterion.

Confirm the FZ005HPC02 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 5-Inch 800x480 LVDS Touch TFT-LCD
    SpecificationPublished value
    Screen Size 5
    Resolution 800(RGB) x480
    Technology TFT TRANSMISSIVE
    Interface LVDS
    Touch CTP (capacitive touch panel)
    Brightness 500
    Viewing Direction ALL
    Driver IC ST7262
    Backlight 7 *1chips white LED / 6*2chips white LEDMultiple source entries — confirm the selected value.
    Module Dimensions 120.7 x75.8x3.0
    Active Area 108.0x64.8
    Input Voltage 3.3
    Operating Temperature -20 -- 70 °C
    Storage Temperature -30 -- 80 °C
    Model FZ005HPC02
    LED Life Span 5000

    Mechanical fit

    Screen Size
    5
    Module Dimensions
    120.7 x75.8x3.0
    Active Area
    108.0x64.8

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Confirm the complete model and touch assembly against the latest Fuzheng specification when requesting a sample.

    Published technical data

    Published technical data for 5-Inch 800x480 LVDS Touch TFT-LCD
    ItemContentsUnit
    ModelFZ005HPC02—
    LCD TypeTFT TRANSMISSIVE/
    Viewing DirectionALLO' Clock
    Size5—
    Module Outline (W x HxD)120.7 x75.8x3.0mm
    Active Area (WxH)108.0x64.8mm
    Resolution (pixels)800(RGB) x480/
    Backlight Type7 *1chips white LED/
    Interface TypeLVDS/
    Input Voltage3.3V
    Luminance500cd/m2
    Backlight Type and Color:6*2chips white LED—
    Controller IC:ST7262—
    Touch Type:CTP (capacitive touch panel)—
    LED Life Span:5000hour
    Operating Temperature Range:-20 -- 70 °C—
    Storage Temperature Range:-30 -- 80 °C—

    Published technical data

    Published technical data for 5-Inch 800x480 LVDS Touch TFT-LCD
    Pin.NoSymbolFunction
    1NCNC
    2VDDPower ground
    3VDDPower ground
    4NCNC
    5RESETGloble reset pin
    6STBYBStandby mode,Normally pulled high STBYB=”1”,normal operation STBYB=”0”,timing controller,source driver will turn off,all output are High-Z
    7GNDGround
    8RXIN0--LVDS differential data input
    9RXIN0++LVDS differential data input
    10GNDGround
    11RXIN1--LVDS differential data input
    12RXIN1++LVDS differential data input
    13GNDGround
    14RXIN2--LVDS differential data input
    15RXIN2++LVDS differential data input
    16GNDGround
    17RXCLKIN--LVDS differential clock input
    18RXCLKIN++LVDS differential clock input
    19GNDGround
    20RXIN3--LVDS differential data input
    21RXIN3++LVDS differential data input
    22GNDGround
    23NCNo connection
    24NCNo connection
    25GNDGround
    26NCNo connection
    27NCNC
    28SELB6bit/8bit mode select
    29NCNC
    30GNDGround
    31LED-LED Cathode
    32LED-LED Cathode
    33L/RHorizontal inversion
    34U/DVertical inversion
    35VGLGete OFF Voltage
    36NCNC
    37NCNC
    38VGHGete ON Voltage
    39LED+LED Anode
    40LED+LED Anode

    Published technical data

    Published technical data for 5-Inch 800x480 LVDS Touch TFT-LCD
    ParameterPublished valueNotes
    1RSTTouch Reset Signal
    2VDDTouch Power supply
    3GNDGround
    4INTTouch Interrupt
    5SDAouch IIC Data signal
    6SCATouch IIC Clock signal

    Interface & integration

    Connection information for FZ005HPC02
    ParameterSource value
    InterfaceLVDS
    TouchCTP (capacitive touch panel)
    Driver ICST7262
    Backlight7 *1chips white LED / 6*2chips white LED
    Input Voltage3.3

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 5. Resolution: 800(RGB) x480. Module dimensions: 120.7 x75.8x3.0. Active area: 108.0x64.8.

    Electrical connection

    Published interface: LVDS. Driver IC: ST7262. Backlight: 7 *1chips white LED / 6*2chips white LED.

    Optical and front assembly

    Published touch information: CTP (capacitive touch panel). Brightness: 500. Viewing direction: ALL. Operating temperature: -20 -- 70 °C.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

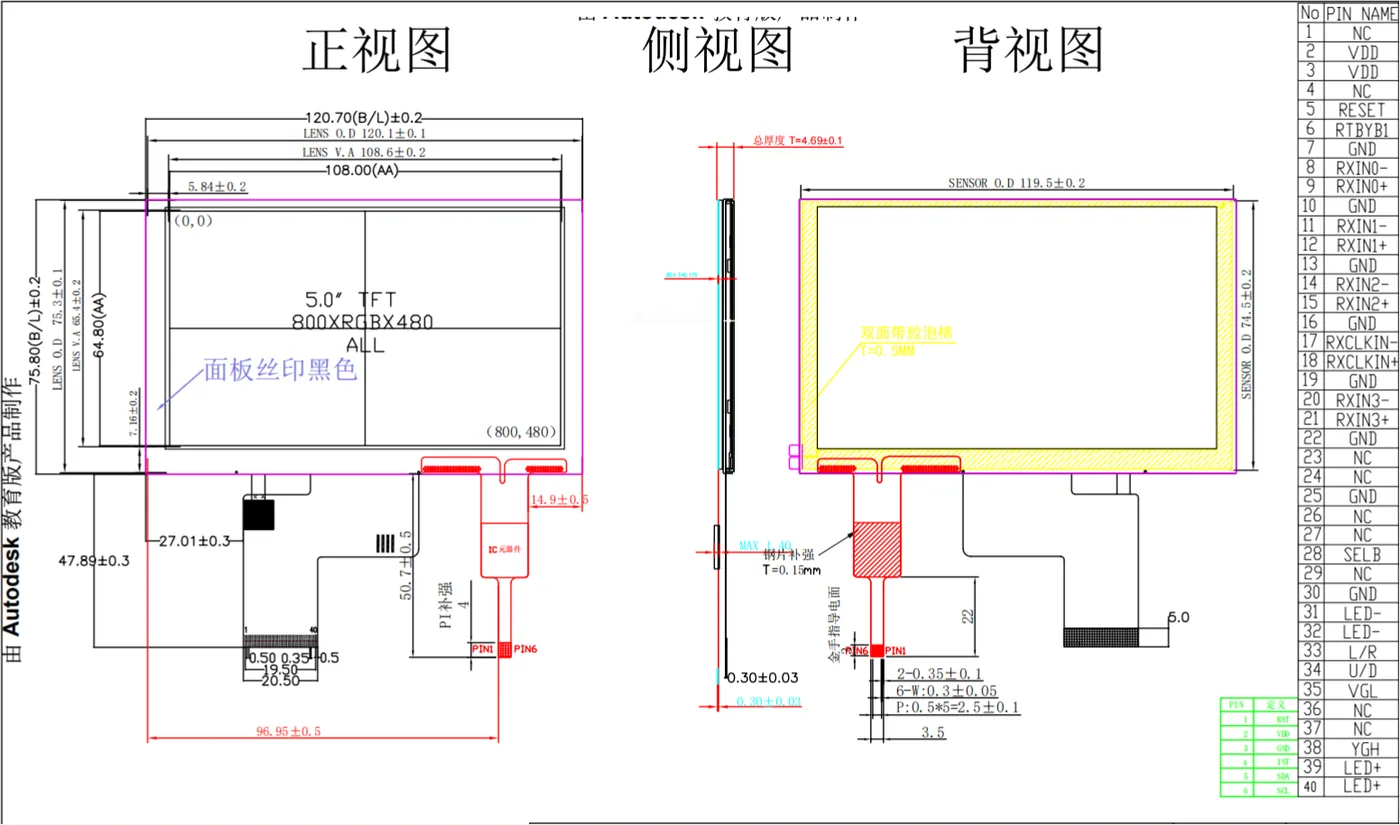

    FZ005HPC02 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

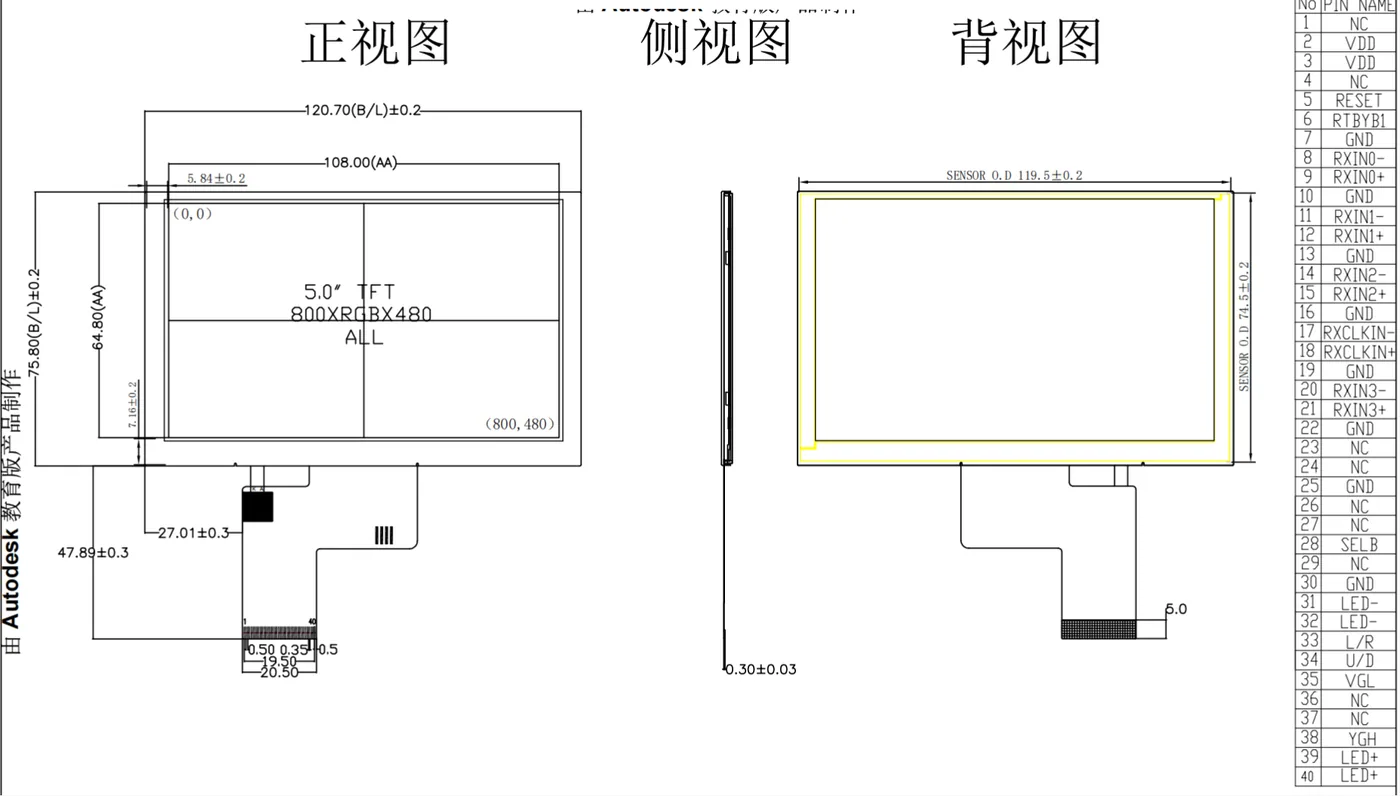

    FZ005HPC02 reference drawing 2Inspect drawing 2 ↗

    Reference drawing 2

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

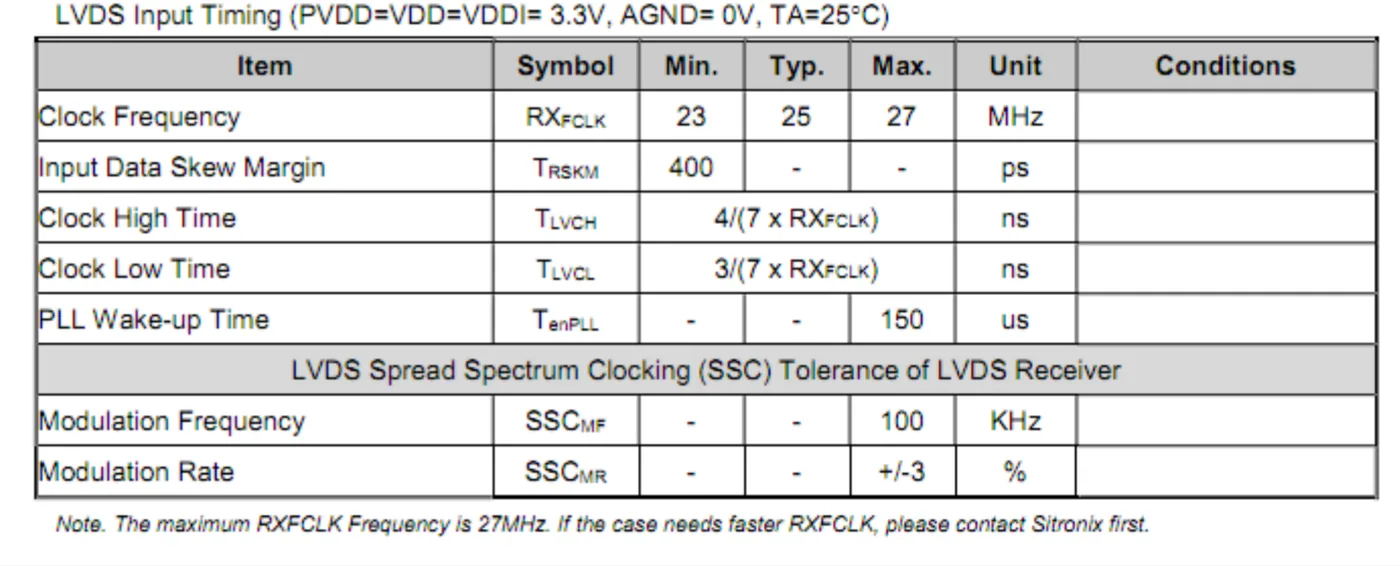

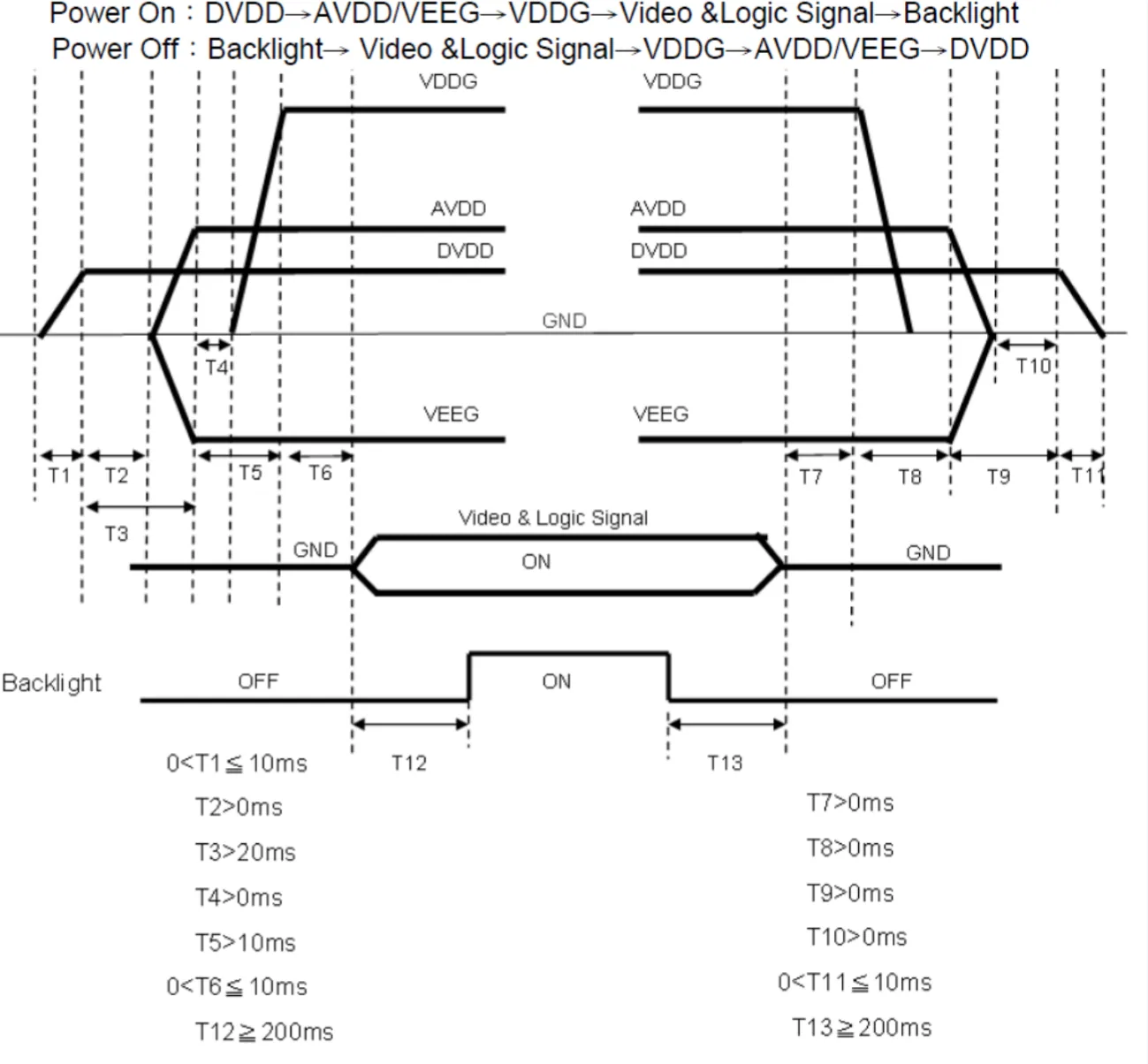

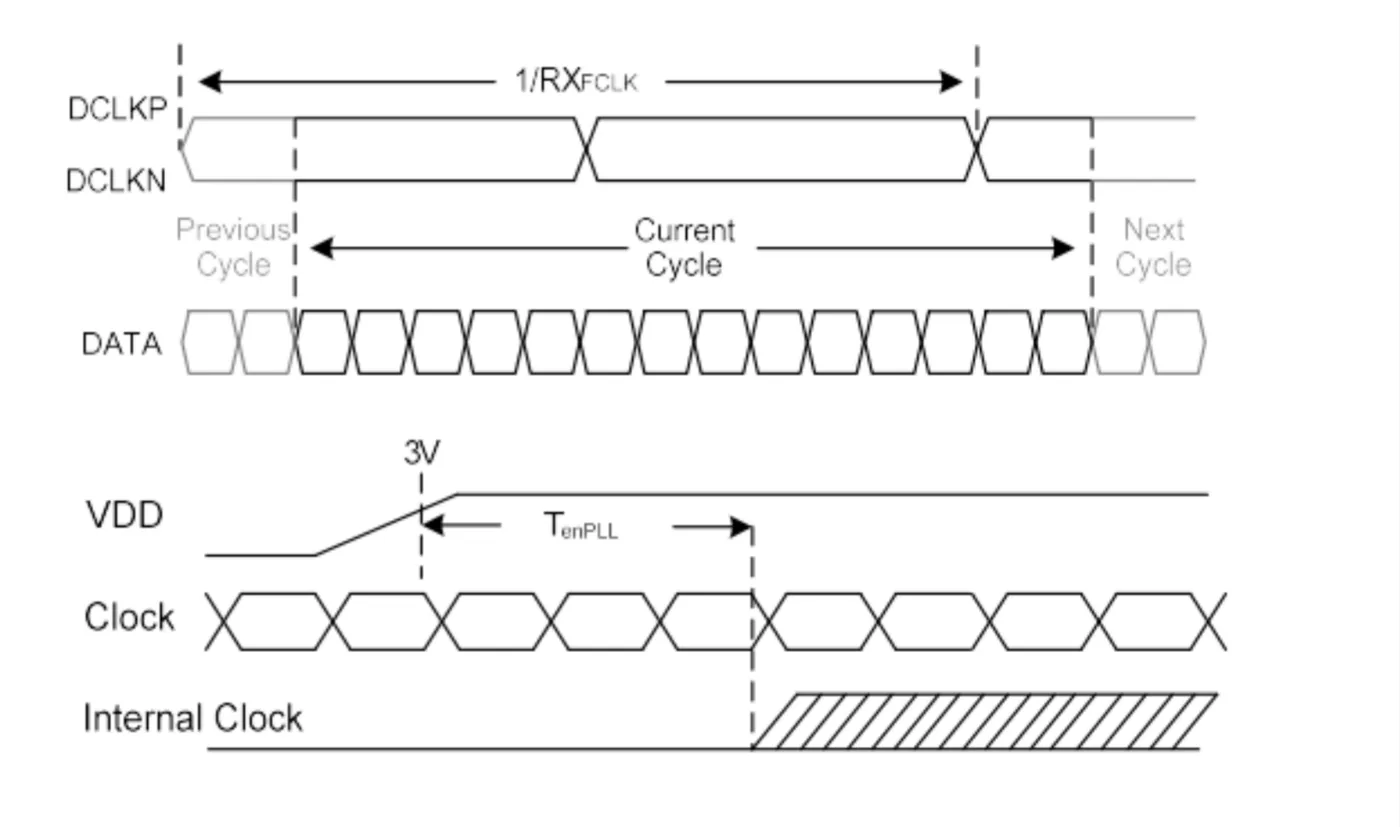

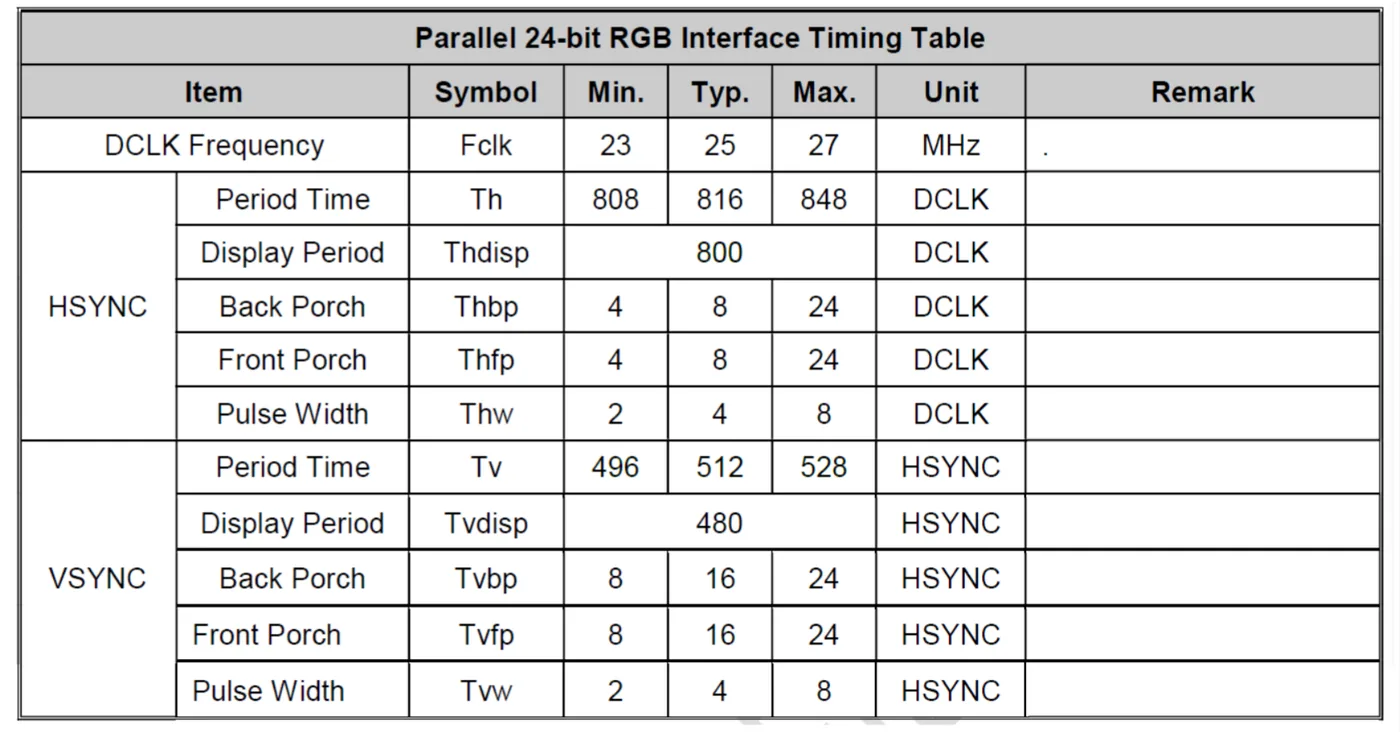

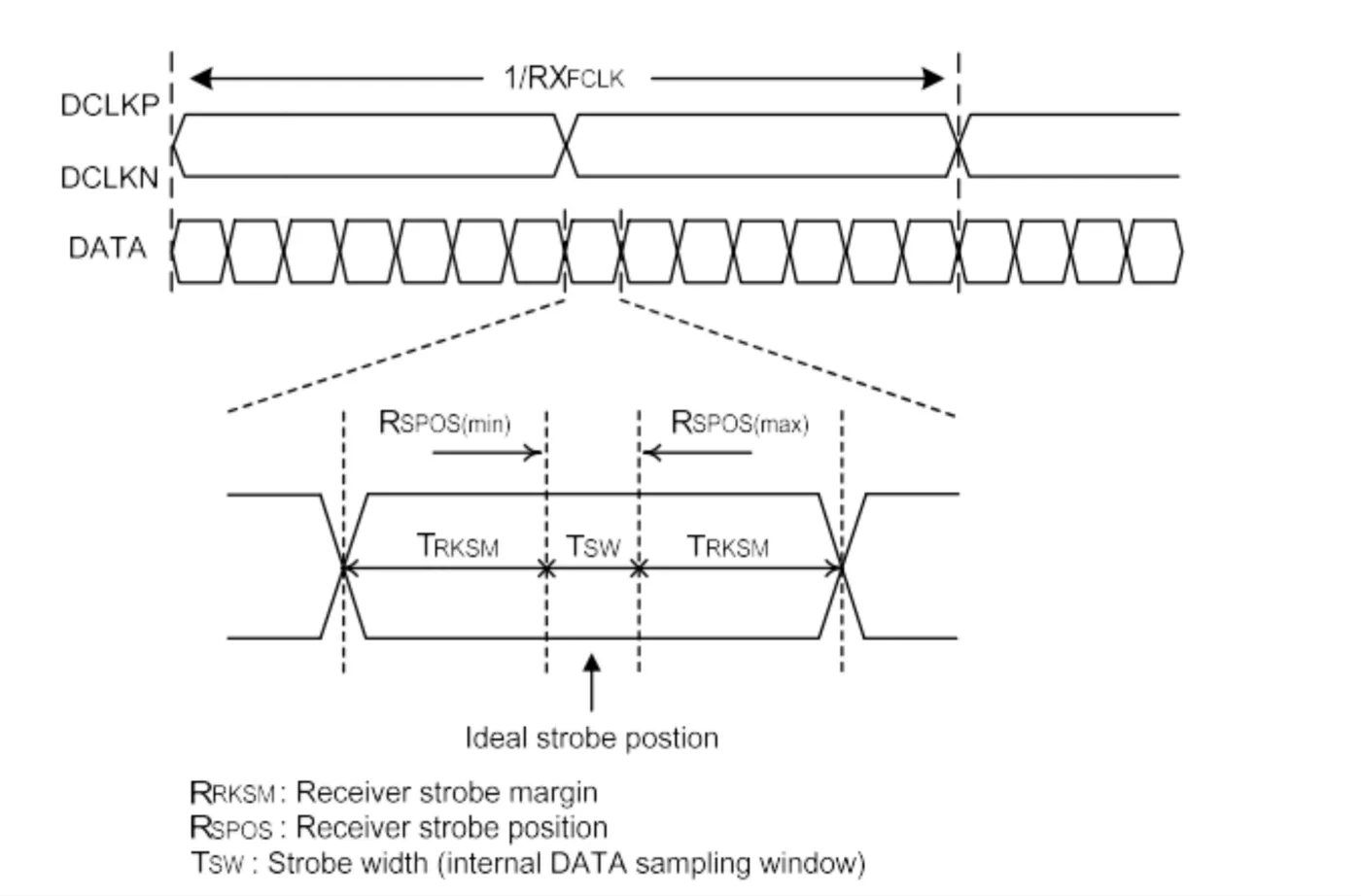

    Additional electrical references

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ005HPC02.

    What are the published specifications for FZ005HPC02?

    FZ005HPC02 currently publishes Screen Size: 5; Resolution: 800(RGB) x480; Technology: TFT TRANSMISSIVE; Interface: LVDS; Touch: Capacitive touch; Viewing Direction: ALL. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ005HPC02

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

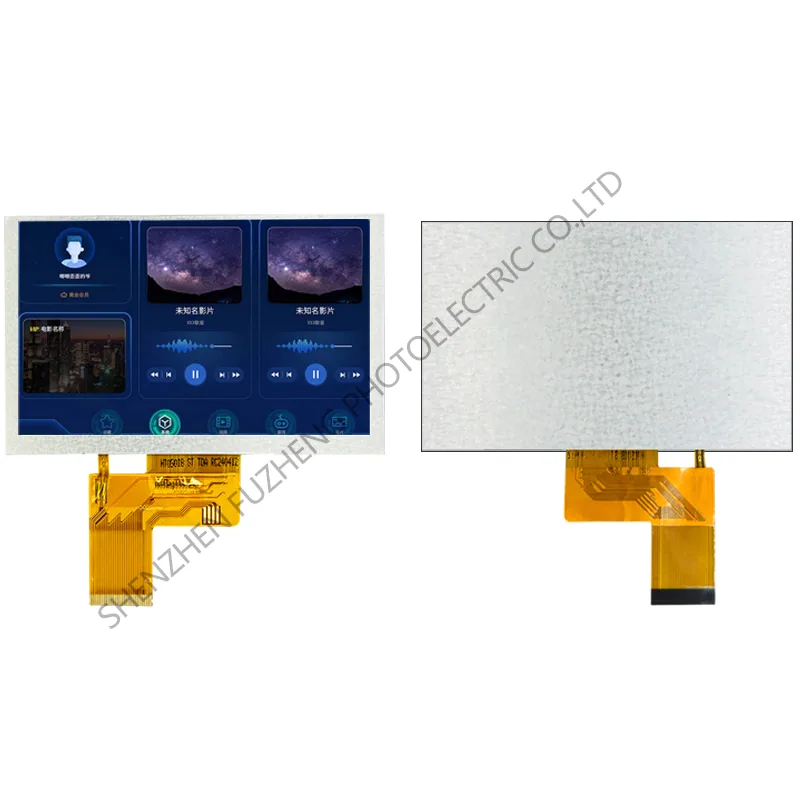

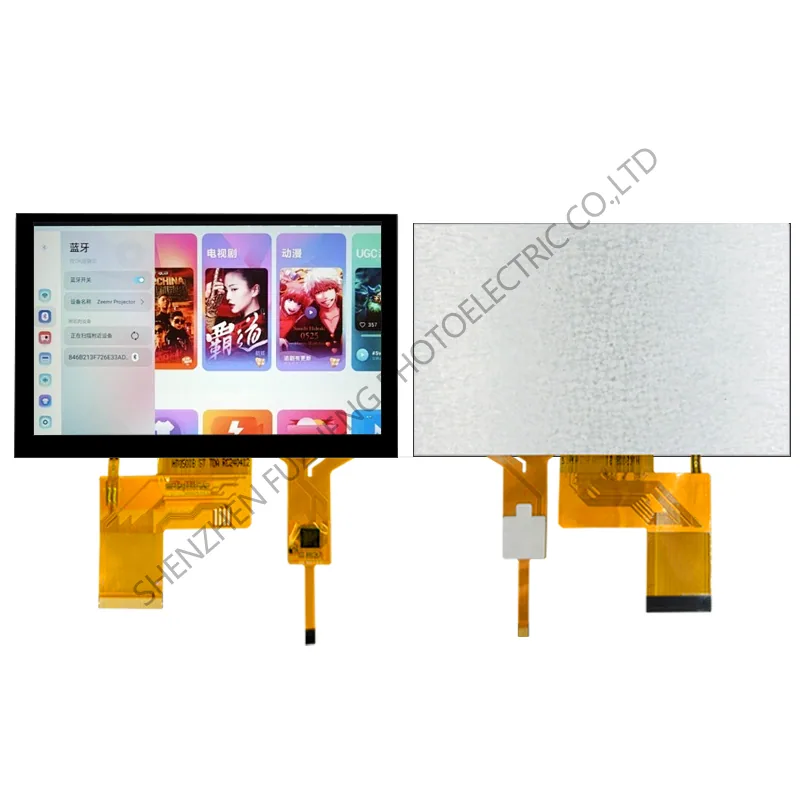

    5 inch 800*480, Full Viewing Angle, Lvds Interface product image
