0.49-Inch 64x32 OLED Micro Display Module

This 0.49 inch / 0.49" OLED Graphic OLED / Graphic record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

Graphic OLED / Graphic
I2C

Screen Size: 0.49 inch / 0.49" OLED
Resolution: 64 x 32 dot matrix
Technology: Graphic OLED / Graphic
Interface: I2C
Driver IC: SSD1306
Display Color: White / Yellow

Request a Quote Request a Sample

WhatsApp an Engineer

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Exact-record review: Source-matched media and published values remain attached to this product record.
Integration context: Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry: Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.

Product details

Review the module around published evidence.

This 0.49 inch / 0.49" OLED Graphic OLED / Graphic record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies 64 x 32 dot matrix resolution, I2C interface. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

Compact OLED modules in the current catalog for high-contrast embedded information and graphic display interfaces. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

Product views

Inspect the module from the available source imagery.

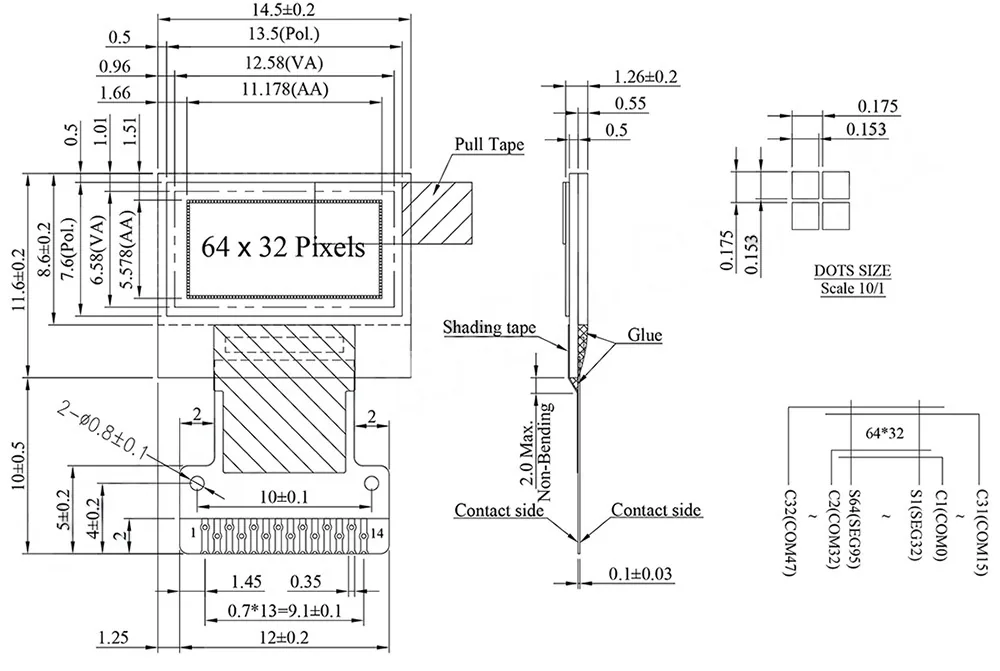

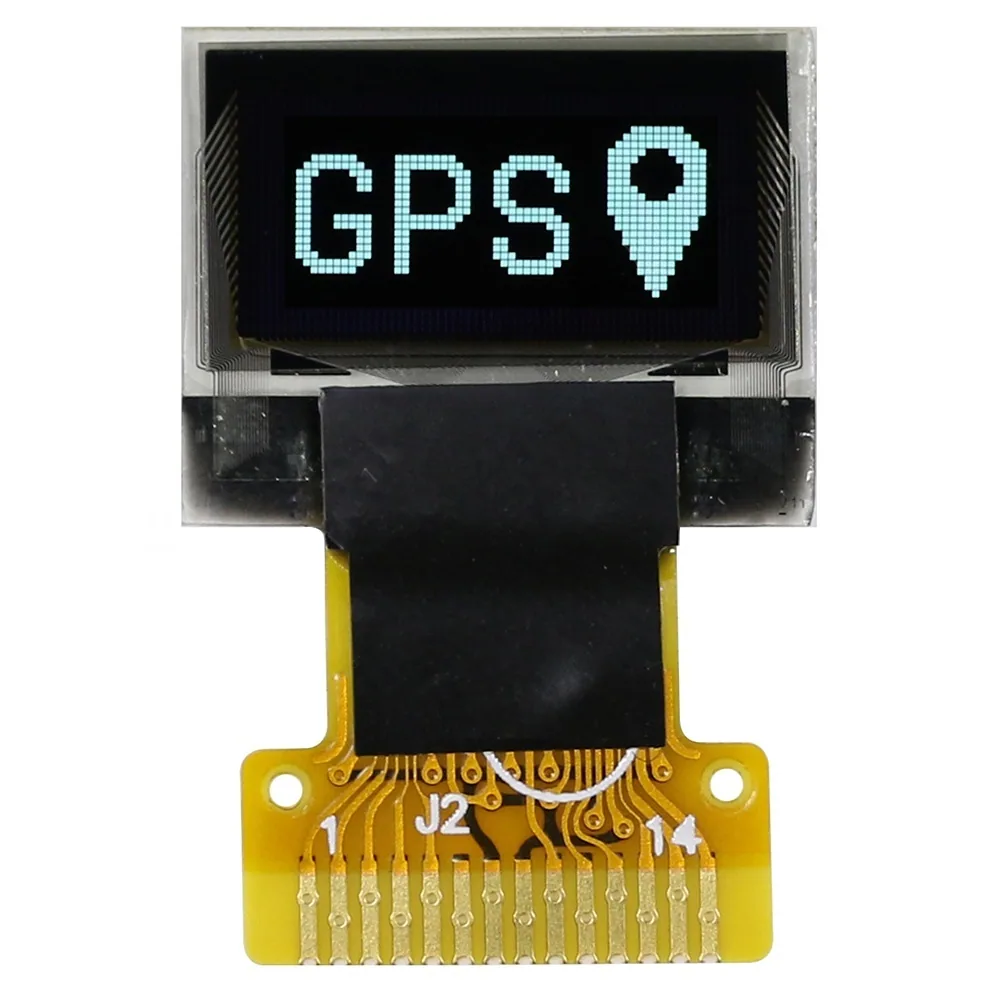

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

Published product data

Specifications in one consistent format.

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 0.49-Inch 64x32 OLED Micro Display Module
Specification	Published value	Review status
Screen Size	0.49 inch / 0.49" OLED	Multiple source values — confirm
Resolution	64 x 32 dot matrix	Current source record
Technology	Graphic OLED / Graphic	Multiple source values — confirm
Interface	I2C	Current source record
Driver IC	SSD1306	Current source record
Display Color	White / Yellow	Current source record
Structure	COG	Current source record
Power supply	3V	Current source record
Duty	1/32	Current source record

Published technical data

Published technical data for 0.49-Inch 64x32 OLED Micro Display Module
No.	Symbol	Function
1	C2N	C2P/C2N – Pin for charge pump capacitor; Connect to each other with a capacitor. C1P/C1N – Pin for charge pump capacitor; Connect to each other with a capacitor
2	C2P	—
3	C1P	—
4	C1N	—
5	VBAT	This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD or kept float when the converter is not used.
6	NC	No connection.
7	VSS	This is a ground pin.
8	VDD	Power supply pin for core logic operation.
9	RES#	This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation.
10	SCL	The serial clock input
11	SDA	The serial data input/output
12	IREF	This is segment output current reference pin. When external IREF is used, a resistor should be connected between this pin and Vss to maintain the IREF current at a maximum of 30uA. When internal IREF is used, this pin should be kept NC.
13	VCOMH	The pin for COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
14	VCC	This is the most positive voltage supply pin. When charge pump is enabled, a capacitor should be connected between this pin and VSS.

Design-in review

Move from a catalog match to a controlled sample evaluation.

Format and image area

Published screen size: 0.49 inch / 0.49" OLED. Resolution: 64 x 32 dot matrix.

Electrical connection

Published interface: I2C. Driver IC: SSD1306.

Optical and front assembly

Review touch, cover lens, brightness, viewing direction and operating environment as part of sample evaluation.

Configuration discussion

Define the requirements that the catalog record cannot decide alone.

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements

Review interface, connector and FPC alignment against the host electronics.
Discuss touch panel and cover lens requirements where the product design needs a front assembly.
Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product FAQ

Planning the next engineering step.

Answers stay within the published record and the information needed for a useful RFQ.

Which product details should be confirmed before design-in?

Confirm the final drawing, interface and pin assignment, connector or FPC, touch stack, optical target and operating environment against the supplied sample and approved documentation.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
