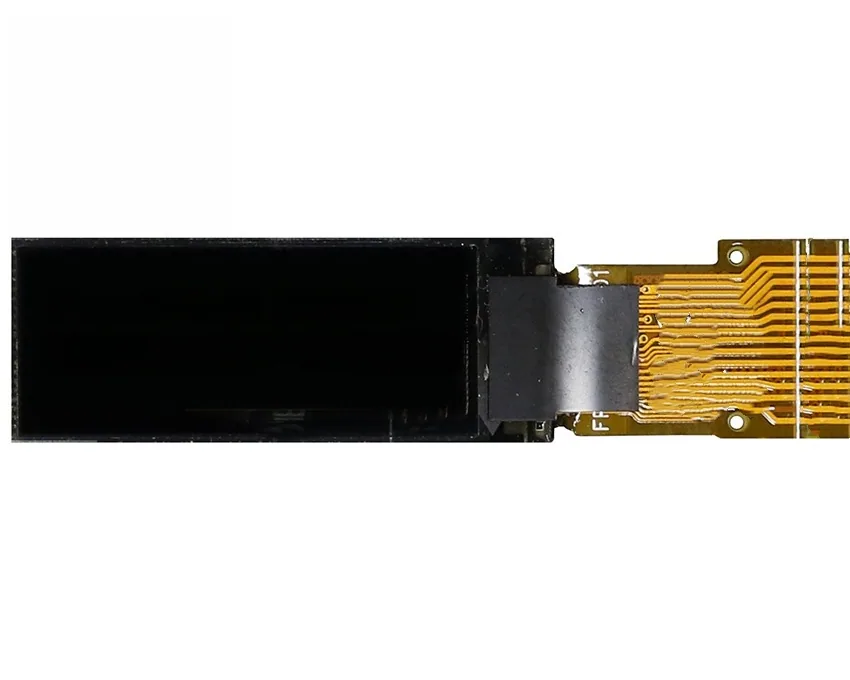

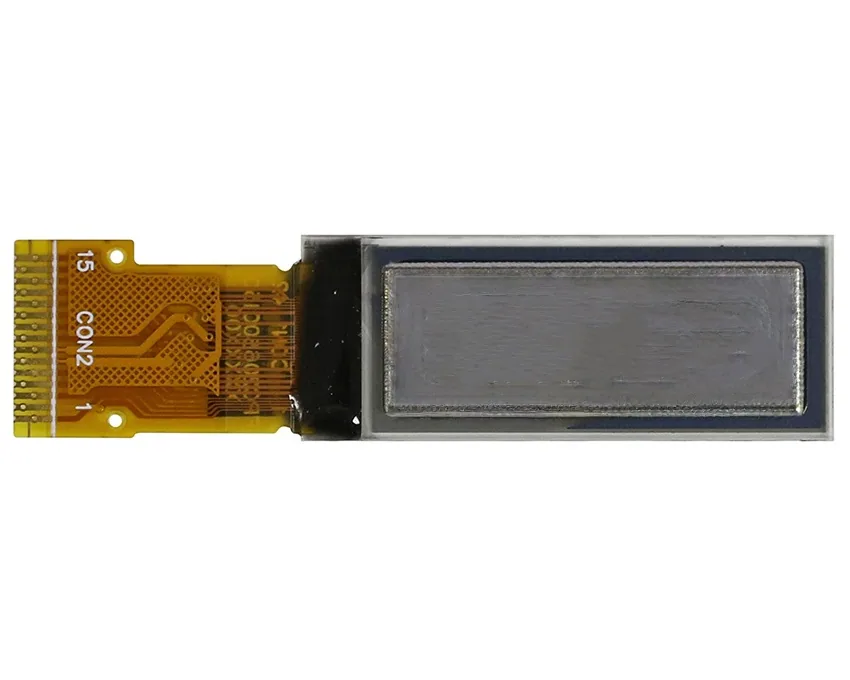

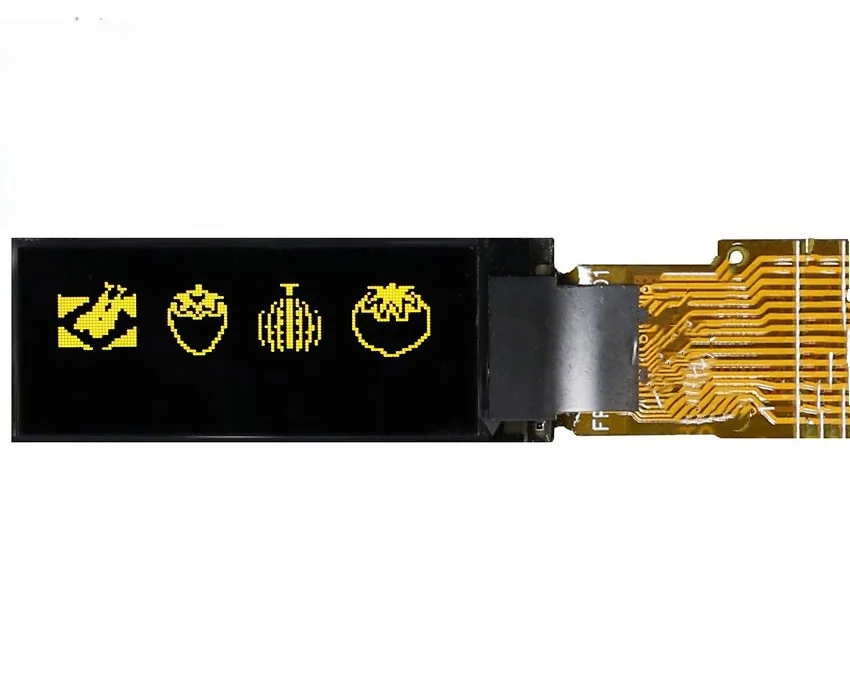

Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.FZ0091OLDK01
FZ0091OLDK01 0.91 inch 128x32 OLED Display
0.91-inch COG graphic OLED display with 128 x 32 resolution, SSD1306 driver IC, 3V power supply, and 4-wire SPI interface.
- Graphic OLED / Graphic
- 4-wire SPI / SPI
- Screen Size
- 0.91 inch
- Resolution
- 128 × 32
- Technology
- Graphic OLED
- Interface
- 4-wire SPI
Product overview
►Type: Graphic ►Structure: COG ►Size: 0.91" ►128x32 OLED Display ►IC:SSD1306 ►3V Power supply ►1/32 duty ►Interface: SPI ►Display Color: White / Yellow / Sky Blue ►Other FPC options available in below table
The 0.91 inch is one of the most popular sizes of COG OLED for wearable displays,Graphic COG 128x32 OLED display items no.It is also built-in SSD1306 driver IC; it communicates via 4-wire serial SPI interface only. This controller's built-in voltage generation only need a single 3V power supply is needed.0.91 OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. These COG 0.91 inch OLED resolution 128x32 modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, E-cigarette, MP3, IoT, etc. One of the significant advantages of COG structure is the FPC usually is bendable comparing to TAB OLED since the FPC is flexible and there is no chip on the FPC. Therefore, the customers have less limitation to design the displays on their applications.0.91 module supports internal Charge Pump supply and external VCC supply.
Confirm the FZ0091OLDK01 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Screen Size | 0.91 inch / 0.91"Multiple source entries — confirm the selected value. |
| Resolution | 128 x 32 |
| Technology | Graphic OLED / GraphicMultiple source entries — confirm the selected value. |
| Interface | 4-wire SPI / SPIMultiple source entries — confirm the selected value. |
| Driver IC | SSD1306 |
| Display Color | White / Yellow / Sky Blue |
| Structure | COG |
| Power supply | 3V |
| Duty | 1/32 |
Mechanical fit
- Screen Size
- 0.91 inch / 0.91"
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Published technical data
| No. | Symbol | Function |
|---|---|---|
| 1 | C2P | Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost CapacitorThe charge-pump capacitors are required between the terminals. They must be floated when the converter is not used. |
| 2 | C2N | — |
| 3 | C1P | — |
| 4 | C1N | — |
| 5 | VBAT | Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used. |
| 6 | VSS | Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground. |
| 7 | VDD | Power Supply for Logic This is a voltage supply pin. It must be connected to external source. |
| 8 | CS# | Chip Select This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low. |
| 9 | RES# | Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed. |
| 10 | D/C# | Data/Command Control This pin is Data/Command control pin.. When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. |
| 11 | SCLK | When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. |
| 12 | SDIN | — |
| 13 | IREF | Current Reference for Brightness Adjustment This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 30uA. |
| 14 | VCOMH | Voltage Output High Level for COM Signal This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS. |
| 15 | VCC | Power Supply for OEL Panel This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used |
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | 4-wire SPI / SPI |
| Driver IC | SSD1306 |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Published screen size: 0.91 inch / 0.91". Resolution: 128 x 32.
Electrical connection
Published interface: 4-wire SPI / SPI. Driver IC: SSD1306.
Optical and front assembly
Review touch, cover lens, brightness, viewing direction and operating environment as part of sample evaluation.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.

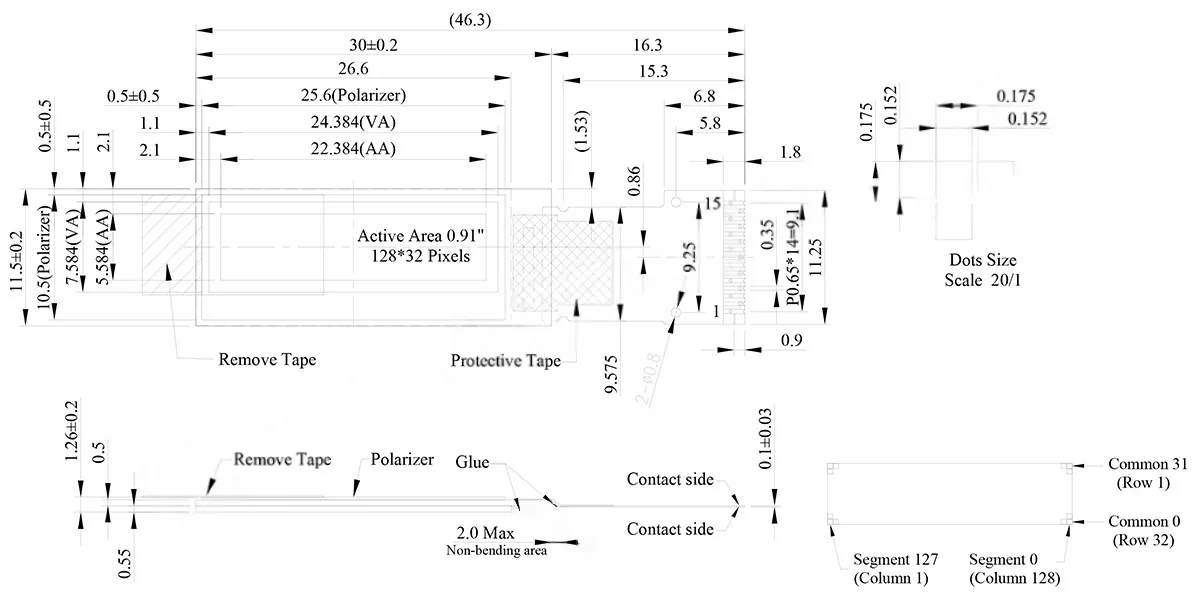

Inspect drawing 1 ↗Reference drawing 1
Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.
Download source drawing ↓Match the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZ0091OLDK01.
What are the published specifications for FZ0091OLDK01?
FZ0091OLDK01 currently publishes Screen Size: 0.91 inch; Resolution: 128 × 32; Technology: Graphic OLED; Interface: 4-wire SPI. Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
