Model no.FZ0066OLDK01

FZ0066OLDK01 0.66-Inch OLED Display

0.66-inch COG graphic OLED module with a 64 x 48 dot matrix, SSD1315 driver IC, 3V power supply, and multiple interface options.

  • Graphic OLED / Graphic
  • 6800, 8080, 4-wire SPI, I2C
Screen Size
0.66 inch
Resolution
64 × 48 dot matrix
Technology
Graphic OLED
Interface
6800, 8080, 4-wire SPI, I2C
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

►0.66 inch OLED ►Type: Graphic ►Structure: COG ►64 x 48 Dot Matrix ►IC:SSD1315 ►3V Power supply ►1/48 duty ►Interface: 6800, 8080, 4-Wire SPI, I2C ►Display Color: White / Yellow

The 0.66 OLED model is a consumer-grade COG OLED display with a 0.66-inch diagonal size and a resolution of 64x48 dots. This OLED module is integrated with the SSD1315 IC and supports multiple interfaces, including 6800, 8080, 4-wire SPI, and I2C. The supply voltage for logic is 3V, while the display supply voltage is 7.5V. The typical current for the display, with a 50% checkboard pattern, is 3mA at 7.5V VCC, with a driving duty of 1/48. The module also supports both internal Charge Pump supply and external VCC supply.

This model is suitable for a wide range of consumer applications, including Bluetooth speakers and amplifiers, USB devices, portable gadgets, health monitoring devices, digital meters, and instruments. It operates within a temperature range of –30℃ to +70℃, and its storage temperature range is –30℃ to +70℃.

Confirm the FZ0066OLDK01 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for FZ0066OLDK01 0.66-Inch OLED Display
    SpecificationPublished value
    Screen Size 0.66 inch
    Resolution 64 x 48 dot matrix
    Technology Graphic OLED / GraphicMultiple source entries — confirm the selected value.
    Interface 6800, 8080, 4-wire SPI, I2C
    Driver IC SSD1315
    Display Color White / Yellow
    Structure COG
    Power supply 3V
    Duty 1/48

    Mechanical fit

    Screen Size
    0.66 inch

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

    Interface & integration

    Connection information for FZ0066OLDK01
    ParameterSource value
    Interface6800, 8080, 4-wire SPI, I2C
    Driver ICSSD1315

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 0.66 inch. Resolution: 64 x 48 dot matrix.

    Electrical connection

    Published interface: 6800, 8080, 4-wire SPI, I2C. Driver IC: SSD1315.

    Optical and front assembly

    Review touch, cover lens, brightness, viewing direction and operating environment as part of sample evaluation.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

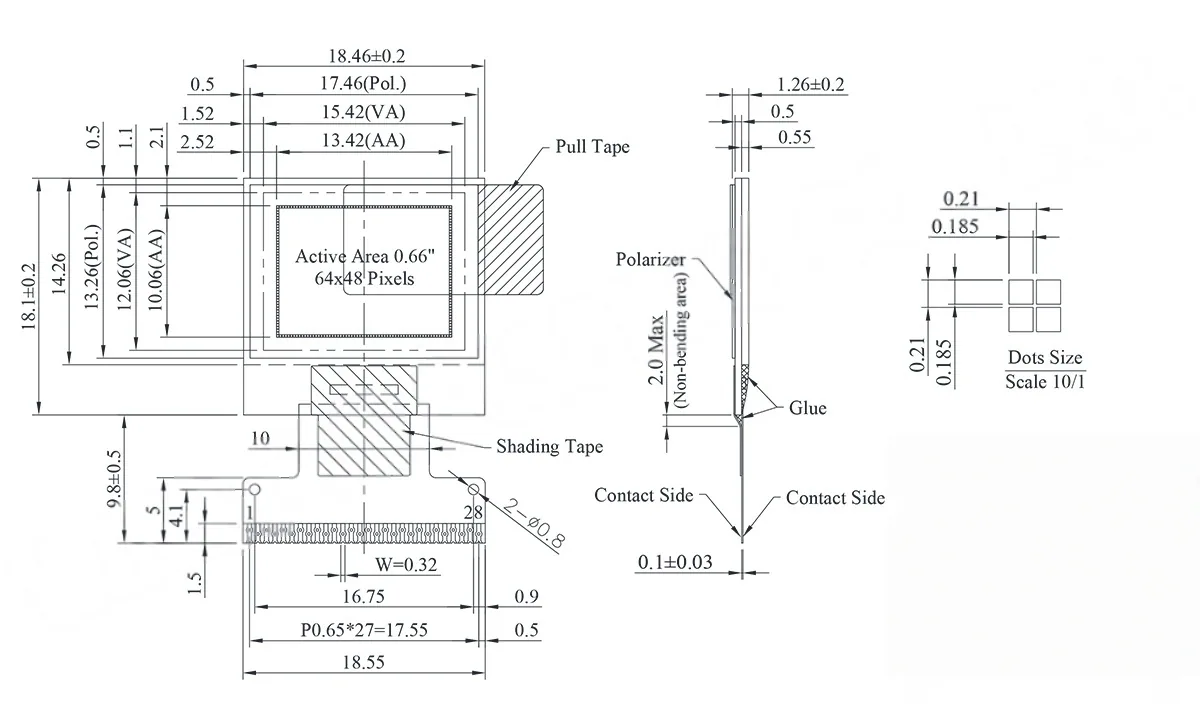

    FZ0066OLDK01 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ0066OLDK01.

    What are the published specifications for FZ0066OLDK01?

    FZ0066OLDK01 currently publishes Screen Size: 0.66 inch; Resolution: 64 × 48 dot matrix; Technology: Graphic OLED; Interface: 6800, 8080, 4-wire SPI, I2C. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ0066OLDK01

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

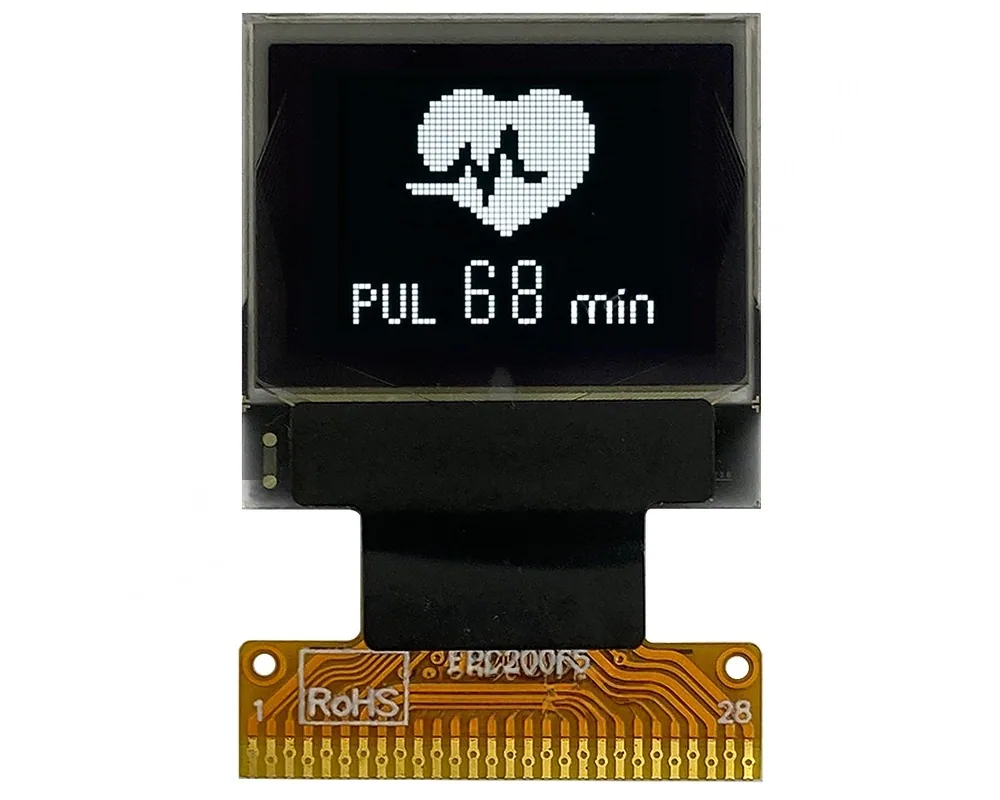

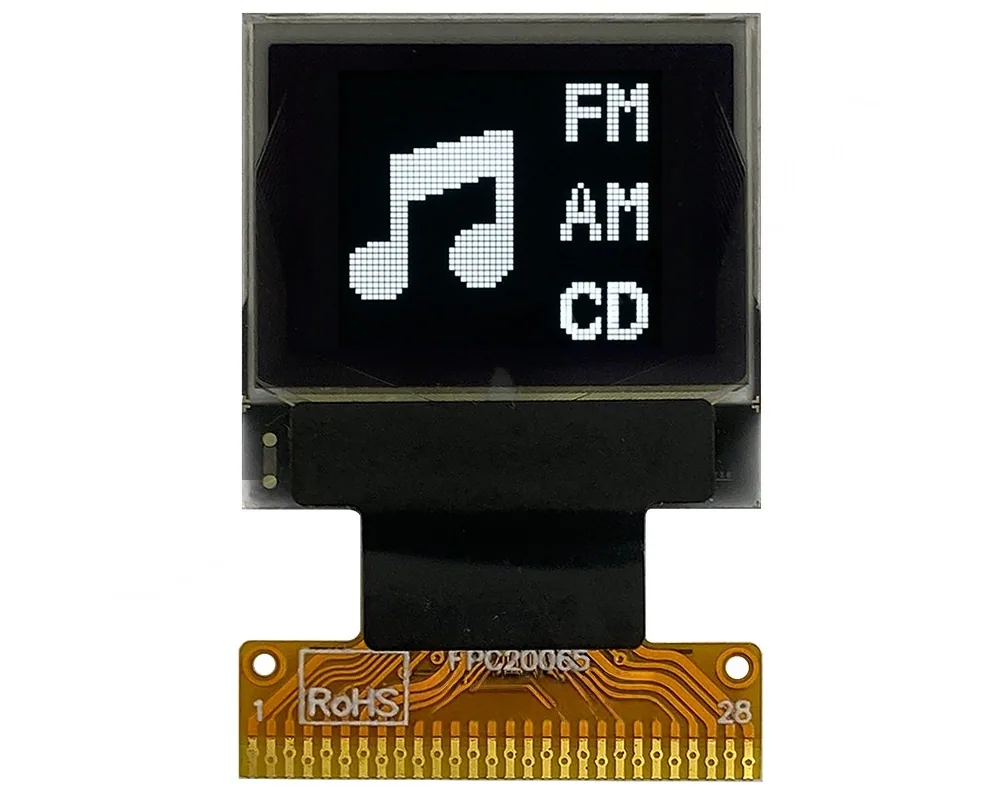

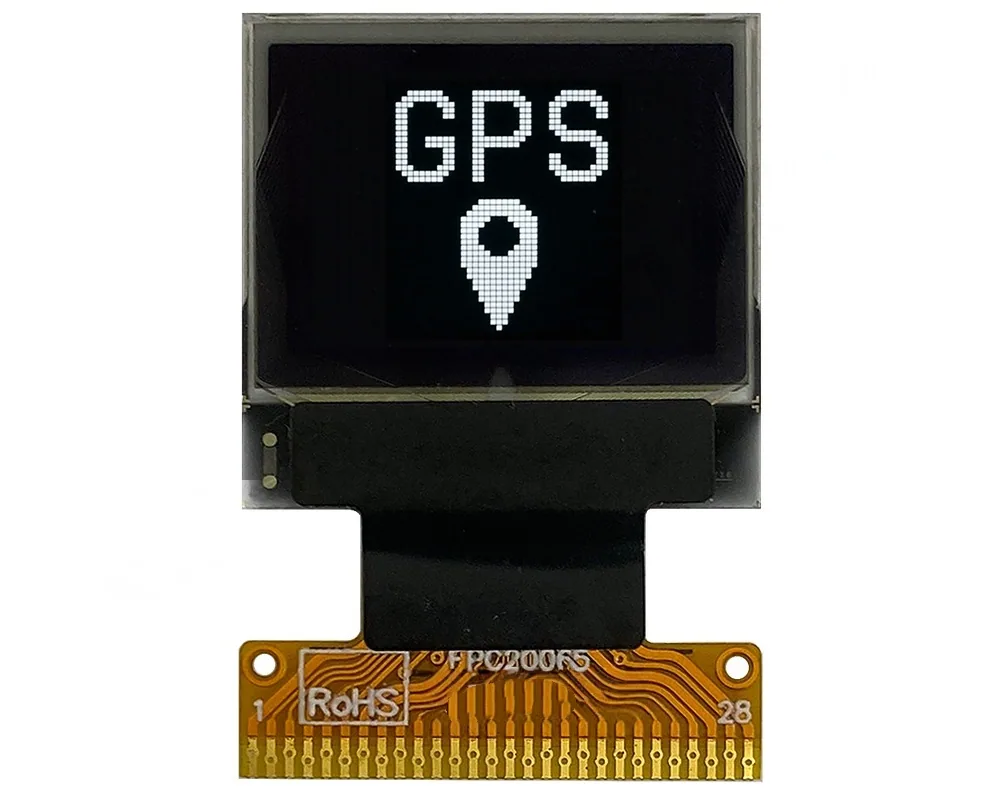

    0.66-Inch OLED Display product image
