Model no.FZ801A46
8.01 inch 2480x1860 Flexible AMOLED Display with CTP — FZ801A46 (RM69380 + FT3881, MIPI, 46-pin)
FZ801A46 — 8.01 inch 2480x1860 (~2K) Flexible AMOLED Display with CTP, RM69380 driver + FT3881 touch IC, MIPI DSI 4-lane, 46-pin snap-fit, 0.2 mm ultra-thin polyimide panel. Ideal for high-end HMI, e-reader, wearable, smart home, AR/VR, industrial design. Factory price, OEM/ODM.
- AMOLED (Active-Matrix Organic Light-Emitting Diode)
- MIPI DSI 4-lane
- Yes — CTP with Focaltech FT3881 touch IC, IIC (I2C) interface
- 8.01 inch Flexible AMOLED, 2480x1860 ~2K resolution, 4:3 aspect
- AMOLED self-emissive technology — true blacks, infinite contrast, wide color gamut
- Flexible polyimide substrate — only 0.2 mm thick, can bend to specified radius
- ~325 PPI pixel density (0.0656 x 0.0656 mm square pixels) — sharp text and graphics
- MIPI DSI 4-lane high-speed serial interface (up to ~2.5 Gbps/lane)
- Screen Size
- 8.01 inch
- Resolution
- 2480 × 1860
- Technology
- AMOLED
- Interface
- MIPI DSI 4-lane
- Touch
- Capacitive touch
- Viewing Angle
- Full viewing angle
Product Overview
The FZ801A46 is a 8.01″ flexible AMOLED display module with a stunning 2480x1860 resolution (~2K-class) and 4:3 aspect ratio. The polyimide (flexible) substrate measures only 0.2 mm thick and uses a COP (Chip-On-Panel) Raydium RM69380 driver IC plus a Focaltech FT3881 touch IC on the FPC for the Direct On-cell Touch (DOT) capacitive touch panel. Driven over a MIPI DSI 4-lane high-speed serial interface, the panel delivers true blacks, infinite contrast, wide color gamut and ultra-fast response — all the benefits of AMOLED self-emissive technology. The flexible form factor opens up new industrial-design possibilities for curved surfaces, edge-to-edge device designs and ultra-thin products. The AMOLED panel eliminates the need for a backlight, dramatically reducing thickness and weight while improving energy efficiency. Ideal for high-end HMI, e-reader, wearable devices, smart home control panels, AR/VR peripherals and any premium product where image quality and design flexibility are paramount.
Key Features
- 8.01 inch Flexible AMOLED, 2480x1860 ~2K resolution, 4:3 aspect
- AMOLED self-emissive technology — true blacks, infinite contrast, wide color gamut
- Flexible polyimide substrate — only 0.2 mm thick, can bend to specified radius
- ~325 PPI pixel density (0.0656 x 0.0656 mm square pixels) — sharp text and graphics
- MIPI DSI 4-lane high-speed serial interface (up to ~2.5 Gbps/lane)
- Direct On-cell Touch (DOT) with FT3881 IIC touch IC — integrated capacitive touch
- RM69380 driver IC (COP — Chip-On-Panel) — minimal bezel, ultra-compact
- Operating temperature -20 ~ +70 °C

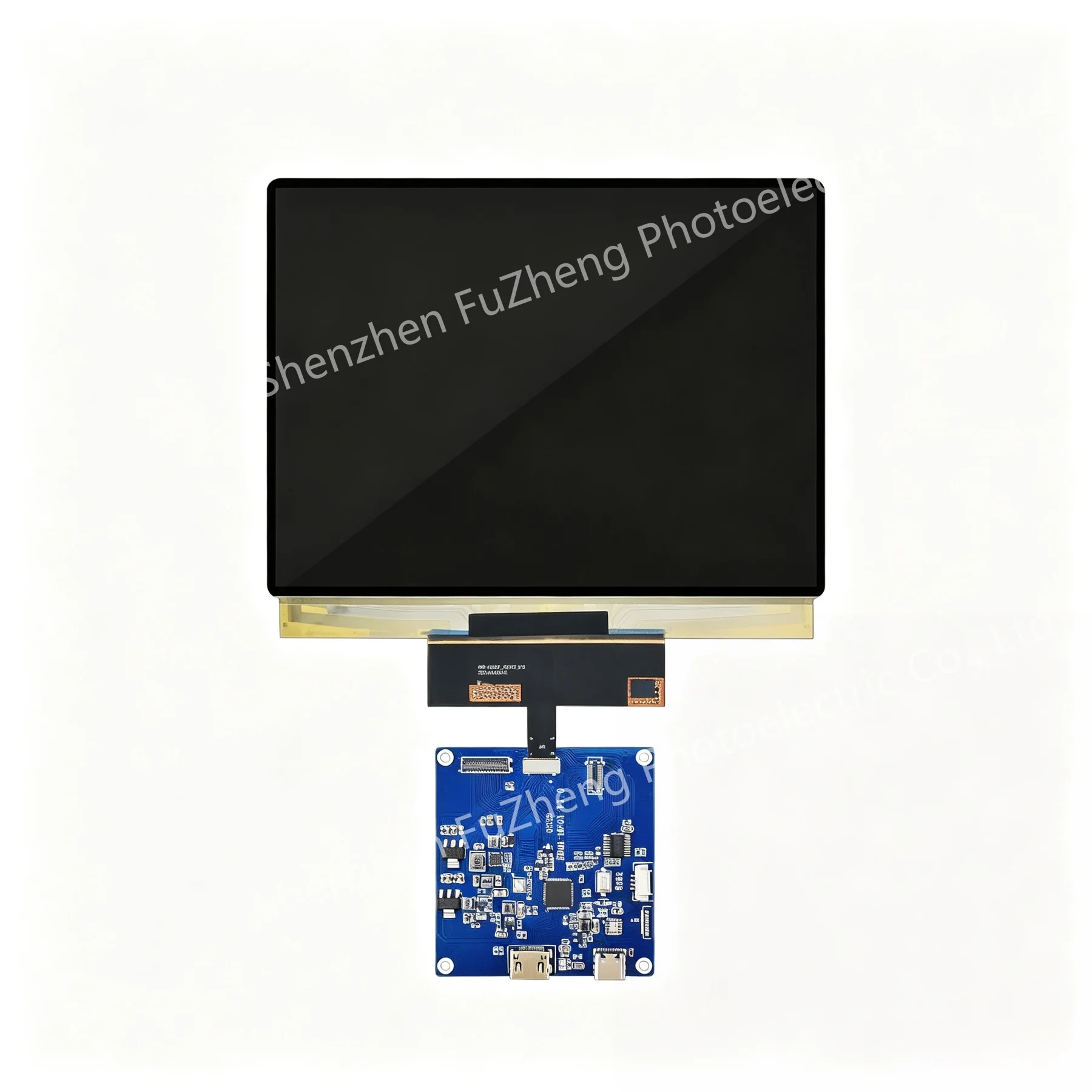

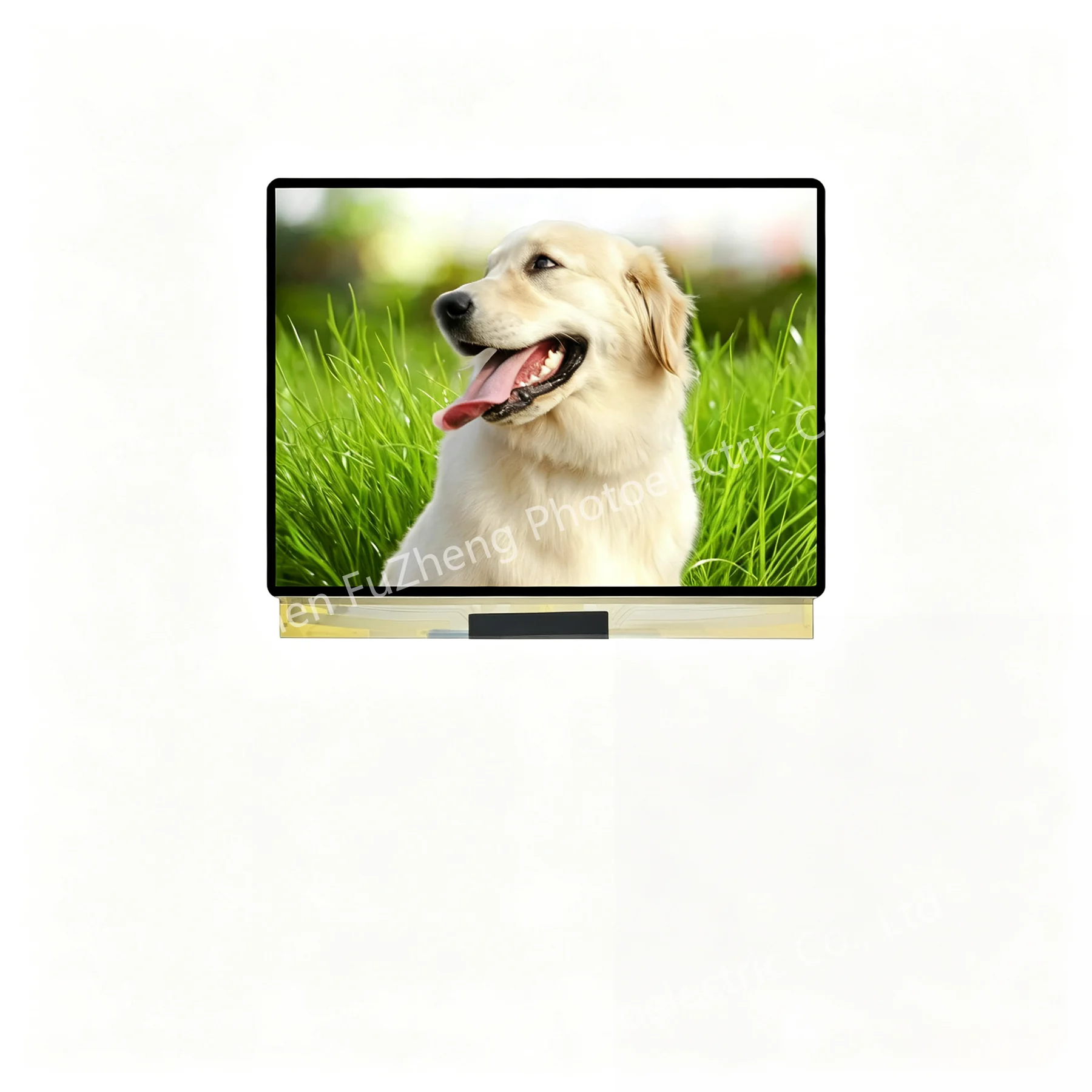

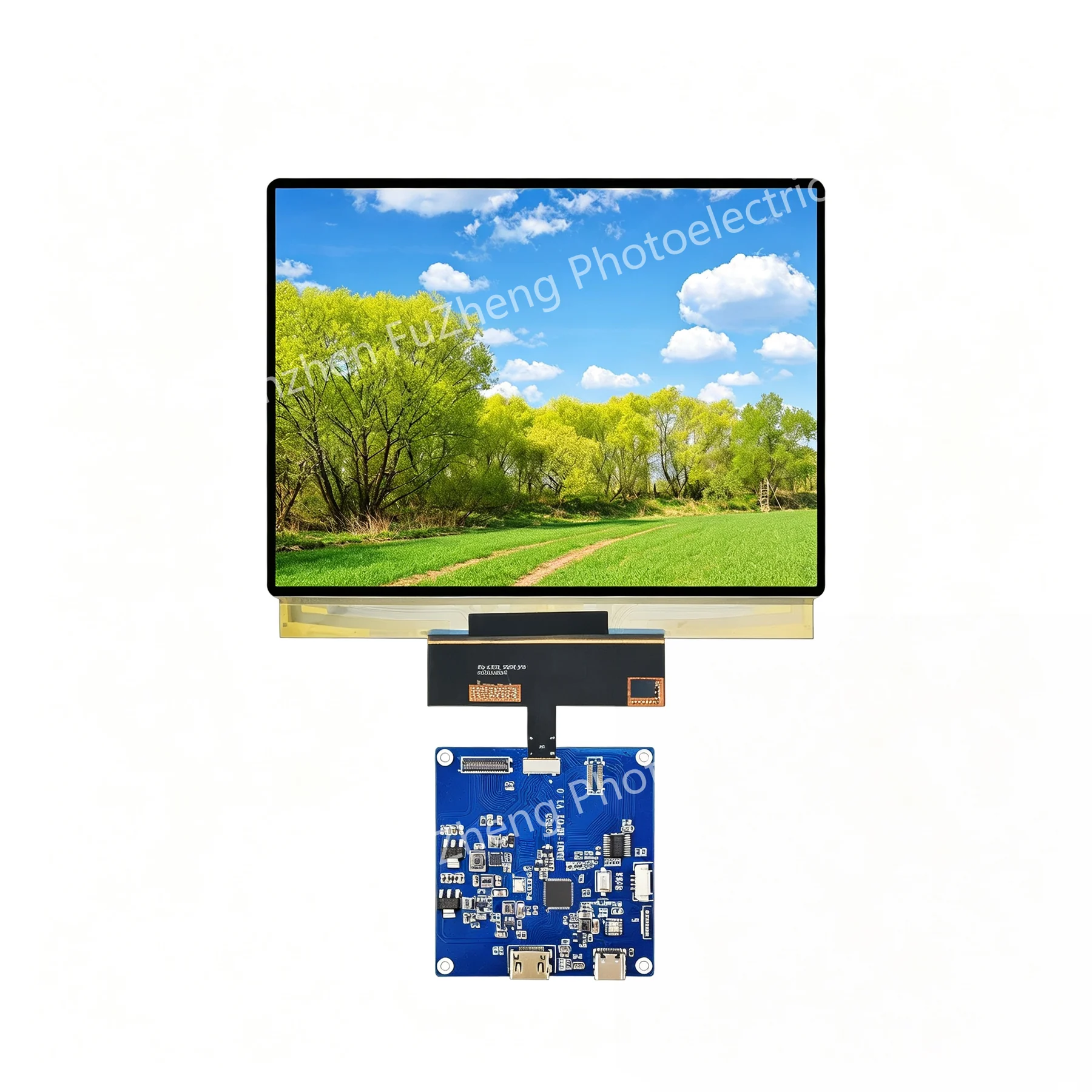

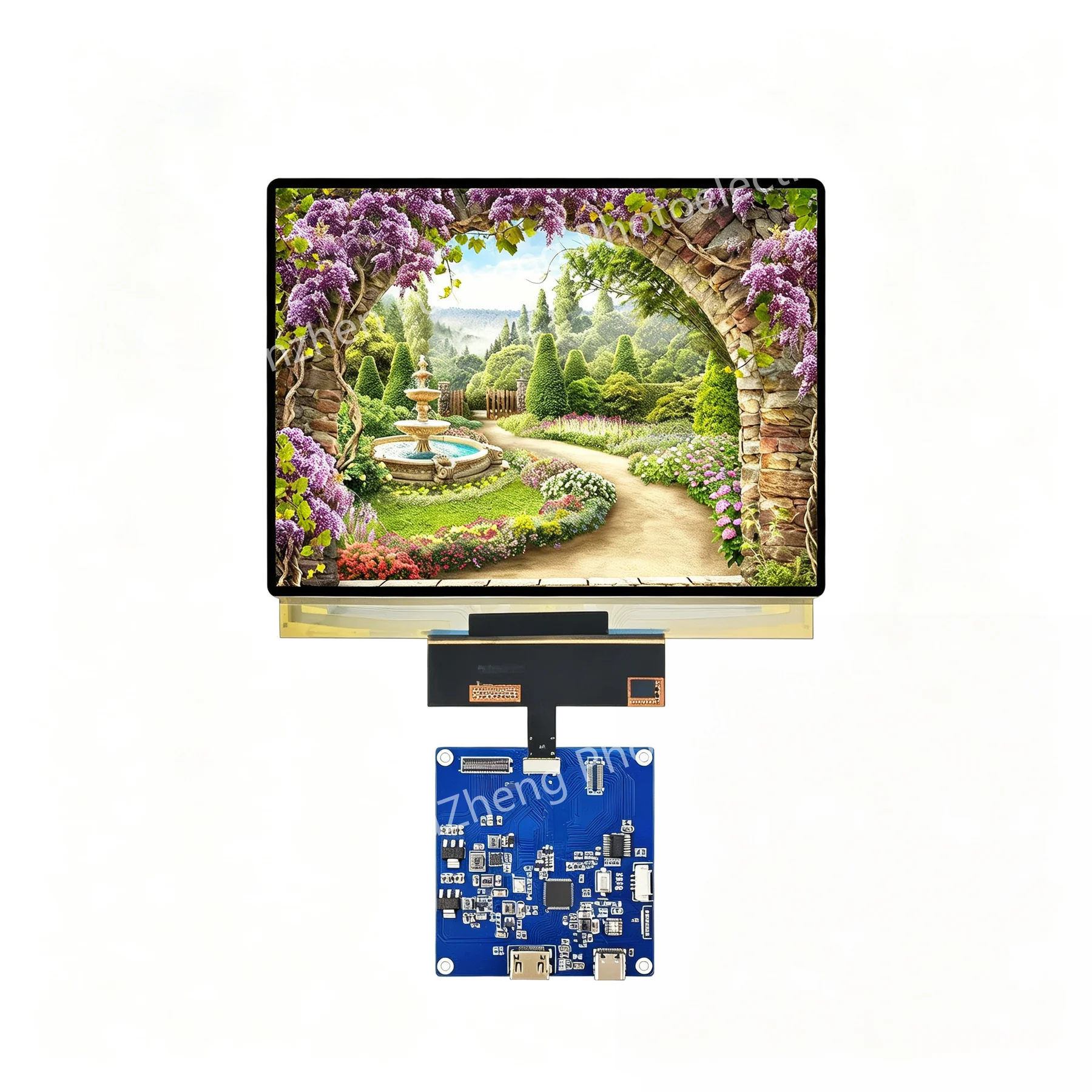

Product Images
Basic Parameters
| Display Type | AMOLED (Active-Matrix Organic Light-Emitting Diode) |
|---|---|
| Panel Type | Flexible (柔性) — polyimide substrate |
| Model Number | FZ801A46 |
| Screen Size | 8.01 inch (diagonal, landscape, 4:3 aspect) |
| Resolution | 2480x1860 (2480 RGB x 1860 Dots, ~2K-class) |
| Pixel Pitch (true, square) | 0.0656 (W) x 0.0656 (H) mm (162.688/2480 = 0.0656, 122.016/1860 = 0.0656) — true 325 PPI square pixel |
| PPI (approx.) | ~325 PPI (pixels per inch) |
| Viewing Direction | All-direction (全视角) |
| Active Area | 162.688 (W) x 122.016 (H) mm |
| LCM Outline Size | 165.688 (W) x 137.916 (H) x 0.2 (D) mm — ultra-thin flexible panel (CG excluded) |
| Display Drive Interface | MIPI DSI 4-lane |
| Touch Drive Interface | IIC (I2C) |
| Pin Count | 46 (snap-fit / 卡扣 FPC) |
| Display Driver IC | Raydium RM69380 (COP on panel) |
| Touch Driver IC | Focaltech FT3881 (on FPC) |
| Touch Sensor | DOT (Direct On-cell Touch) — touch sensor built into the AMOLED stack |
| Power — Main System | 3.3 V (system main power) |
| Power — VCI (Pin 15, analog) | VCI 3.3 V (Pin 15, analog circuit) |
| Power — AVDD (Pin 11, analog) | AVDD (Pin 11, analog circuit power) |
| Power — ELVDD (Pin 9, AMOLED +) | ELVDD (Pin 9, AMOLED positive power supply) |
| Power — ELVSS (Pin 1/3, AMOLED -) | ELVSS (Pin 1/3, AMOLED negative power supply) |
| Power — VDDI (Pin 13, digital) | VDDI (Pin 13, digital circuit power) |
| Power — TP_VDD (Pin 8, touch analog) | TP_VDD (Pin 8, touch analog power) |
| Power — TP_IOVCC (Pin 10, touch digital) | TP_IOVCC (Pin 10, touch digital power) |
| Touch Panel | Yes — CTP with Focaltech FT3881 touch IC, IIC (I2C) interface |
| Operating Temperature | -20 ~ +70 °C |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical Drawing
The approved, revision-matched mechanical drawing is available with the quotation. Confirm the exact module suffix and connector orientation before enclosure release.
Pin Definition (46-pin snap-fit FPC)
46-pin snap-fit FPC. Pin 1 is ELVSS (AMOLED negative supply). Pin 2 is TP_SDA (touch I2C data). Pin 3 is ELVSS. Pin 4 is TP_INT (touch interrupt). Pin 5 is MTP_PWR (leave open or DVSS in normal use). Pin 6 is TP_SCL (touch I2C clock). Pin 7 is ELVDD (NC for this design). Pin 8 is TP_VDD (touch analog power). Pin 9 is ELVDD (AMOLED positive supply). Pin 10 is TP_IOVCC (touch digital power). Pin 11 is AVDD (analog power). Pin 12 is TP_RST (touch reset). Pin 13 is VDDI (digital power). Pin 14 is GND. Pin 15 is VCI (analog power). Pin 16 is D2P (MIPI DSI D2+). Pin 17 is NC. Pin 18 is D2N (DSI D2-). Pin 19 is AVDD_EN (PMIC enable). Pin 20 is D1P. Pin 21 is SWIRE (PMIC control). Pin 22 is D1N. Pin 23 is TE (Tearing Effect sync). Pin 24 is GND. Pin 25 is RST (DIC reset). Pins 26-28 are CLKP / NC / CLKN (MIPI clock pair). Pins 29-30 are GND. Pin 31 is NC. Pin 32 is D0P. Pin 33 is NC. Pin 34 is D0N. Pin 35 is NC. Pin 36 is D3P. Pin 37 is NC. Pin 38 is D3N. Pin 39 is NC. Pins 40-46 are GND (ground shield, 7 consecutive GND pins for EMI suppression).
| Pin No. | Symbol | I/O | Description |
|---|---|---|---|
| 1 | ELVSS | P | AMOLED Negative Power Supply |
| 2 | TP_SDA | I | Touch IIC Interface — Data Pin |
| 3 | ELVSS | P | AMOLED Negative Power Supply |
| 4 | TP_INT | I/O | TP Interrupt (touch event signal to host) |
| 5 | MTP_PWR | P | Left open or connected to DVSS in normal condition |
| 6 | TP_SCL | I/O | Touch IIC Interface — Clock Pin |
| 7 | ELVDD | P | Not connected (NC for this design) |
| 8 | TP_VDD | P | Power Supply Input for TP Analog Circuit |
| 9 | ELVDD | P | AMOLED Positive Power Supply |
| 10 | TP_IOVCC | P | Power Supply Input for TP Digital Circuit |
| 11 | AVDD | P | Power Supply Input for Analog Circuit |
| 12 | TP_RST | I | Touch Reset Pin |
| 13 | VDDI | P | Power Supply Input for Digital Circuit |
| 14 | GND | P | Ground |
| 15 | VCI | P | Power Supply Input for Analog Circuit |
| 16 | D2P | I | DSI-D2 Positive Differential Data Signals of MIPI |
| 17 | NC | - | Not Connected |
| 18 | D2N | I | DSI-D2 Negative Differential Data Signals of MIPI |
| 19 | AVDD_EN | O | AVDD_EN Signal for PMIC (signal to enable analog power) |
| 20 | D1P | I | DSI-D1 Positive Differential Data Signals of MIPI |
| 21 | SWIRE | O | Swire Signal for PMIC (PMIC control) |
| 22 | D1N | I | DSI-D1 Negative Differential Data Signals of MIPI |
| 23 | TE | I | DIC TE Signal (Tearing Effect — frame sync to host) |
| 24 | GND | P | Ground |
| 25 | RST | I | RESET for DIC (Display IC) |
| 26 | CLKP | I | DSI-CLK Positive Differential Data Signals of MIPI |
| 27 | NC | - | Not Connected |
| 28 | CLKN | I | DSI-CLK Negative Differential Data Signals of MIPI |
| 29 | GND | P | Ground |
| 30 | GND | P | Ground |
| 31 | NC | - | Not Connected |
| 32 | D0P | I | DSI-D0 Positive Differential Data Signals of MIPI |
| 33 | NC | - | Not Connected |
| 34 | D0N | I | DSI-D0 Negative Differential Data Signals of MIPI |
| 35 | NC | - | Not Connected |
| 36 | D3P | I | DSI-D3 Positive Differential Data Signals of MIPI |
| 37 | NC | - | Not Connected |
| 38 | D3N | I | DSI-D3 Negative Differential Data Signals of MIPI |
| 39 | NC | - | Not Connected |
| 40 | GND | P | Ground |
| 41 | GND | P | Ground |
| 42 | GND | P | Ground |
| 43 | GND | P | Ground |
| 44 | GND | P | Ground |
| 45 | GND | P | Ground |
| 46 | GND | P | Ground |
AMOLED Display Technology
AMOLED is a self-emissive display technology — each pixel is driven by an organic LED element that emits light directly, eliminating the need for a backlight. This enables true blacks (off pixels = no light), infinite contrast, ultra-fast response, wider color gamut, and a dramatically thinner / lighter / flexible panel. The flexible panel uses a polyimide (PI) substrate instead of glass, allowing the panel to bend (specify bend radius for your application). This is a 2480x1860 (≈2K-class) panel with 325 PPI, 4:3 aspect, and MIPI DSI 4-lane high-speed serial interface.
Touch Panel (CTP — DOT + FT3881)
Touch is implemented via Direct On-cell Touch (DOT) — the touch sensor is built directly into the AMOLED stack (not laminated on top), reducing thickness and improving optical clarity. The FT3881 touch IC on the FPC communicates with the host via IIC (I2C) interface on dedicated touch pins (TP_SDA / TP_SCL / TP_INT / TP_RST), with separate touch power rails (TP_VDD analog and TP_IOVCC digital).
Typical Applications
- High-end industrial HMI, premium instrumentation panel
- E-reader, e-note, e-paper replacement with color
- Wearable devices, smart watches, smart jewelry (flexible form factor)
- Smart home control panel and premium home automation display
- AR/VR peripherals, head-mounted display secondary screen
- Medical equipment, portable diagnostic and patient monitor
- Premium POS terminal, luxury self-service kiosk
- Automotive interior display, concept-car curved dashboard
Frequently Asked Questions
What are the size and resolution of FZ801A46?
FZ801A46 is a 8.01 inch (diagonal, landscape, 4:3 aspect) display with 2480x1860 (2480 RGB x 1860 Dots, ~2K-class).
Which interface and connector does FZ801A46 use?
The supplied product brief specifies a MIPI DSI 4-lane display interface and a 46-pin snap-fit FPC. Confirm the quoted connector revision before design-in.
Which controller or driver is used on FZ801A46?
The supplied record identifies the Raydium RM69380 display driver and Focaltech FT3881 touch controller. Initialization and timing data should be confirmed against the approved revision.
What are the outline and viewing characteristics of FZ801A46?
The published module outline is 165.688 (W) x 137.916 (H) x 0.2 (D) mm — ultra-thin flexible panel (CG excluded), and the viewing specification is All-direction (全视角).
What operating temperature is specified for FZ801A46?
The supplied product brief lists an operating temperature of -20 ~ +70 °C. OEM/ODM options should be confirmed during quotation.
