Reference no.12022

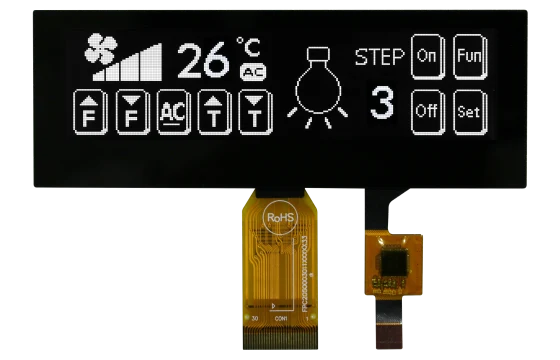

3.55-Inch Monochrome OLED Display

This source-tracked comparison record covers a 3.55" PMOLED module. Its imagery and listed values support initial engineering review; availability, model ownership and the final specification require Fuzheng confirmation before quotation or sample evaluation.

PMOLED
Rectangular
8080/6800, SPI
256 x 64

Screen Size: 3.55"
Resolution: 256 x 64
Technology: PMOLED
Display Mode: Passive Matrix
Shape: Rectangular
Interface: 8080/6800, SPI

Request a Quote Request a Sample

View Full Specifications

Discuss this module with an engineer

Comparison candidate: specifications remain available for review; external product imagery is withheld until Fuzheng supplies or approves replacement media.

Technical specifications

Reference values are displayed for comparison and require confirmation before quotation.

Published specifications for 3.55-Inch Monochrome OLED Display
Specification	Published value	Review status
Screen Size	3.55"	Confirm before quotation
Resolution	256 x 64	Confirm before quotation
Technology	PMOLED	Confirm before quotation
Display Mode	Passive Matrix	Confirm before quotation
Shape	Rectangular	Confirm before quotation
Interface	8080/6800, SPI	Confirm before quotation
Brightness	80 cd/m2	Confirm before quotation
Module Dimensions	100.4 x 36.1 x 3.34 mm	Confirm before quotation
Operating Temperature	-20° to 70°C	Confirm before quotation
Display Color	White Other colours available	Confirm before quotation

Mechanical fit

Screen Size: 3.55"
Shape: Rectangular
Module Dimensions: 100.4 x 36.1 x 3.34 mm

Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

Review drawing availability →

Interface & integration

Connection information for 12022
Parameter	Source value
Interface	8080/6800, SPI

Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

Format and image area

Published screen size: 3.55". Resolution: 256 x 64. Shape: Rectangular. Module dimensions: 100.4 x 36.1 x 3.34 mm.

Electrical connection

Published interface: 8080/6800, SPI.

Optical and front assembly

Brightness: 80 cd/m2. Operating temperature: -20° to 70°C.

Drawings & technical documents

Reference files from this product record, retained at their available source resolution.

Request the matching mechanical drawing

No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.

Request drawing & datasheet

Match the module to your application

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements

Confirm availability and the final electrical, optical and mechanical specification before design-in.
Review interface, connector and FPC alignment against the host electronics.
Discuss touch panel and cover lens requirements where the product design needs a front assembly.
Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product questions

Specifications, documents and sample planning for 12022.

What are the published specifications for 12022?

12022 currently publishes Screen Size: 3.55"; Resolution: 256 x 64; Technology: PMOLED; Display Mode: Passive Matrix; Shape: Rectangular; Interface: 8080/6800, SPI. Confirm the final drawing and pin assignment against the supplied sample before design-in.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
