Model no.FZ007DMC40

7-Inch 1024x600 TFT-LCD with HDMI

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing angles are determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock direction with respect to the optical axis which is normal to the LCD surface (see FIGURE 1)

  • HDMI
Screen Size
7 inch
Resolution
1024 × 600
Display Mode
Normally black
Interface
HDMI
Viewing Direction
ALL
Module Dimensions
165(H) ×124.3(V) ×18.5(T)
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

1. Viewing angle is the angle at which the contrast ratio is greater than 10. The viewing angles are determined for the horizontal or 3, 9 o’clock direction and the vertical or 6, 12 o’clock direction with respect to the optical axis which is normal to the LCD surface (see FIGURE 1)

2. Contrast measurements shall be made at viewing angle of Θ= 0 and at the center of the LCD surface. Luminance shall be measured with all pixels in the view field set first to white, then to the dark (black) state . (see FIGURE1) Luminance Contrast Ratio (CR) is defined mathematically.

4. The color chromaticity coordinates specified in Table 5 shall be calculated from the spectral data measured with all pixels first in red, green, blue and white. Measurements shall be made at the center of the panel.

5. The electro-optical response time measurements shall be made as FIGURE 3 by switching the “data” input signal ON and OFF. The times needed for the luminance to change from 10% to 90% is Tr, and 90% to 10% is Td.

Confirm the FZ007DMC40 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 7-Inch 1024x600 TFT-LCD with HDMI
    SpecificationPublished value
    Screen Size 7 inch
    Resolution 1024x600
    Display Mode Normally Black
    Interface HDMI
    Viewing Direction ALL
    Backlight 3*7 chips white LEDS,
    Module Dimensions 165(H) ×124.3(V) ×18.5(T)
    Active Area 154.2144(H) *85.92(V)
    Pixel Pitch 50.2(H) ×143.2(V)
    Touch interface Michael USB
    Power interface Michael USB
    Touch supply voltage VDD
    Power supply voltage VDD

    Mechanical fit

    Screen Size
    7 inch
    Module Dimensions
    165(H) ×124.3(V) ×18.5(T)
    Active Area
    154.2144(H) *85.92(V)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Published technical data

    Published technical data for 7-Inch 1024x600 TFT-LCD with HDMI
    ItemStandard ValueUnit
    Display Size7 inch--
    Resolution1024x600--
    Display modeNormally Black—
    Viewing directionALL—
    Module outline (HxVxD)165(H) ×124.3(V) ×18.5(T)mm
    Active Area154.2144(H) *85.92(V)mm
    Pixel pitch50.2(H) ×143.2(V)um
    InterfaceHDMI-
    Touch interfaceMichael USB-
    Power interfaceMichael USB-
    Backlight Type3*7 chips white LEDS,-

    Published technical data

    Published technical data for 7-Inch 1024x600 TFT-LCD with HDMI
    P arameterSymbolValuesUnitRemarkColumn 6
    Min.Typ.Max.———
    Touch supply voltageVDD4.555.5V
    Power supply voltageVDD4.555.5V

    Published technical data

    Published technical data for 7-Inch 1024x600 TFT-LCD with HDMI

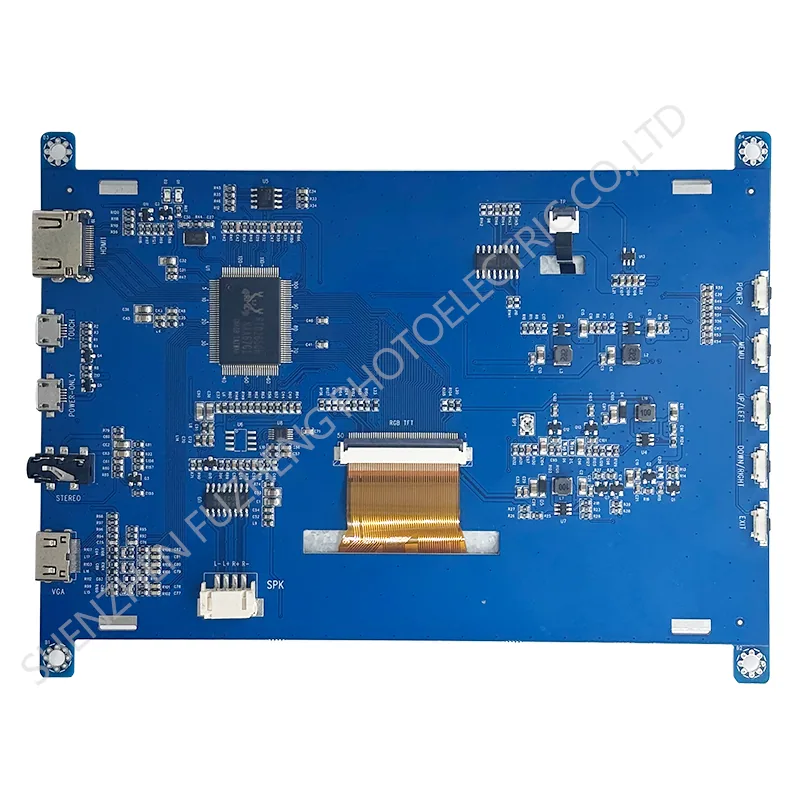

    Pin .NoSymbolFunction
    1HDMIHDMI Input
    2TOUCHTouch function and power supply Input
    3POWEROnly power supply Input
    4STEREOAidio ouput
    5MINI-HDMIVGA input
    6SPKSpeaker ouput
    7RGB-TFT50PIN RGB-TFT ouput
    8TP6PIN TOUCH Input
    9POWER-KEYSwitch KEY
    10MEMU-KEYOSD KEY
    11UPDN-KEYVolume+/Updn-KEY
    12DOWN-KEYVolume-/Down-KEY
    13EXITEXIT OSD/Input source switching-KEY

    Published technical data

    Published technical data for 7-Inch 1024x600 TFT-LCD with HDMI
    ParameterSymbolConditionMin.Typ.Max.UnitRemarkColumn 9
    Viewing Angle rangeHorizontalΘ3CR > 10-80-Deg.Note 1
    Θ9-80-Deg.————
    VerticalΘ12-80-Deg.———
    Θ6-80-Deg.————
    LuminanceCRΘ = 0°-500-—Note 2—
    White ChromaticityXw0.2760.3060.336—Note 4——
    Yw0.3140.3440.374—————
    Reproduction of color (C light)RedRx0.5670.5970.627———
    Ry0.2890.3190.349—————
    GreenGx0.2820.3120.342————
    Gy0.5370.5670.597—————
    BlueBx0.1180.1480.179————
    By0.1280.1580.188—————
    Color Gamut (C light)——50—%———

    Published technical data

    Published technical data for 7-Inch 1024x600 TFT-LCD with HDMI
    NO.Test ItemTest conditionCriterion
    1High Temperature Storage70℃±2℃ 24H Restore 2H at 25℃ Power off—
    2Low Temperature Storage0℃±2℃ 24H Restore 2H at 25℃ Power off—
    3High Temperature Operation70℃±2℃ 24H Restore 2H at 25℃ Power on—
    4Low Temperature Operation0℃±2℃ 24H Restore 2H at 25℃ Power on—
    5High Temperature & Humidity Operation60℃±2℃ 90%RH 96H Power on—
    6Temperature Cycle0℃←→25℃←→70℃ 30min 5min 30min after 10 cycle, Restore 2H at 25℃ Power offAftertesting,cosmetic and electrical defects should not happen.
    7Vibration Test10Hz~150Hz, 100m/s2, 120min—
    8Shock TestHalf-sinewave,300m/s2,11ms—

    Interface & integration

    Connection information for FZ007DMC40
    ParameterSource value
    InterfaceHDMI
    Backlight3*7 chips white LEDS,

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 7 inch. Resolution: 1024x600. Module dimensions: 165(H) ×124.3(V) ×18.5(T). Active area: 154.2144(H) *85.92(V).

    Electrical connection

    Published interface: HDMI. Backlight: 3*7 chips white LEDS,.

    Optical and front assembly

    Viewing direction: ALL.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

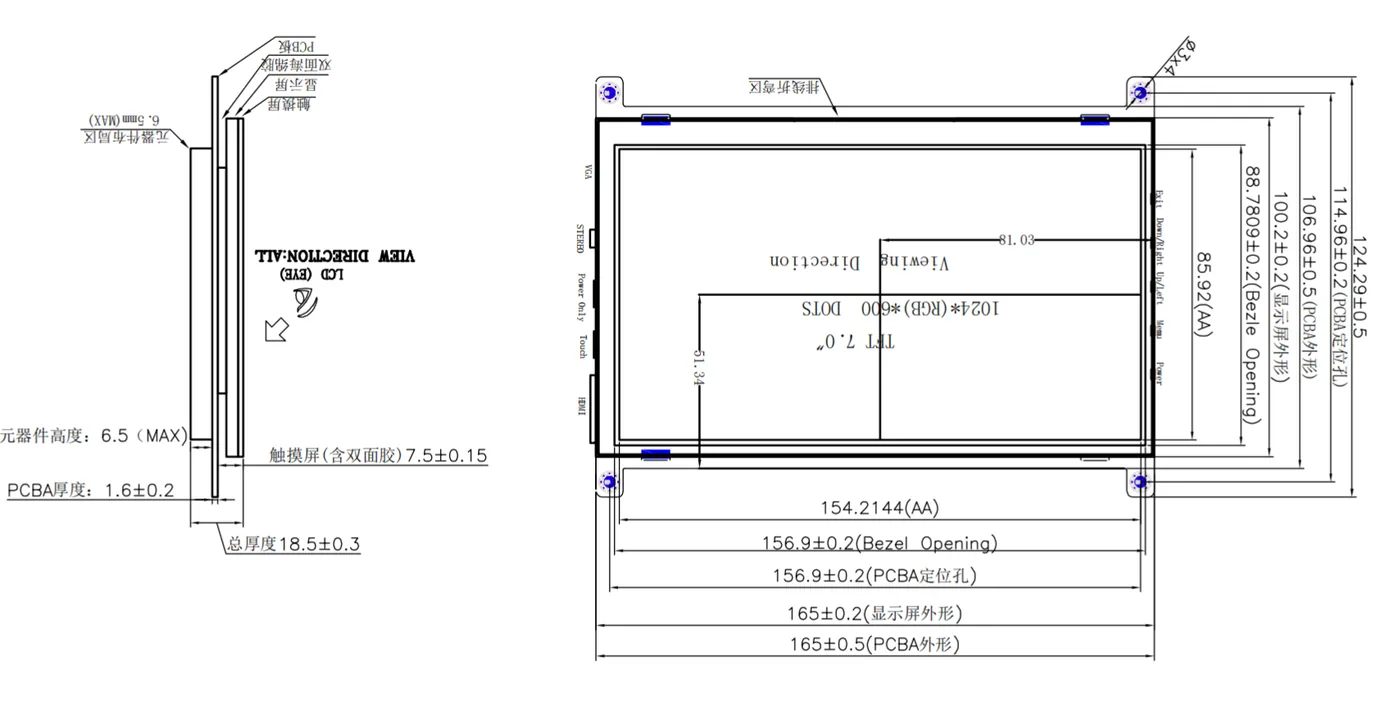

    FZ007DMC40 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ007DMC40.

    What are the published specifications for FZ007DMC40?

    FZ007DMC40 currently publishes Screen Size: 7 inch; Resolution: 1024 × 600; Display Mode: Normally black; Interface: HDMI; Viewing Direction: ALL; Module Dimensions: 165(H) ×124.3(V) ×18.5(T). Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ007DMC40

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

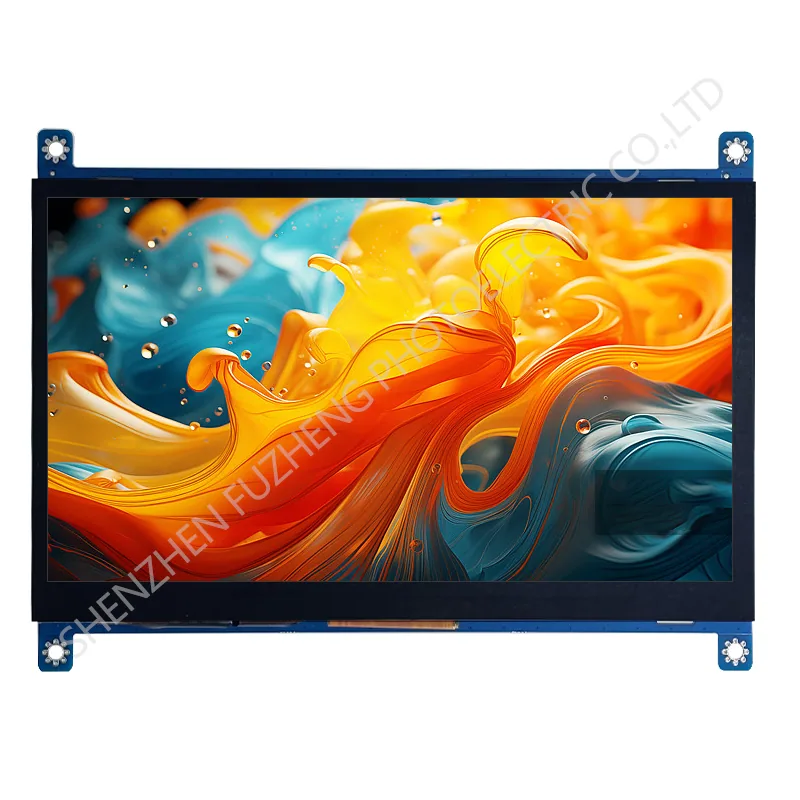

    7 inch HDMI display module 1024x600 product image
