HDMI Display Modules Model FZ10HDMI

10 inch HDMI TFT display module 1024x600

This 10.1 inch HDMI Display Modules record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

  • 1.4 Receiver
  • P+G
Screen Size
10.1 inch
Resolution
1024x600
Display Mode
Normally Black
Interface
1.4 Receiver
Touch
P+G
Viewing Angle
ALL
Request a Quote Request a Sample
WhatsApp an Engineer

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Buyer advantages

Exact-record review
Source-matched media and published values remain attached to this product record.
Integration context
Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry
Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.
Product details

Review the module around published evidence.

This 10.1 inch HDMI Display Modules record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies 1024x600 resolution, 1.4 Receiver interface, P+G touch information. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

TFT display assemblies published with HDMI controller functionality for faster evaluation and system integration. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

Product views

Inspect the module from the available source imagery.

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

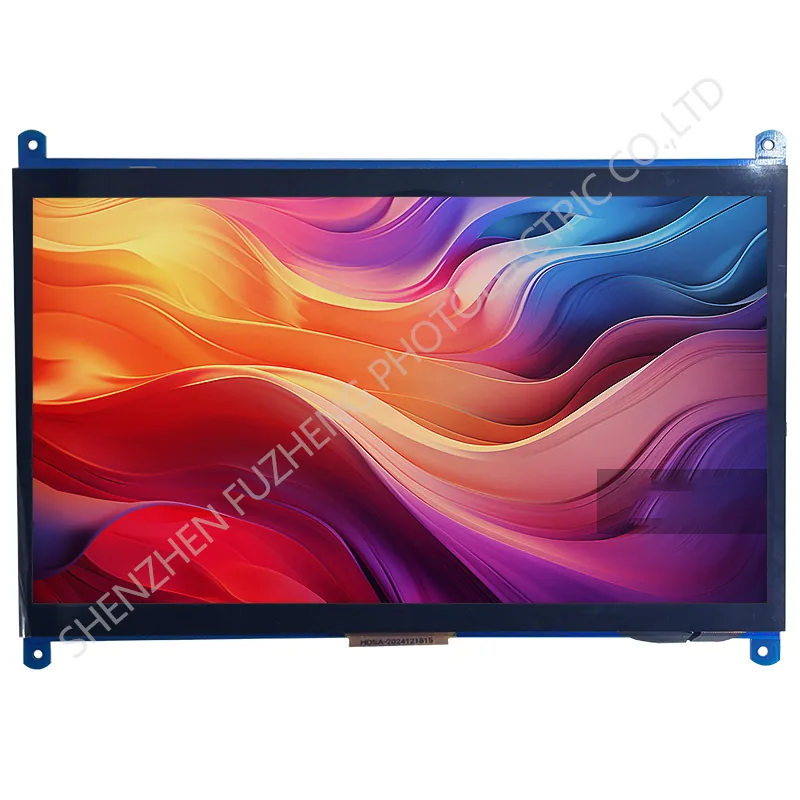

10 inch HDMI TFT display module 1024x600 product image
10 inch HDMI TFT display module 1024x600 · product view 01

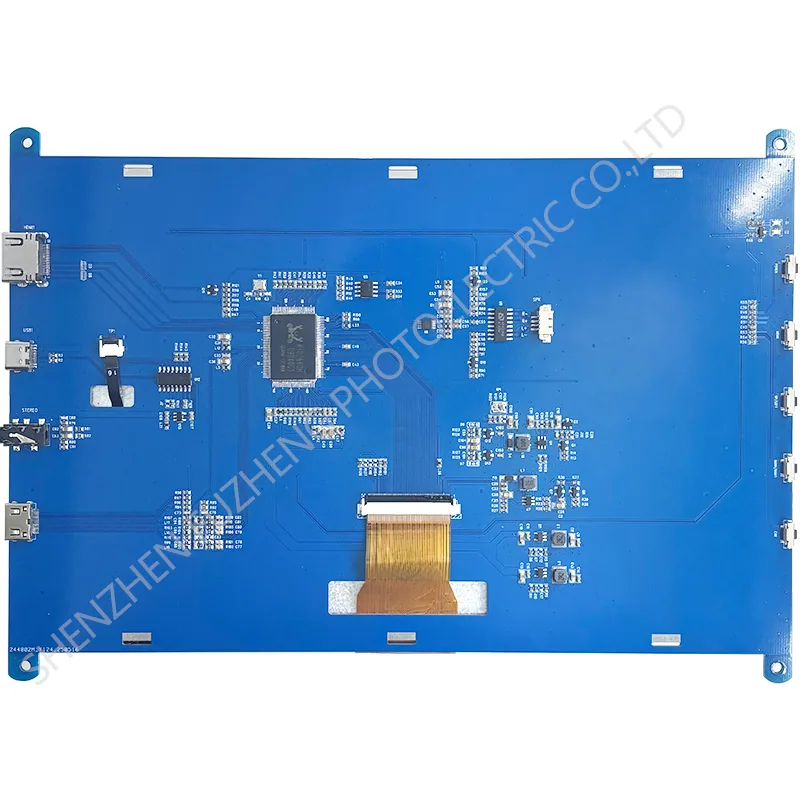

10 inch HDMI TFT display module 1024x600 product image
10 inch HDMI TFT display module 1024x600 · product view 02
10 inch HDMI TFT display module 1024x600 product image
10 inch HDMI TFT display module 1024x600 · product view 03
10 inch HDMI TFT display module 1024x600 product image
10 inch HDMI TFT display module 1024x600 · product view 04
Published product data

Specifications in one consistent format.

Values are normalized from the current product record; no missing parameter is estimated.

Published specifications for 10 inch HDMI TFT display module 1024x600
SpecificationPublished valueReview status
Screen Size 10.1 inch Current source record
Resolution 1024x600 Current source record
Display Mode Normally Black Current source record
Interface 1.4 Receiver Current source record
Touch P+G Current source record
Viewing Angle ALL Current source record
Backlight V / I Multiple source values — confirm

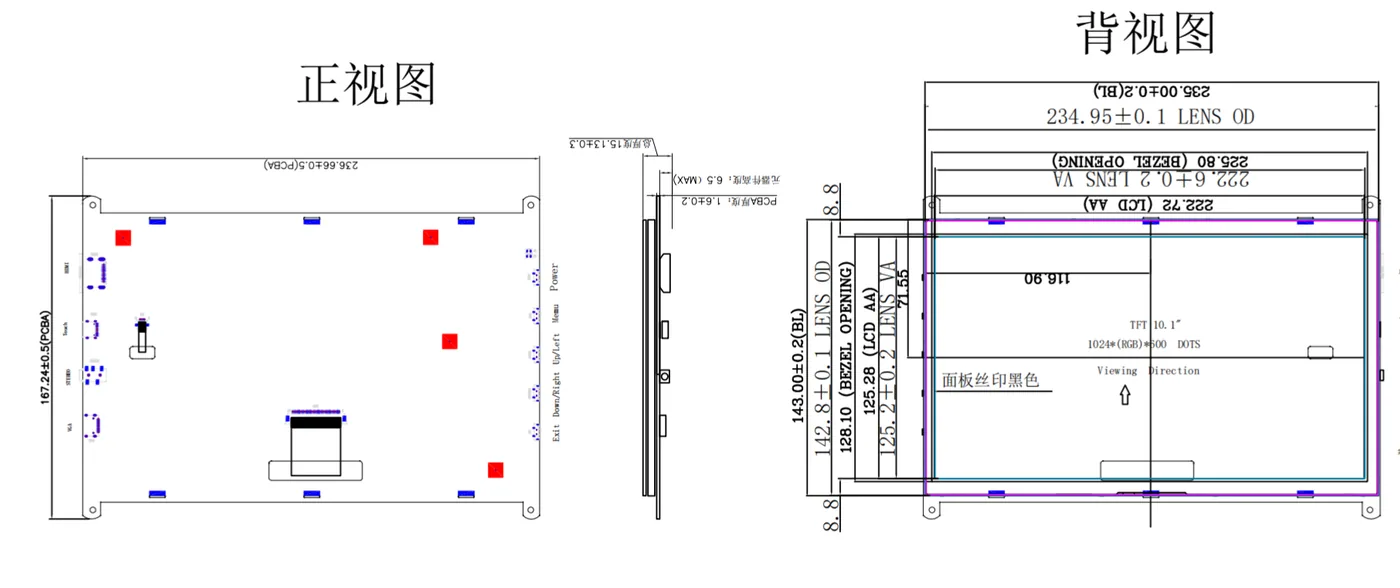

Module Dimensions 236.66(H) ×167.24(V) ×15.2(T) Current source record
Input Voltage VDD Current source record
Power interface USB-TYPE-C(+5V) Current source record
Audio output 8Ω1WX2 Current source record
Temperature Range 0°C ~ +70°C Current source record
TFT output voltage VDD Current source record
1,2 VLED+ Current source record
3,4 VLED- Current source record
12-19 B7-R0 Current source record
20-27 G7-G0 Current source record
28-35 R7-R0 Current source record

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
ItemStandard ValueUnit
Display Size10.1 inch--
Resolution1024x600--
Display modeNormally Black—
Viewing directionALL—
Module outline (HxVxD)236.66(H) ×167.24(V) ×15.2(T)mm
TOUCHP+G—
HDMI interface1.4 Receiver—
Power interfaceUSB-TYPE-C(+5V)—
Audio output8Ω1WX2-
Temperature Range0°C ~ +70°C-

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
Column 1SymbolValuesUnitRemarkColumn 6
Min.Typ.Max.———
Digital supply voltageVDD-5-V
Backlight output voltageV---V
Backlight output currentI---mA
TFT output voltageVDD-3.3-V

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
Pin .NoSymbolFunction
1HDMIHDMI-IN
2USB+5V-IN/USB-TOUCH
3VGAVGA-IN
4TPIIC-CAPACITIVE TOOUCH
5TFT-RGB50PIN/RGB
6SPKSTEREO 8Ω/1Wx2

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
Pin .NoSymbolFunction
1,2VLED+Power for LED backlight (Anode) +9V
3,4VLED-Power for LED backlight (Cathode)
5GNDPower ground
6VCOMCommon Voltage 3.2V-4.5V
7VDDDigital Power 3.3V
8VDDDigital Power 3.3V MODE=DE MODE
9:DEData Enable signal.
10VSDVertical sync input. Negative polarity
11HSDHorizontal sync input. Negative polarity
12-19B7-R0Blue Data
20-27G7-G0Green Data
28-35R7-R0Red Data
36GNDGround
37DCLKColock signal
38GNDGround
39SHLRLeft or Right Display Control
40UPDNUp / Down Display Control
41VGHPositive Power for TFT +18V
42VGLNegative Power for TFT -6V
43AVDDAnalog Power +10V
44RSTBGlobal reset pin. Active low to enter reset state. 3.3V
45NCNot connect
46VCOMCommon Voltage 3.2V-4.5V
47NCDithering setting
48GNDNot connect
49-50NCNot connect

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
Pin .NoSymbolFunction
1R-right channel negative pole
2R+right channel positive pole
3L+Left channel positive pole
4L-Left channel negative pole

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
Pin .NoSymbolFunction
1RSTTouch Reset Signal
2VDDTouch Power supply +3V3
3GNDGround
4INTTouch Interrupt
5SDATouch IIC Data signal
6SCLTouch IIC Clock signal

Published technical data

Published technical data for 10 inch HDMI TFT display module 1024x600
ParameterSymbolConditionMin.Typ.Max.UnitRemark
Viewing Angle rangeHorizontalΘ3CR > 10-80-Deg.
Θ9-80-Deg.———
VerticalΘ12-80-Deg.——
Θ6-80-Deg.———
Contrast ratioCR——800———
LuminanceLvΘ = 0°-300-——
White ChromaticityXw-0.307-———
Yw-0.338-————
Reproduction of color (C light)RedRx---——
Ry---————
GreenGx---———
Gy---————
BlueBx---———
By---————
Color Gamut (C light)——50—%——
