Model no.FZ043HDMI

4.3 inch HDMI TFT HDMI display module

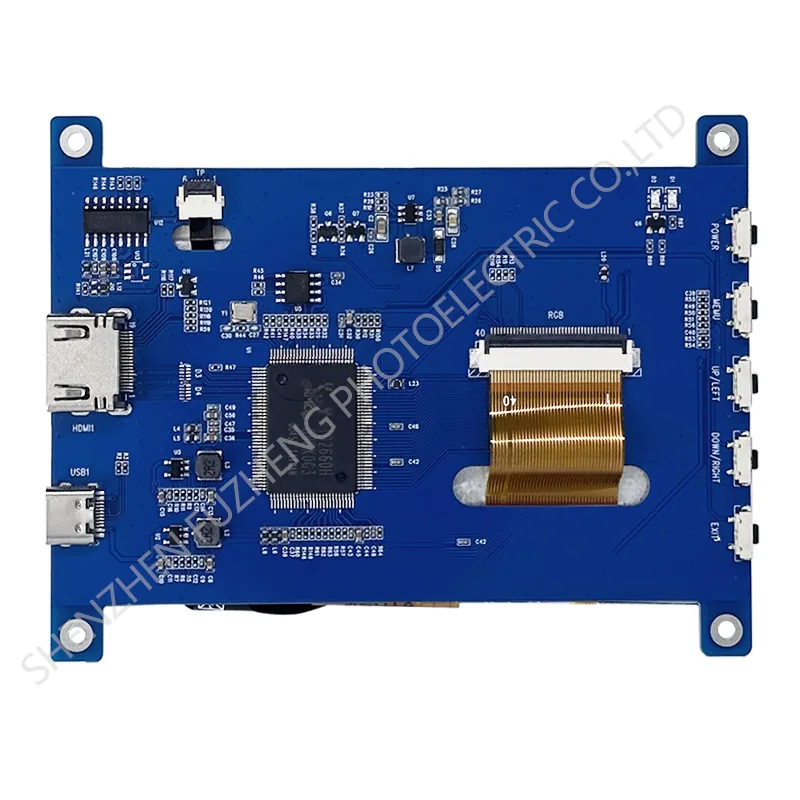

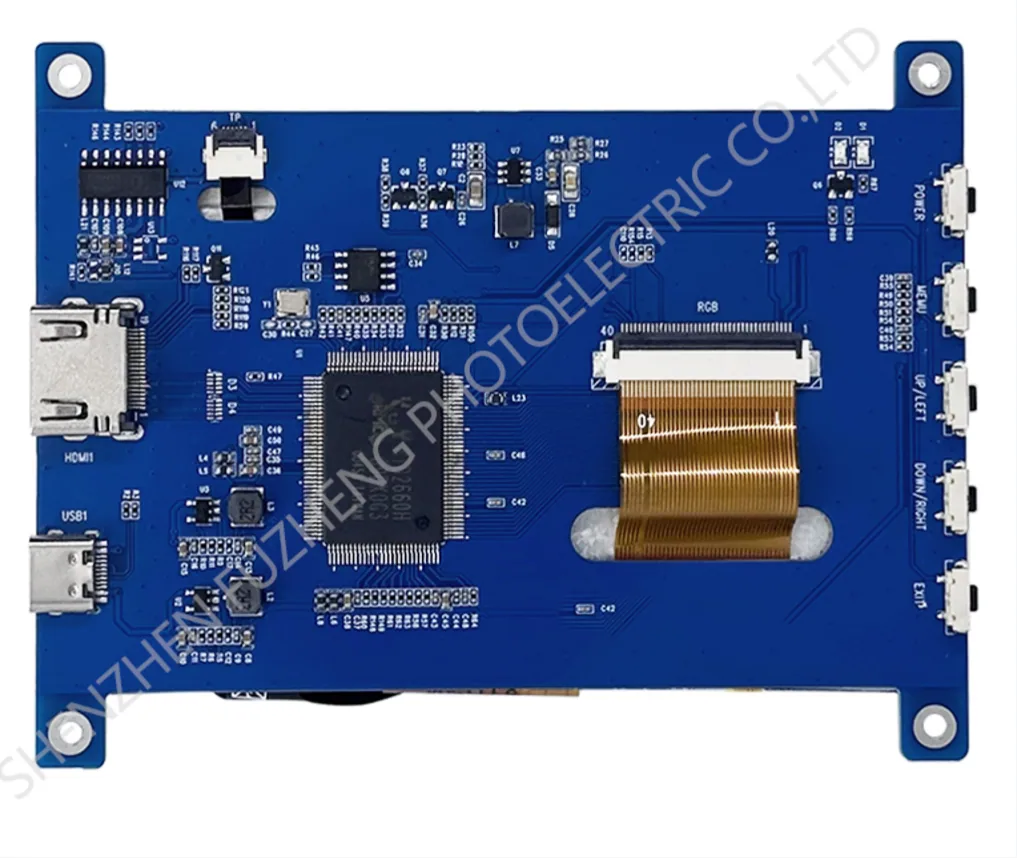

The FZ043HDMI+LCD+TP adapter board is a driver board designed specifically for digital LCD modules. It uses highly integrated single-chip IC's and fewer peripheral electronic components, providing stable performance and excellent display effects.

  • 1.4 Receiver
  • P+G
Screen Size
4.3 inch
Resolution
800 × 480
Display Mode
Normally black
Interface
1.4 Receiver
Touch
P+G
Viewing Direction
ALL
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

The FZ043HDMI+LCD+TP adapter board is a driver board designed specifically for digital LCD modules. It uses highly integrated single-chip IC's and fewer peripheral electronic components, providing stable performance and excellent display effects.

Confirm the FZ043HDMI assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 4.3 inch HDMI TFT HDMI display module
    SpecificationPublished value
    Screen Size 4.3 inch
    Resolution 800x480
    Display Mode Normally Black
    Interface 1.4 Receiver
    Touch P+G
    Viewing Direction ALL
    Module Dimensions 107.65(H) ×83.6(V) ×13.6(T)
    Power interface USB-TYPE-C(+5V)
    Audio output 8Ω1WX2
    Temperature Range 0°C ~ +70°C
    5-12 R0-R7
    13-20 G0-G7
    21-28 B0-B7

    Mechanical fit

    Screen Size
    4.3 inch
    Module Dimensions
    107.65(H) ×83.6(V) ×13.6(T)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Published technical data

    Published technical data for 4.3 inch HDMI TFT HDMI display module
    ItemStandard ValueUnit
    Display Size4.3 inch--
    Resolution800x480--
    Display modeNormally Black—
    Viewing directionALL—
    Module outline (HxVxD)107.65(H) ×83.6(V) ×13.6(T)mm
    TOUCHP+G—
    HDMI interface1.4 Receiver—
    Power interfaceUSB-TYPE-C(+5V)—
    Audio output8Ω1WX2-
    Temperature Range0°C ~ +70°C-

    Published technical data

    Published technical data for 4.3 inch HDMI TFT HDMI display module
    Pin .NoSymbolFunction
    1HDMIHDMI-IN
    2USB+5V-IN/USB-TOUCH
    3TPIIC-CAPACITIVE TOOUCH
    4TFT-RGB40PIN/RGB
    5SPKSTEREO 8Ω/1Wx2

    Published technical data

    Published technical data for 4.3 inch HDMI TFT HDMI display module
    Pin.NoSymbolFunction
    1LEDKback light power supply negative +21V
    2LEDAback light power supply positive
    3GNDGround
    4VCCPower supply +3V3
    5-12R0-R7Red Data
    13-20G0-G7Green Data
    21-28B0-B7Blue Data
    29GNDGround
    30DCLKColock signal
    31DISP+3V3
    32HSYNCHorizontal sync input in RGB mode(short to GND if not used)
    33VSYNCVertical sync input in RGB mode(short to GND if not used)
    34DEData enable
    35NCNo Connection
    36GNDGround
    37-40NCNC

    Published technical data

    Published technical data for 4.3 inch HDMI TFT HDMI display module
    Pin .NoSymbolFunction
    1R-right channel negative pole
    2R+right channel positive pole
    3L+Left channel positive pole
    4L-Left channel negative pole

    Published technical data

    Published technical data for 4.3 inch HDMI TFT HDMI display module
    Pin .NoSymbolFunction
    1RSTTouch Reset Signal
    2VDDTouch Power supply +3V3
    3GNDGround
    4INTTouch Interrupt
    5SDATouch IIC Data signal
    6SCLTouch IIC Clock signal

    Published technical data

    Published technical data for 4.3 inch HDMI TFT HDMI display module
    ParameterSymbolConditionMin.Typ.Max.UnitRemark
    Viewing Angle rangeHorizontalΘ3CR > 10-80-Deg.
    Θ9-80-Deg.———
    VerticalΘ12-80-Deg.——
    Θ6-80-Deg.———
    Contrast ratioCR——1500———
    LuminanceLvΘ = 0°-500-——
    White ChromaticityXw-0.311-———
    Yw-0.388-————
    Reproduction of color (C light)RedRx---——
    Ry---————
    GreenGx---———
    Gy---————
    BlueBx---———
    By---————
    Color Gamut (C light)——50—%——

    Interface & integration

    Connection information for FZ043HDMI
    ParameterSource value
    Interface1.4 Receiver
    TouchP+G

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 4.3 inch. Resolution: 800x480. Module dimensions: 107.65(H) ×83.6(V) ×13.6(T).

    Electrical connection

    Published interface: 1.4 Receiver.

    Optical and front assembly

    Published touch information: P+G. Viewing direction: ALL.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

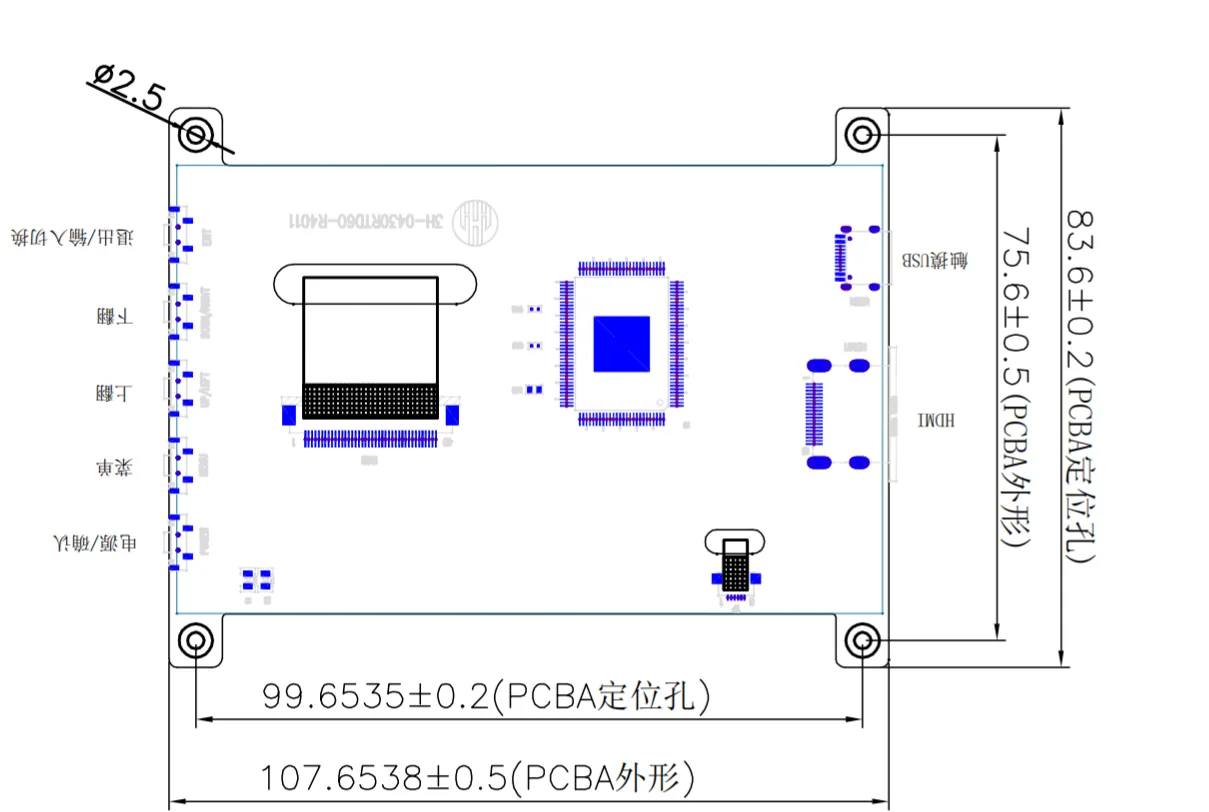

    FZ043HDMI reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓
    FZ043HDMI reference drawing 2Inspect drawing 2 ↗

    Reference drawing 2

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZ043HDMI.

    What are the published specifications for FZ043HDMI?

    FZ043HDMI currently publishes Screen Size: 4.3 inch; Resolution: 800 × 480; Display Mode: Normally black; Interface: 1.4 Receiver; Touch: P+G; Viewing Direction: ALL. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZ043HDMI

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

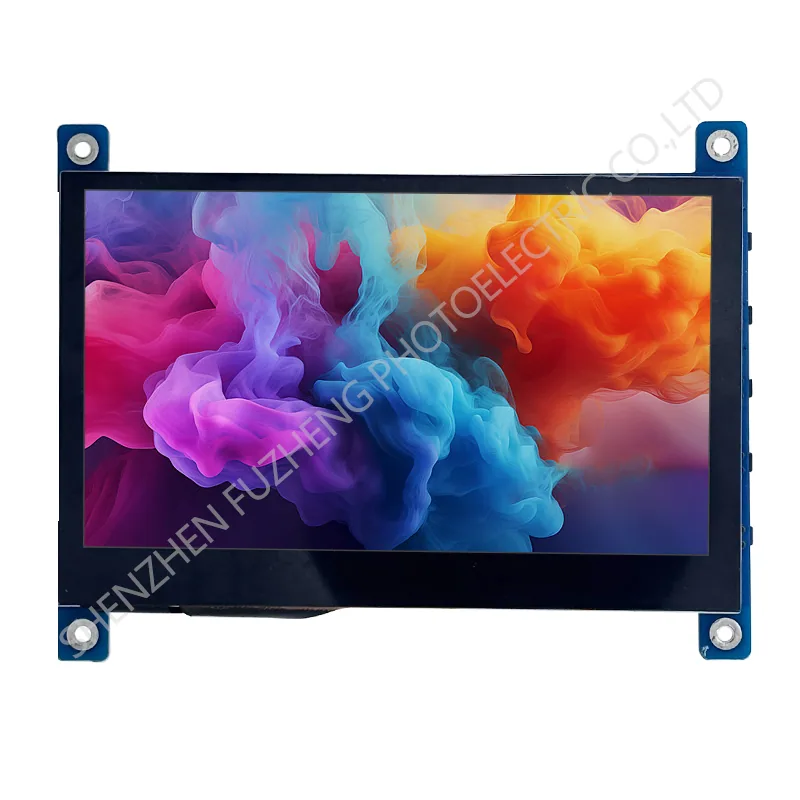

    4.3 inch HDMI TFT HDMI display module product image
