HDMI Display Modules Model FZ050HDMI

5 inch TFT HDMI display module HDMI+LCD+CTP

This 5 inch HDMI Display Modules record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

  • 1.4 Receiver
  • P+G
Screen Size
5 inch
Resolution
800x480
Display Mode
Normally Black
Interface
1.4 Receiver
Touch
P+G
Viewing Angle
ALL
Request a Quote Request a Sample
WhatsApp an Engineer

Specifications and media are retained from the current source record. Unpublished fields are not inferred.

Buyer advantages

Exact-record review
Source-matched media and published values remain attached to this product record.
Integration context
Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry
Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.
Product details

Review the module around published evidence.

This 5 inch HDMI Display Modules record brings together the product identity, source-matched imagery and published technical values currently available for engineering review.

The current record identifies 800x480 resolution, 1.4 Receiver interface, P+G touch information. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

TFT display assemblies published with HDMI controller functionality for faster evaluation and system integration. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

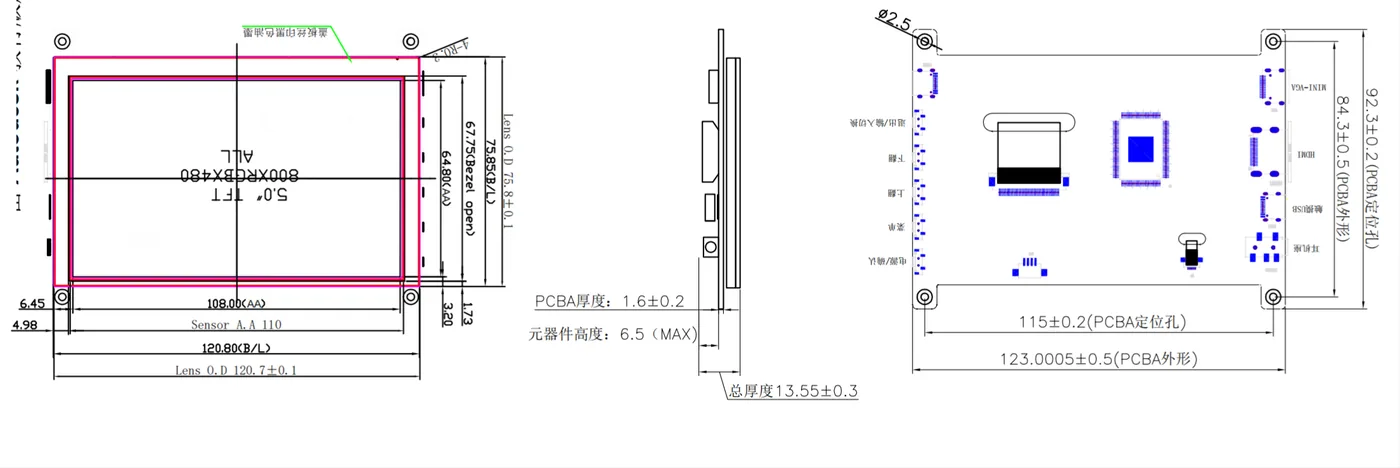

Product views

Inspect the module from the available source imagery.

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

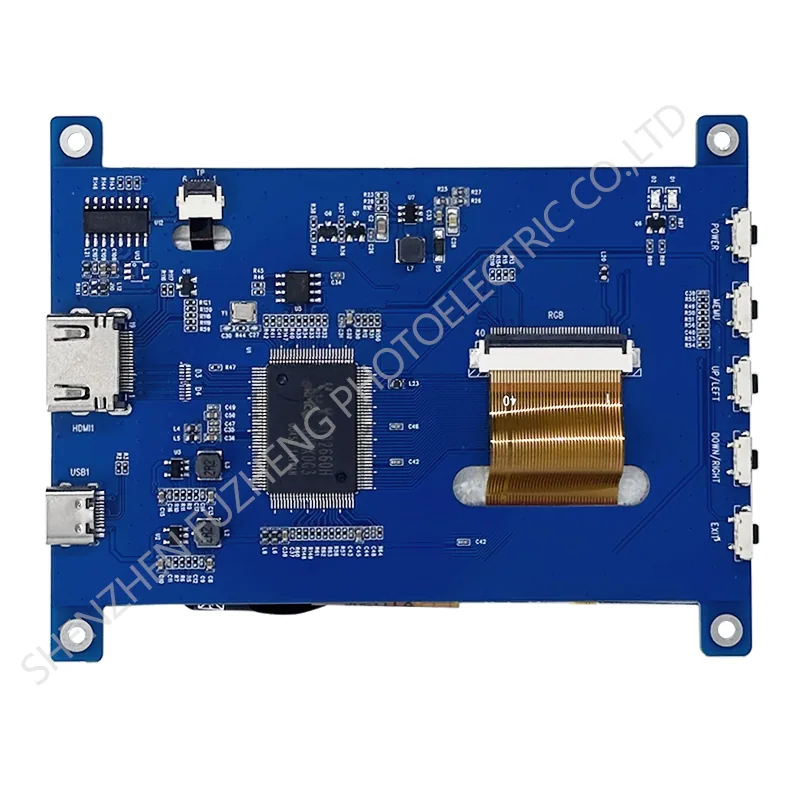

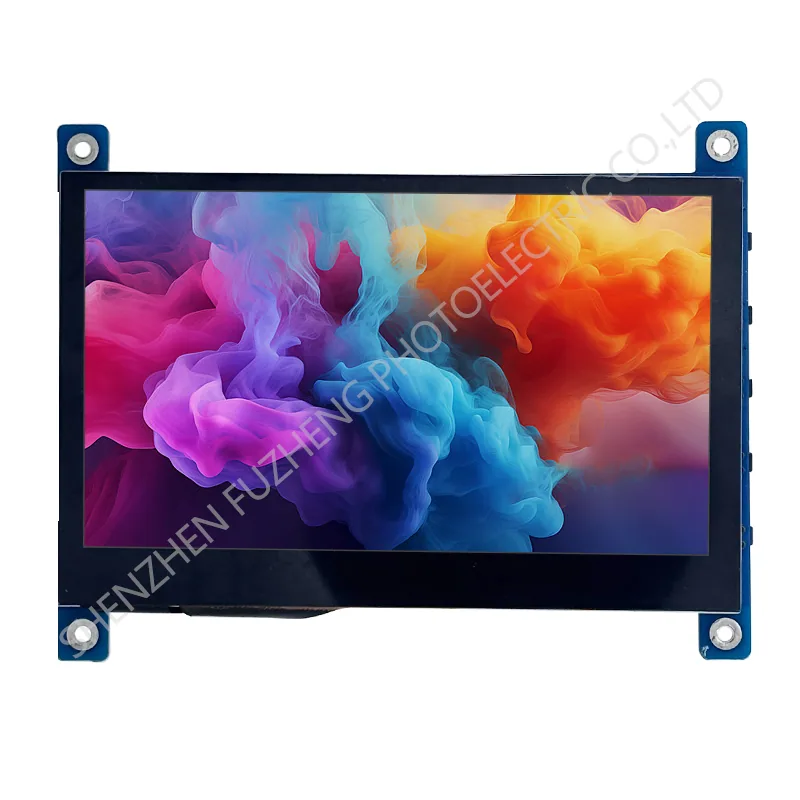

5 inch TFT HDMI display module HDMI+LCD+CTP product image
