Reference no.12472

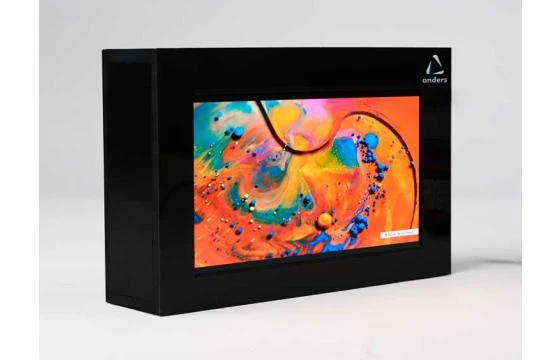

7-Inch AMOLED HDMI Display with CTP

This source-tracked comparison record covers a 7.0" AMOLED module. Its imagery and listed values support initial engineering review; availability, model ownership and the final specification require Fuzheng confirmation before quotation or sample evaluation.

AMOLED
Rectangular
HDMI
On-cell Capacitive / PCAP
1080 x 1920

Screen Size: 7.0"
Resolution: 1080 x 1920
Technology: AMOLED
Display Mode: Active Matrix
Shape: Rectangular
Interface: HDMI

Request a Quote Request a Sample

View Full Specifications

Discuss this module with an engineer

Comparison candidate: specifications remain available for review; external product imagery is withheld until Fuzheng supplies or approves replacement media.

Technical specifications

Reference values are displayed for comparison and require confirmation before quotation.

Published specifications for 7-Inch AMOLED HDMI Display with CTP
Specification	Published value	Review status
Screen Size	7.0"	Confirm before quotation
Resolution	1080 x 1920	Confirm before quotation
Technology	AMOLED	Confirm before quotation
Display Mode	Active Matrix	Confirm before quotation
Shape	Rectangular	Confirm before quotation
Interface	HDMI	Confirm before quotation
Touch	On-cell Capacitive / PCAPMultiple source entries — confirm the selected value.	Multiple source values — confirm
Brightness	900cd/m2	Confirm before quotation
Module Dimensions	89.13 x 160.0 x 1.01mm	Confirm before quotation
Operating Temperature	-20 - +70°C	Confirm before quotation

Mechanical fit

Screen Size: 7.0"
Shape: Rectangular
Module Dimensions: 89.13 x 160.0 x 1.01mm

Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

Review drawing availability →

Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

Interface & integration

Connection information for 12472
Parameter	Source value
Interface	HDMI
Touch	On-cell Capacitive / PCAP

Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

Format and image area

Published screen size: 7.0". Resolution: 1080 x 1920. Shape: Rectangular. Module dimensions: 89.13 x 160.0 x 1.01mm.

Electrical connection

Published interface: HDMI.

Optical and front assembly

Published touch information: On-cell Capacitive / PCAP. Brightness: 900cd/m2. Operating temperature: -20 - +70°C.

Drawings & technical documents

Reference files from this product record, retained at their available source resolution.

Request the matching mechanical drawing

No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.

Request drawing & datasheet

Match the module to your application

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements

Confirm availability and the final electrical, optical and mechanical specification before design-in.
Review interface, connector and FPC alignment against the host electronics.
Discuss touch panel and cover lens requirements where the product design needs a front assembly.
Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product questions

Specifications, documents and sample planning for 12472.

What are the published specifications for 12472?

12472 currently publishes Screen Size: 7.0"; Resolution: 1080 x 1920; Technology: AMOLED; Display Mode: Active Matrix; Shape: Rectangular; Interface: HDMI. Confirm the final drawing and pin assignment against the supplied sample before design-in.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
