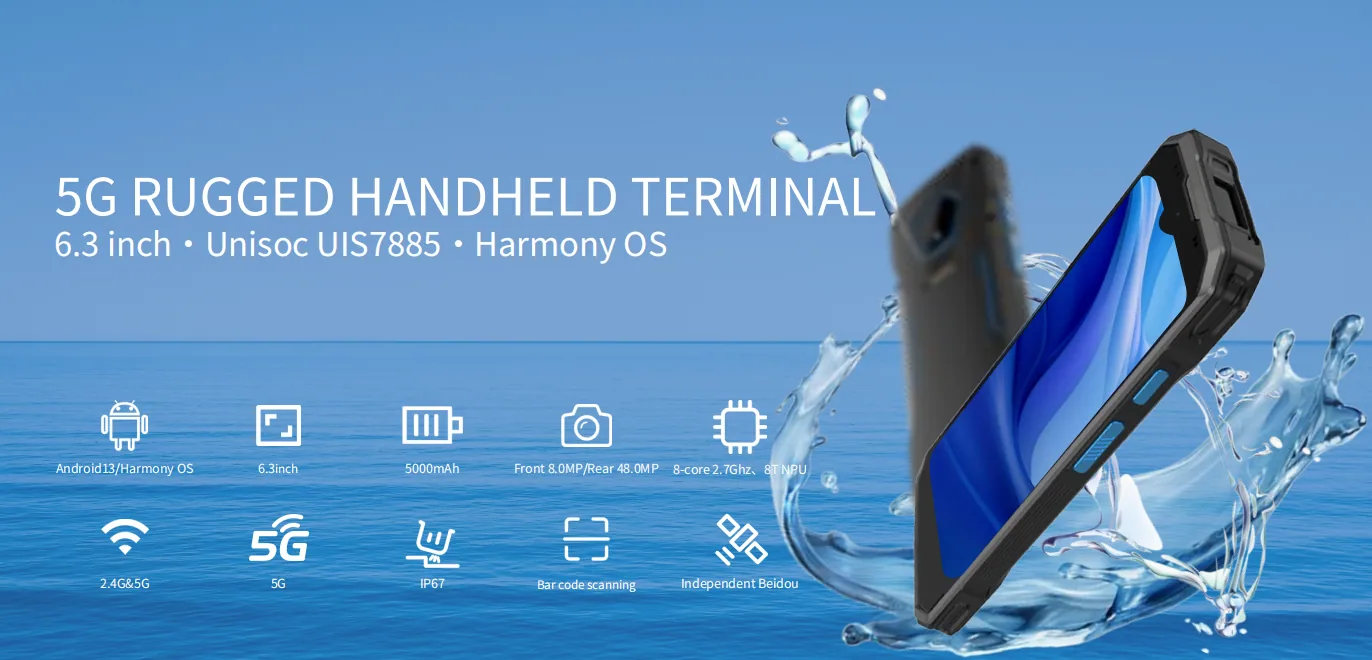

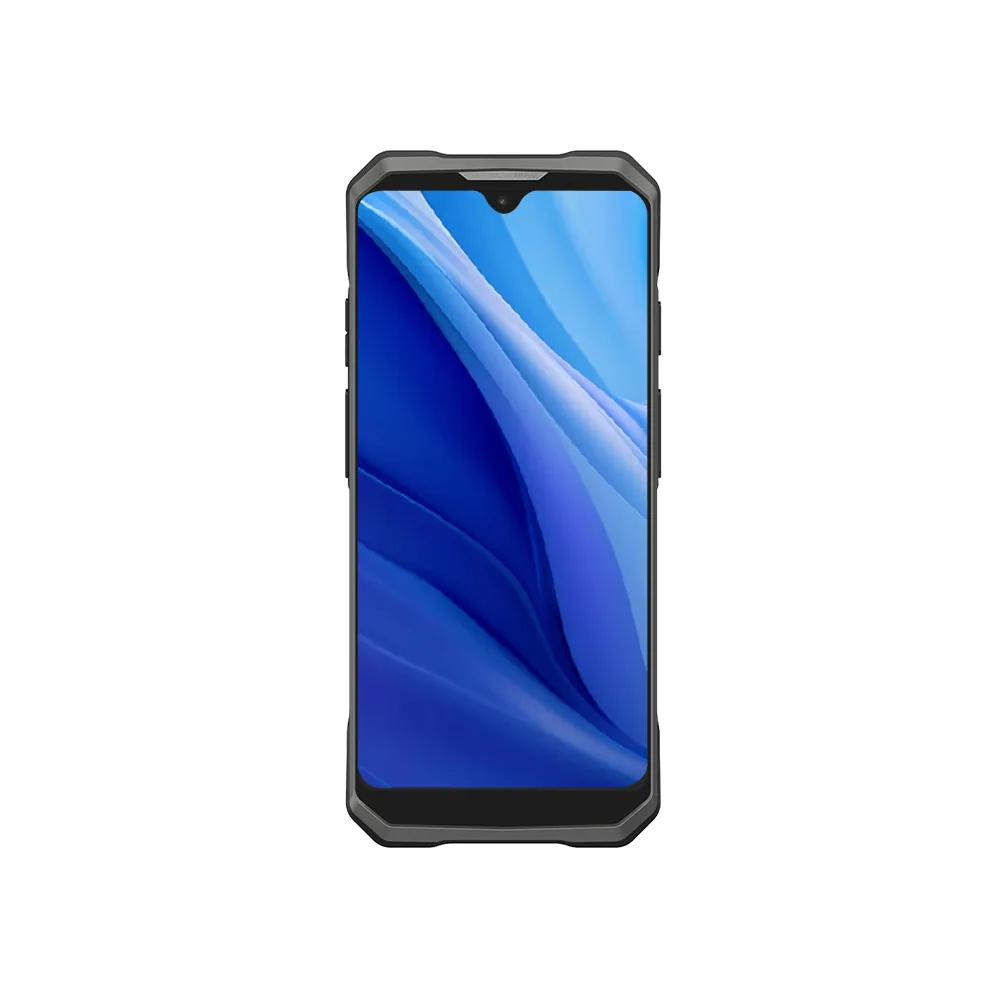

RS50 5G Rugged Handheld Terminal
6.3″ FHD+ | Harmony OS / Android 13 | Unisoc Octa‑Core with NPU | Independent Beidou RTK | IP67
The RS50 is a next‑generation 5G rugged handheld terminal that combines powerful hardware with flexible operating system choices (Harmony OS or Android 13). Driven by the Unisoc UIS7885 octa‑core 2.7GHz processor featuring an 8‑Tops NPU for AI acceleration, it delivers exceptional performance for field data collection, asset management, and precise positioning. With independent Beidou RTK positioning, a 48MP main camera, and IP67 protection, the RS50 excels in challenging environments.
Why Choose RS50?
Dual‑OS Flexibility
Choose between Harmony OS and Android 13 on the same hardware. Run your preferred ecosystem, enterprise apps, or custom solutions without compromise.AI‑Ready Performance
The Unisoc UIS7885 octa‑core 2.7GHz chip integrates an 8‑Tops NPU – ideal for on‑device AI tasks such as image recognition, OCR, and predictive maintenance. 6GB RAM + 128GB ROM (expandable via TF to 512GB) ensures smooth multitasking.Independent Beidou + RTK High‑Precision Positioning
Supports independent Beidou positioning (no reliance on other GNSS constellations) and RTK (Real‑Time Kinematic) for centimeter‑level accuracy – perfect for surveying, power line inspection, precision agriculture, and asset geofencing.Stunning 6.3″ Display
6.3‑inch IPS FHD+ (1080×2340) with 5‑point G+F+F capacitive touch – bright, responsive, and easy to use even with gloves.Professional Triple Camera System
Rear 48 MP autofocus main camera with LED flash
Rear 8 MP macro sub‑camera (optional) for close‑up details
Front 8 MP camera for video calls or selfie documentation
All‑Day Detachable Battery
3.8V / 5000mAh detachable battery – swap batteries without shutting down. USB‑C with Power Delivery and 2‑pin Pogo Pin support fast charging and docking.Rugged & Compact
IP67 dust/water resistance (fully submersible)
1.2m drop height
Dimensions: 172 × 76.6 × 16.5 mm | Weight: <500g – slim and light for a rugged device.
Comprehensive Connectivity
5G SA/NSA (bands N1/N3/N5/N8/N28/N41/N78/N79) with 5G MIMO
Dual‑band Wi‑Fi 802.11 a/b/g/n/ac (2.4/5GHz)
Bluetooth 5.0
4G LTE (B1/B3/B5/B8/B34/B38/B39/B40/B41) and WCDMA fallback
Multi‑GNSS: GPS, GLONASS, Galileo (in addition to independent Beidou)
Rich Feedback & Controls
Tri‑color breathing light • Motor vibration • Loudspeaker & microphone with voice call support • Side keys: Power, Volume +/‑, two SCAN buttons.
Key Technical Specifications
| Feature | Detail |
|---|---|
| Display | 6.3″ IPS FHD+ (1080×2340), 5‑point G+F+F capacitive |
| Processor | Unisoc UIS7885, octa‑core 2.7 GHz, 8T NPU |
| Operating System | Android 13.0 / Harmony OS (selectable) |
| Memory | 6GB RAM + 128GB ROM, expandable via TF to 512GB |
| Battery | 3.8V 5000mAh, detachable; USB‑C PD, 2‑pin Pogo Pin |
| Dimensions | 172 × 76.6 × 16.5 mm |
| Weight | <500g |
| Interfaces | Nano‑SIM ×2, TF slot, Type‑C (OTG, PD), 2‑pin Pogo Pin |
| Audio | Loudspeaker, microphone, voice call support |
| Camera | Rear 48 MP autofocus with LED flash; Rear 8 MP macro (optional); Front 8 MP |
| Indicators | Tri‑color breathing light, vibration motor |
| Side Keys | Power, Volume +/‑ , SCAN button ×2 |
| Sensors | Gravity, gyroscope, magnetic |
| Protection | IP67, 1.2m drop |
| Operating Temp | -10℃ to 50℃ |
| Storage Temp | -40℃ to 70℃ |
| Humidity | 5%RH – 95%RH (non‑condensing) |
Optional Functions – Tailor to Your Workflow
2D Barcode Scanning Engine
Accuracy ≥3mil – reads all standard 1D/2D barcodes, even damaged labels.NFC Reader/Writer
Frequency 13.56MHz • Supports ISO14443A/B, ISO15693, NFC tags • Read/write M1 (S50, S70), CPU tags • Distance 2‑3cm – ideal for access control or contactless verification.Independent Beidou + RTK (highlighted as a core differentiator – included, not optional)
True independent Beidou positioning, plus RTK for centimeter‑level accuracy.Fingerprint Sensor
Supports fingerprint unlocking – secure device access and user authentication.
Optimized for Your Industry
Surveying & Mapping – Leverage independent Beidou RTK for precise boundary and topographic surveys.
Power / Utility Inspection – Capture high‑resolution 48MP images of infrastructure, tag locations with RTK accuracy.
Field Asset Management – Scan barcodes or NFC tags, record asset condition with photos, and update inventory in real time via 5G.
Public Safety & Security – Use fingerprint unlock and encrypted Harmony OS for secure data collection.
Agriculture – Map fields, monitor crops with macro camera, and navigate with centimeter‑level GPS.
What’s in the Box
Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1.
Ready to Deploy the Next Generation of Rugged Computing?
The RS50 5G rugged handheld offers unmatched OS flexibility, AI‑powered performance, and precision positioning – all in a slim, IP67‑rated body. Contact us for a demo, Harmony OS customization, or volume pricing.
Victory.Wang
Shenzhen FuZheng Photoelectric Co., Ltd
Email: Victory.Wang@szfuzheng.com
Plan the display review for a similar device
This RS50 reference shows a host-product application. It does not establish the availability of a replacement screen, a named customer relationship, or qualification of a new display assembly.
Mechanical and touch fit
Compare the active area and full module outline with the enclosure opening. Include thickness, mounting, FPC routing, touch area and cover lens in the same drawing review. The nominal screen size alone is not sufficient to confirm fit.
Electrical compatibility and sample scope
Collect the host interface, connector pin assignment, power requirements and software configuration before shortlisting a module. Evaluate the sample with the real UI and front assembly, and record the operating conditions that need to be demonstrated.
Review the interface checklist and prepare the drawing and touch checklist before sending an inquiry.
