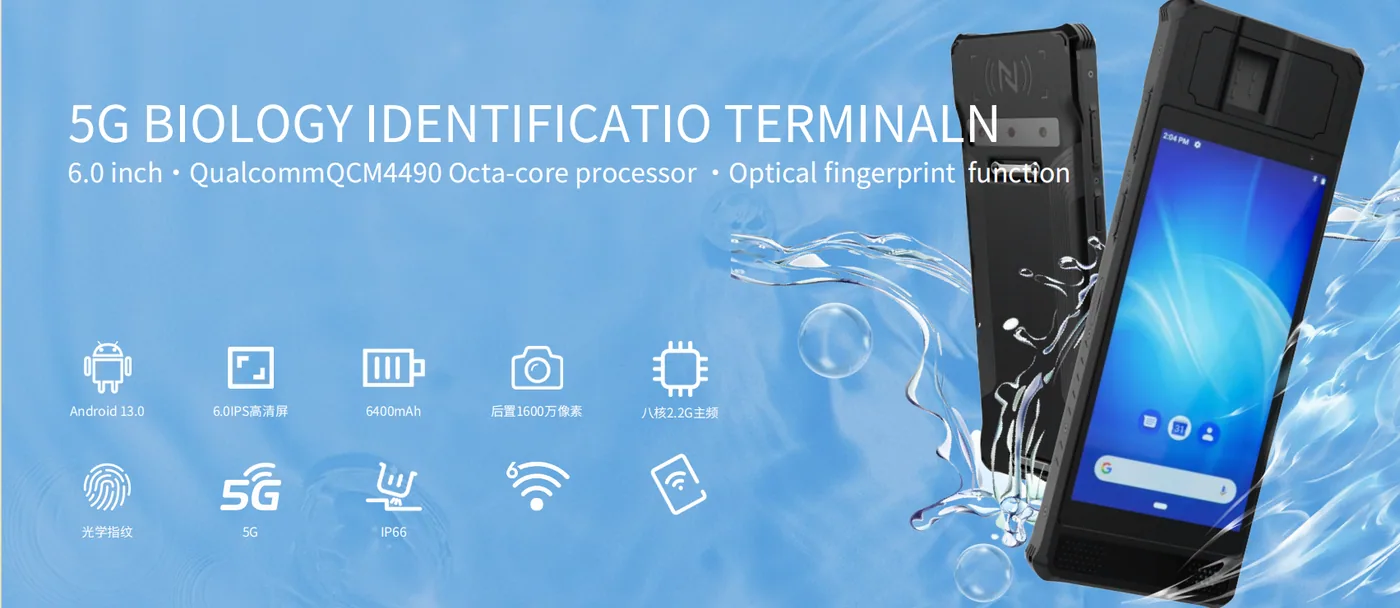

RF60 5G Biology Identification Terminal
6.0″ FHD+ | Optical Fingerprint (FAP20) | Qualcomm Octa‑Core | 5G & Wi‑Fi 6E | IP66
The RF60 is a dedicated 5G biology identification terminal built for high‑security biometric applications. Featuring an optical fingerprint sensor (FBI PIV / FAP20 certified), a bright 6.0‑inch IPS FHD+ display, and a Qualcomm QCM4490 octa‑core processor, this device delivers fast, accurate identity verification in the field. With 5G connectivity, 6400mAh battery, and IP66 rugged protection, the RF60 is ready for law enforcement, border control, voter registration, and healthcare identification.
Why Choose RF60?
Advanced Optical Fingerprint Sensor
Sensor size: 15.24 × 20.32 mm
Image pixel: 300 × 400 at 500 dpi
Grayscale: 8‑bit, 256 levels
Compliant with FBI PIV and FBI ID FAP20 standards – suitable for government‑grade identity enrollment and verification.
Powerful 5G Performance
Powered by the Qualcomm QCM4490 octa‑core 2.2GHz processor with Android 13, and available in 4+64GB or 8+128GB (expandable via TF to 256GB). 5G (Eurasian bands) with 4×4 MIMO ensures fast data uploads of fingerprint images and real‑time database queries.Large, Sunlight‑Readable Display
6.0‑inch IPS FHD+ (1080×2160) with 400 nits brightness and 5‑point G+G capacitive touch – clear visibility even outdoors.Long‑Lasting Battery
3.8V / 6400mAh high‑capacity battery supports full‑day field operations. USB‑C with Power Delivery for fast charging.Rugged & Portable
IP66 dust/water resistance
1.2m drop height
Dimensions: 217.5 × 83 × 19 mm | Weight: <650g
Comprehensive Connectivity
Wi‑Fi 6E (2.4/5/6GHz, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.2
5G (Eurasian bands: N1/3/5/7/8/20/28/38/40/41/77/78/79) with 4×4 MIMO DL
Multi‑GNSS: GPS (L1+L5), GLONASS, Galileo, NaviC, QZSS
Professional Audio & Imaging
Stereo speakers • Dual microphone with noise reduction • Rear 16 MP autofocus camera with flash • Front 8 MP camera • Motor vibration for haptic feedback.Physical Keys
Power button, Volume +/‑, and a programmable Fn key for one‑touch actions.
Key Technical Specifications
| Feature | Detail |
|---|---|
| Display | 6.0″ IPS FHD+ (1080×2160), 400 nits, 5‑point G+G capacitive |
| Processor | Qualcomm QCM4490, octa‑core 2.2 GHz |
| Operating System | Android 13.0 |
| Memory | 4+64GB / 8+128GB, expandable via TF to 256GB |
| Battery | 3.8V 6400mAh; USB‑C PD support |
| Dimensions | 217.5 × 83 × 19 mm |
| Weight | <650g |
| Interfaces | Nano‑SIM ×1, TF slot, Type‑C (OTG, PD) |
| Audio | Stereo speakers, dual microphone with noise reduction |
| Camera | Rear 16 MP autofocus with flash; Front 8 MP |
| Sensors | Gravity, gyroscope, magnetic |
| Protection | IP66, 1.2m drop |
| Operating Temp | -10℃ to 50℃ |
| Storage Temp | -40℃ to 70℃ |
| Humidity | 5%RH – 95%RH (non‑condensing) |
Optional Function – Optical Fingerprint (Standard on RF60)
| Parameter | Detail |
|---|---|
| Standard Compliance | FBI PIV / FBI ID FAP20 |
| Sensor Type | Optical |
| Sensor Size | 15.24 × 20.32 mm |
| Image Pixel | 300 × 400 pixels |
| Resolution | 500 dpi |
| Grayscale | 8‑bit, 256 levels |
| NFC (optional) | 13.56MHz, ISO14443A/B/ISO15693, read/write M1/CPU tags, 2‑3cm distance |
Note: Optical fingerprint is a core feature; NFC is optional.
Optimized for Your Industry
Law Enforcement & Border Control – Capture high‑quality fingerprints (FAP20) for criminal identification or passport verification.
Voter / Citizen Registration – Enroll biometric data in remote areas with 5G real‑time upload.
Healthcare Patient ID – Prevent identity fraud by linking fingerprints to medical records.
Access Control & Workforce Management – Verify worker identities with fingerprint + NFC card.
What’s in the Box
Standard accessories: Power adapter ×1, USB data cable ×1, Battery ×1, Protective film ×1, User manual ×1, Wrist strap ×1.
Ready to Upgrade Your Biometric Workflow?
The RF60 5G biology identification terminal combines government‑grade optical fingerprinting, true 5G connectivity, and industrial durability. Contact us for a demo, SDK integration support, or volume pricing.
