Model no.FZ40010C40
FZ40010C40 3.95-Inch 480x480 IPS Square TFT-LCD
FZ40010C40 is a 3.95-inch 480×480 IPS square TFT-LCD with ST7701S controller, 3-wire SPI plus 18-bit RGB interface, 40-pin plug-in FPC and 400 cd/m² typical brightness. Dedicated pins support an optional capacitive-touch configuration.
- a-Si IPS TFT-LCD, transmissive
- Square, 1:1 resolution format
- 3-wire SPI + 18-bit parallel RGB
- Optional capacitive panel via pins 35–39
- 480 × 480 square resolution format
- IPS all-direction viewing
- ST7701S controller
- 3-wire SPI initialization plus 18-bit RGB image bus
- Screen Size
- 3.95 inch
- Resolution
- 480 × 480 pixels
- Technology
- a-Si IPS TFT-LCD, transmissive
- Shape
- Square, 1:1 resolution format
- Interface
- 3-wire SPI + 18-bit parallel RGB
- Touch
- Optional capacitive panel via pins 35–39
Product Overview
The FZ40010C40 is a 3.95″ square IPS TFT-LCD module with 480x480 resolution (1:1 aspect ratio). It uses the Sitronix ST7701S controller with a hybrid 3W SPI + RGB 18-bit interface (SPI for initialization, RGB for live image data). The 40-pin plug-in FPC tail carries backlight, RGB data bus, sync signals and optional CTP touch lines. With 400 cd/m² typical brightness, 800:1 contrast and 25,000 hr LED lifetime, it is designed for smart-home control panels, square-format wearables, and industrial HMI applications.
Key Features
- 3.95 inch IPS TFT-LCD, 480x480 square (1:1 aspect ratio), 16.7M colors
- ST7701S controller with 3W SPI + RGB 18-bit hybrid interface
- 400 cd/m² typical brightness, 800:1 contrast, 25 ms response time
- 10 white-LED edge backlight with 25,000 hr typical lifetime
- Wide 80° H / 80° V viewing angle — consistent image from all sides
- Optional capacitive touch (I2C interface on dedicated TP pins 35-39)
- Wide operating temperature -20 ~ +70 °C for industrial use

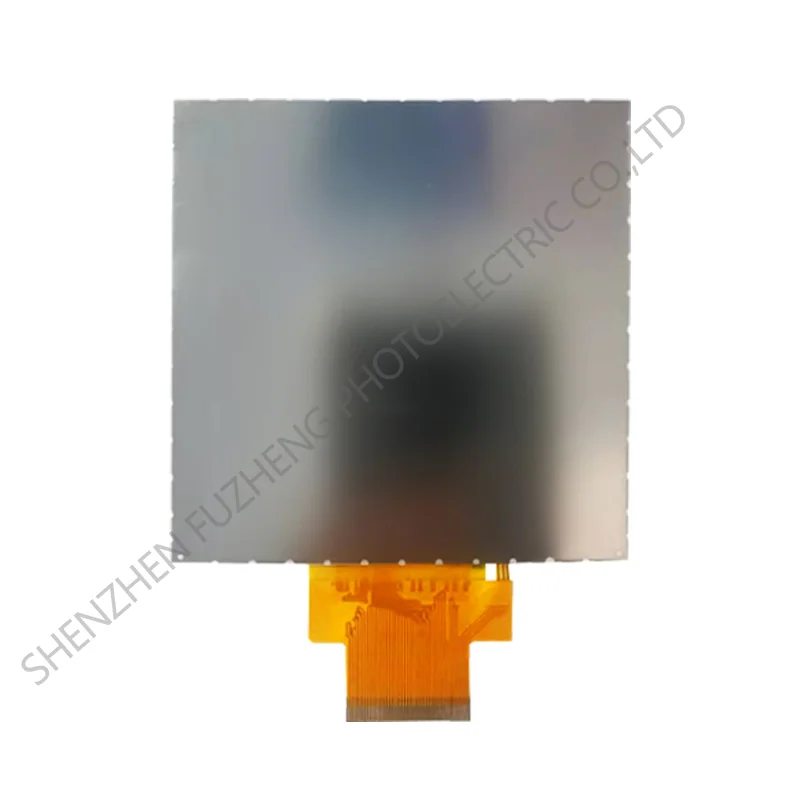

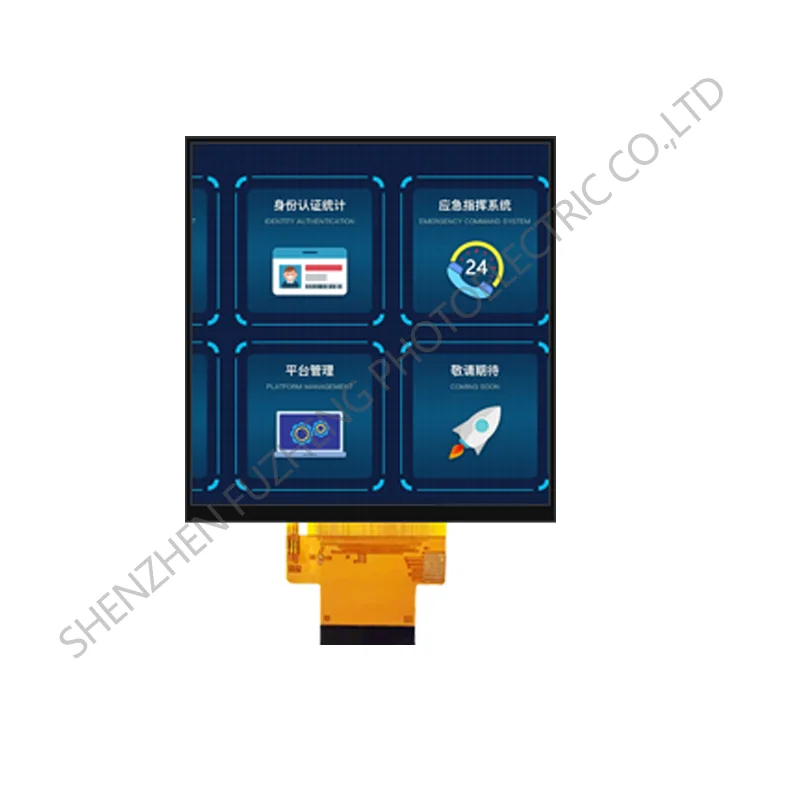

Product Images
Basic Parameters
| Display Type | a-Si TFT IPS (TFT / Transmissive) |
|---|---|
| Model Number | FZ40010C40 |
| Screen Size | 3.95 inch (diagonal, square 1:1) |
| Resolution | 480x480 (480 RGB x 480 Dots) |
| Pixel Pitch | 0.1497 (H) x 0.1462 (V) μm |
| Display Colors | 16.7M (RGB stripe) |
| Viewing Direction | ALL (IPS, 80° H / 80° V) |
| Active Area | 71.86 (H) x 69.51 (V) mm |
| LCM Outline Size | 74.66 (H) x 76.54 (V) mm |
| Backlight | 10 white LEDs (edge-lighting) |
| Brightness (typ.) | 400 cd/m² (typ.) |
| LED Forward Voltage (Vf) | 15 V (typ., IL=40 mA) |
| LED Lifetime (typ.) | 25,000 hours (typ., to 50% brightness) |
| Contrast Ratio (typ.) | 800 : 1 (typ.) |
| Response Time (typ.) | 25 ms (typ., Tr+Tf) |
| Controller / Driver IC | ST7701S (Sitronix) |
| Data Interface | 3W SPI + RGB 18-bit parallel (hybrid) |
| Pin Count | 40 (plug-in FPC) |
| Power Supply — IOVCC | IOVCC 1.65 ~ 3.3 V (typ. 1.8 V) |
| Power Supply — VCI | VCI 2.5 ~ 3.6 V (typ. 2.8 V) |
| Power Supply — VCC (Pin 5, logic) | VCC 2.8 ~ 3.3 V (Pin 5, interface logic) |
| Touch Panel Option | Optional capacitive touch (TP signals on pins 35-39) |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Weight | TBD g |
| Manufacturer | Shenzhen FuZheng Photoelectric Co., Ltd |
Mechanical Drawing
The approved, revision-matched mechanical drawing is available with the quotation. Confirm the exact module suffix and connector orientation before enclosure release.
Pin Definition (40-pin FPC)
40-pin plug-in FPC tail. Pin 1-3 are backlight (LEDA / LEDK / LEDK). Pin 4 is GND, Pin 5 is VCC 2.8-3.3 V (logic supply), Pin 6 is active-low RST. Pins 7-8 are reserved (NC). Pins 9-11 are the 3W SPI control interface (SDA / SCL / CS) used for ST7701S initialization. Pins 12-15 are the RGB timing signals (PCLK / DE / VS / HS). Pins 16-33 are the 18-bit RGB data bus (DB0-DB17). Pin 34 is GND. Pins 35-39 are reserved for the optional capacitive touch panel (TP-INT / TP-SDA / TP-SCL / TP-RST / TP-VCC). Pin 40 is GND.
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDA | Back-light Anode |
| 2 | LEDK | Back-light Cathode |
| 3 | LEDK | Back-light Cathode |
| 4 | GND | Power Ground |
| 5 | VCC | Power supply for I/O block (2.8 ~ 3.3 V) |
| 6 | RST | Reset input pin |
| 7 | NC | No connection |
| 8 | NC | No connection |
| 9 | SDA | Serial data input / output bidirectional pin for SPI |
| 10 | SCL | Serial clock input for SPI interface |
| 11 | CS | Chip select signal (SPI) |
| 12 | PCLK | Dot clock signal for RGB interface operation |
| 13 | DE | Data enable signal for RGB interface operation |
| 14 | VS | Frame (vertical) synchronizing signal for RGB interface |
| 15 | HS | Line (horizontal) synchronizing signal for RGB interface |
| 16-33 | DB0-DB17 | 18-bit parallel data bus for RGB interface |
| 34 | GND | Power Ground |
| 35 | TP-INT | Touch panel interrupt (CTP option) |
| 36 | TP-SDA | Touch panel I2C data (CTP option) |
| 37 | TP-SCL | Touch panel I2C clock (CTP option) |
| 38 | TP-RST | Touch panel reset (CTP option) |
| 39 | TP-VCC | Touch panel power supply (CTP option) |
| 40 | GND | Power Ground |
Typical Applications
- Smart home control panel and thermostat (square format)
- Square-format smartwatch and wearable display
- Industrial HMI, machine control and instrumentation
- Coffee machine, water dispenser and smart appliance HMI
- Audio equipment front panel (DJ controller, mixer, speaker)
- POS terminal, kiosk and self-service secondary display
- EV charging station and E-bike dashboard
- Medical device display and health monitor screen
Frequently Asked Questions
What makes FZ40010C40 a square display?
FZ40010C40 combines a nominal 3.95-inch IPS panel with a 480 × 480 pixel, 1:1 resolution format and a published active area of 71.86 × 69.51 mm.
Which controller and interface are used?
The supplied record identifies an ST7701S controller, 3-wire SPI for initialization and an 18-bit parallel RGB bus for image data.
Can the 40-pin FPC support capacitive touch?
Pins 35–39 are allocated to optional capacitive-touch signals. Confirm whether the quoted assembly includes touch and request the matching electrical and mechanical documents.
What optical performance is published?
The source lists 400 cd/m² typical brightness, 800:1 typical contrast and 25 ms typical response time.
Which dimensions need confirmation before tooling?
Confirm module thickness, FPC geometry, connector orientation and pixel pitch against the approved drawing. The supplied record contains a pixel-pitch unit conflict, so it must not be used for tooling without verification.
