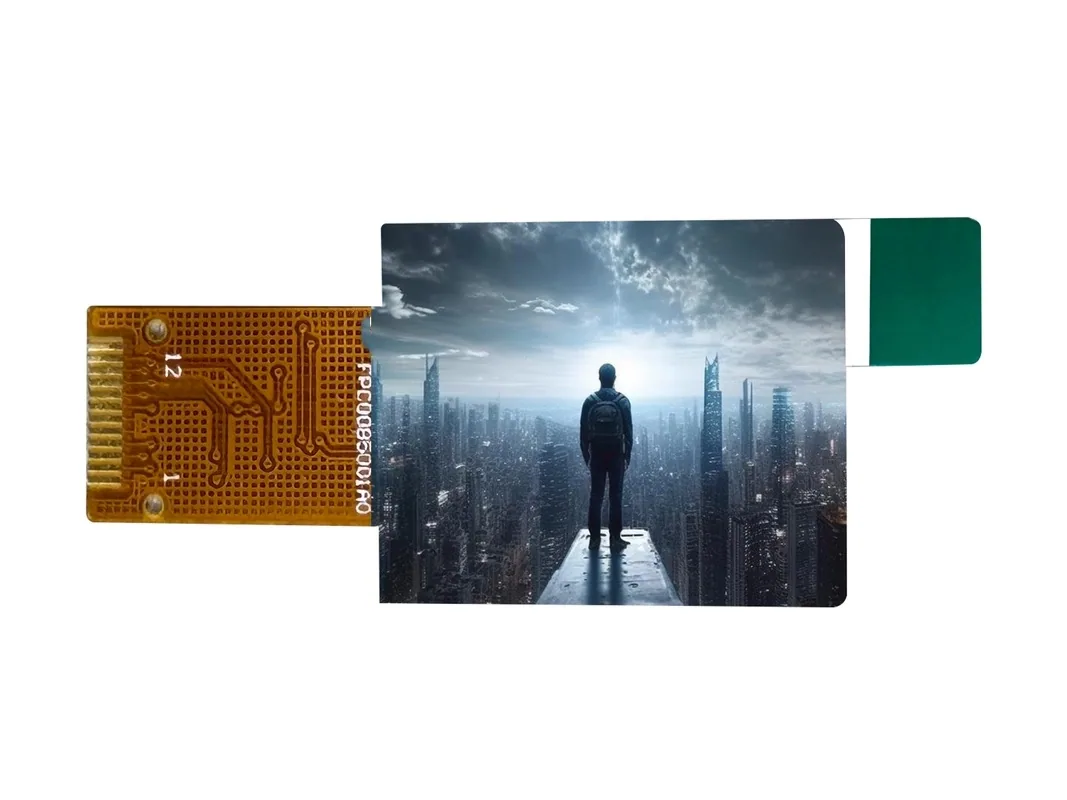

0.85-Inch 128x128 Square Touch TFT-LCD
The current record identifies 128*128 resolution, SPI interface, YES touch information, 450 Cd/m2 brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.
- SPI
- YES
- Screen Size
- 0.85 Inches
- Resolution
- 128*128
- Interface
- SPI
- Touch
- YES
- Brightness
- 450 Cd/m2
- Viewing Angle
- ALL O'OCLOCK
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Screen Size | 0.85 Inches |
| Resolution | 128*128 |
| Interface | SPI |
| Touch | YES |
| Brightness | 450 Cd/m2 |
| Viewing Angle | ALL O'OCLOCK |
| Contrast Ratio | 1200 |
| Backlight | LED |
| Module Dimensions | 21.30(H)*25.75(V)*2.49(T) |
| Active Area | 15.21(H)*15.21(V) |
| Response Time | 30ms |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Power Consumption | 70mw |
Mechanical fit
- Screen Size
- 0.85 Inches
- Module Dimensions
- 21.30(H)*25.75(V)*2.49(T)
- Active Area
- 15.21(H)*15.21(V)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Interface & integration
| Parameter | Source value |
|---|---|
| Interface | SPI |
| Touch | YES |
| Backlight | LED |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Published screen size: 0.85 Inches. Resolution: 128*128. Module dimensions: 21.30(H)*25.75(V)*2.49(T). Active area: 15.21(H)*15.21(V).
Electrical connection
Published interface: SPI. Backlight: LED.
Optical and front assembly
Published touch information: YES. Brightness: 450 Cd/m2. Viewing angle: ALL O'OCLOCK. Operating temperature: -10℃~60℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for 0.85-Inch 128x128 Square Touch TFT-LCD.
What are the published specifications for 0.85-Inch 128x128 Square Touch TFT-LCD?
0.85-Inch 128x128 Square Touch TFT-LCD currently publishes Screen Size: 0.85 Inches; Resolution: 128*128; Interface: SPI; Touch: YES; Brightness: 450 Cd/m2; Viewing Angle: ALL O'OCLOCK. Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
