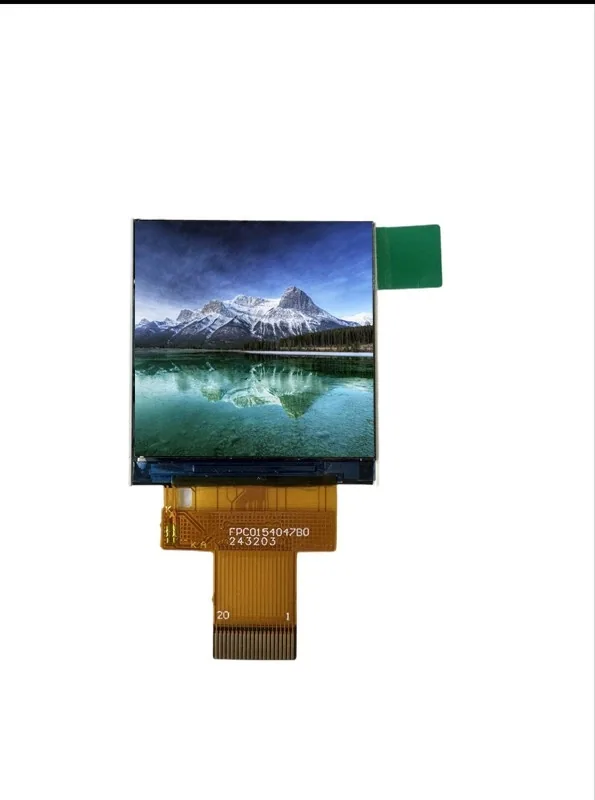

1.54-Inch 240x240 Square TFT-LCD, 700 cd/m2
The current record identifies 240*240 resolution, 700cd/m² brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.
- Transmissive TFT
- Screen Size
- 1.54 Inch
- Resolution
- 240*240
- Technology
- Transmissive TFT
- Brightness
- 700cd/m²
- Viewing Angle
- ALL O’clock
- Contrast Ratio
- 900:1
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Screen Size | 1.54 Inch |
| Resolution | 240*240 |
| Technology | Transmissive TFT |
| Brightness | 700cd/m² |
| Viewing Angle | ALL O’clock |
| Contrast Ratio | 900:1 |
| Module Dimensions | 31.52 (H) X33.72(V) X1.95(T) Mm |
| Active Area | 27.72(H) X27.72 (V) |
| Response Time | 30ms |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -20℃~70℃ |
| Viewing Area | 28.72(H) X28.72 (V) |
Mechanical fit
- Screen Size
- 1.54 Inch
- Module Dimensions
- 31.52 (H) X33.72(V) X1.95(T) Mm
- Active Area
- 27.72(H) X27.72 (V)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Interface & integration
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Published screen size: 1.54 Inch. Resolution: 240*240. Module dimensions: 31.52 (H) X33.72(V) X1.95(T) Mm. Active area: 27.72(H) X27.72 (V).
Electrical connection
Confirm the host interface, connector, pin assignment, logic voltage and backlight drive before schematic release.
Optical and front assembly
Brightness: 700cd/m². Viewing angle: ALL O’clock. Operating temperature: -10℃~60℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.

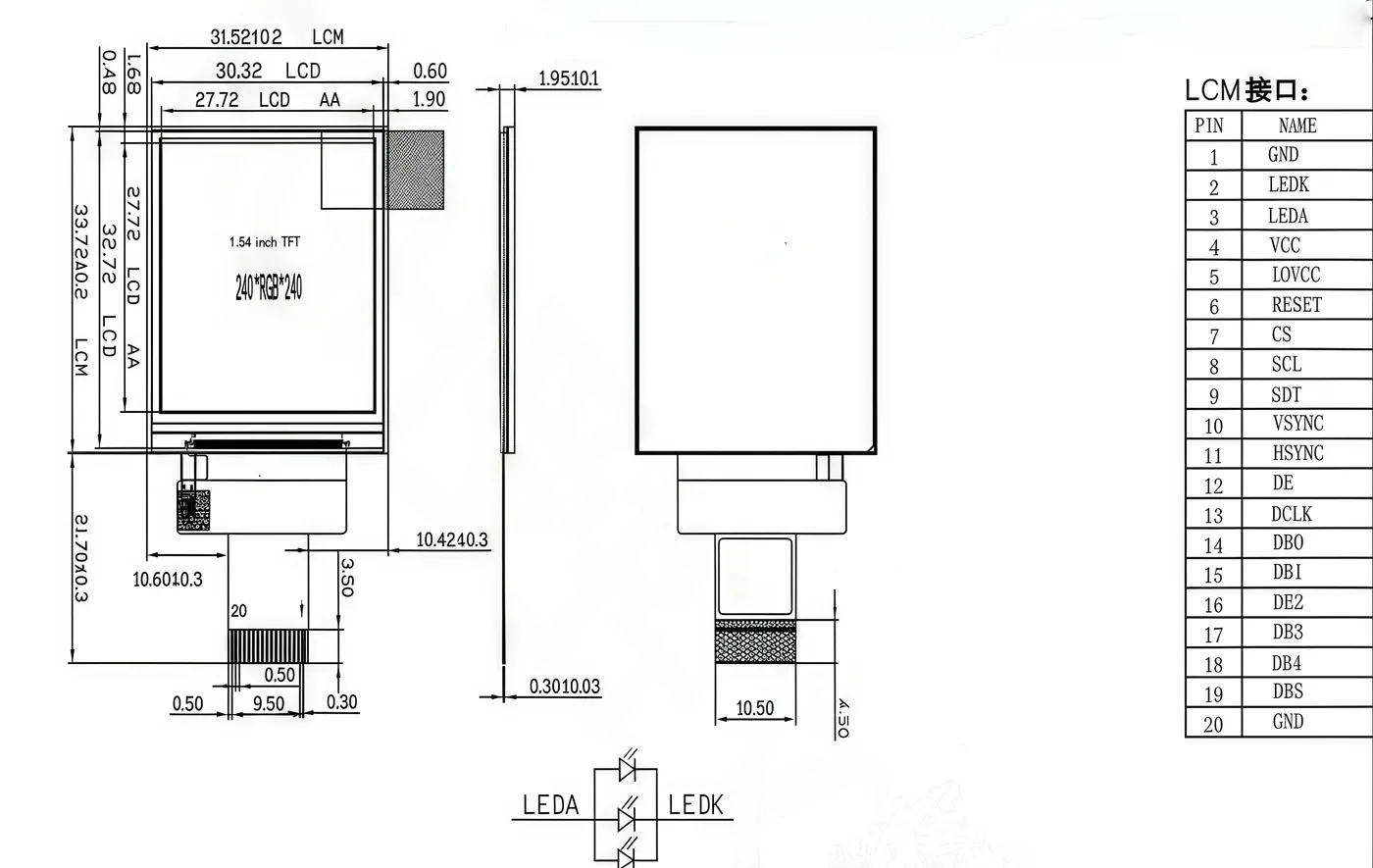

Inspect drawing 1 ↗Reference drawing 1
