Model no.FZF0395DPC40

3.95-Inch 480x480 Square Touch TFT-LCD

With a resolution of 480×480 pixels and full viewing angle capability (All O'Clock), this display ensures excellent readability and color consistency from any direction. Utilizing MIPI interface technology and driven by the ST7701SN-G5-1 IC, it supports efficient and fast image rendering for a wide range of embedded applications.

  • MIPI
Screen Size
3.95inch
Resolution
480*480
Display Mode
Transmissive TFT
Interface
MIPI
Viewing Direction
ALL o’clock
Module Dimensions
84.40 (H) X84.40(V) X3.67(T) mm
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

With a resolution of 480×480 pixels and full viewing angle capability (All O'Clock), this display ensures excellent readability and color consistency from any direction. Utilizing MIPI interface technology and driven by the ST7701SN-G5-1 IC, it supports efficient and fast image rendering for a wide range of embedded applications.

Built with a transmissive TFT LCD panel and LED backlighting, the module offers a brightness level of 400 cd/m², ensuring clear visibility even in well-lit environments. Its active area of 71.86(H) × 70.28(V) mm is enclosed within a sleek 84.40 × 84.40 × 3.67 mm frame, making it ideal for devices where space is limited.

Engineered for reliability, the display operates across a broad temperature range of -20℃ to 70℃ and can be safely stored between -30℃ and 80℃. With a low power consumption of just 560 mW, this display is both efficient and durable—perfect for modern industrial, medical, and consumer electronics.

Confirm the FZF0395DPC40 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 3.95-Inch 480x480 Square Touch TFT-LCD
    SpecificationPublished value
    Screen Size 3.95inch
    Resolution 480*480
    Display Mode Transmissive TFT
    Interface MIPI
    Viewing Direction ALL o’clock
    Backlight 8LEDS
    Module Dimensions 84.40 (H) X84.40(V) X3.67(T) mm
    Active Area 71.86(H) X70.28(V)
    Input Voltage 2.5V-3.3V
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    Part NO. FZF0395DPC40
    Piexl pitch 480(RGB)X480
    Surface luminance 400cd/m2
    ‘10-11 GND

    Mechanical fit

    Screen Size
    3.95inch
    Module Dimensions
    84.40 (H) X84.40(V) X3.67(T) mm
    Active Area
    71.86(H) X70.28(V)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Published technical data

    Published technical data for 3.95-Inch 480x480 Square Touch TFT-LCD
    ItemSpecification
    Size3.95inch
    Display modeTransmissive TFT
    Part NO.FZF0395DPC40
    Resolution480*480
    Outline size84.40 (H) X84.40(V) X3.67(T) mm
    Active area71.86(H) X70.28(V)
    View directionALL o’clock
    Piexl pitch480(RGB)X480
    InterfaceMIPI
    Backlight8LEDS
    Surface luminance400cd/m2
    Logic voltage2.5V-3.3V
    Operating temperature-20℃~70℃
    Storage temperature-30℃~80℃

    Published technical data

    Published technical data for 3.95-Inch 480x480 Square Touch TFT-LCD
    NOSymbolFunction
    1GNDGround
    2D0NMIPI DSI differential data pair.
    3D0PMIPI DSI differential data pair
    4GNDGround
    5CLKNMIPI DSI differential clock pair.
    6CLKPMIPI DSI differential clock pair.
    7GNDGround
    8D1NMIPI DSI differential data pair.
    9D1PMIPI DSI differential data pair
    ‘10-11GNDGround
    12RESETRESET.PIN
    13TETE-PIN
    14NCNC
    15GNDGround
    16NCNC
    17VDDPower setting
    18IOVCCPower setting
    19LEDALED anode
    20LEDKLED cathode

    Interface & integration

    Connection information for FZF0395DPC40
    ParameterSource value
    InterfaceMIPI
    Backlight8LEDS
    Input Voltage2.5V-3.3V

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 3.95inch. Resolution: 480*480. Module dimensions: 84.40 (H) X84.40(V) X3.67(T) mm. Active area: 71.86(H) X70.28(V).

    Electrical connection

    Published interface: MIPI. Backlight: 8LEDS.

    Optical and front assembly

    Viewing direction: ALL o’clock. Operating temperature: -20℃~70℃.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

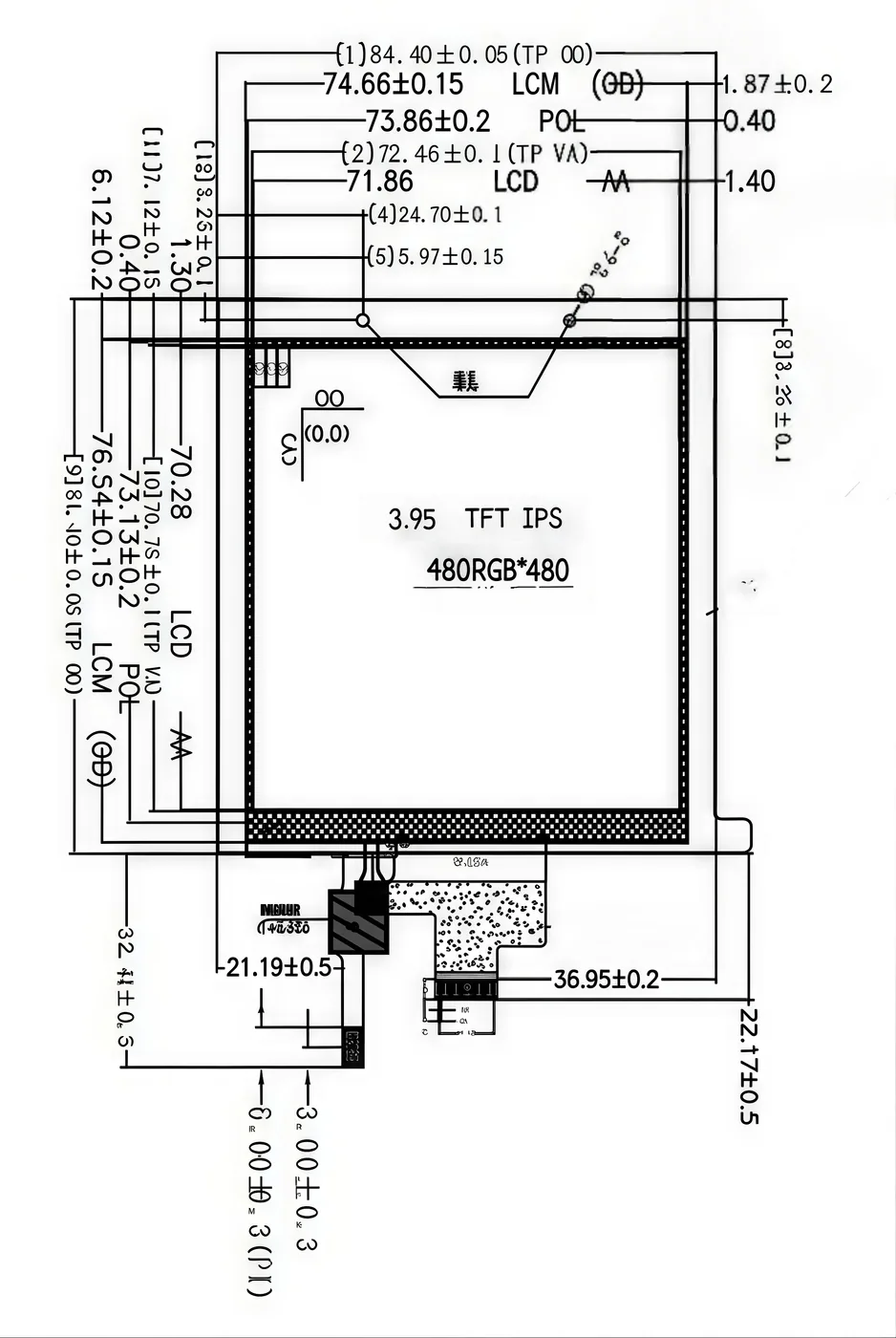

    FZF0395DPC40 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.

    Download source drawing ↓

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZF0395DPC40.

    What are the published specifications for FZF0395DPC40?

    FZF0395DPC40 currently publishes Screen Size: 3.95inch; Resolution: 480*480; Display Mode: Transmissive TFT; Interface: MIPI; Viewing Direction: ALL o’clock; Module Dimensions: 84.40 (H) X84.40(V) X3.67(T) mm. Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZF0395DPC40

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

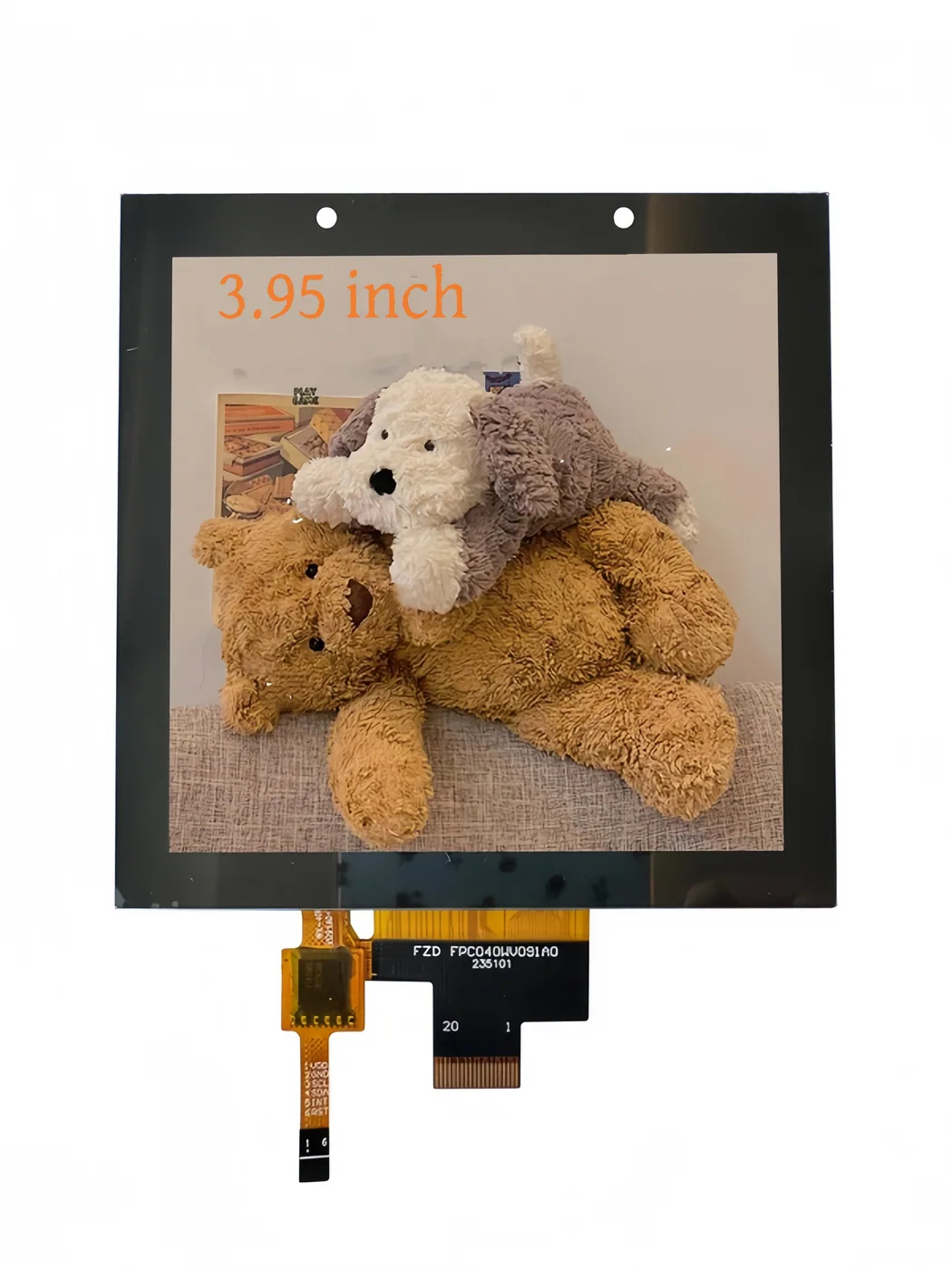

    3.95 Inch  480*480 Pixels Capacitive Touchscreen TFT LCD with 400 nits Brightness product image
