Model no.FZ354001C40

3.54-Inch Round TFT-LCD Module

FZ354001C40 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.54" contains 340 RGB X800 pixels and can display up to 16.7m colors.

  • a-Si TFT
  • LVDS
  • /
Screen Size
3.54
Resolution
800(H)X340
Technology
a-Si TFT
Interface
LVDS
Touch
/
Viewing Direction
ALL
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. The source title lists 480×480, but one descriptive passage lists 340 RGB ×800. These are conflicting source values, not interchangeable options. Request a corrected specification and approved drawing before selection.

Product overview

FZ354001C40 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.54" contains 340 RGB X800 pixels and can display up to 16.7m colors.

Confirm the FZ354001C40 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for 3.54-Inch Round TFT-LCD Module
    SpecificationPublished value
    Screen Size 3.54
    Resolution 800(H)X340(V)
    Technology a-Si TFT
    Interface LVDS
    Touch /
    Brightness 450
    Viewing Direction ALL
    Driver IC FL5893DA
    Backlight 7 *1chips white LED / 12 White LEDMultiple source entries — confirm the selected value.
    Module Dimensions 83.79 (H) x 97.6 (V)
    Active Area 72(H) x 90 (V)
    Input Voltage 3.3
    Operating Temperature -20 -- 70 °C
    Storage Temperature -30 -- 80 °C
    Model FZ354001C40
    LED Life Span 25000

    Mechanical fit

    Screen Size
    3.54
    Module Dimensions
    83.79 (H) x 97.6 (V)
    Active Area
    72(H) x 90 (V)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    The source title lists 480×480, but one descriptive passage lists 340 RGB ×800. These are conflicting source values, not interchangeable options. Request a corrected specification and approved drawing before selection.

    Published technical data

    Published technical data for 3.54-Inch Round TFT-LCD Module
    ItemContentsUnit
    ModelFZ354001C40—
    LCD Typea-Si TFT/
    Viewing DirectionALLO' Clock
    Size3.54inch
    Module Outline (W x HxD)83.79 (H) x 97.6 (V)mm
    Active Area (WxH)72(H) x 90 (V)mm
    Resolution (pixels)800(H)X340(V)/
    Backlight Type7 *1chips white LED/
    Interface TypeLVDS/
    Input Voltage3.3V
    Luminance450cd/m2
    Backlight Type And Color:12 White LED—
    Controller IC:FL5893DA—
    Touch Type:/—
    LED Life Span:25000hour
    Operating Temperature Range:-20 -- 70 °C—
    Storage Temperature Range:-30 -- 80 °C—

    Interface & integration

    Connection information for FZ354001C40
    ParameterSource value
    InterfaceLVDS
    Touch/
    Driver ICFL5893DA
    Backlight7 *1chips white LED / 12 White LED
    Input Voltage3.3

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Published screen size: 3.54. Resolution: 800(H)X340(V). Module dimensions: 83.79 (H) x 97.6 (V). Active area: 72(H) x 90 (V).

    Electrical connection

    Published interface: LVDS. Driver IC: FL5893DA. Backlight: 7 *1chips white LED / 12 White LED.

    Optical and front assembly

    Published touch information: /. Brightness: 450. Viewing direction: ALL. Operating temperature: -20 -- 70 °C.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

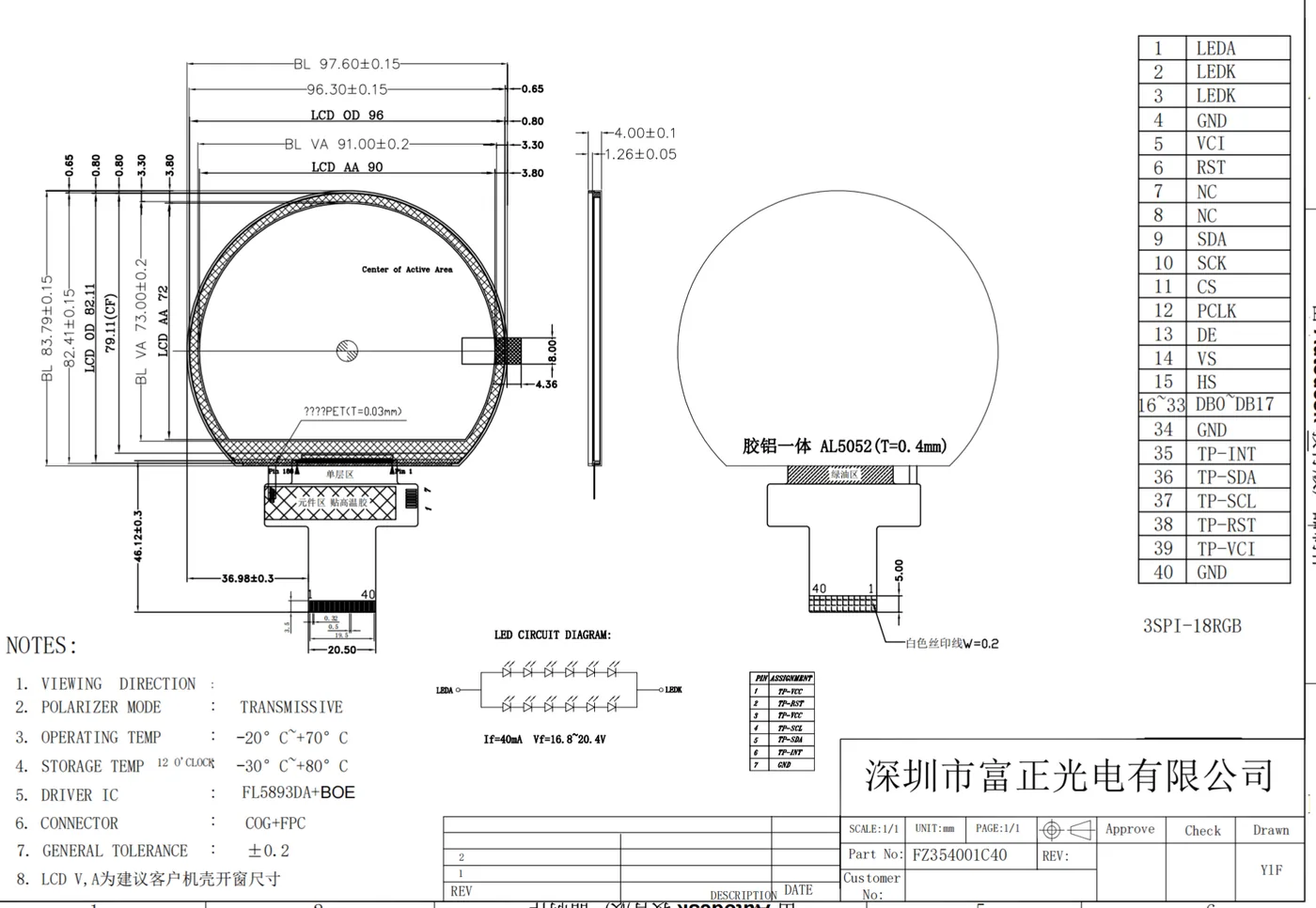

    FZ354001C40 reference drawing 1Inspect drawing 1 ↗

    Reference drawing 1

    Confirm the model suffix, dimensional tolerances and assembly revision with the quoted sample.
