Model no.FZR009DPC01

FZR009DPC01 0.9 Inch Round TFT-LCD Display Module

This 0.9-inch round display has a resolution of 128×128, uses an SPI interface, and provides a high brightness of 800cd/m², ensuring it can still be seen in strong light environments. The viewing angle is U/D/L/R: 85/85/85/85 (TYP), providing a wider viewing angle. Its display area size is 23.04×23.04mm, the LCM size is 25.24×27.14×1.94mm, and the product size is 33x33x2.79mm. It supports customization to meet the needs of different customers. This 0.9-inch round display is suitable for various small devices, providing high-quality display effects, and is widely used in handheld devices, wearable devices, instruments, smart homes, and other fields.

  • Normal Black
  • SPI
Resolution
128*128
Technology
Normal Black
Interface
SPI
Viewing Angle
U/D/L/R: 85/85/85/85
Module Dimensions
25.24*27.14*1.94(mm)
Active Area
23.04*23.04(mm)
Discuss this module with our team

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Product overview

This 0.9-inch round display has a resolution of 128×128, uses an SPI interface, and provides a high brightness of 800cd/m², ensuring it can still be seen in strong light environments. The viewing angle is U/D/L/R: 85/85/85/85 (TYP), providing a wider viewing angle. Its display area size is 23.04×23.04mm, the LCM size is 25.24×27.14×1.94mm, and the product size is 33x33x2.79mm. It supports customization to meet the needs of different customers. This 0.9-inch round display is suitable for various small devices, providing high-quality display effects, and is widely used in handheld devices, wearable devices, instruments, smart homes, and other fields.

With a resolution of 128×128, it is suitable for displaying clear icons, text, and numbers, providing precise display effects, and is especially ideal for small round display needs.

It Provides a brightness of up to 800cd/m², which can maintain excellent display effects even in strong light or direct sunlight, ensuring clear reading of information.

The viewing angle is U/D/L/R: 85/85/85/85 (TYP), providing a good visual range. No matter from which angle you watch, the display effect can remain clear and consistent.

The display area size is 23.04×23.04mm, the LCM size is 25.24×27.14×1.94mm, and the product size is 33x33x2.79mm. It has a compact appearance and is suitable for devices with limited space. Support customization and flexibly meet different design requirements.

This 0.9-inch circular display supports the SPI interface, which is convenient for integration with a variety of control systems and devices, simplifies the connection and debugging process, and improves development efficiency.

Confirm the FZR009DPC01 assembly against the latest specification and drawing revision before design-in.

Product highlights

    Technical specifications

    Values are normalized from the current product record; no missing parameter is estimated.

    Published specifications for FZR009DPC01 0.9 Inch Round TFT-LCD Display Module
    SpecificationPublished value
    Resolution 128*128
    Technology Normal Black
    Interface SPI
    Brightness 800cd/m²
    Viewing Angle U/D/L/R: 85/85/85/85 (TYP) / 85/85/85/85 (TYP), providing a good visual range. No matter from which angle you watch, the display effect can remain clear and consistent.Multiple source entries — confirm the selected value.
    Contrast Ratio 800
    Module Dimensions 25.24*27.14*1.94(mm) / 33*33*2.79(mm),Customizable appearanceMultiple source entries — confirm the selected value.
    Active Area 23.04*23.04(mm)
    Response Time 35MS
    Operating Temperature -20℃~+70℃
    Storage Temperature -30℃~+80℃
    Display Color 16.7M
    Dot Pitch 180um*180um
    Product Type TFT

    Mechanical fit

    Module Dimensions
    25.24*27.14*1.94(mm) / 33*33*2.79(mm),Customizable appearance
    Active Area
    23.04*23.04(mm)

    Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.

    Review drawing availability →

    Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.

    Interface & integration

    Connection information for FZR009DPC01
    ParameterSource value
    InterfaceSPI

    Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.

    Format and image area

    Resolution: 128*128. Module dimensions: 25.24*27.14*1.94(mm) / 33*33*2.79(mm),Customizable appearance. Active area: 23.04*23.04(mm).

    Electrical connection

    Published interface: SPI.

    Optical and front assembly

    Brightness: 800cd/m². Viewing angle: U/D/L/R: 85/85/85/85 (TYP) / 85/85/85/85 (TYP), providing a good visual range. No matter from which angle you watch, the display effect can remain clear and consistent.. Operating temperature: -20℃~+70℃.

    Drawings & technical documents

    Reference files from this product record, retained at their available source resolution.

    Request the matching mechanical drawing

    No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.

    Request drawing & datasheet

    Match the module to your application

    Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

    Send product requirements
    • Review interface, connector and FPC alignment against the host electronics.
    • Discuss touch panel and cover lens requirements where the product design needs a front assembly.
    • Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

    Product questions

    Specifications, documents and sample planning for FZR009DPC01.

    What are the published specifications for FZR009DPC01?

    FZR009DPC01 currently publishes Resolution: 128*128; Technology: Normal Black; Interface: SPI; Viewing Angle: U/D/L/R: 85/85/85/85; Module Dimensions: 25.24*27.14*1.94(mm); Active Area: 23.04*23.04(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.

    What should I include in an inquiry for this display?

    Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

    Can I request a sample for evaluation?

    Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

    Can interface, touch or mechanical requirements be discussed?

    Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.

    Discuss this display with our team

    FZR009DPC01

    Share the required interface, assembly, quantity and project timing. Request the matching specification and drawing revision with your quote.

    Shenzhen FuZheng Photoelectric Co., Ltd. · Company information
    Victory.Wang@szfuzheng.com · WhatsApp +86 159 8944 5783

    Start a product inquiry →

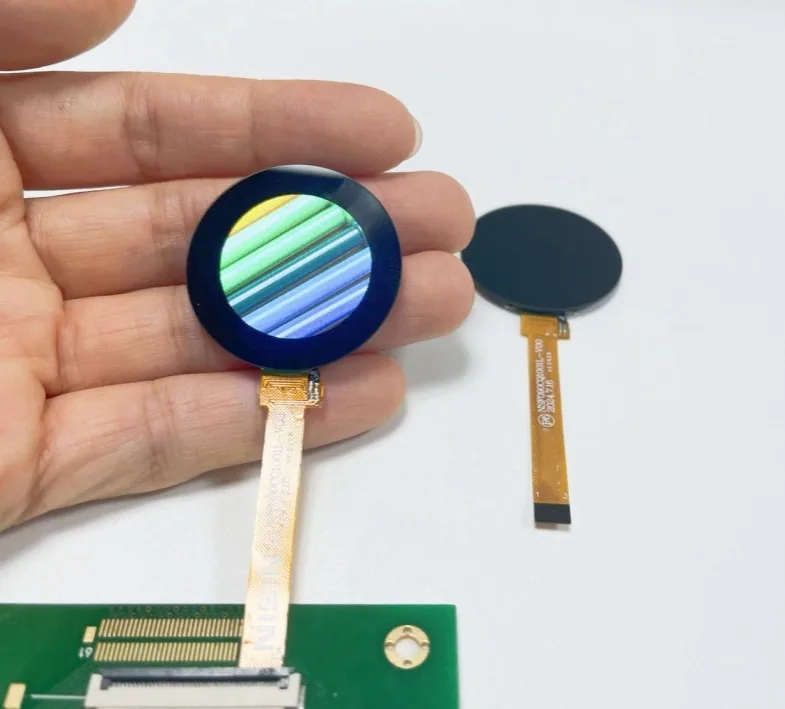

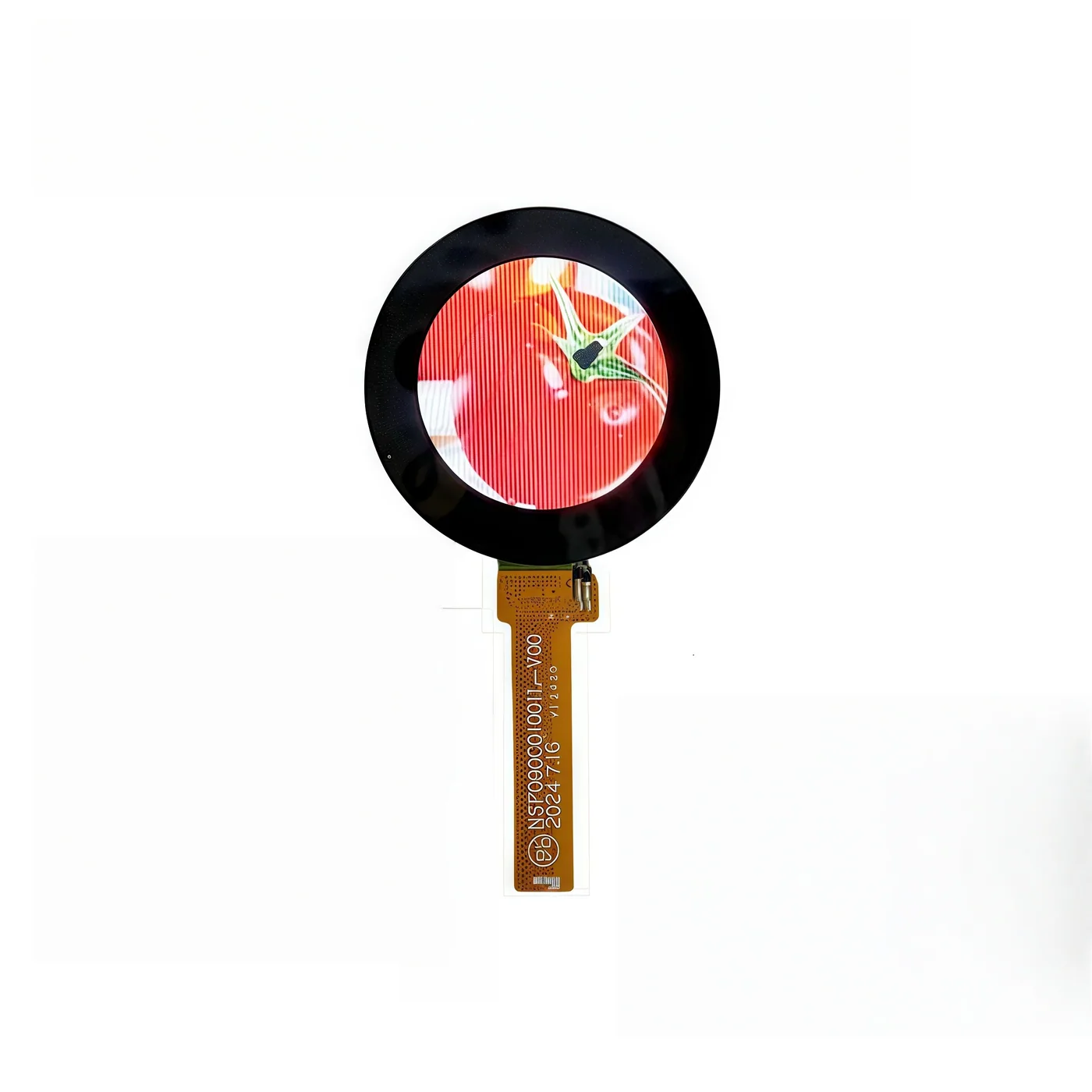

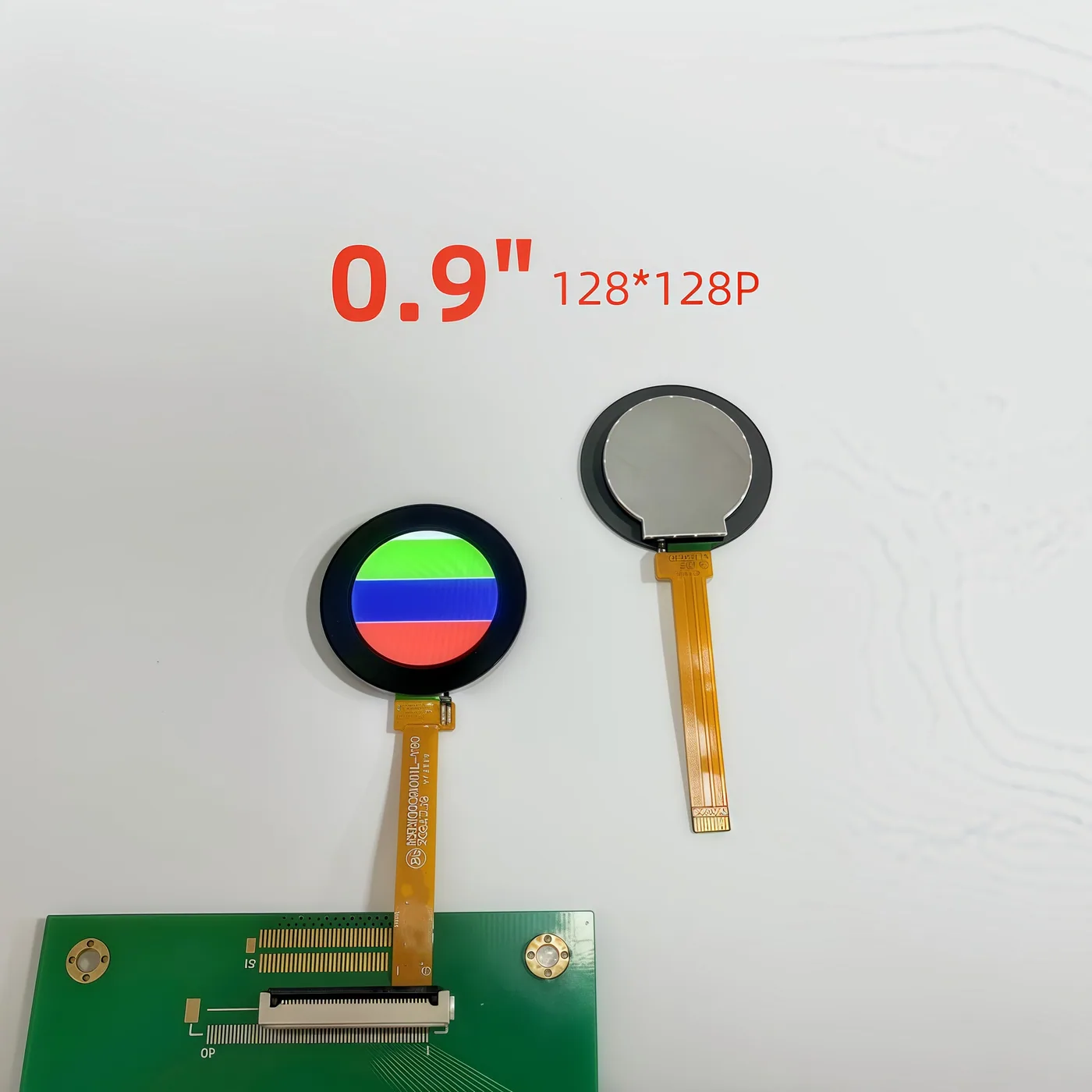

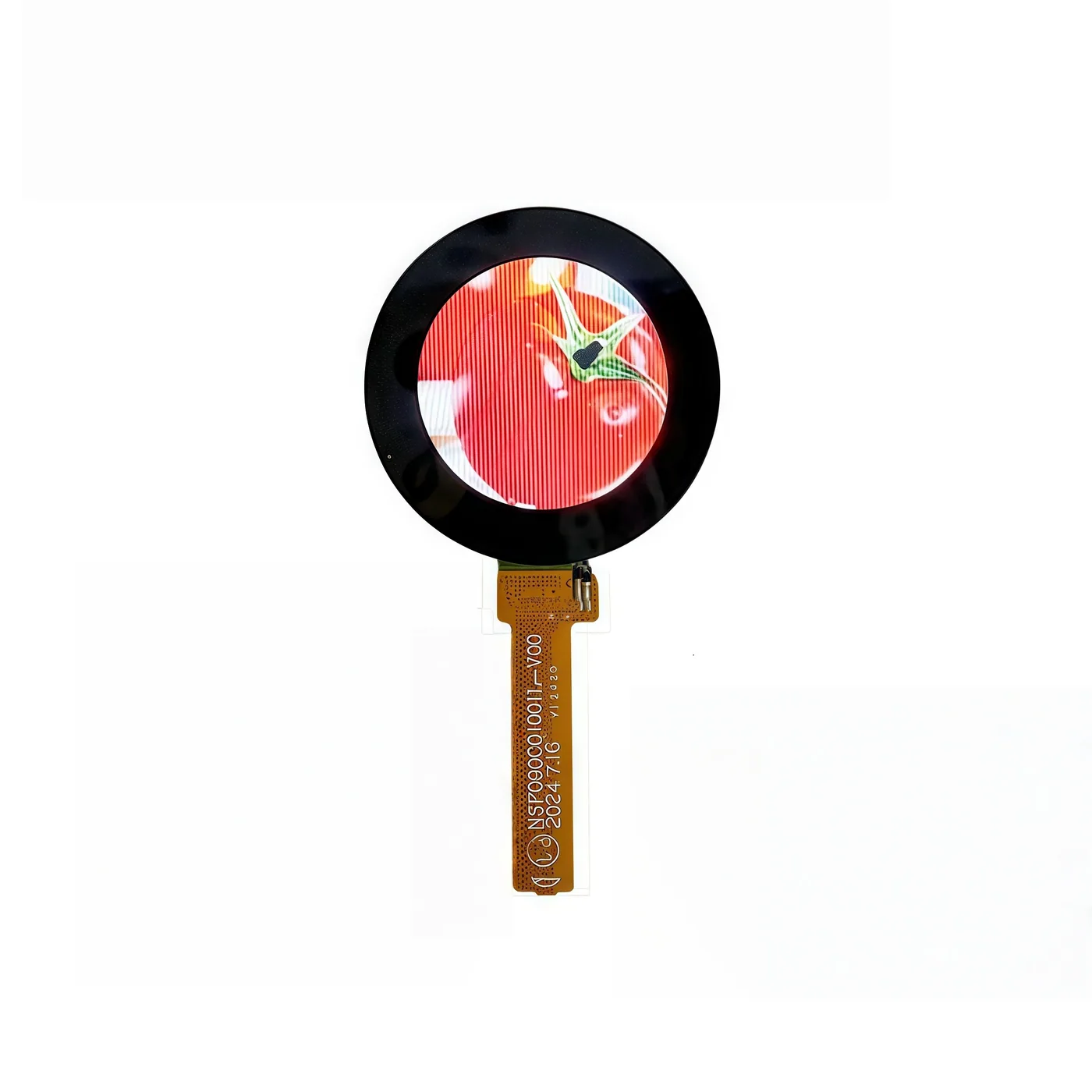

    0.9 Inch Round TFT LCD Display Module product image
