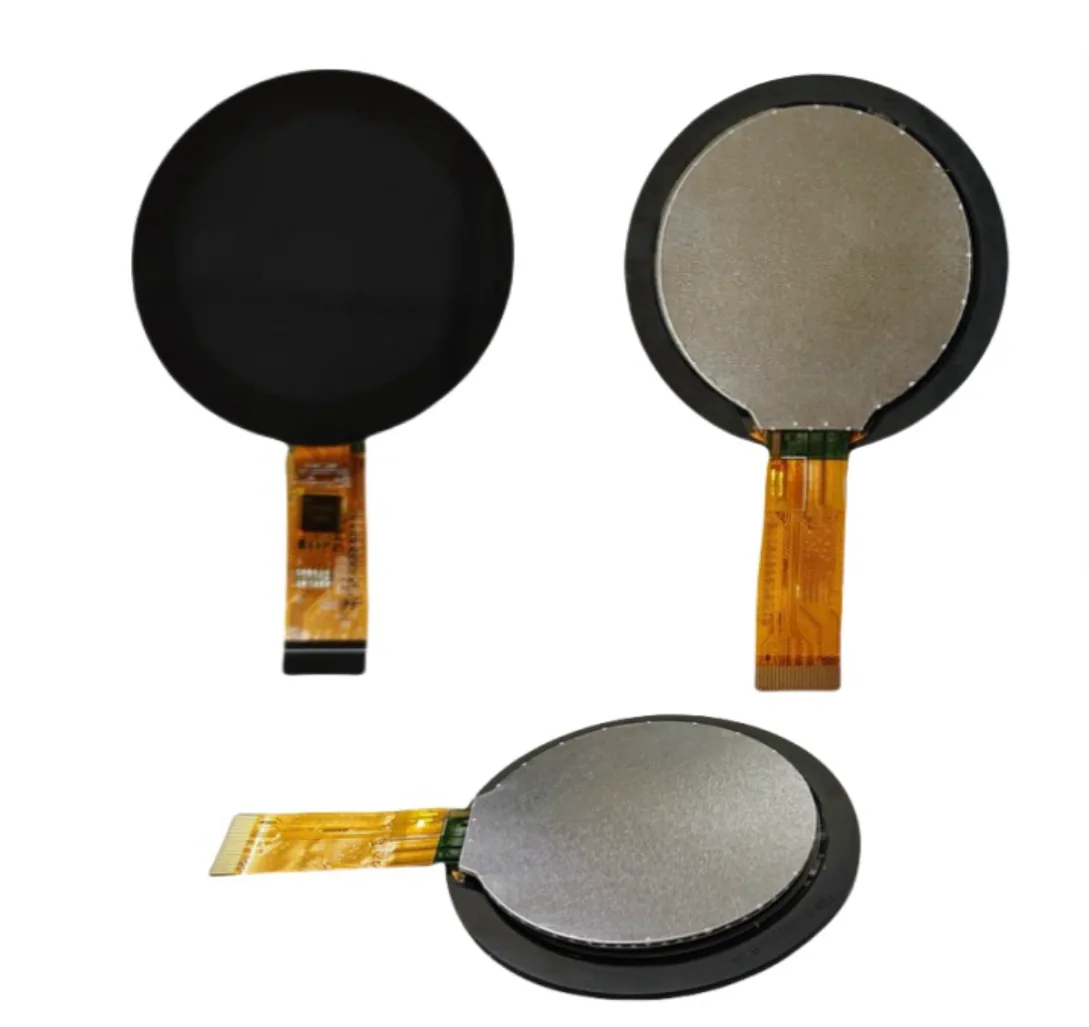

Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.FZR0106DPC01

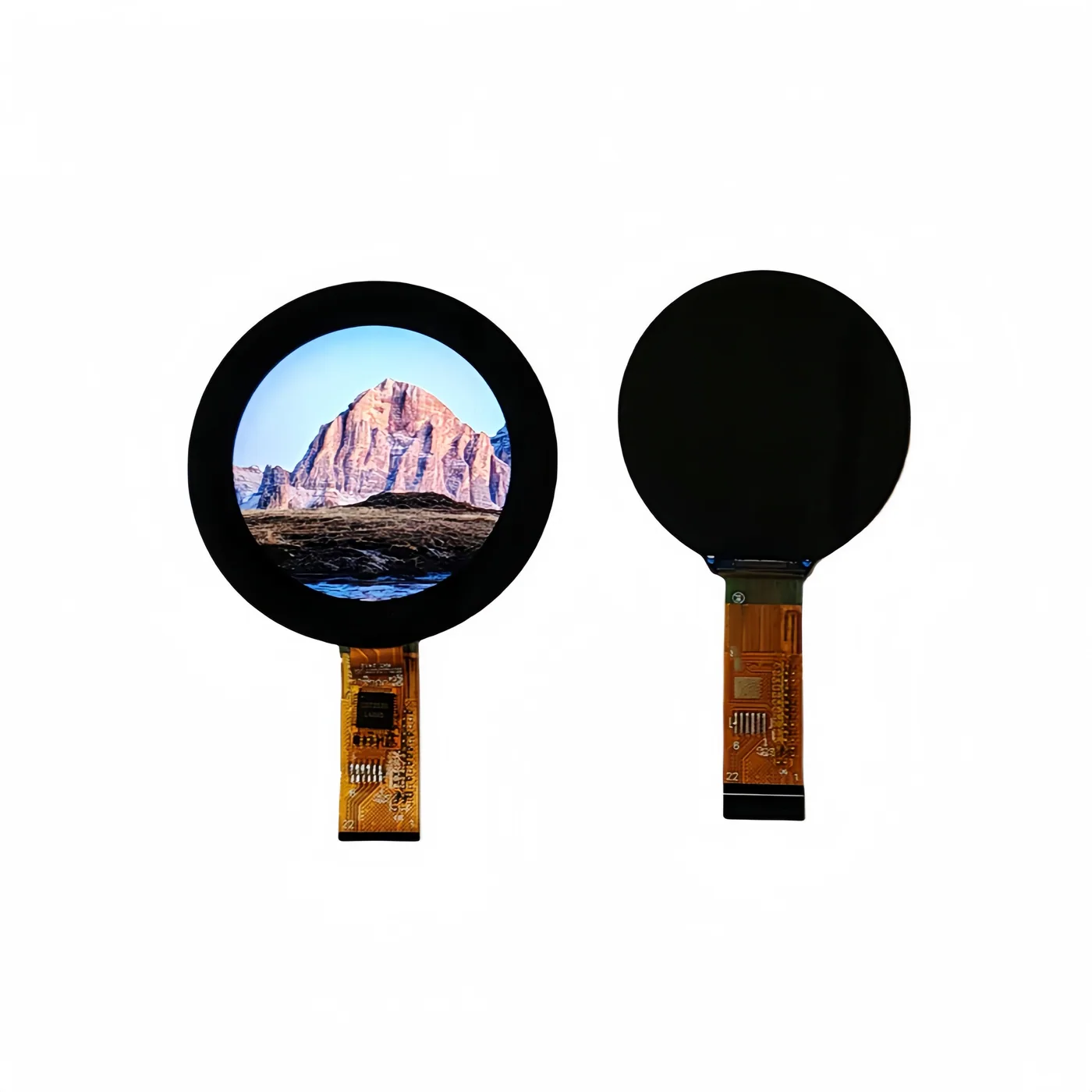

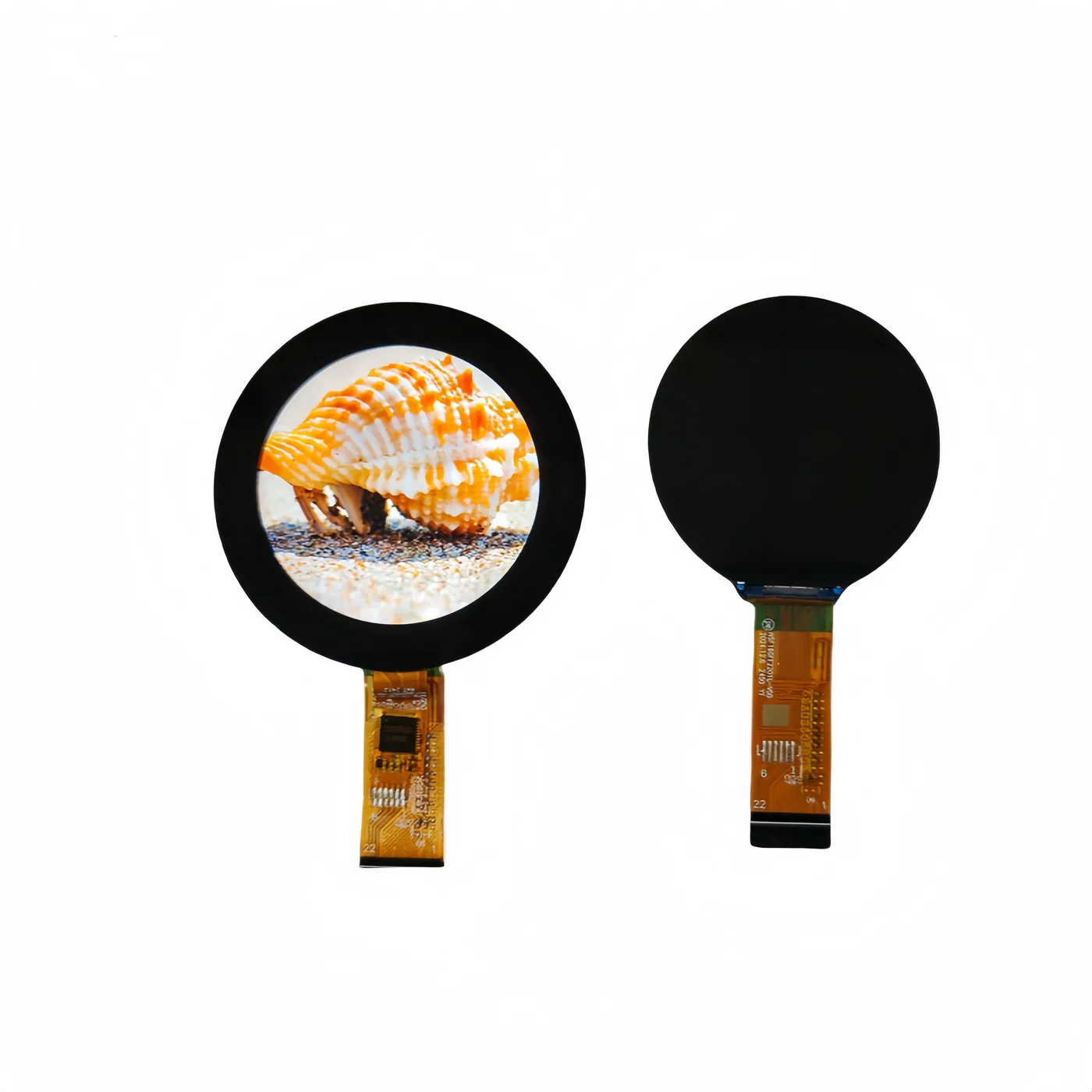

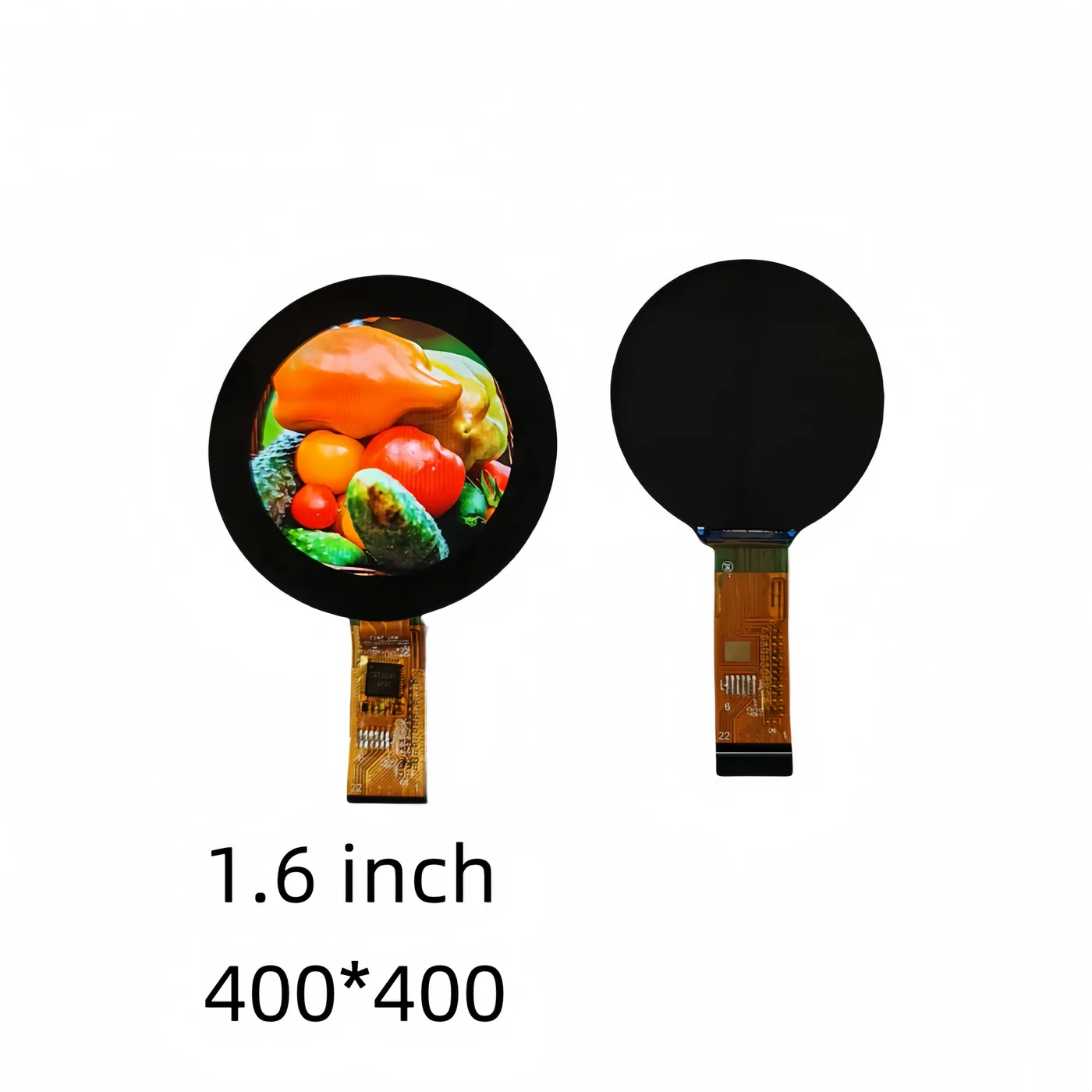

FZR0106DPC01 1.6 Inch Round TFT-LCD Display
This 1.6-inch circular LCD display has a resolution of 400×400, uses MIPI and QSPI interfaces, and provides 300cd/m² brightness and a full view display. Its compact size is 53x53x3.53mm, the display dot pitch is 33.2um*99.6um, it supports 16.7M color display, and is suitable for scenes requiring high resolution and high color reproduction. This display is widely used in smart home appliances, smart home central control, car central control, and other industries, providing excellent display effects and user experience for devices.
- Normal Black
- MIPI 、QSPI
- Screen Size
- 1.6 Inch
- Resolution
- 400*400
- Technology
- Normal Black
- Interface
- MIPI 、QSPI
- Viewing Angle
- Full view
- Module Dimensions
- 42.14*44.34*1.9(mm)
Product overview
This 1.6-inch circular LCD display has a resolution of 400×400, uses MIPI and QSPI interfaces, and provides 300cd/m² brightness and a full view display. Its compact size is 53x53x3.53mm, the display dot pitch is 33.2um*99.6um, it supports 16.7M color display, and is suitable for scenes requiring high resolution and high color reproduction. This display is widely used in smart home appliances, smart home central control, car central control, and other industries, providing excellent display effects and user experience for devices.
Size:1.6 Inch Resolution: 400*400 Interface Type: MIPI 、QSPI Display Area: 39.84*39.84(mm) LCM Dimensions: 42.14*44.34*1.9(mm) Product size: 53*53*3.53 (mm) Dot Pitch: 33.2um*99.6um Color: 16.7M Contrast Ratio: 900 Response time: 35ms Brightness: 300cd/m² Product type: TFT Display Type: Normal Black View Angle: Full view Operating temperature: -20℃~+70℃ Storage temperature: -30℃~+80℃ Customization: Yes
With a high resolution of 400×400, it can provide clear and delicate images and text display, suitable for displaying complex information and details on a small circular screen.
The brightness reaches 300cd/m², ensuring that it can still be clearly displayed in general indoor lighting environments, whether it is graphics, text, or icons.
The full view design allows the display content to maintain consistent color and brightness when viewed from all directions, providing a wider range of visual adaptability.
16.7M color support, which can present rich and realistic image display effects, is suitable for devices with high color reproduction requirements.
The product size of the 1.6-inch circular LCD display is 53x53x3.53mm, which is suitable for a variety of compact devices, and the display dot pitch is 33.2um*99.6um, ensuring delicate display effects and high-precision image presentation.
The 1.6-inch circular LCD display supports MIPI and QSPI interfaces to ensure compatibility with various control systems and embedded platforms, facilitating rapid integration and customization
Applicable to smart home appliances such as coffee machines, steam-bake machines, integrated stoves, humidifiers, sweepers, etc., providing a clear and intuitive operation interface for users to easily control the device.
Applied in smart home control systems as a display module to display device status, control options, etc., providing users with a convenient smart home operation experience.
Applicable to the car’s central control screen, displaying navigation, vehicle information, entertainment system, and other functions, improving information display and operation experience during driving.
Confirm the FZR0106DPC01 assembly against the latest specification and drawing revision before design-in.
Product highlights
Technical specifications
Values are normalized from the current product record; no missing parameter is estimated.
| Specification | Published value |
|---|---|
| Screen Size | 1.6 Inch |
| Resolution | 400*400 |
| Technology | Normal Black |
| Interface | MIPI 、QSPI |
| Brightness | 300cd/m² |
| Viewing Angle | Full view |
| Contrast Ratio | 900 |
| Module Dimensions | 42.14*44.34*1.9(mm) / 53*53*3.53 (mm)Multiple source entries — confirm the selected value. |
| Active Area | 39.84*39.84(mm) |
| Response Time | 35ms |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Display Color | 16.7M |
| Dot Pitch | 33.2um*99.6um |
| Product type | TFT |
Mechanical fit
- Screen Size
- 1.6 Inch
- Module Dimensions
- 42.14*44.34*1.9(mm) / 53*53*3.53 (mm)
- Active Area
- 39.84*39.84(mm)
Allow space for the FPC, connector, cover lens and mounting. Use an approved, version-matched drawing before fixing the enclosure.
Review drawing availability →Some parameters contain multiple source entries. They may describe different configurations or conflicting records; do not treat them as interchangeable specifications.
Interface & integration
| Parameter | Source value |
|---|---|
| Interface | MIPI 、QSPI |
Confirm pin numbering, supply levels, controller revision and initialization before connecting power. Source tables are references, not a substitute for an approved electrical specification.
Format and image area
Published screen size: 1.6 Inch. Resolution: 400*400. Module dimensions: 42.14*44.34*1.9(mm) / 53*53*3.53 (mm). Active area: 39.84*39.84(mm).
Electrical connection
Published interface: MIPI 、QSPI.
Optical and front assembly
Brightness: 300cd/m². Viewing angle: Full view. Operating temperature: -20℃~+70℃.
Drawings & technical documents
Reference files from this product record, retained at their available source resolution.
Request the matching mechanical drawing
No separate mechanical drawing is verified in this record. Send your enclosure limits and the selected product reference; request the approved outline and FPC drawing before tooling.
Request drawing & datasheetMatch the module to your application
Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.
Send product requirements- Review interface, connector and FPC alignment against the host electronics.
- Discuss touch panel and cover lens requirements where the product design needs a front assembly.
- Confirm outline, active area, mounting constraints and environmental requirements before sample approval.
Product questions
Specifications, documents and sample planning for FZR0106DPC01.
What are the published specifications for FZR0106DPC01?
FZR0106DPC01 currently publishes Screen Size: 1.6 Inch; Resolution: 400*400; Technology: Normal Black; Interface: MIPI 、QSPI; Viewing Angle: Full view; Module Dimensions: 42.14*44.34*1.9(mm). Confirm the final drawing and pin assignment against the supplied sample before design-in.
What should I include in an inquiry for this display?
Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.
Can I request a sample for evaluation?
Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.
Can interface, touch or mechanical requirements be discussed?
Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
