Model no.NDO644801W28P066-B
NDO644801W28P066-B 0.66-Inch 64 × 48 OLED Display Module
NDO644801W28P066-B is a 0.66-inch oled display module with 64 × 48 resolution and a I2C interface. Review the module specifications, product images and integration requirements before requesting a sample.
- I2C
- Resolution: 64 × 48 pixels
- Module Dimensions: 18.46 × 18.10 × 1.3 mm
- Driver IC: SSD1315
- Interface: I2C
- Screen Size: 0.66 inch
- Screen Size
- 0.66 inch
- Resolution
- 64 × 48 pixels
- Display Mode
- Passive Matrix
- Interface
- I2C
NDO644801W28P066-B product introduction
NDO644801W28P066-B is a 0.66-inch oled display module with 64 × 48 resolution and a I2C interface. Review the module specifications, product images and integration requirements before requesting a sample. The oled displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 18.46 × 18.10 × 1.3 mm. Driver IC: SSD1315. Use these published characteristics to compare NDO644801W28P066-B with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The I2C connection on NDO644801W28P066-B should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following NDO644801W28P066-B attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 64 × 48 pixels
- Module Dimensions: 18.46 × 18.10 × 1.3 mm
- Driver IC: SSD1315
- Interface: I2C
- Screen Size: 0.66 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 64 × 48 pixels |
| Module Dimensions | 18.46 × 18.10 × 1.3 mm |
| Active Area | 13.42 × 10.06 mm |
| Display Mode | Passive Matrix |
| Driver IC | SSD1315 |
| Interface | I2C |
| Screen Size | 0.66 inch |
Interface & pin definition
Use the NDO644801W28P066-B electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Driver IC | SSD1315 |
| Interface | I2C |

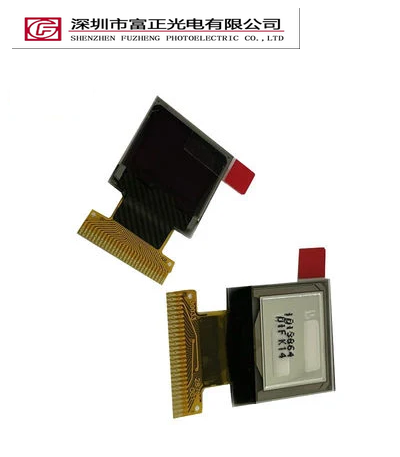

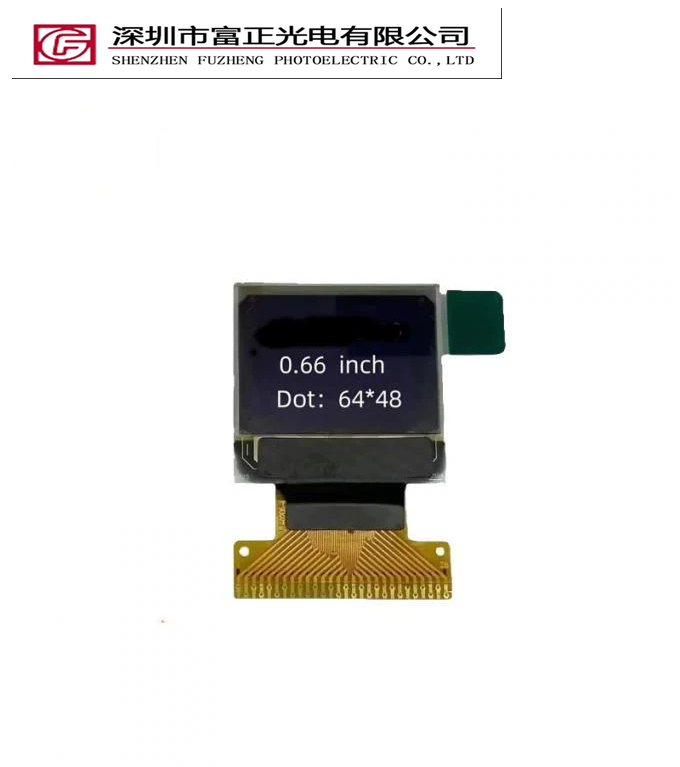

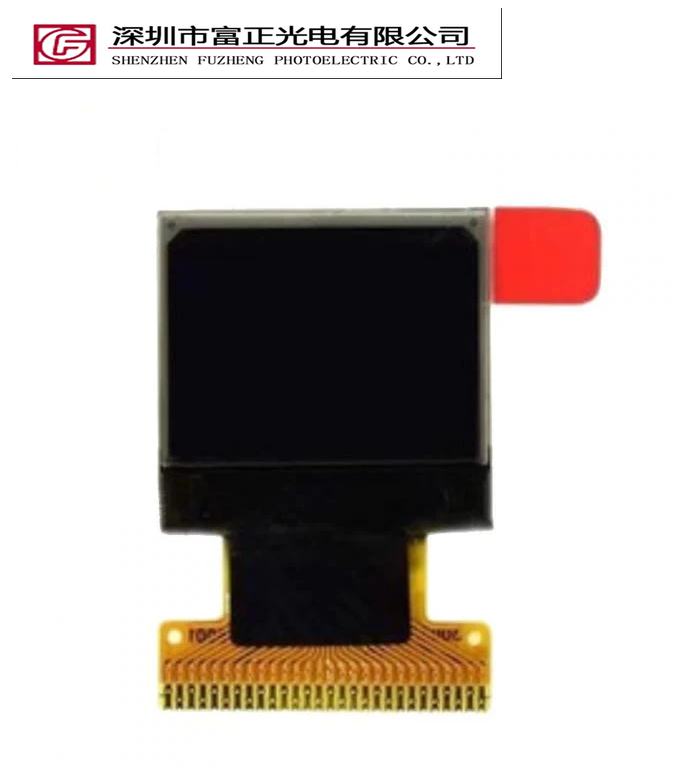

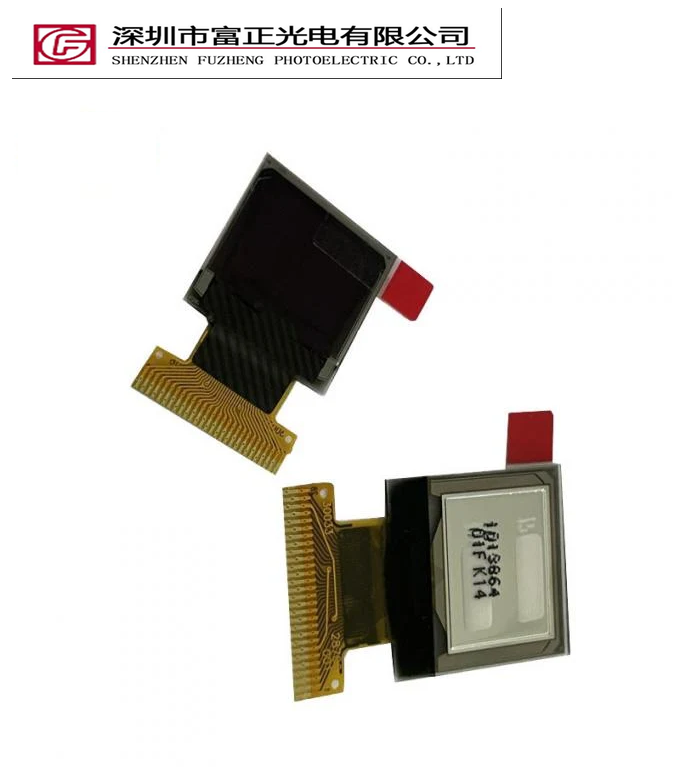

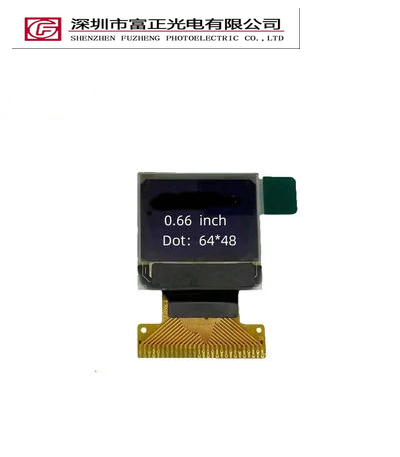

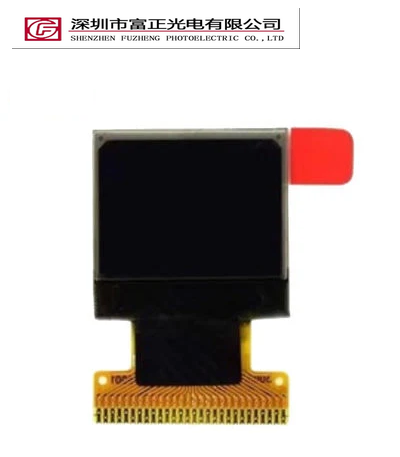

Product photographs
Mechanical drawings & documents

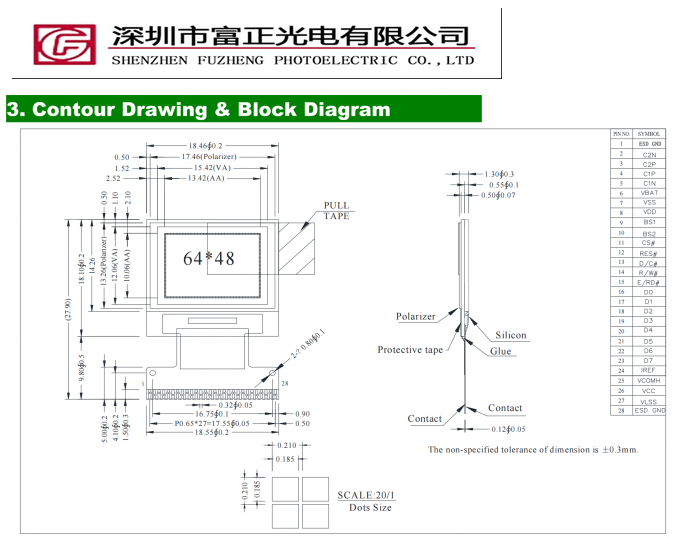

Check the dimensions, active area, connector position and cable clearance of NDO644801W28P066-B against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
NDO644801W28P066-B can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 0.66-inch display format with your available viewing area, then check 64 × 48 pixel resolution, I2C host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected NDO644801W28P066-B configuration.
NDO644801W28P066-B frequently asked questions
What specifications are listed for NDO644801W28P066-B?
Resolution: 64 × 48 pixels; Module Dimensions: 18.46 × 18.10 × 1.3 mm; Driver IC: SSD1315; Interface: I2C; Screen Size: 0.66 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should NDO644801W28P066-B connect to a host system?
NDO644801W28P066-B lists a I2C interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for NDO644801W28P066-B?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for NDO644801W28P066-B so the exact assembly can be reviewed.
Where can I find the drawing for NDO644801W28P066-B?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a NDO644801W28P066-B sample?
Include the model NDO644801W28P066-B, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the NDO644801W28P066-B reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
