Model no.NDO1286401YB30P096-A

NDO1286401YB30P096-A 0.96-Inch 128 × 64 OLED Display Module

6800,8080,SPI,I2C
Resolution: 128 × 64 pixels
Module Dimensions: 26.70 × 19.26 × 1.26 mm
Driver IC: SSD1306BZ
Interface: 6800,8080,SPI,I2C
Screen Size: 0.96 inch

Screen Size: 0.96 inch
Resolution: 128 × 64 pixels
Display Mode: Passive Matrix
Interface: 6800,8080,SPI,I2C

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

NDO1286401YB30P096-A product introduction

NDO1286401YB30P096-A is a 0.96-inch oled display module with 128 × 64 resolution and a 6800,8080,SPI,I2C interface. Review the module specifications, product images and integration requirements before requesting a sample. The oled displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 26.70 × 19.26 × 1.26 mm. Driver IC: SSD1306BZ. Use these published characteristics to compare NDO1286401YB30P096-A with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 6800,8080,SPI,I2C connection on NDO1286401YB30P096-A should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following NDO1286401YB30P096-A attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 128 × 64 pixels
Module Dimensions: 26.70 × 19.26 × 1.26 mm
Driver IC: SSD1306BZ
Interface: 6800,8080,SPI,I2C
Screen Size: 0.96 inch

Technical specifications

NDO1286401YB30P096-A technical parameters
Parameter	Value
Resolution	128 × 64 pixels
Module Dimensions	26.70 × 19.26 × 1.26 mm
Active Area	21.738 × 10.858 mm
Display Mode	Passive Matrix
Driver IC	SSD1306BZ
Interface	6800,8080,SPI,I2C
Screen Size	0.96 inch

Interface & pin definition

Use the NDO1286401YB30P096-A electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

NDO1286401YB30P096-A technical parameters
Parameter	Value
Driver IC	SSD1306BZ
Interface	6800,8080,SPI,I2C

Product photographs

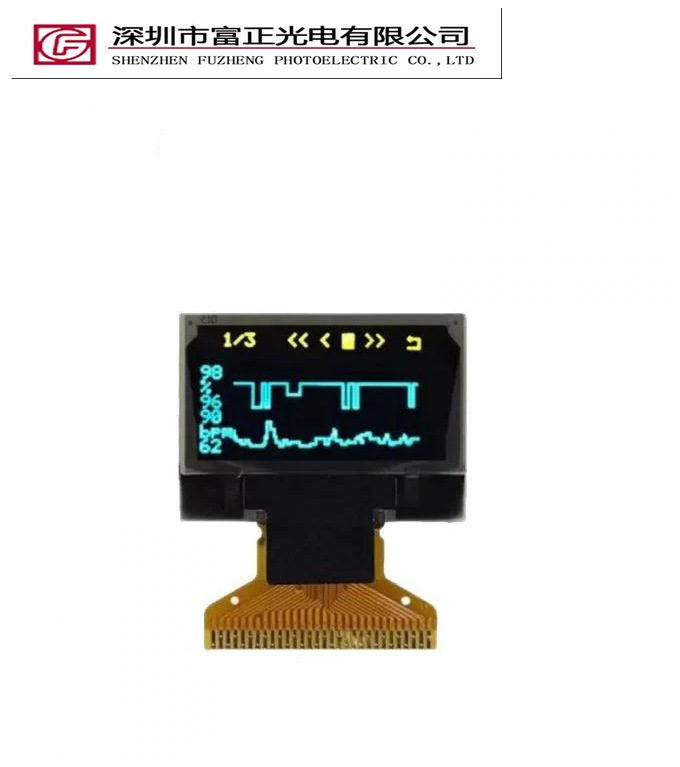

NDO1286401YB30P096-A product view 1

NDO1286401YB30P096-A product view 2

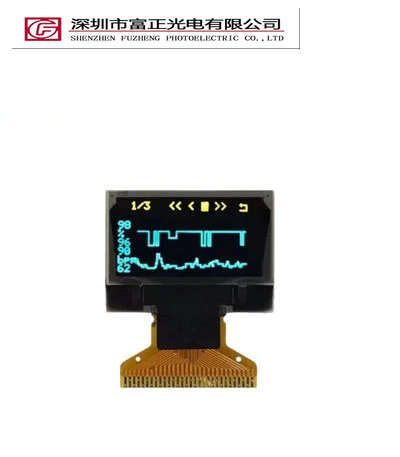

NDO1286401YB30P096-A product view 3

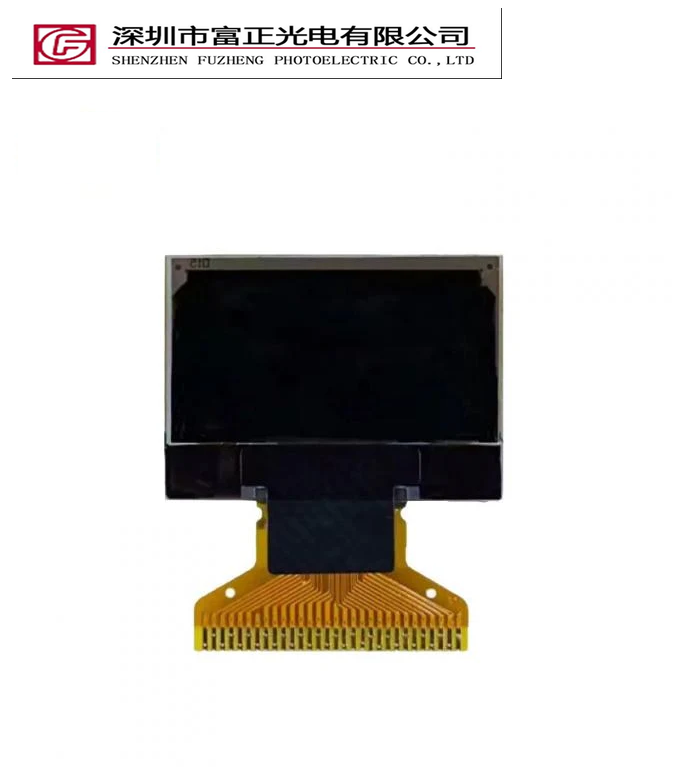

NDO1286401YB30P096-A product view 4

Mechanical drawings & documents

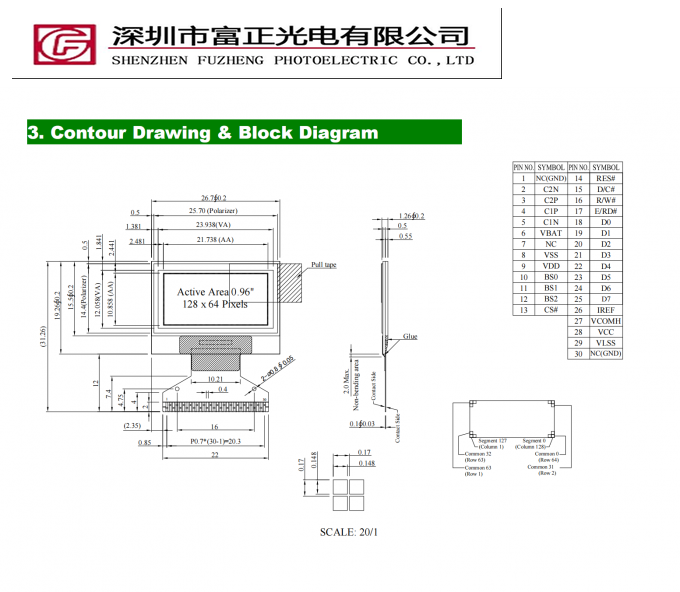

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of NDO1286401YB30P096-A against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

NDO1286401YB30P096-A can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 0.96-inch display format with your available viewing area, then check 128 × 64 pixel resolution, 6800,8080,SPI,I2C host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected NDO1286401YB30P096-A configuration.

NDO1286401YB30P096-A frequently asked questions

What specifications are listed for NDO1286401YB30P096-A?

Resolution: 128 × 64 pixels; Module Dimensions: 26.70 × 19.26 × 1.26 mm; Driver IC: SSD1306BZ; Interface: 6800,8080,SPI,I2C; Screen Size: 0.96 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should NDO1286401YB30P096-A connect to a host system?

NDO1286401YB30P096-A lists a 6800,8080,SPI,I2C interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for NDO1286401YB30P096-A?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for NDO1286401YB30P096-A so the exact assembly can be reviewed.

Where can I find the drawing for NDO1286401YB30P096-A?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a NDO1286401YB30P096-A sample?

Include the model NDO1286401YB30P096-A, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
