Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z024Q20

Z024Q20 2.4-Inch 240 × 320 Mini TFT-LCD Module

SPI/ MCU/RGB
Resolution: 240 × 320 pixels
Module Dimensions: 42.72 × 59.46 × 2.3 mm
Interface: SPI/ MCU/RGB
Brightness: 350 cd/m²
Driver IC: ST7789V
Operating Temperature: -20 to 70 °C
Screen Size: 2.4 inch

Screen Size: 2.4 inch
Resolution: 240 × 320 pixels
Interface: SPI/ MCU/RGB
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z024Q20 product introduction

Z024Q20 is a 2.4-inch mini tft-lcd module with 240 × 320 resolution and a SPI/ MCU/RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The mini lcd modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 42.72 × 59.46 × 2.3 mm. Brightness: 350 cd/m². Driver IC: ST7789V. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z024Q20 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The SPI/ MCU/RGB connection on Z024Q20 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z024Q20 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 240 × 320 pixels
Module Dimensions: 42.72 × 59.46 × 2.3 mm
Interface: SPI/ MCU/RGB
Brightness: 350 cd/m²
Driver IC: ST7789V
Operating Temperature: -20 to 70 °C
Screen Size: 2.4 inch

Technical specifications

Z024Q20 technical parameters
Parameter	Value
Resolution	240 × 320 pixels
Module Dimensions	42.72 × 59.46 × 2.3 mm
Active Area	36.72 × 48.96 mm
Interface	SPI/ MCU/RGB
Brightness	350 cd/m²
Driver IC	ST7789V
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)	42.7259.462.3 mm
Viewing Angle	80/80/80/80
Pin Count	45
Screen Size	2.4 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z024Q20 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z024Q20 technical parameters
Parameter	Value
Interface	SPI/ MCU/RGB
Driver IC	ST7789V
Pin Count	45

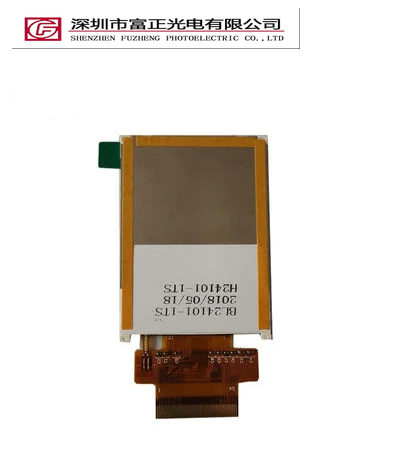

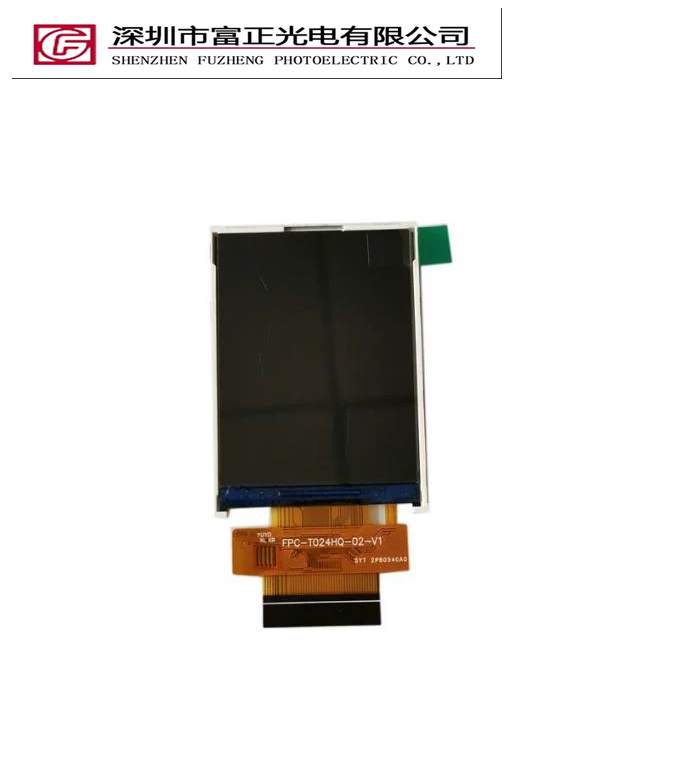

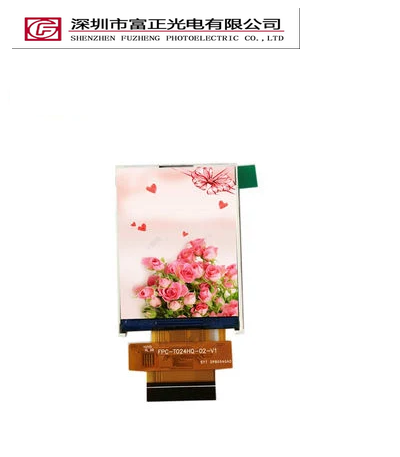

Product photographs

Z024Q20 product view 1

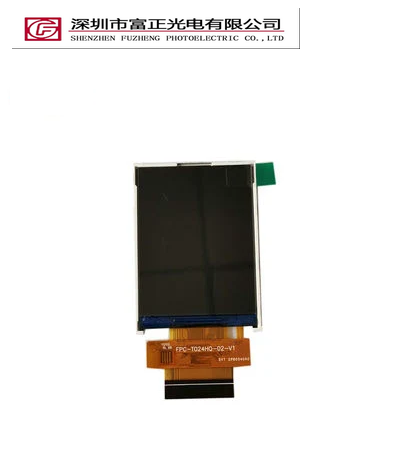

Z024Q20 product view 2

Z024Q20 product view 3

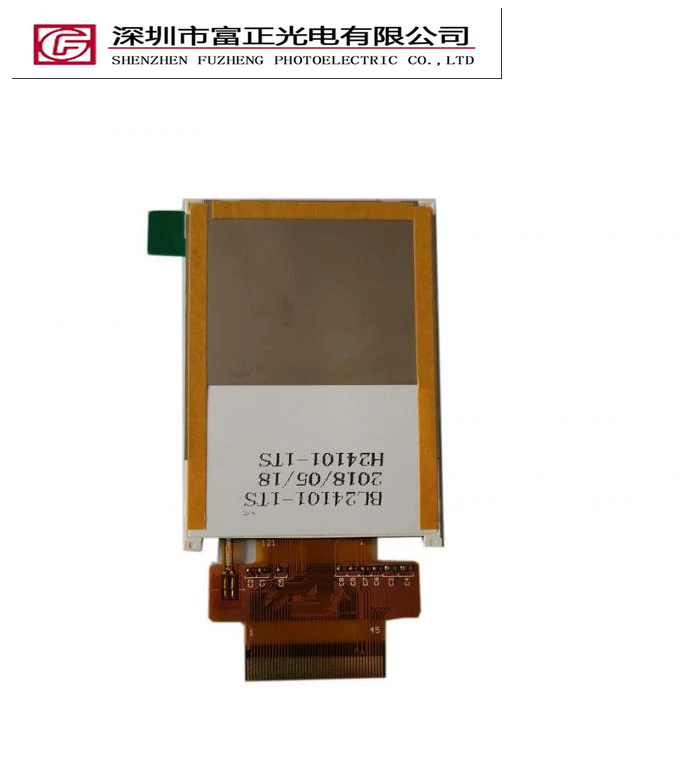

Z024Q20 product view 4

Z024Q20 product view 5

Mechanical drawings & documents

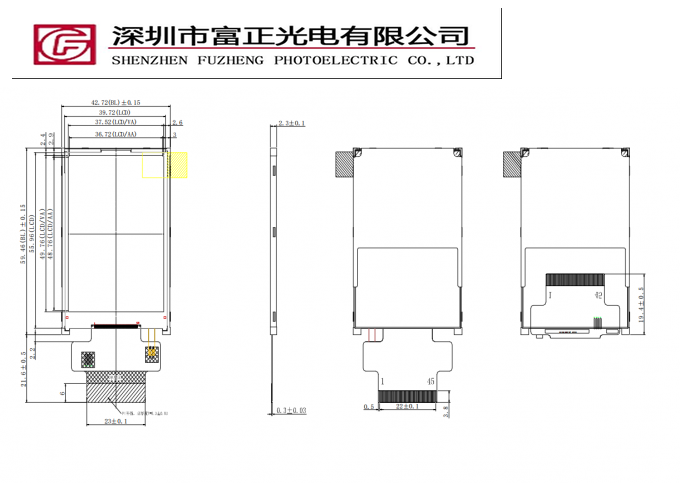

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z024Q20 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z024Q20 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 2.4-inch display format with your available viewing area, then check 240 × 320 pixel resolution, SPI/ MCU/RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z024Q20 configuration.

Z024Q20 frequently asked questions

What specifications are listed for Z024Q20?

Resolution: 240 × 320 pixels; Module Dimensions: 42.72 × 59.46 × 2.3 mm; Interface: SPI/ MCU/RGB; Brightness: 350 cd/m²; Driver IC: ST7789V; Operating Temperature: -20 to 70 °C; Screen Size: 2.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z024Q20 connect to a host system?

Z024Q20 lists a SPI/ MCU/RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z024Q20?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z024Q20 so the exact assembly can be reviewed.

Where can I find the drawing for Z024Q20?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z024Q20 sample?

Include the model Z024Q20, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z024Q20 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z024Q20 quote or evaluation sample →

Discuss this display with our team

Z024Q20

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
