Model no.Z0085QC01

Z0085QC01 0.85-Inch 128 × 128 Mini TFT-LCD Module

Z0085QC01 is a 0.85-inch mini tft-lcd module with 128 × 128 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 128 × 128 pixels
Module Dimensions: 17.58 × 20.82 × 1.5 mm
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: GC9107
Screen Size: 0.85 inch

Screen Size: 0.85 inch
Resolution: 128 × 128 pixels
Display Mode: Normally black

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, storage temperature against the latest approved specification before design-in.

Z0085QC01 product introduction

Z0085QC01 is a 0.85-inch mini tft-lcd module with 128 × 128 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The mini lcd modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 17.58 × 20.82 × 1.5 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Driver IC: GC9107. Use these published characteristics to compare Z0085QC01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z0085QC01. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z0085QC01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 128 × 128 pixels
Module Dimensions: 17.58 × 20.82 × 1.5 mm
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: GC9107
Screen Size: 0.85 inch

Technical specifications

Z0085QC01 technical parameters
Parameter	Value
Resolution	128 × 128 pixels
Module Dimensions	17.58 × 20.82 × 1.5 mm
Active Area	15.21 × 15.21 mm
Brightness	300 cd/m²
Display Mode	Normally Black
Operating Temperature	-20 to 70 °C
Driver IC	GC9107
Operation Temperature	-20 to 70 ℃
Screen Size	0.85 inch

Confirm interface, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z0085QC01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z0085QC01 technical parameters
Parameter	Value
Driver IC	GC9107

Product photographs

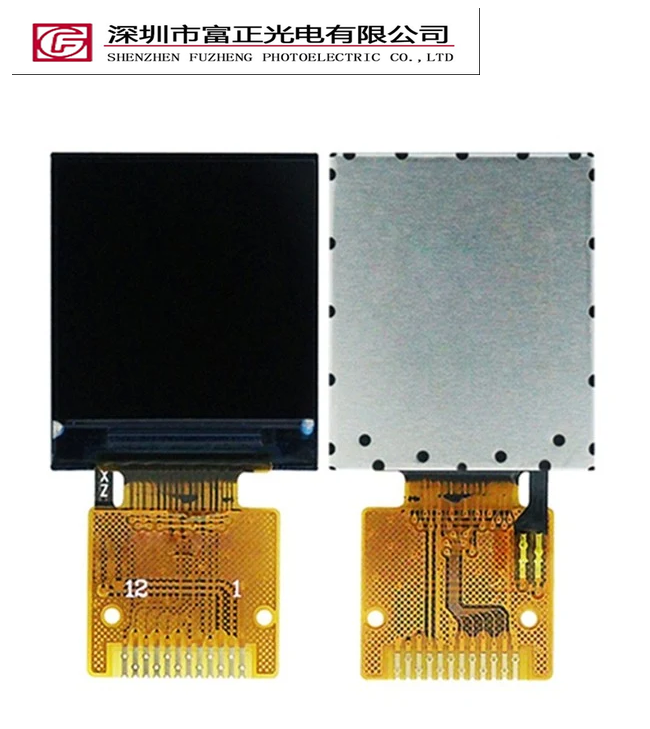

Z0085QC01 product view 1

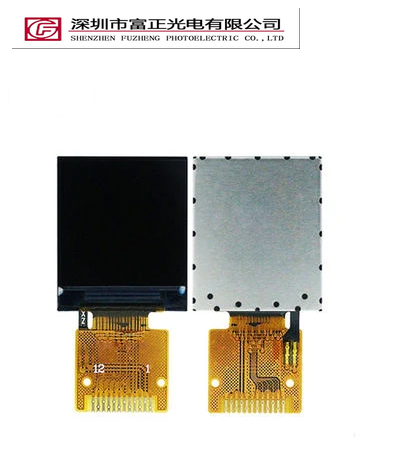

Z0085QC01 product view 2

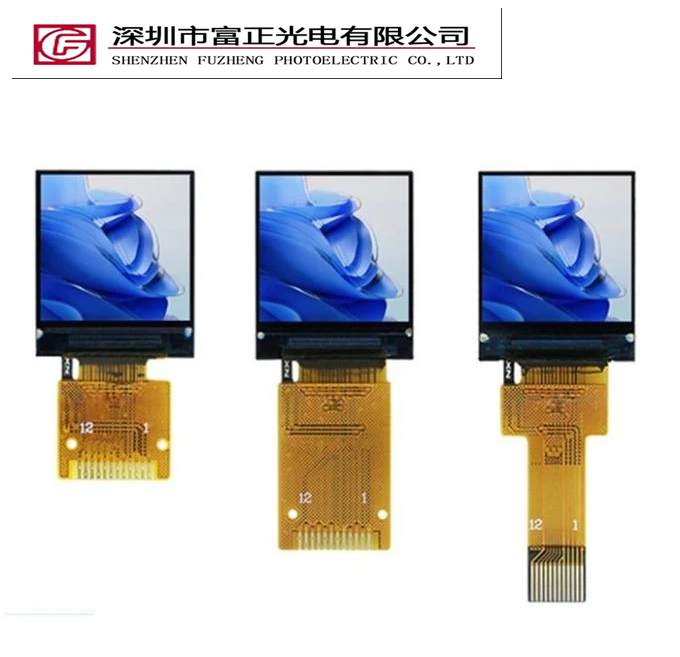

Z0085QC01 product view 3

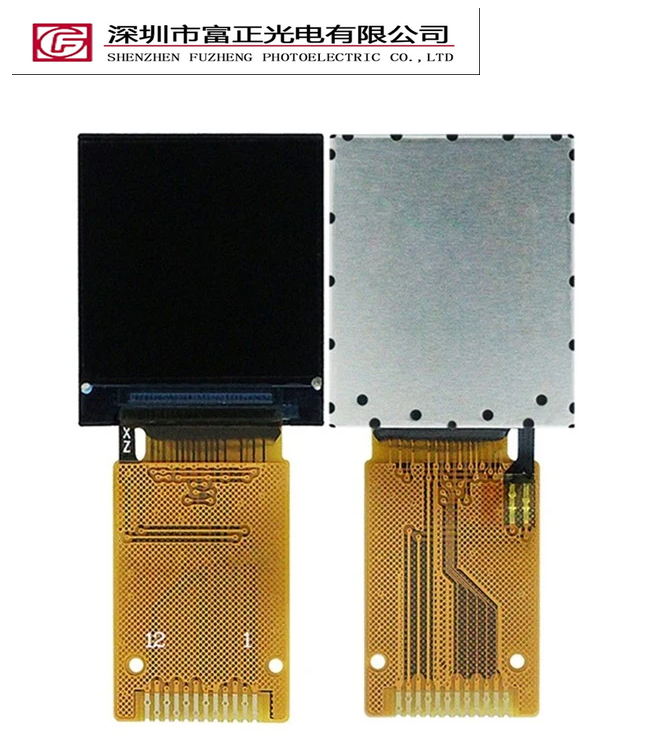

Z0085QC01 product view 4

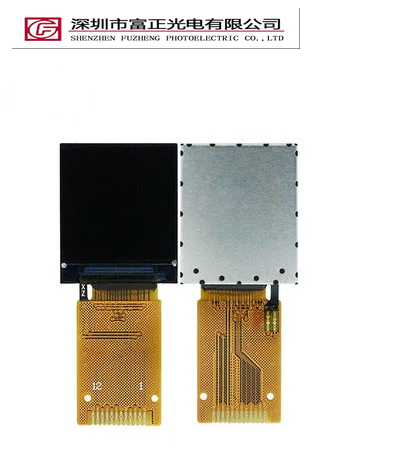

Z0085QC01 product view 5

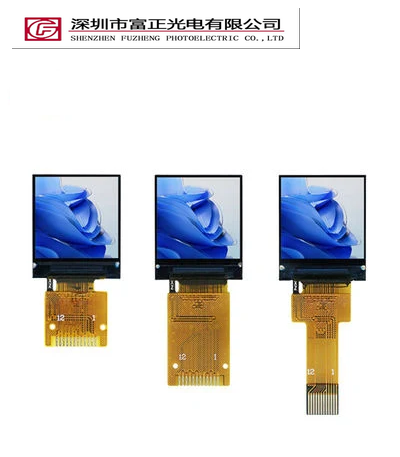

Z0085QC01 product view 6

Z0085QC01 product view 7

Mechanical drawings & documents

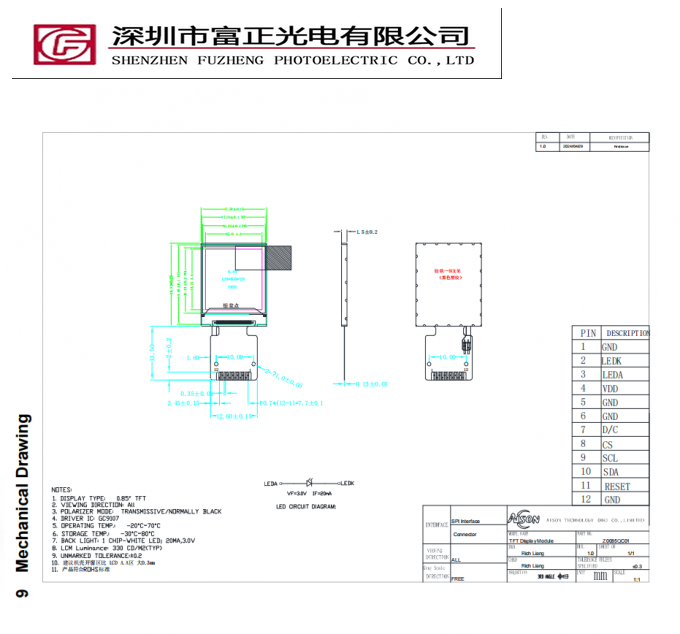

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z0085QC01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z0085QC01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 0.85-inch display format with your available viewing area, then check 128 × 128 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0085QC01 configuration.

Z0085QC01 frequently asked questions

What specifications are listed for Z0085QC01?

Resolution: 128 × 128 pixels; Module Dimensions: 17.58 × 20.82 × 1.5 mm; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Driver IC: GC9107; Screen Size: 0.85 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z0085QC01 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z0085QC01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z0085QC01 so the exact assembly can be reviewed.

Where can I find the drawing for Z0085QC01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z0085QC01 sample?

Include the model Z0085QC01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z0085QC01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
