Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z020Q10

Z020Q10 2-Inch 240 × 320 Mini TFT-LCD Module

4 WIRE SPI
Resolution: 240 × 320 pixels
Module Dimensions: 34.6 × 47.8 × 1.9 mm
Interface: 4 WIRE SPI
Brightness: 200 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 2 inch

Screen Size: 2 inch
Resolution: 240 × 320 pixels
Display Mode: Normally black,Transmissive
Interface: 4 WIRE SPI
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z020Q10 product introduction

Z020Q10 is a 2-inch mini tft-lcd module with 240 × 320 resolution and a 4 WIRE SPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The mini lcd modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 34.6 × 47.8 × 1.9 mm. Brightness: 200 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z020Q10 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 4 WIRE SPI connection on Z020Q10 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z020Q10 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 240 × 320 pixels
Module Dimensions: 34.6 × 47.8 × 1.9 mm
Interface: 4 WIRE SPI
Brightness: 200 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 2 inch

Technical specifications

Z020Q10 technical parameters
Parameter	Value
LCM Type	2 Inch TFT LCD Module
Resolution	240 × 320 pixels
Module Dimensions	34.6 × 47.8 × 1.9 mm
Interface	4 WIRE SPI
Brightness	200 cd/m²
Driver Controller	ST7789V
Working Temperatures	-20 To 70 Degree
Storage Temperature	-30 to 80 °C
Model Size (WHT)	34.647.81.9mm
Active Area	30.6 × 40.8 mm
Display Mode	Normally Black,Transmissive
Viewing Angle	80/80/80/80
Pin Count	20
Operating Temperature	-20 to 70 °C
Screen Size	2 inch

Interface & pin definition

Use the Z020Q10 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z020Q10 technical parameters
Parameter	Value
Interface	4 WIRE SPI
Pin Count	20

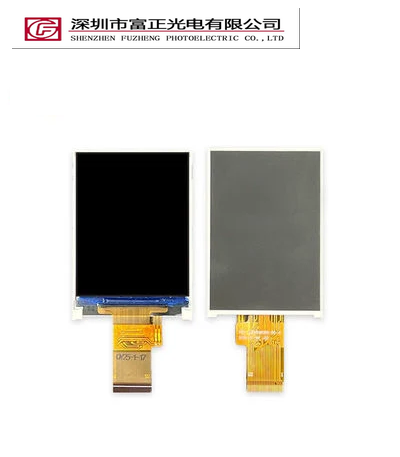

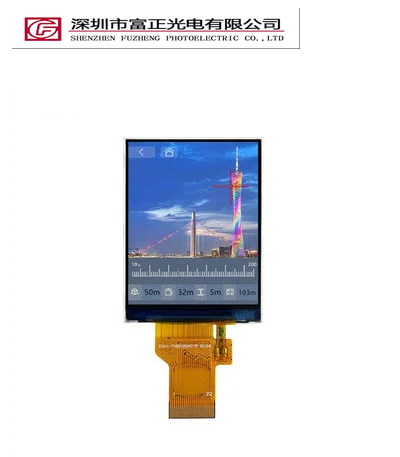

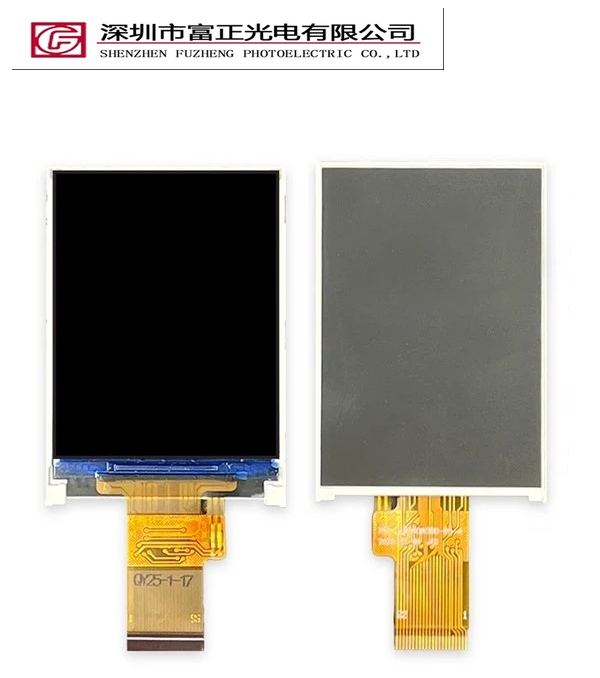

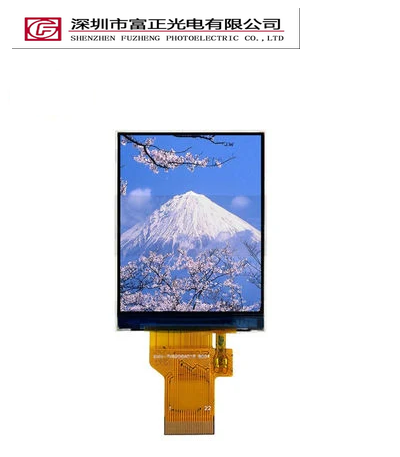

Product photographs

Z020Q10 product view 1

Z020Q10 product view 2

Z020Q10 product view 3

Z020Q10 product view 4

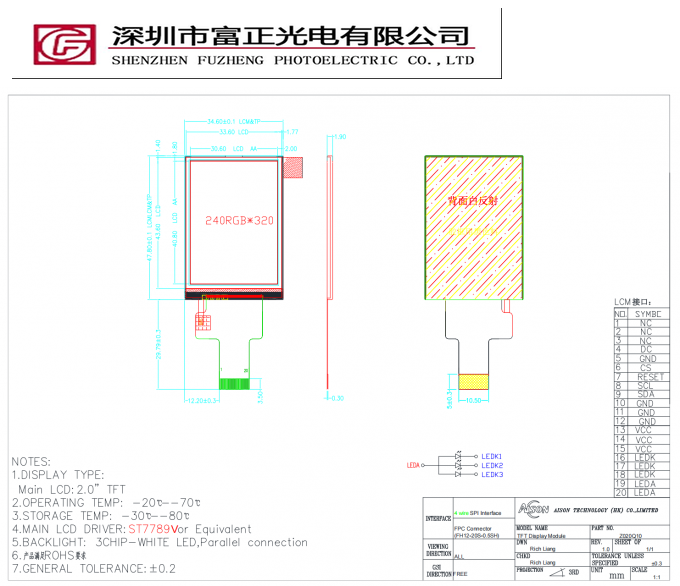

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z020Q10 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z020Q10 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 2-inch display format with your available viewing area, then check 240 × 320 pixel resolution, 4 WIRE SPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z020Q10 configuration.

Z020Q10 frequently asked questions

What specifications are listed for Z020Q10?

Resolution: 240 × 320 pixels; Module Dimensions: 34.6 × 47.8 × 1.9 mm; Interface: 4 WIRE SPI; Brightness: 200 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 2 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z020Q10 connect to a host system?

Z020Q10 lists a 4 WIRE SPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z020Q10?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z020Q10 so the exact assembly can be reviewed.

Where can I find the drawing for Z020Q10?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z020Q10 sample?

Include the model Z020Q10, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z020Q10 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
