Model no.Z024Q01

Z024Q01 2.4-Inch 240 × 320 Mini TFT-LCD Module

Z024Q01 is a 2.4-inch mini tft-lcd module with 240 × 320 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resolution: 240 × 320 pixels
Driver IC: ST7789V
Brightness: 180 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 2.4 inch

Screen Size: 2.4 inch
Resolution: 240 × 320 pixels
Display Mode: Normally White,Transmissive
Viewing Angle: 65/55/65/65

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, interface against the latest approved specification before design-in.

Z024Q01 product introduction

Z024Q01 is a 2.4-inch mini tft-lcd module with 240 × 320 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The mini lcd modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Driver IC: ST7789V. Brightness: 180 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z024Q01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z024Q01. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z024Q01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 240 × 320 pixels
Driver IC: ST7789V
Brightness: 180 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 2.4 inch

Technical specifications

Z024Q01 technical parameters
Parameter	Value
Resolution	240 × 320 pixels
Driver IC	ST7789V
Working Temperatures	-20 To 70 Degree
Storage Temperature	-30 to 80 °C
Model Size (WHT)	42.7259.462.3 mm
Active Area	36.72 × 48.96 mm
Display Mode	Normally White,Transmissive
Viewing Angle	65/55/65/65
Brightness	180 cd/m²
Pin Count	14
Operating Temperature	-20 to 70 °C
Screen Size	2.4 inch

Confirm module dimensions, interface against the latest approved module specification before design-in.

Interface & pin definition

Use the Z024Q01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z024Q01 technical parameters
Parameter	Value
Driver IC	ST7789V
Pin Count	14

Product photographs

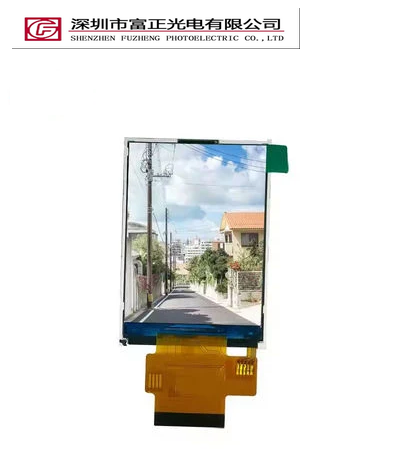

Z024Q01 product view 1

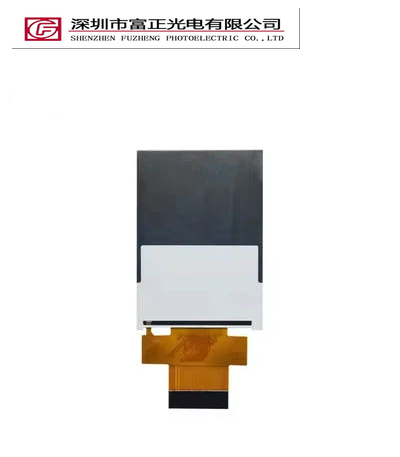

Z024Q01 product view 2

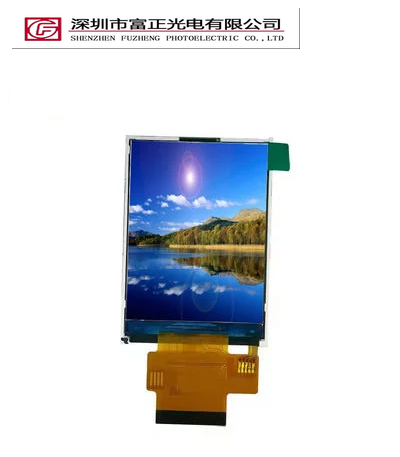

Z024Q01 product view 3

Z024Q01 product view 4

Mechanical drawings & documents

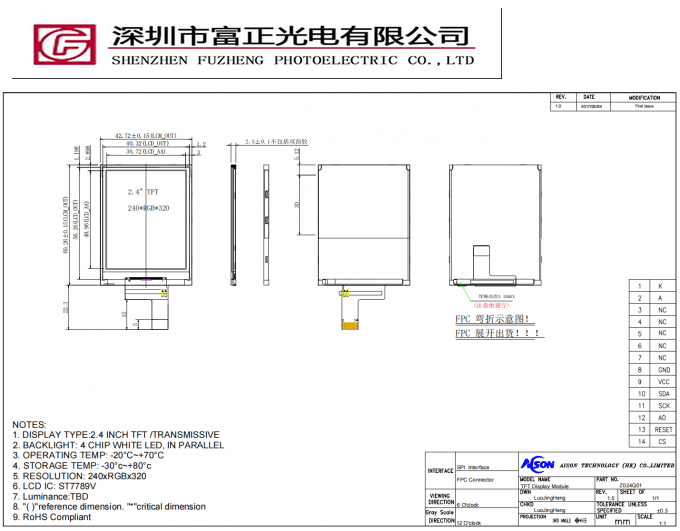

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z024Q01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z024Q01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 2.4-inch display format with your available viewing area, then check 240 × 320 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z024Q01 configuration.

Z024Q01 frequently asked questions

What specifications are listed for Z024Q01?

Resolution: 240 × 320 pixels; Driver IC: ST7789V; Brightness: 180 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 2.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z024Q01 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z024Q01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z024Q01 so the exact assembly can be reviewed.

Where can I find the drawing for Z024Q01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z024Q01 sample?

Include the model Z024Q01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
