Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z018QQ07 V2
Z018QQ07 V2 1.77-Inch 128 × 160 Mini TFT-LCD Module
Z018QQ07 V2 is a 1.77-inch mini tft-lcd module with 128 × 160 resolution and a MCU interface. Review the module specifications, product images and integration requirements before requesting a sample.
- MCU
- Resolution: 128 × 160 pixels
- Module Dimensions: 34.7 × 46.7 × 2.25 mm
- Interface: MCU
- Brightness: 200 cd/m²
- Driver IC: ST7735S
- Screen Size: 1.77 inch
- Screen Size
- 1.77 inch
- Resolution
- 128 × 160 pixels
- Interface
- MCU
Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.
Z018QQ07 V2 product introduction
Z018QQ07 V2 is a 1.77-inch mini tft-lcd module with 128 × 160 resolution and a MCU interface. Review the module specifications, product images and integration requirements before requesting a sample. The mini lcd modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 34.7 × 46.7 × 2.25 mm. Brightness: 200 cd/m². Driver IC: ST7735S. Use these published characteristics to compare Z018QQ07 V2 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The MCU connection on Z018QQ07 V2 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z018QQ07 V2 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 128 × 160 pixels
- Module Dimensions: 34.7 × 46.7 × 2.25 mm
- Interface: MCU
- Brightness: 200 cd/m²
- Driver IC: ST7735S
- Screen Size: 1.77 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 128 × 160 pixels |
| Module Dimensions | 34.7 × 46.7 × 2.25 mm |
| Active Area | 28.03 × 35.04 mm |
| Interface | MCU |
| Brightness | 200 cd/m² |
| Model Size (W*H*T)mm | 34.7*46.7*2.25 |
| Viewing | 6 o'clock |
| Pin Count | 26 |
| Driver IC | ST7735S |
| Screen Size | 1.77 inch |
Confirm operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z018QQ07 V2 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | MCU |
| Pin Count | 26 |
| Driver IC | ST7735S |

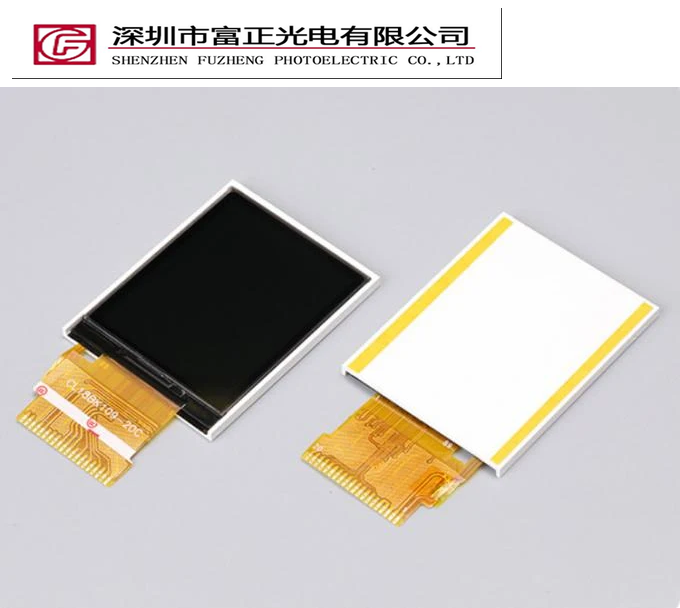

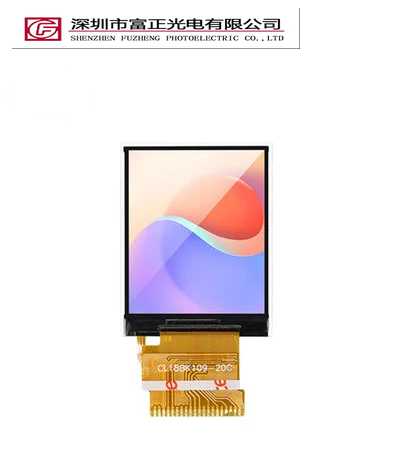

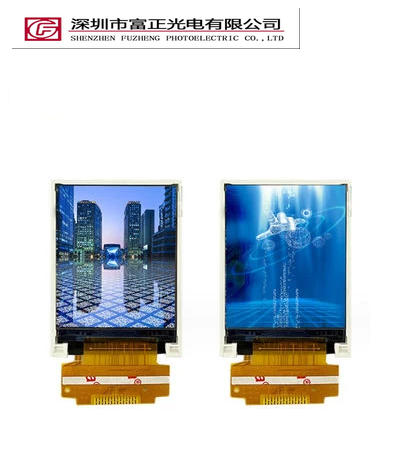

Product photographs

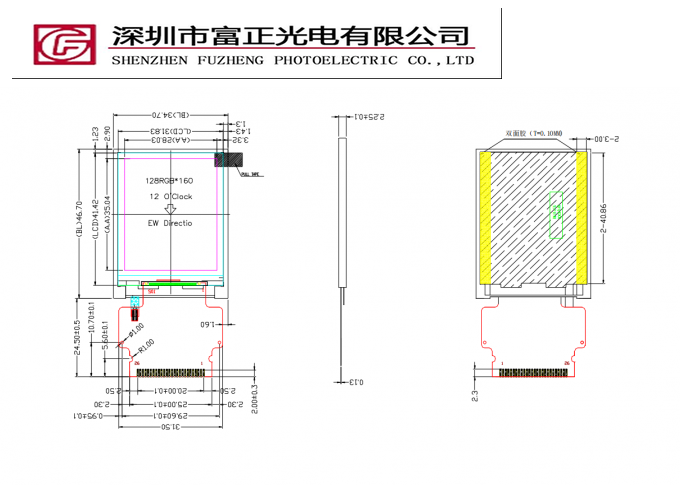

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z018QQ07 V2 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z018QQ07 V2 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 1.77-inch display format with your available viewing area, then check 128 × 160 pixel resolution, MCU host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z018QQ07 V2 configuration.
Z018QQ07 V2 frequently asked questions
What specifications are listed for Z018QQ07 V2?
Resolution: 128 × 160 pixels; Module Dimensions: 34.7 × 46.7 × 2.25 mm; Interface: MCU; Brightness: 200 cd/m²; Driver IC: ST7735S; Screen Size: 1.77 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z018QQ07 V2 connect to a host system?
Z018QQ07 V2 lists a MCU interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z018QQ07 V2?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z018QQ07 V2 so the exact assembly can be reviewed.
Where can I find the drawing for Z018QQ07 V2?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z018QQ07 V2 sample?
Include the model Z018QQ07 V2, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z018QQ07 V2 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
