Z185BMN181-H4801 18.5-Inch 1920 × 1080 Industrial TFT-LCD Display

Z185BMN181-H4801 is a 18.5-inch industrial tft-lcd display with 1920 × 1080 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Operating Temperature: -30 to 80 °C
Resolution: 1920 × 1080 pixels
Brightness: 120 cd/m²
Screen Size: 18.5 inch

Screen Size: 18.5 inch
Resolution: 1920 × 1080 pixels
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.

Z185BMN181-H4801 product introduction

Z185BMN181-H4801 is a 18.5-inch industrial tft-lcd display with 1920 × 1080 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Operating Temperature: -30 to 80 °C. Brightness: 120 cd/m². Use these published characteristics to compare Z185BMN181-H4801 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z185BMN181-H4801. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z185BMN181-H4801 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Operating Temperature: -30 to 80 °C
Resolution: 1920 × 1080 pixels
Brightness: 120 cd/m²
Screen Size: 18.5 inch

Technical specifications

Z185BMN181-H4801 technical parameters
Parameter	Value
LCM	18.5 Inch FHD TFT Display
Dimensional Outline	430.37(H)254.6(V)11.2(D)
Active Area	408.96 × 230.04 mm
Viewing Angle	85/85/85/85
Viewing Direction	ALL/IPS
Operating Temperature	-30 to 80 °C
Storage Temperature	-30 to 80 °C
Resolution	1920 × 1080 pixels
Model Size (WHT)	430.37(H)254.6(V)11.2(D)
Viewing	IPS
Brightness	120 cd/m²
Pin Count	30 pin
Contrast Ratio	1200:1
Screen Size	18.5 inch

Confirm interface, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z185BMN181-H4801 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z185BMN181-H4801 technical parameters
Parameter	Value
Pin Count	30 pin

Product photographs

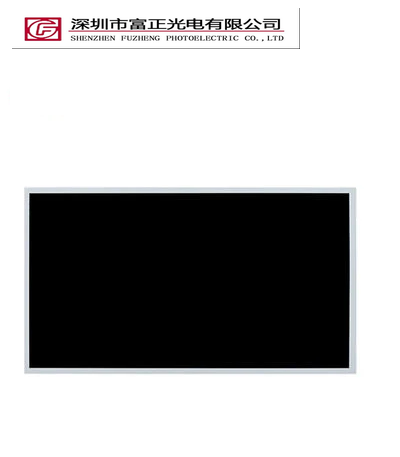

Z185BMN181-H4801 product view 1

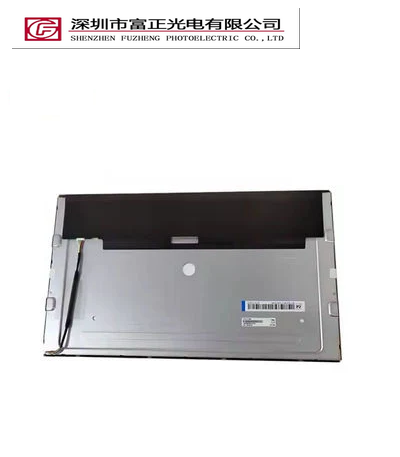

Z185BMN181-H4801 product view 2

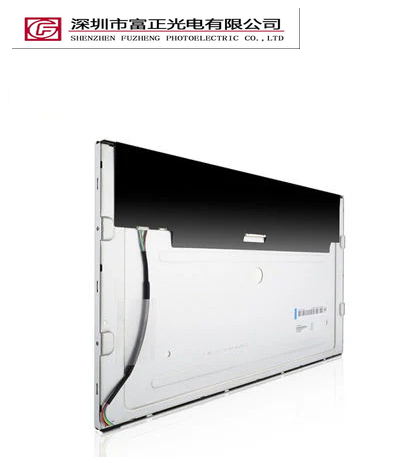

Z185BMN181-H4801 product view 3

Z185BMN181-H4801 product view 4

Z185BMN181-H4801 product view 5

Z185BMN181-H4801 product view 6

Mechanical drawings & documents

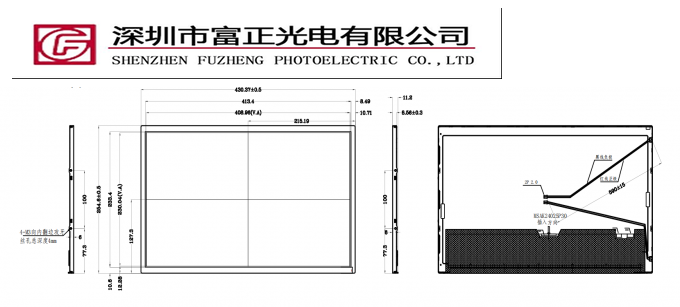

Mechanical reference 1 — open full size to inspect dimensions.
