P056I640480TE-W01 5.6-Inch 640 × 480 Industrial TFT-LCD Display
P056I640480TE-W01 is a 5.6-inch industrial tft-lcd display with 640 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 24 BIT RGB
- Resolution: 640 × 480 pixels
- Module Dimensions: 126.5 × 100 × 5.7 mm
- Interface: 24 BIT RGB
- Brightness: 250 cd/m²
- Driver IC: ILI6192A-01&ILI5481A
- Operating Temperature: -20 to 70 °C
- Screen Size: 5.6 inch
- Screen Size
- 5.6 inch
- Resolution
- 640 × 480 pixels
- Interface
- 24 BIT RGB
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
P056I640480TE-W01 product introduction
P056I640480TE-W01 is a 5.6-inch industrial tft-lcd display with 640 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 126.5 × 100 × 5.7 mm. Brightness: 250 cd/m². Driver IC: ILI6192A-01&ILI5481A. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare P056I640480TE-W01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 24 BIT RGB connection on P056I640480TE-W01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following P056I640480TE-W01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 640 × 480 pixels
- Module Dimensions: 126.5 × 100 × 5.7 mm
- Interface: 24 BIT RGB
- Brightness: 250 cd/m²
- Driver IC: ILI6192A-01&ILI5481A
- Operating Temperature: -20 to 70 °C
- Screen Size: 5.6 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 640 × 480 pixels |
| Module Dimensions | 126.5 × 100 × 5.7 mm |
| Active Area | 112.896 × 84.672 mm |
| Interface | 24 BIT RGB |
| Brightness | 250 cd/m² |
| Driver IC | ILI6192A-01&ILI5481A |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T) | 126.5(H) x 100(V) x 5.7(T)mm |
| Viewing | 12:00 o'clock |
| Pin Count | 50 |
| Screen Size | 5.6 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the P056I640480TE-W01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 24 BIT RGB |
| Driver IC | ILI6192A-01&ILI5481A |
| Pin Count | 50 |

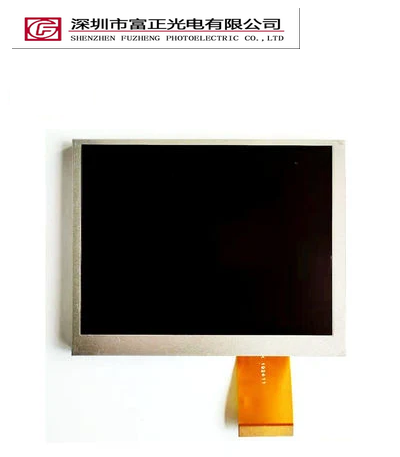

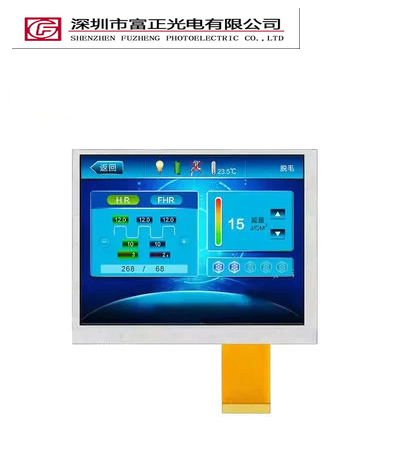

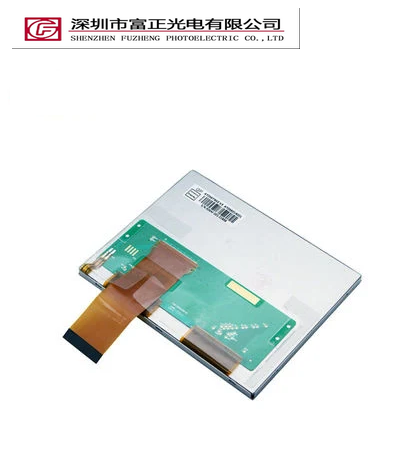

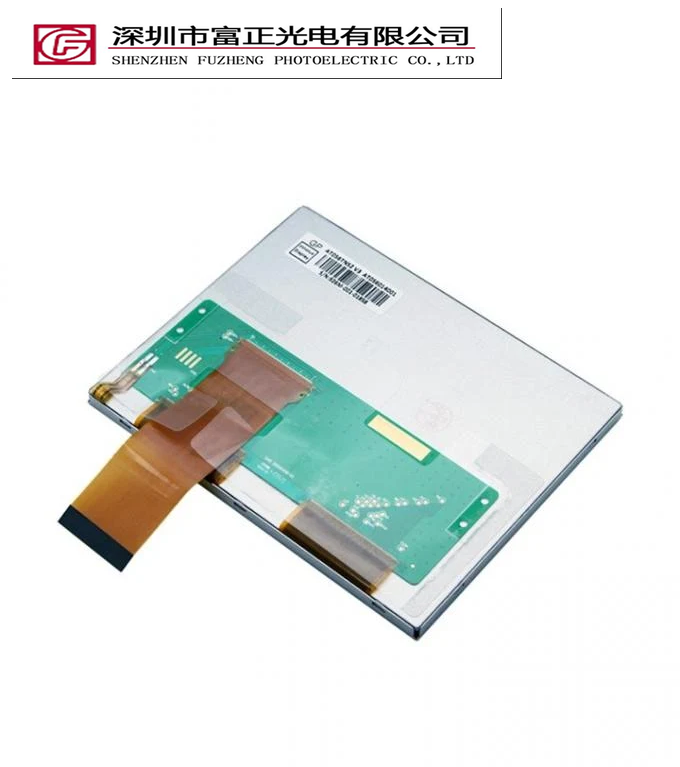

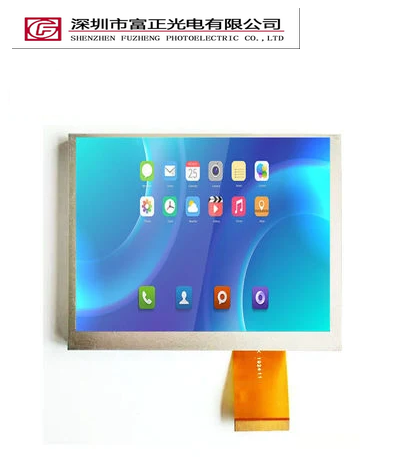

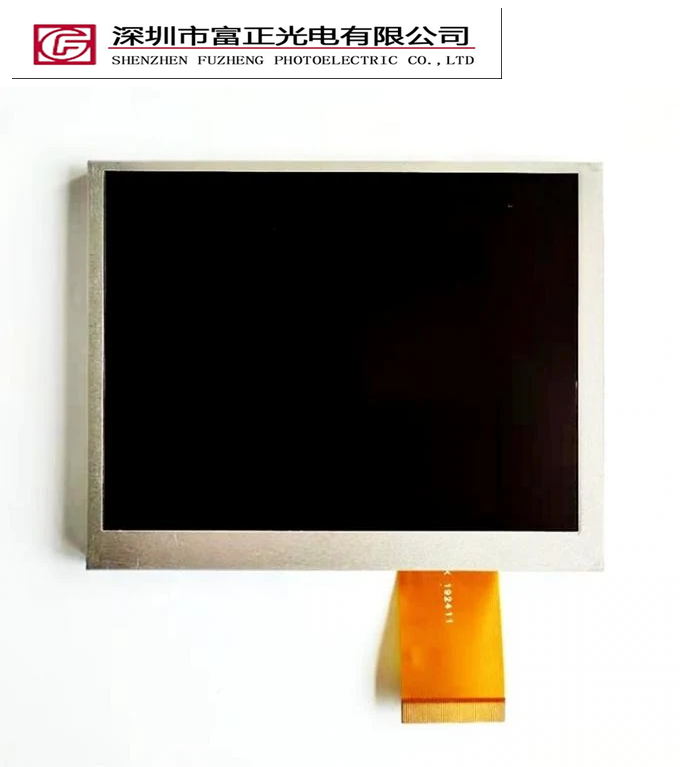

Product photographs
Mechanical drawings & documents

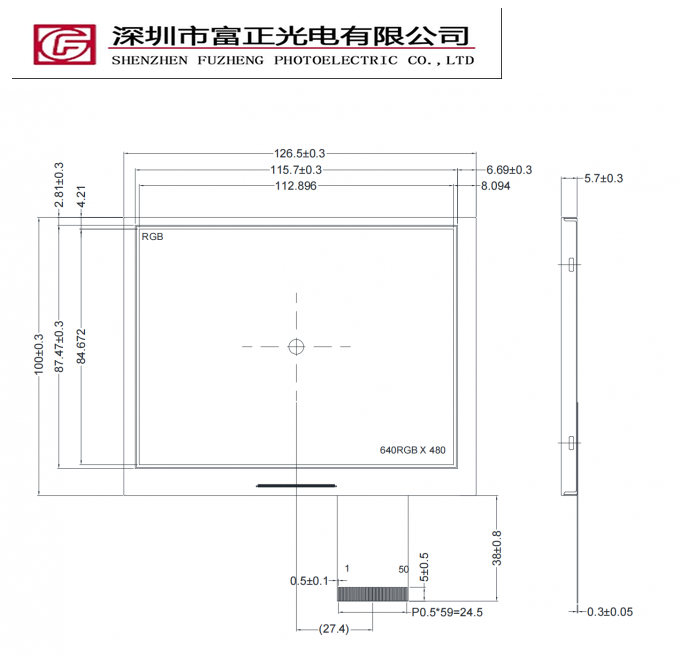

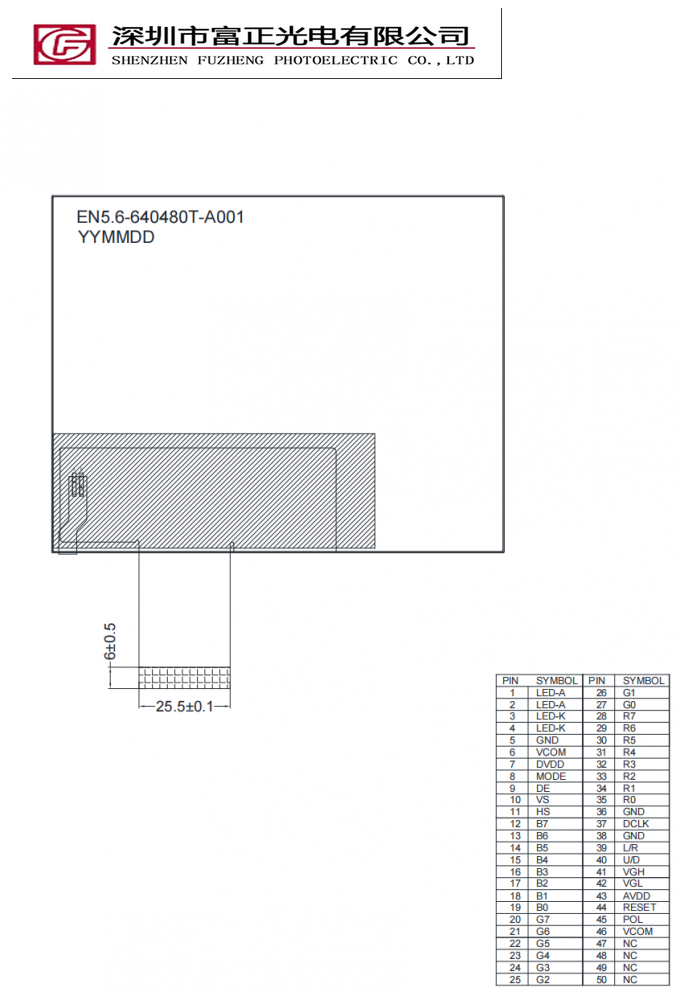

Check the dimensions, active area, connector position and cable clearance of P056I640480TE-W01 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
P056I640480TE-W01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5.6-inch display format with your available viewing area, then check 640 × 480 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected P056I640480TE-W01 configuration.
