Model no.P056I640480TE-W02
P056I640480TE-W02 5.6-Inch 640 × 480 Industrial TFT-LCD Display
P056I640480TE-W02 is a 5.6-inch industrial tft-lcd display with 640 × 480 resolution and a 18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 18 BIT RGB
- Resolution: 640 × 480 pixels
- Module Dimensions: 126.5 × 100 × 5.7 mm
- Interface: 18 BIT RGB
- Brightness: 350 cd/m²
- Driver IC: ILI6192A-01&ILI5481A
- Operating Temperature: -20 to 70 °C
- Screen Size: 5.6 inch
- Screen Size
- 5.6 inch
- Resolution
- 640 × 480 pixels
- Interface
- 18 BIT RGB
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
P056I640480TE-W02 product introduction
P056I640480TE-W02 is a 5.6-inch industrial tft-lcd display with 640 × 480 resolution and a 18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 126.5 × 100 × 5.7 mm. Brightness: 350 cd/m². Driver IC: ILI6192A-01&ILI5481A. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare P056I640480TE-W02 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 18 BIT RGB connection on P056I640480TE-W02 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following P056I640480TE-W02 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 640 × 480 pixels
- Module Dimensions: 126.5 × 100 × 5.7 mm
- Interface: 18 BIT RGB
- Brightness: 350 cd/m²
- Driver IC: ILI6192A-01&ILI5481A
- Operating Temperature: -20 to 70 °C
- Screen Size: 5.6 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 640 × 480 pixels |
| Module Dimensions | 126.5 × 100 × 5.7 mm |
| Active Area | 112.896 × 84.672 mm |
| Interface | 18 BIT RGB |
| Brightness | 350 cd/m² |
| Driver IC | ILI6192A-01&ILI5481A |
| Operating Temperature | -20 to 70 °C |
| Model Size (W*H*T) | 126.5(H) x 100(V) x 5.7(T)mm |
| Viewing | 12:00 o'clock |
| Pin Count | 40 |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 5.6 inch |
Confirm display mode against the latest approved module specification before design-in.

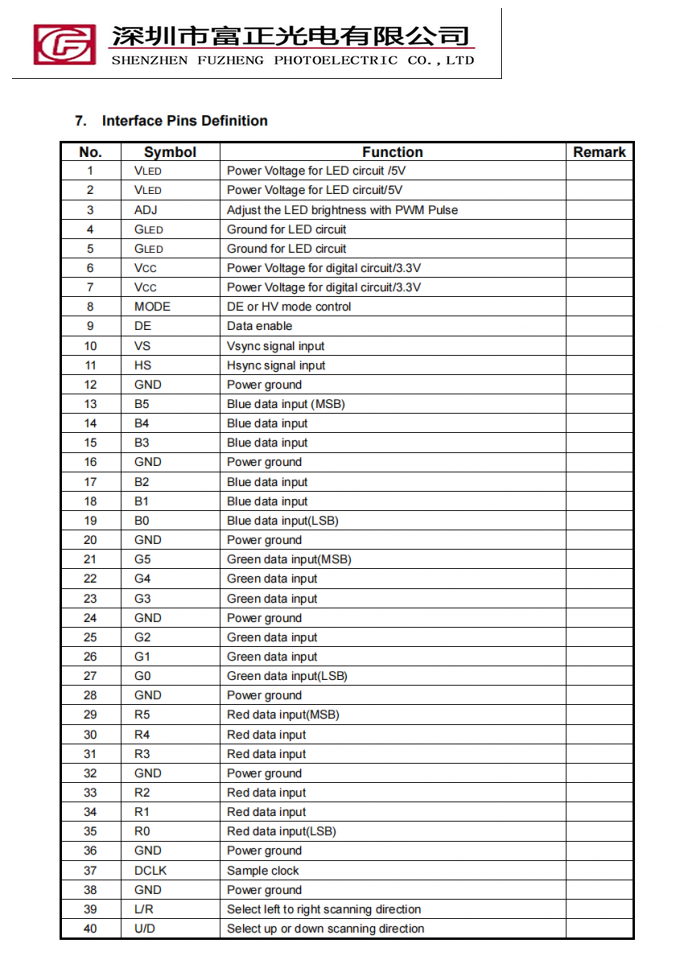

Interface & pin definition
Use the P056I640480TE-W02 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 18 BIT RGB |
| Driver IC | ILI6192A-01&ILI5481A |
| Pin Count | 40 |

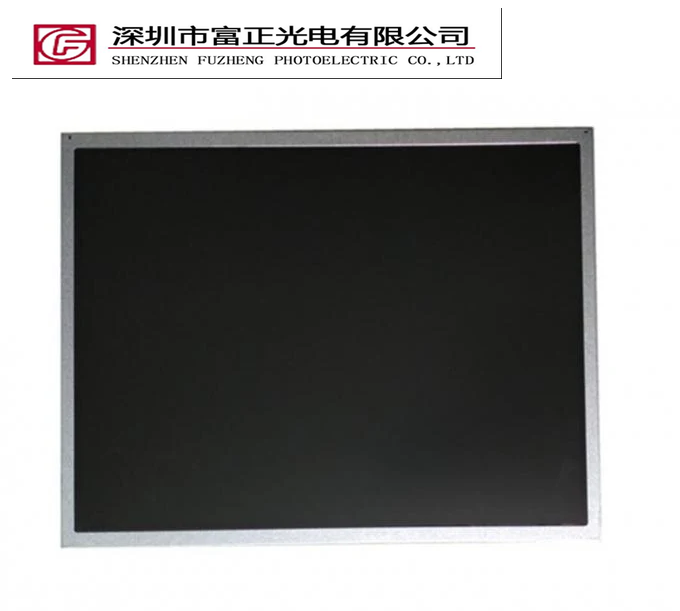

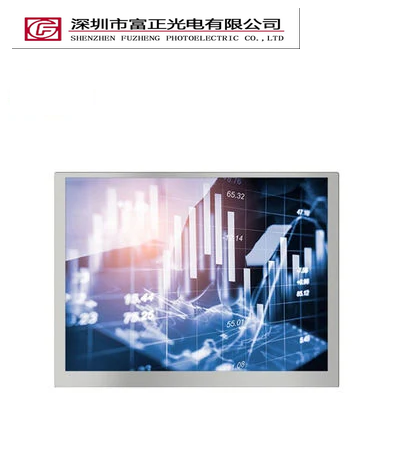

Product photographs
Mechanical drawings & documents

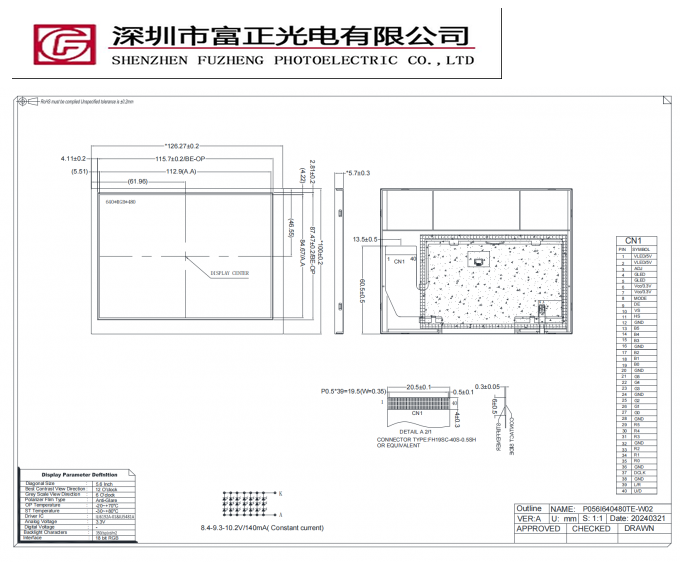

Check the dimensions, active area, connector position and cable clearance of P056I640480TE-W02 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
P056I640480TE-W02 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 5.6-inch display format with your available viewing area, then check 640 × 480 pixel resolution, 18 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected P056I640480TE-W02 configuration.
P056I640480TE-W02 frequently asked questions
What specifications are listed for P056I640480TE-W02?
Resolution: 640 × 480 pixels; Module Dimensions: 126.5 × 100 × 5.7 mm; Interface: 18 BIT RGB; Brightness: 350 cd/m²; Driver IC: ILI6192A-01&ILI5481A; Operating Temperature: -20 to 70 °C; Screen Size: 5.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should P056I640480TE-W02 connect to a host system?
P056I640480TE-W02 lists a 18 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for P056I640480TE-W02?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for P056I640480TE-W02 so the exact assembly can be reviewed.
Where can I find the drawing for P056I640480TE-W02?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a P056I640480TE-W02 sample?
Include the model P056I640480TE-W02, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the P056I640480TE-W02 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
