Model no.EE080NA-05A
EE080NA-05A 8-Inch 800 × 600 Industrial TFT-LCD Display
EE080NA-05A is a 8-inch industrial tft-lcd display with 800 × 600 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB
- Resolution: 800 × 600 pixels
- Interface: RGB
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
- Screen Size
- 8 inch
- Resolution
- 800 × 600 pixels
- Interface
- RGB
- Viewing Angle
- 70/70/50/70
Specification confirmation. Confirm module dimensions, active area, display mode, brightness against the latest approved specification before design-in.
EE080NA-05A product introduction
EE080NA-05A is a 8-inch industrial tft-lcd display with 800 × 600 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Operating Temperature: -20 to 70 °C. Use these published characteristics to compare EE080NA-05A with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB connection on EE080NA-05A should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following EE080NA-05A attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 600 pixels
- Interface: RGB
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 600 pixels |
| Interface | RGB |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T)mm | 192.8*116.9*6.4mm |
| Viewing | 12:00 o'clock |
| Pin Count | 50 |
| Viewing Angle | 70/70/50/70 |
| Screen Size | 8 inch |
Confirm module dimensions, active area, display mode, brightness against the latest approved module specification before design-in.
Interface & pin definition
Use the EE080NA-05A electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB |
| Pin Count | 50 |

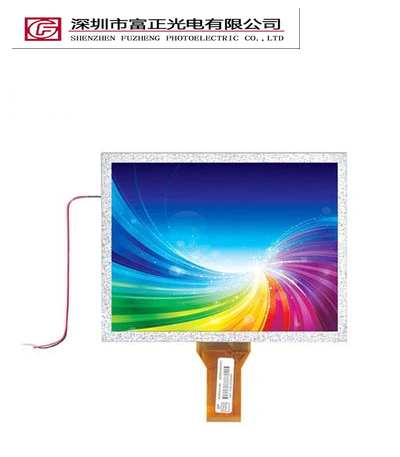

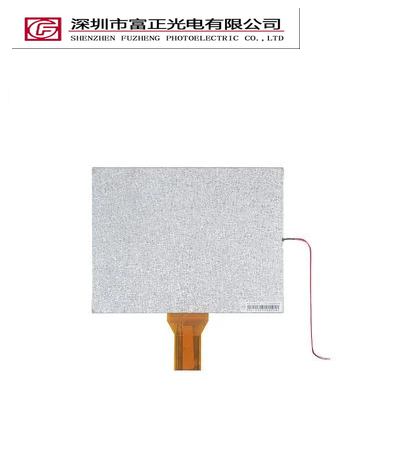

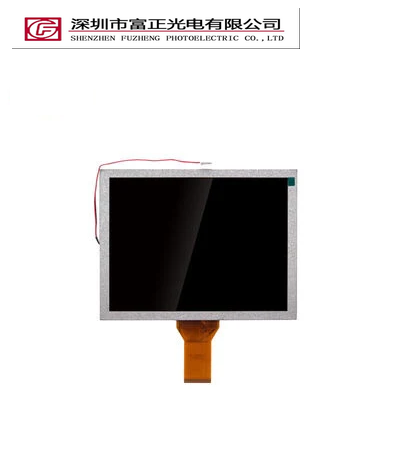

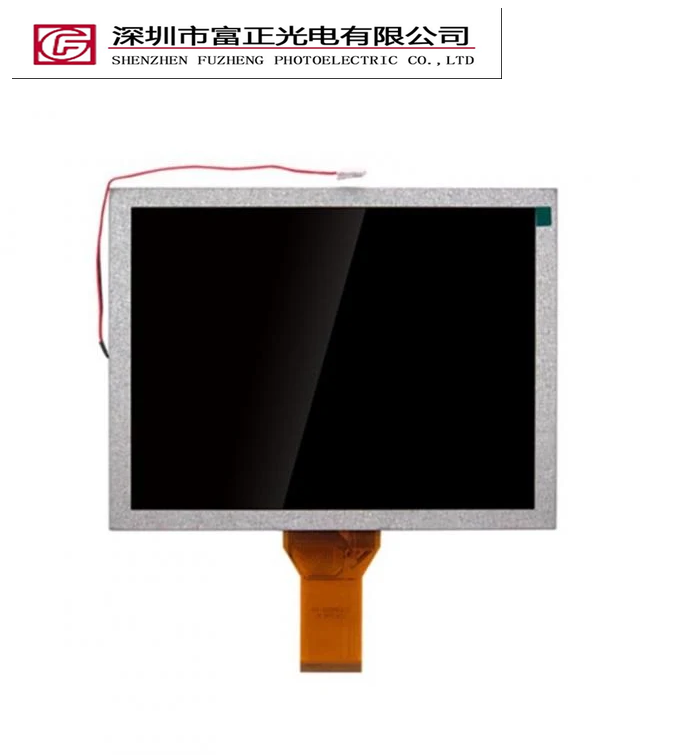

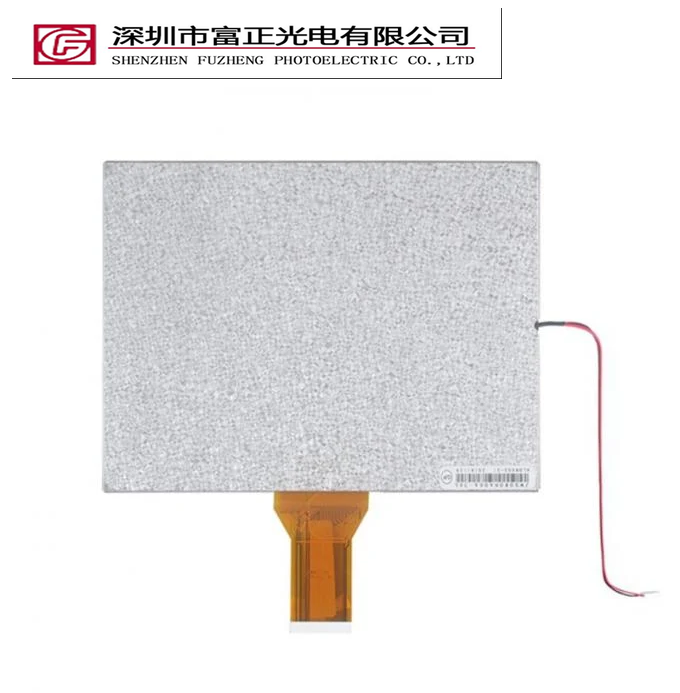

Product photographs

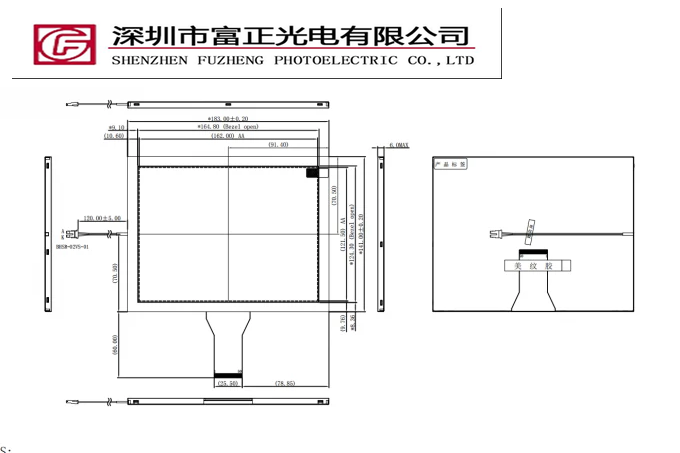

Mechanical drawings & documents
Request the EE080NA-05A mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
EE080NA-05A can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 8-inch display format with your available viewing area, then check 800 × 600 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected EE080NA-05A configuration.
EE080NA-05A frequently asked questions
What specifications are listed for EE080NA-05A?
Resolution: 800 × 600 pixels; Interface: RGB; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should EE080NA-05A connect to a host system?
EE080NA-05A lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for EE080NA-05A?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for EE080NA-05A so the exact assembly can be reviewed.
Where can I find the drawing for EE080NA-05A?
Request the mechanical drawing and electrical datasheet for EE080NA-05A. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a EE080NA-05A sample?
Include the model EE080NA-05A, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the EE080NA-05A reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
Compare more in Industrial TFT Displays.
