Model no.K1238S3048-Q05-02-V0

K1238S3048-Q05-02-V0 12.3-Inch 720 × 1920 Industrial TFT-LCD Display

MIPI
Resolution: 720 × 1920 pixels
Module Dimensions: 312.83(L) X 118.31 × 3 mm
Brightness: 350 cd/m²
Driver IC: HX83102E
Interface: MIPI
Screen Size: 12.3 inch

Screen Size: 12.3 inch
Resolution: 720 × 1920 pixels
Display Mode: Normally black,Transmissive
Interface: MIPI
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.

K1238S3048-Q05-02-V0 product introduction

K1238S3048-Q05-02-V0 is a 12.3-inch industrial tft-lcd display with 720 × 1920 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 312.83(L) X 118.31 × 3 mm. Brightness: 350 cd/m². Driver IC: HX83102E. Use these published characteristics to compare K1238S3048-Q05-02-V0 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on K1238S3048-Q05-02-V0 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following K1238S3048-Q05-02-V0 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 720 × 1920 pixels
Module Dimensions: 312.83(L) X 118.31 × 3 mm
Brightness: 350 cd/m²
Driver IC: HX83102E
Interface: MIPI
Screen Size: 12.3 inch

Technical specifications

K1238S3048-Q05-02-V0 technical parameters
Parameter	Value
Resolution	720 × 1920 pixels
Module Dimensions	312.83(L) X 118.31 × 3 mm
Active Area	109.512 × 292.032 mm
LCM Type	MIPI
Brightness	350 cd/m²
Driver IC	HX83102E
Model Size (WHT)	312.83(L) x 118.31(W) x3(T)mm
Interface	MIPI
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Pin Count	30 pin
Contrast Ratio	1200:1
Screen Size	12.3 inch

Confirm operating temperature, storage temperature against the latest approved module specification before design-in.

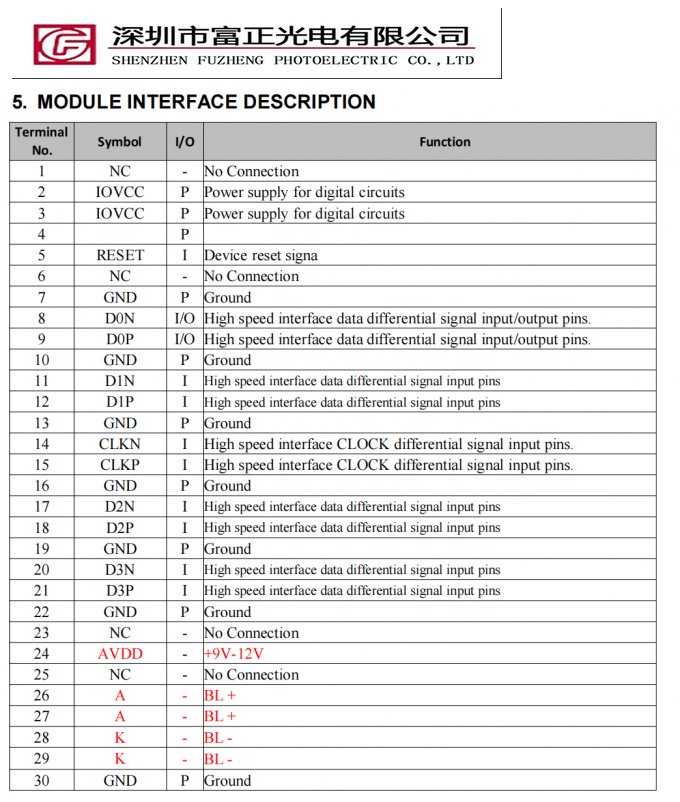

Interface & pin definition

Use the K1238S3048-Q05-02-V0 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

K1238S3048-Q05-02-V0 technical parameters
Parameter	Value
Driver IC	HX83102E
Interface	MIPI
Pin Count	30 pin

Product photographs

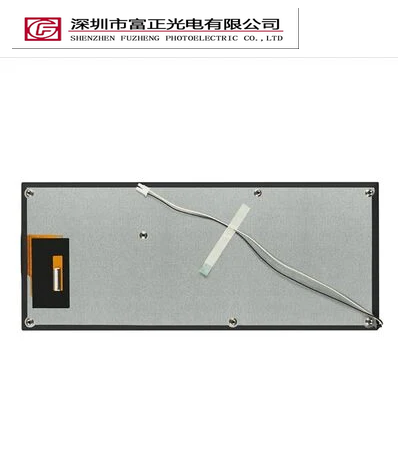

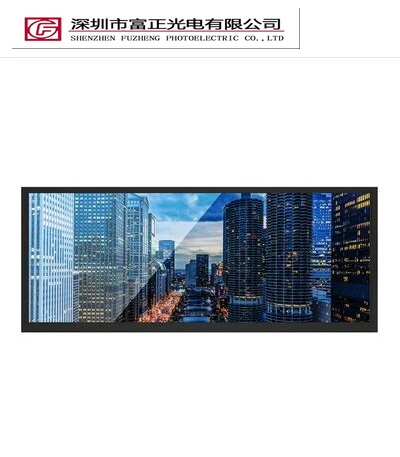

K1238S3048-Q05-02-V0 product view 1

K1238S3048-Q05-02-V0 product view 2

Mechanical drawings & documents

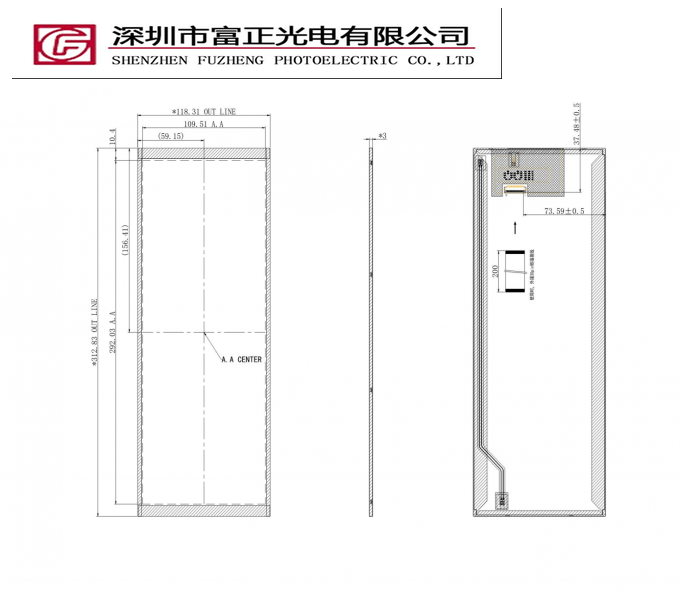

Mechanical reference 1 — open full size to inspect dimensions.

Mechanical reference 2 — open full size to inspect dimensions.

Mechanical reference 3 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of K1238S3048-Q05-02-V0 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

K1238S3048-Q05-02-V0 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 12.3-inch display format with your available viewing area, then check 720 × 1920 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected K1238S3048-Q05-02-V0 configuration.

K1238S3048-Q05-02-V0 frequently asked questions

What specifications are listed for K1238S3048-Q05-02-V0?

Resolution: 720 × 1920 pixels; Module Dimensions: 312.83(L) X 118.31 × 3 mm; Brightness: 350 cd/m²; Driver IC: HX83102E; Interface: MIPI; Screen Size: 12.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should K1238S3048-Q05-02-V0 connect to a host system?

K1238S3048-Q05-02-V0 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for K1238S3048-Q05-02-V0?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for K1238S3048-Q05-02-V0 so the exact assembly can be reviewed.

Where can I find the drawing for K1238S3048-Q05-02-V0?

The drawing section contains 3 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a K1238S3048-Q05-02-V0 sample?

Include the model K1238S3048-Q05-02-V0, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
