Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z156FH03-CT2
Z156FH03-CT2 15.6-Inch 1920 × 1080 Industrial TFT-LCD Display — Ref 53501889
Z156FH03-CT2 is a 15.6-inch industrial tft-lcd display with 1920 × 1080 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Resolution: 1920 × 1080 pixels
- Module Dimensions: 372.16 × 221.59 × 8.2 mm
- Interface: LVDS
- Screen Size: 15.6 inch
- Screen Size
- 15.6 inch
- Resolution
- 1920 × 1080 pixels
- Display Mode
- Normally black,Transmissive
- Interface
- LVDS
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm brightness, operating temperature, storage temperature, touch against the latest approved specification before design-in.
Z156FH03-CT2 product introduction
Z156FH03-CT2 is a 15.6-inch industrial tft-lcd display with 1920 × 1080 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 372.16 × 221.59 × 8.2 mm. Use these published characteristics to compare Z156FH03-CT2 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z156FH03-CT2 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z156FH03-CT2 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1920 × 1080 pixels
- Module Dimensions: 372.16 × 221.59 × 8.2 mm
- Interface: LVDS
- Screen Size: 15.6 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1920 × 1080 pixels |
| Module Dimensions | 372.16 × 221.59 × 8.2 mm |
| Active Area | 344.16 × 193.59 mm |
| LCM Type | LVDS |
| Touch Interface | USB &I2C |
| Model Size (W*H*T) | 372.16*221.59*8.2mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing Angle | 85/85/85/85 |
| Pin Count | 30 pin |
| Screen Size | 15.6 inch |
Confirm brightness, operating temperature, storage temperature, touch against the latest approved module specification before design-in.
Interface & pin definition
Use the Z156FH03-CT2 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Pin Count | 30 pin |

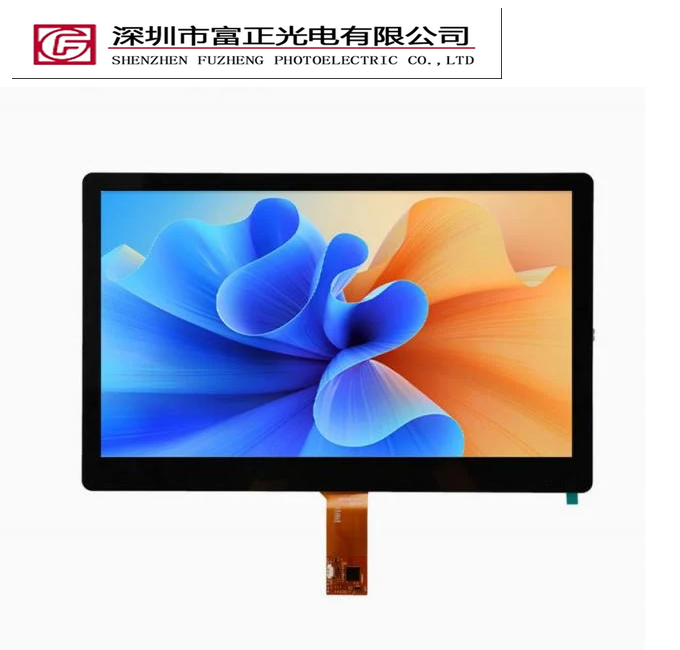

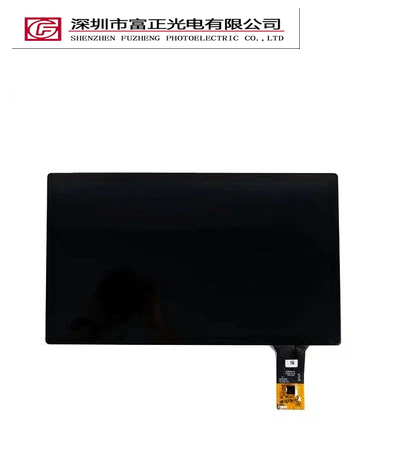

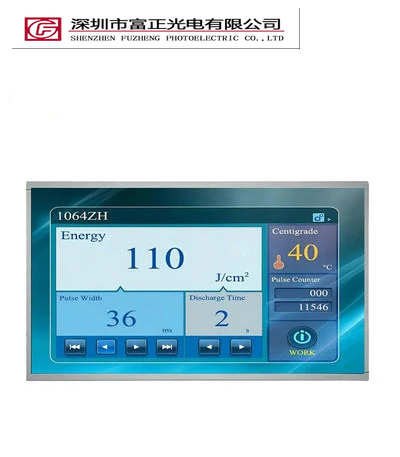

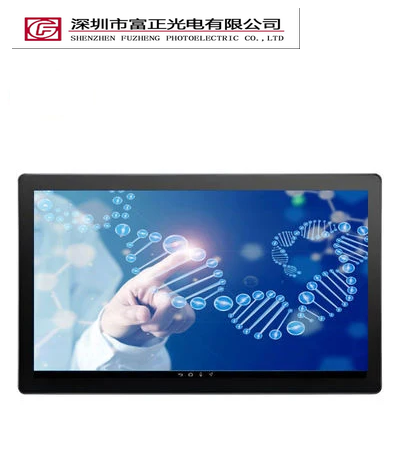

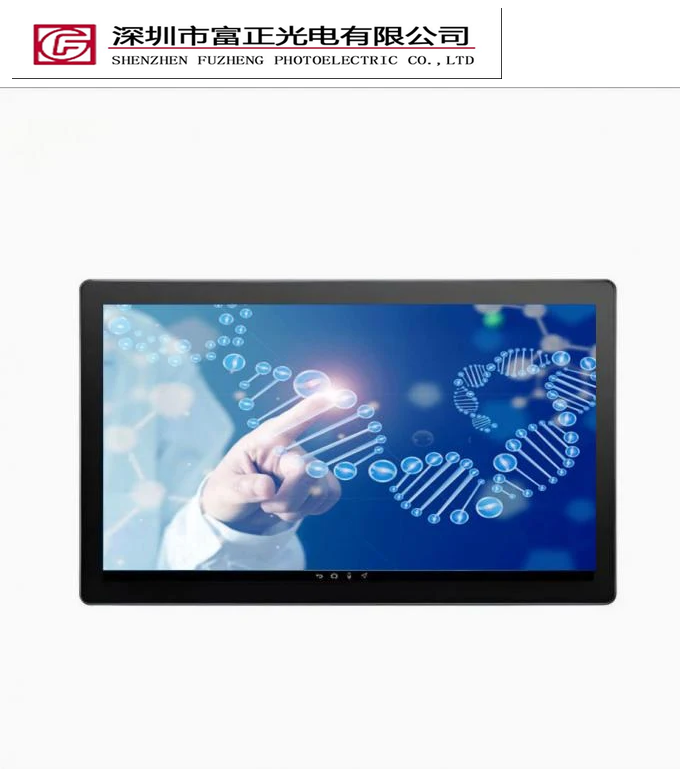

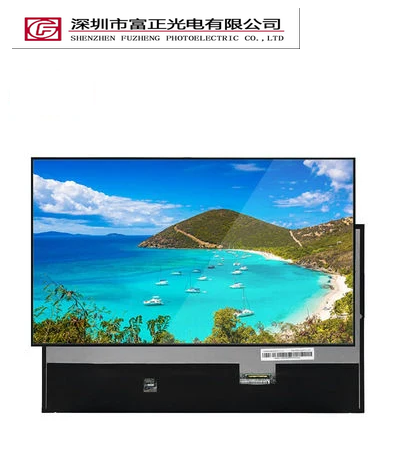

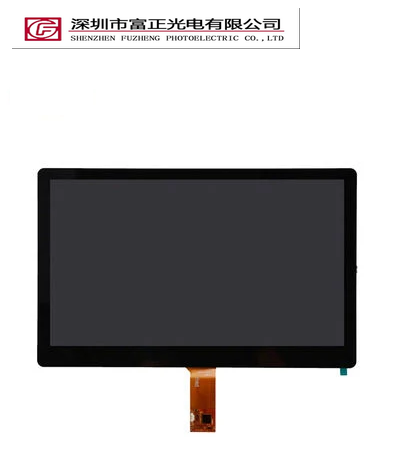

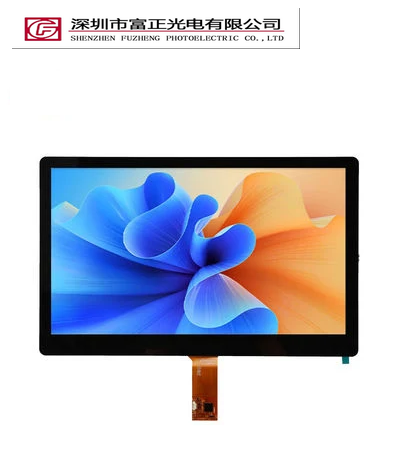

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z156FH03-CT2 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z156FH03-CT2 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 15.6-inch display format with your available viewing area, then check 1920 × 1080 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z156FH03-CT2 configuration.
Z156FH03-CT2 frequently asked questions
What specifications are listed for Z156FH03-CT2?
Resolution: 1920 × 1080 pixels; Module Dimensions: 372.16 × 221.59 × 8.2 mm; Interface: LVDS; Screen Size: 15.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z156FH03-CT2 connect to a host system?
Z156FH03-CT2 lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z156FH03-CT2?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z156FH03-CT2 so the exact assembly can be reviewed.
Where can I find the drawing for Z156FH03-CT2?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z156FH03-CT2 sample?
Include the model Z156FH03-CT2, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z156FH03-CT2 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
