Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z156FH03-CT

Z156FH03-CT 15.6-Inch 1920 × 1080 Industrial TFT-LCD Display

LVDS
Resolution: 1920 × 1080 pixels
Module Dimensions: 384.16 × 253.58 × 11.6 mm
Interface: LVDS
Brightness: 1000 cd/m²
Screen Size: 15.6 inch

Screen Size: 15.6 inch
Resolution: 1920 × 1080 pixels
Display Mode: Normally black,Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm operating temperature, storage temperature, touch against the latest approved specification before design-in.

Z156FH03-CT product introduction

Z156FH03-CT is a 15.6-inch industrial tft-lcd display with 1920 × 1080 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 384.16 × 253.58 × 11.6 mm. Brightness: 1000 cd/m². Use these published characteristics to compare Z156FH03-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z156FH03-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z156FH03-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1920 × 1080 pixels
Module Dimensions: 384.16 × 253.58 × 11.6 mm
Interface: LVDS
Brightness: 1000 cd/m²
Screen Size: 15.6 inch

Technical specifications

Z156FH03-CT technical parameters
Parameter	Value
Resolution	1920 × 1080 pixels
Module Dimensions	384.16 × 253.58 × 11.6 mm
Active Area	344.16 × 193.59 mm
Interface	LVDS
Model Size (WHT)	384.16253.5811.6 mm
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Brightness	1000 cd/m²
Pin Count	30 pin
Screen Size	15.6 inch

Confirm operating temperature, storage temperature, touch against the latest approved module specification before design-in.

Interface & pin definition

Use the Z156FH03-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z156FH03-CT technical parameters
Parameter	Value
Interface	LVDS
Pin Count	30 pin

Product photographs

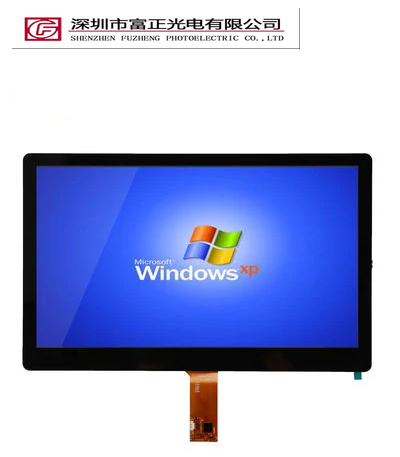

Z156FH03-CT product view 1

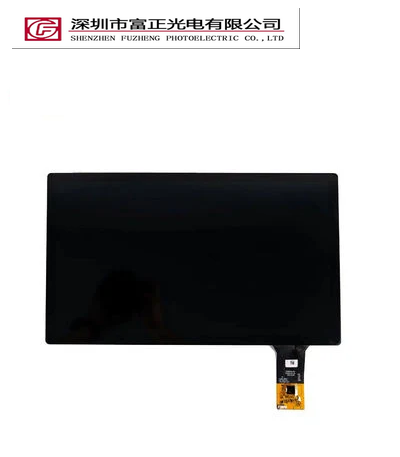

Z156FH03-CT product view 2

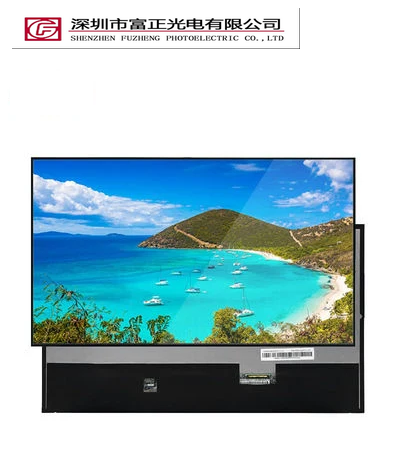

Z156FH03-CT product view 3

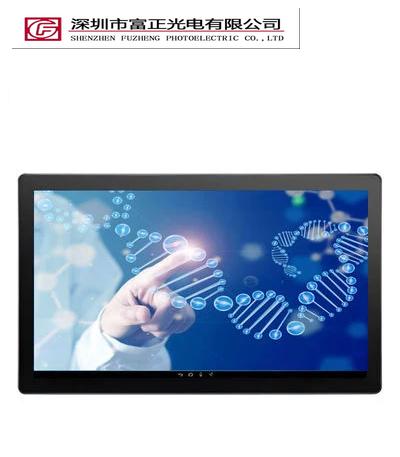

Z156FH03-CT product view 4

Z156FH03-CT product view 5

Z156FH03-CT product view 6

Z156FH03-CT product view 7

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z156FH03-CT against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z156FH03-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 15.6-inch display format with your available viewing area, then check 1920 × 1080 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z156FH03-CT configuration.

Z156FH03-CT frequently asked questions

What specifications are listed for Z156FH03-CT?

Resolution: 1920 × 1080 pixels; Module Dimensions: 384.16 × 253.58 × 11.6 mm; Interface: LVDS; Brightness: 1000 cd/m²; Screen Size: 15.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z156FH03-CT connect to a host system?

Z156FH03-CT lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z156FH03-CT?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z156FH03-CT so the exact assembly can be reviewed.

Where can I find the drawing for Z156FH03-CT?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z156FH03-CT sample?

Include the model Z156FH03-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z156FH03-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z156FH03-CT quote or evaluation sample →

Discuss this display with our team

Z156FH03-CT

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
