Model no.Z123HD01J

Z123HD01J 12.3-Inch 1920 × 720 Industrial TFT-LCD Display

LVDS
Resolution: 1920 × 720 pixels
Module Dimensions: 310 × 128 × 6.8 mm
Brightness: 1000 cd/m²
Interface: LVDS
Screen Size: 12.3 inch

Screen Size: 12.3 inch
Resolution: 1920 × 720 pixels
Display Mode: Normally black,Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.

Z123HD01J product introduction

Z123HD01J is a 12.3-inch industrial tft-lcd display with 1920 × 720 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 310 × 128 × 6.8 mm. Brightness: 1000 cd/m². Use these published characteristics to compare Z123HD01J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z123HD01J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z123HD01J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1920 × 720 pixels
Module Dimensions: 310 × 128 × 6.8 mm
Brightness: 1000 cd/m²
Interface: LVDS
Screen Size: 12.3 inch

Technical specifications

Z123HD01J technical parameters
Parameter	Value
Resolution	1920 × 720 pixels
Module Dimensions	310 × 128 × 6.8 mm
Active Area	292.03 × 109.5 mm
LCM Type	LVDS
Brightness	1000 cd/m²
Model Size (WHT)	310x128x6.8mm
Interface	LVDS
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Pin Count	50 pin
Contrast Ratio	1200:1
Screen Size	12.3 inch

Confirm operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z123HD01J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z123HD01J technical parameters
Parameter	Value
Interface	LVDS
Pin Count	50 pin

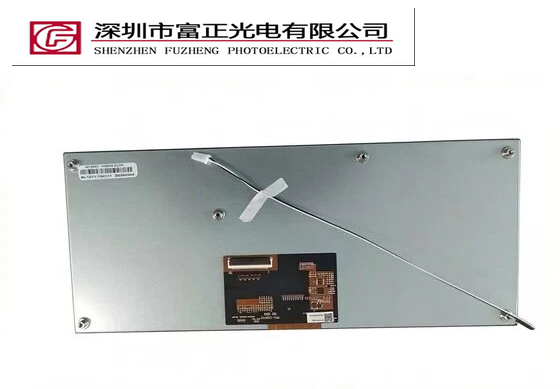

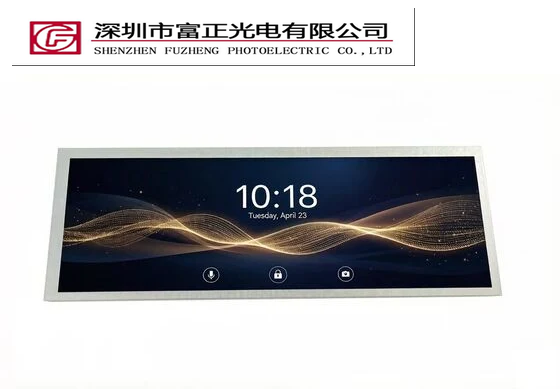

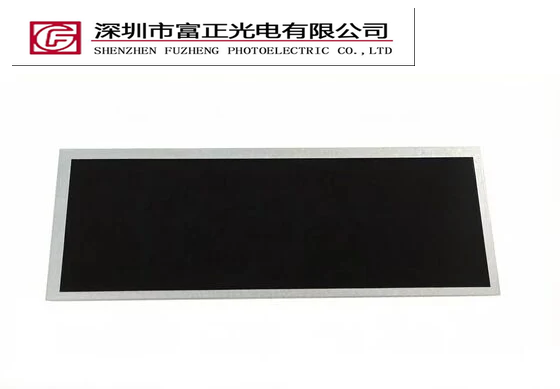

Product photographs

Z123HD01J product view 1

Z123HD01J product view 2

Z123HD01J product view 3

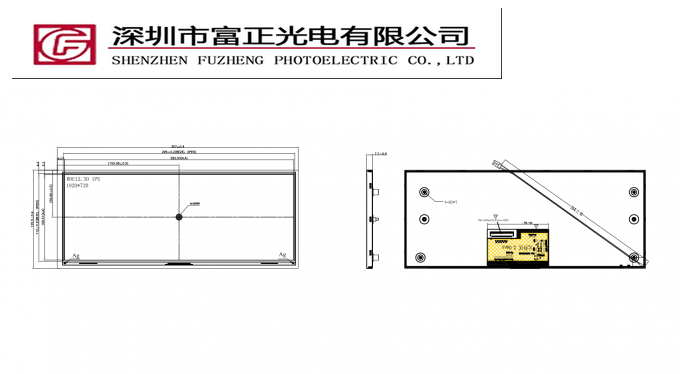

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z123HD01J against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z123HD01J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 12.3-inch display format with your available viewing area, then check 1920 × 720 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z123HD01J configuration.

Z123HD01J frequently asked questions

What specifications are listed for Z123HD01J?

Resolution: 1920 × 720 pixels; Module Dimensions: 310 × 128 × 6.8 mm; Brightness: 1000 cd/m²; Interface: LVDS; Screen Size: 12.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z123HD01J connect to a host system?

Z123HD01J lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z123HD01J?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z123HD01J so the exact assembly can be reviewed.

Where can I find the drawing for Z123HD01J?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z123HD01J sample?

Include the model Z123HD01J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z123HD01J reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
