Model no.Z121WX02J

Z121WX02J 12.1-Inch 1280 × 800 Industrial TFT-LCD Display

LVDS
Resolution: 1280 × 800 pixels
Module Dimensions: 277.7 × 180.6 × 6.1 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 80 °C
Screen Size: 12.1 inch

Screen Size: 12.1 inch
Resolution: 1280 × 800 pixels
Display Mode: Normally black, Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z121WX02J product introduction

Z121WX02J is a 12.1-inch industrial tft-lcd display with 1280 × 800 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 277.7 × 180.6 × 6.1 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 80 °C. Use these published characteristics to compare Z121WX02J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z121WX02J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z121WX02J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1280 × 800 pixels
Module Dimensions: 277.7 × 180.6 × 6.1 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 80 °C
Screen Size: 12.1 inch

Technical specifications

Z121WX02J technical parameters
Parameter	Value
Resolution	1280 × 800 pixels
Module Dimensions	277.7 × 180.6 × 6.1 mm
Active Area	260.35 × 162.72 mm
Interface	LVDS
Display Mode	Normally Black, Transmissive
Brightness	1000 cd/m²
Contrast Ratio	1200:1
Operating Temperature	-20 to 80 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)	277.7180.66.1mm
Viewing	IPS/ALL
Pin Count	30
Viewing Angle	85/85/85/85
Screen Size	12.1 inch

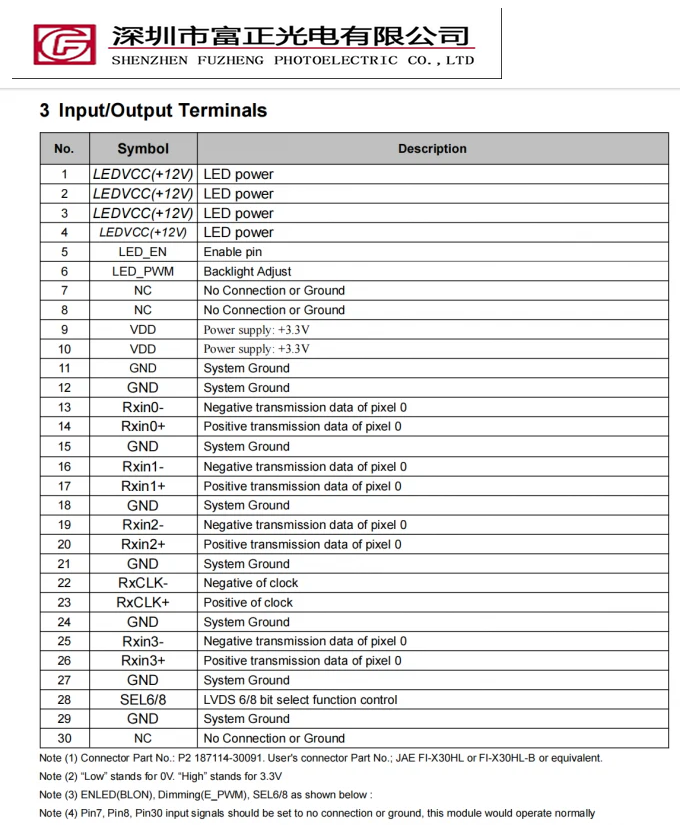

Interface & pin definition

Use the Z121WX02J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z121WX02J technical parameters
Parameter	Value
Interface	LVDS
Pin Count	30

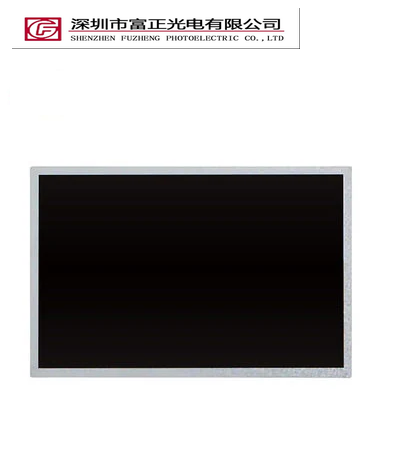

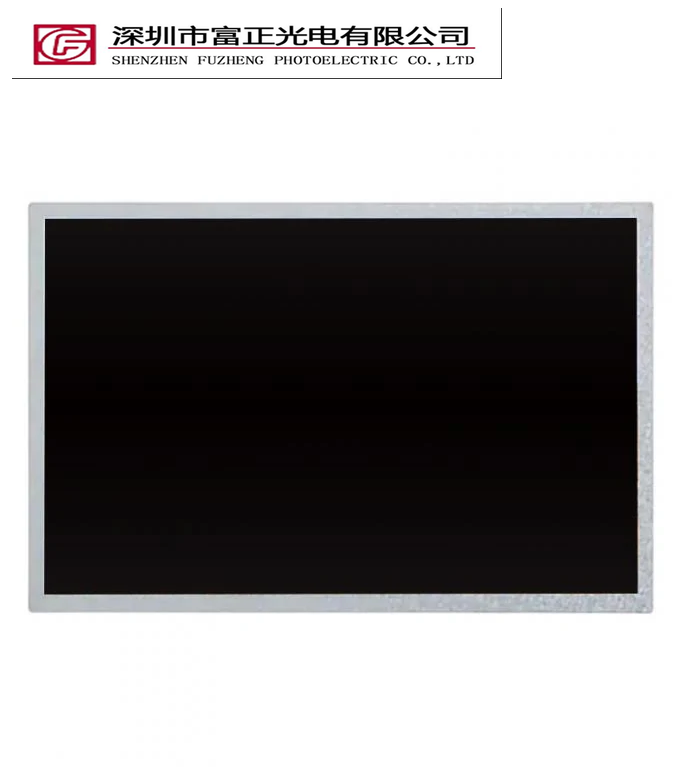

Product photographs

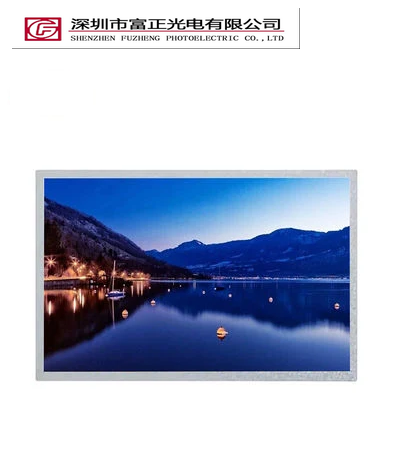

Z121WX02J product view 1

Z121WX02J product view 2

Z121WX02J product view 3

Z121WX02J product view 4

Z121WX02J product view 5

Z121WX02J product view 6

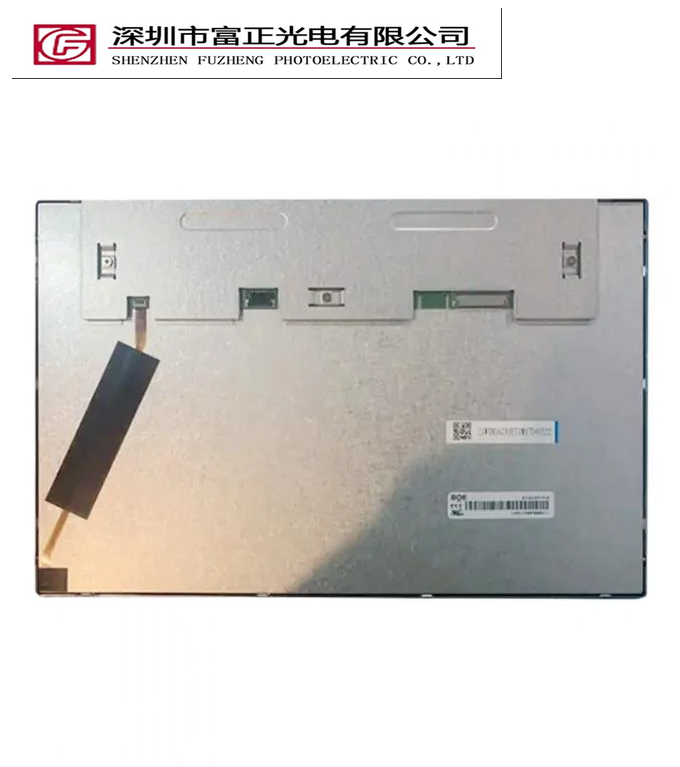

Z121WX02J product view 7

Z121WX02J product view 8

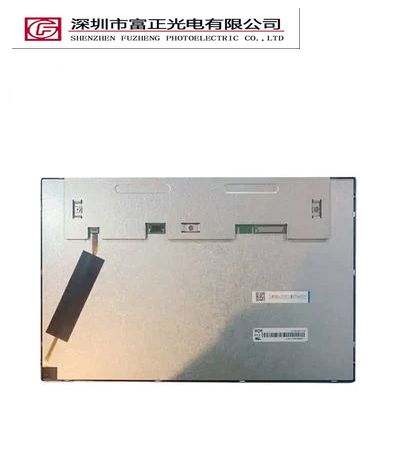

Z121WX02J product view 9

Z121WX02J product view 10

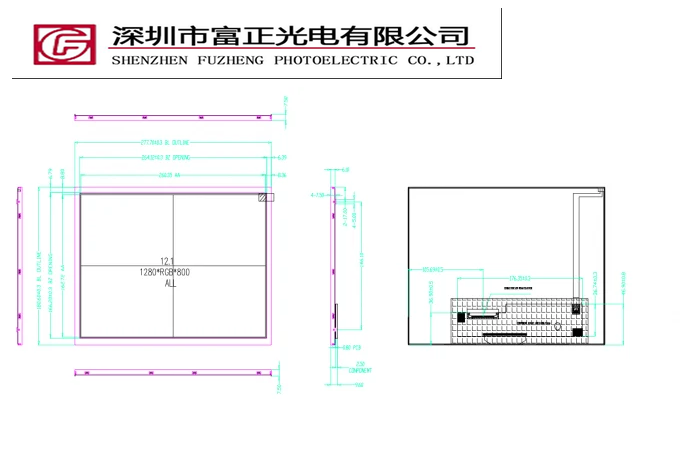

Mechanical drawings & documents

Request the Z121WX02J mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z121WX02J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 12.1-inch display format with your available viewing area, then check 1280 × 800 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z121WX02J configuration.

Z121WX02J frequently asked questions

What specifications are listed for Z121WX02J?

Resolution: 1280 × 800 pixels; Module Dimensions: 277.7 × 180.6 × 6.1 mm; Interface: LVDS; Brightness: 1000 cd/m²; Operating Temperature: -20 to 80 °C; Screen Size: 12.1 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z121WX02J connect to a host system?

Z121WX02J lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z121WX02J?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z121WX02J so the exact assembly can be reviewed.

Where can I find the drawing for Z121WX02J?

Request the mechanical drawing and electrical datasheet for Z121WX02J. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a Z121WX02J sample?

Include the model Z121WX02J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
