Model no.Z104WX01-CT

Z104WX01-CT 10.4-Inch 1024 × 768 Industrial TFT-LCD Display

LVDS
Resolution: 1024 × 768 pixels
Module Dimensions: 238.6 × 175.8 × 6.5 mm
Interface: LVDS
Brightness: 600 cd/m²
Operating Temperature: -30 to 80 °C
Screen Size: 10.4 inch

Screen Size: 10.4 inch
Resolution: 1024 × 768 pixels
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z104WX01-CT product introduction

Z104WX01-CT is a 10.4-inch industrial tft-lcd display with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 238.6 × 175.8 × 6.5 mm. Brightness: 600 cd/m². Operating Temperature: -30 to 80 °C. Use these published characteristics to compare Z104WX01-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z104WX01-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z104WX01-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1024 × 768 pixels
Module Dimensions: 238.6 × 175.8 × 6.5 mm
Interface: LVDS
Brightness: 600 cd/m²
Operating Temperature: -30 to 80 °C
Screen Size: 10.4 inch

Technical specifications

Z104WX01-CT technical parameters
Parameter	Value
Resolution	1024 × 768 pixels
Module Dimensions	238.6 × 175.8 × 6.5 mm
Active Area	210.43 × 157.82 mm
Interface	LVDS
Model Size (WHT)mm	238.6175.86.5mm
Viewing Angle	85/85/85/85
Brightness	600 cd/m²
Pin Count	30 pin
Contrast Ratio	1000:1
Operating Temperature	-30 to 80 °C
Storage Temperature	-30 to 80 °C
Screen Size	10.4 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z104WX01-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z104WX01-CT technical parameters
Parameter	Value
Interface	LVDS
Pin Count	30 pin

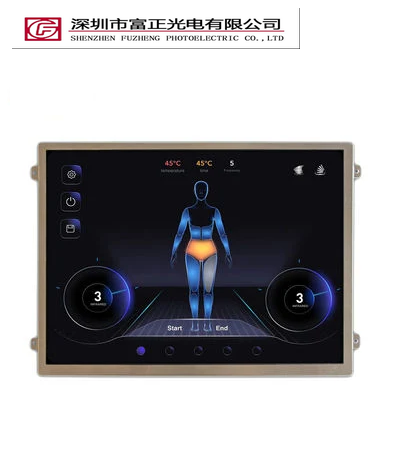

Product photographs

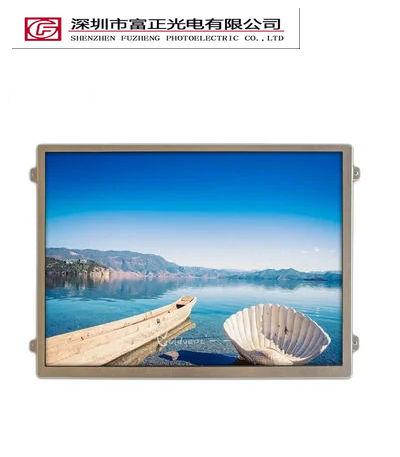

Z104WX01-CT product view 1

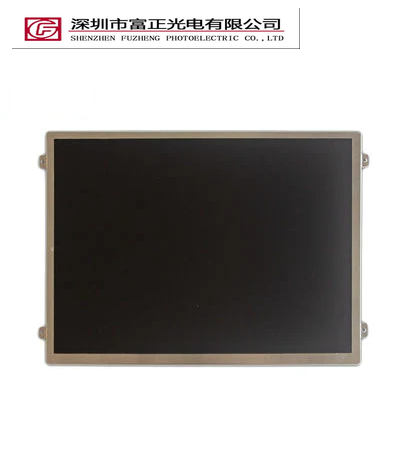

Z104WX01-CT product view 2

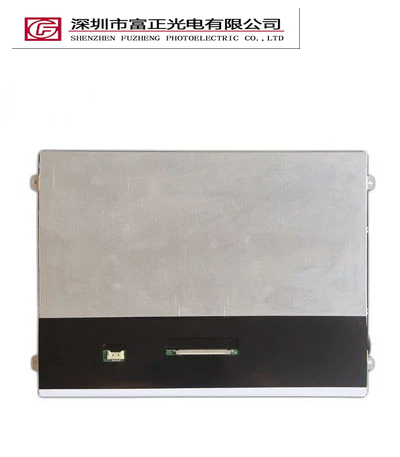

Z104WX01-CT product view 3

Z104WX01-CT product view 4

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z104WX01-CT against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z104WX01-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 10.4-inch display format with your available viewing area, then check 1024 × 768 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z104WX01-CT configuration.

Z104WX01-CT frequently asked questions

What specifications are listed for Z104WX01-CT?

Resolution: 1024 × 768 pixels; Module Dimensions: 238.6 × 175.8 × 6.5 mm; Interface: LVDS; Brightness: 600 cd/m²; Operating Temperature: -30 to 80 °C; Screen Size: 10.4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z104WX01-CT connect to a host system?

Z104WX01-CT lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z104WX01-CT?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z104WX01-CT so the exact assembly can be reviewed.

Where can I find the drawing for Z104WX01-CT?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z104WX01-CT sample?

Include the model Z104WX01-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z104WX01-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z104WX01-CT quote or evaluation sample →
