Z101WX21 10.1-Inch 1280 × 800 Industrial TFT-LCD Display

LVDS
Resolution: 1280 × 800 pixels
Module Dimensions: 229.46 × 149.1 × 2.8 mm
Interface: LVDS
Operating Temperature: -20 to 70 °C
Screen Size: 10.1 inch

Screen Size: 10.1 inch
Resolution: 1280 × 800 pixels
Display Mode: Normally black, Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm brightness against the latest approved specification before design-in.

Z101WX21 product introduction

Z101WX21 is a 10.1-inch industrial tft-lcd display with 1280 × 800 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 229.46 × 149.1 × 2.8 mm. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z101WX21 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z101WX21 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z101WX21 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1280 × 800 pixels
Module Dimensions: 229.46 × 149.1 × 2.8 mm
Interface: LVDS
Operating Temperature: -20 to 70 °C
Screen Size: 10.1 inch

Technical specifications

Z101WX21 technical parameters
Parameter	Value
Resolution	1280 × 800 pixels
Module Dimensions	229.46 × 149.1 × 2.8 mm
Active Area	216.96 × 135.6 mm
Interface	LVDS
Display Mode	Normally Black, Transmissive
Operating Temperature	-20 to 70 °C
Contrast Ratio	1000:1
Model Size (WHT)mm	229.46X149.1*2.8
Viewing	IPS/ALL
Pin Count	40
Viewing Angle	85/85/85/85
Storage Temperature	-30 to 80 °C
Screen Size	10.1 inch

Confirm brightness against the latest approved module specification before design-in.

Interface & pin definition

Use the Z101WX21 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z101WX21 technical parameters
Parameter	Value
Interface	LVDS
Pin Count	40

Product photographs

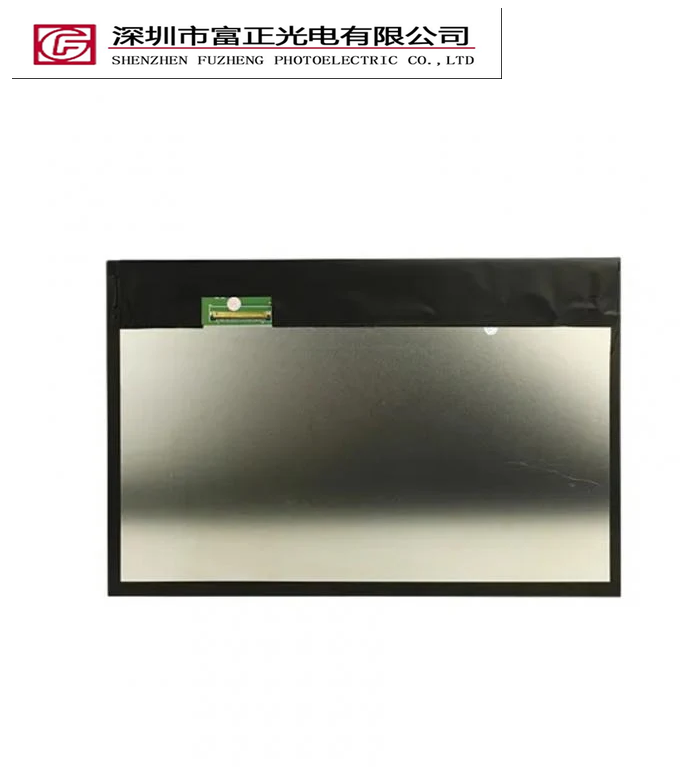

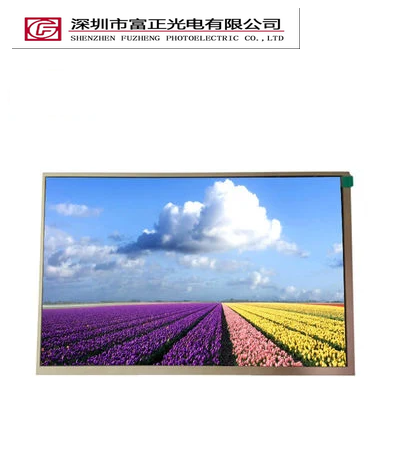

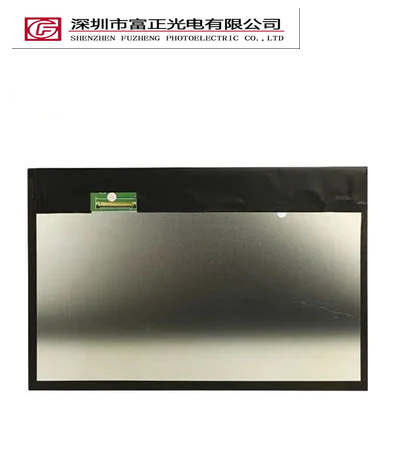

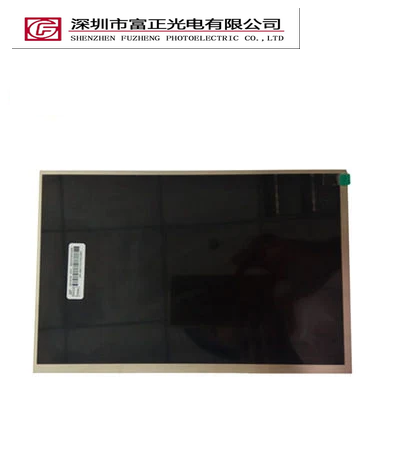

Z101WX21 product view 1

Z101WX21 product view 2

Z101WX21 product view 3

Z101WX21 product view 4

Z101WX21 product view 5

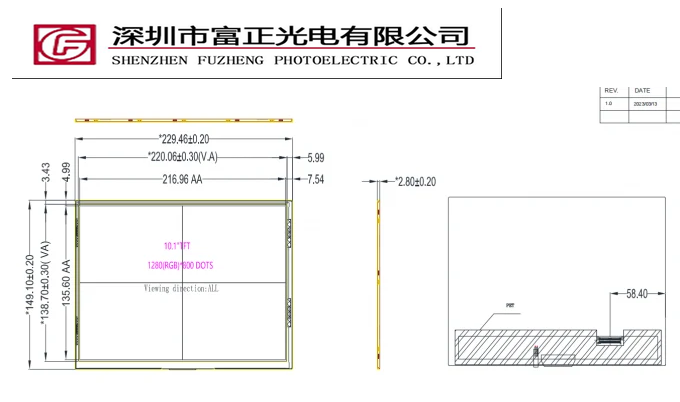

Mechanical drawings & documents

Request the Z101WX21 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

Z101WX21 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 10.1-inch display format with your available viewing area, then check 1280 × 800 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z101WX21 configuration.
