Z080XG01J 8-Inch 1024 × 768 Industrial TFT-LCD Display

LVDS
Resolution: 1024 × 768 pixels
Module Dimensions: 183 × 141 × 6.15 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Screen Size: 8 inch
Resolution: 1024 × 768 pixels
Display Mode: Normally black,Transmissive
Interface: LVDS
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z080XG01J product introduction

Z080XG01J is a 8-inch industrial tft-lcd display with 1024 × 768 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 183 × 141 × 6.15 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z080XG01J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z080XG01J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z080XG01J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1024 × 768 pixels
Module Dimensions: 183 × 141 × 6.15 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Technical specifications

Z080XG01J technical parameters
Parameter	Value
Resolution	1024 × 768 pixels
Module Dimensions	183 × 141 × 6.15 mm
Active Area	162.05 × 121.54 mm
Interface	LVDS
Brightness	1000 cd/m²
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	1831416.15
Display Mode	Normally Black,Transmissive
Viewing	IPS/ALL
Pin Count	40
Viewing Angle	85/85/85/85
Screen Size	8 inch

Interface & pin definition

Use the Z080XG01J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z080XG01J technical parameters
Parameter	Value
Interface	LVDS
Pin Count	40

Product photographs

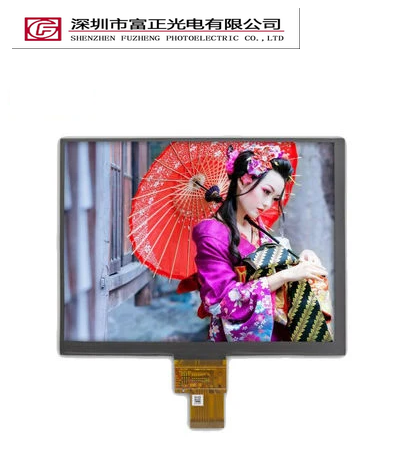

Z080XG01J product view 1

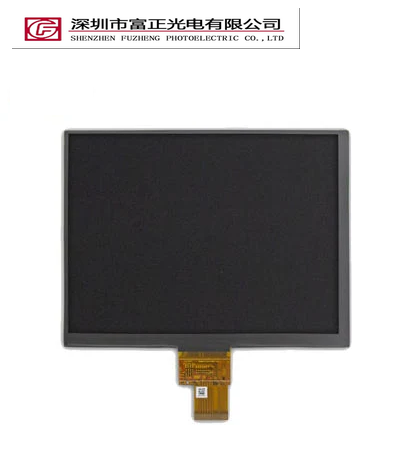

Z080XG01J product view 2

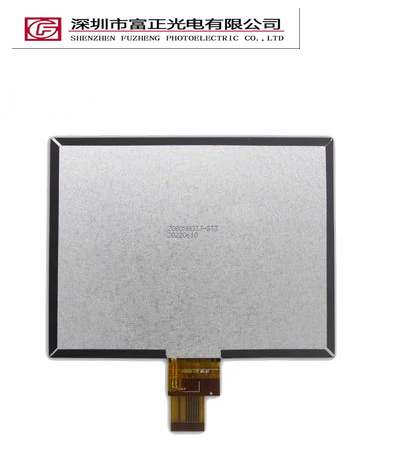

Z080XG01J product view 3

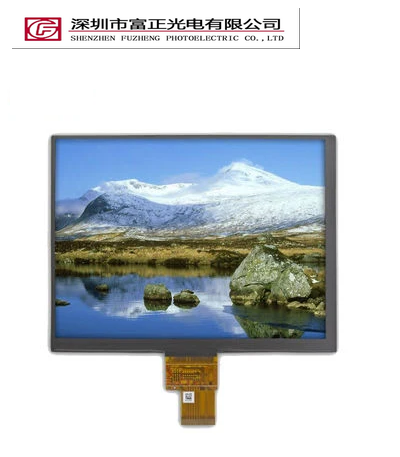

Z080XG01J product view 4

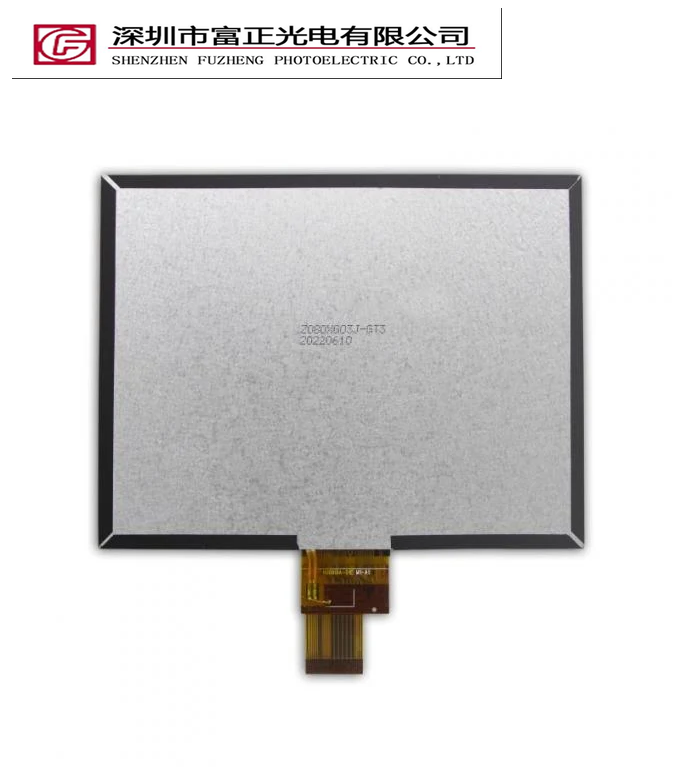

Z080XG01J product view 5

Z080XG01J product view 6

Z080XG01J product view 7

Mechanical drawings & documents

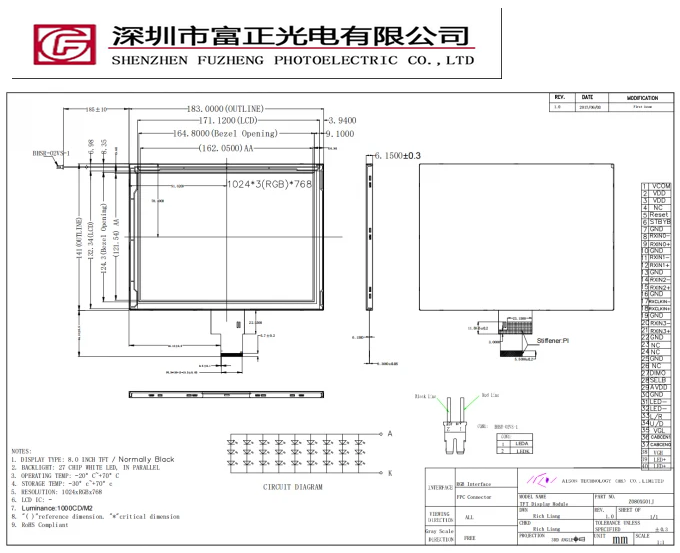

Request the Z080XG01J mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
