Model no.Z080TN64J

Z080TN64J 8-Inch 800 × 480 Industrial TFT-LCD Display

24 BIT RGB
Interface: 24 BIT RGB
Operating Temperature: -20 to 70 °C
Resolution: 800 × 480 pixels
Brightness: 1000 cd/m²
Screen Size: 8 inch

Screen Size: 8 inch
Resolution: 800 × 480 pixels
Display Mode: Normally White TN,Transmissive
Interface: 24 BIT RGB
Viewing Angle: 70/70/50/70

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z080TN64J product introduction

Z080TN64J is a 8-inch industrial tft-lcd display with 800 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Operating Temperature: -20 to 70 °C. Brightness: 1000 cd/m². Use these published characteristics to compare Z080TN64J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 24 BIT RGB connection on Z080TN64J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z080TN64J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Interface: 24 BIT RGB
Operating Temperature: -20 to 70 °C
Resolution: 800 × 480 pixels
Brightness: 1000 cd/m²
Screen Size: 8 inch

Technical specifications

Z080TN64J technical parameters
Parameter	Value
Active Area	176.64 × 99.36 mm
Interface	24 BIT RGB
Viewing Angle	70/70/50/70
Viewing Direction	12 O'clock
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Resolution	800 × 480 pixels
Model Size (WHT)mm	192.8116.96.4mm
Display Mode	Normally White TN,Transmissive
Viewing	12:00 o'clock
Brightness	1000 cd/m²
Pin Count	50
Screen Size	8 inch

Interface & pin definition

Use the Z080TN64J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z080TN64J technical parameters
Parameter	Value
Interface	24 BIT RGB
Pin Count	50

Product photographs

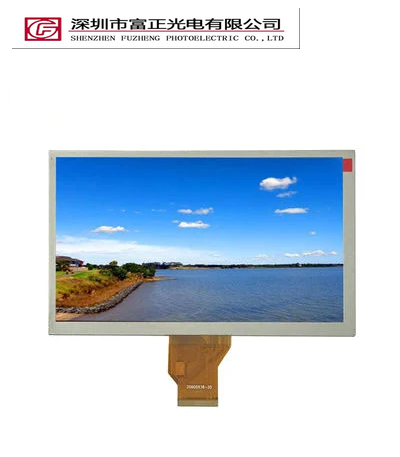

Z080TN64J product view 1

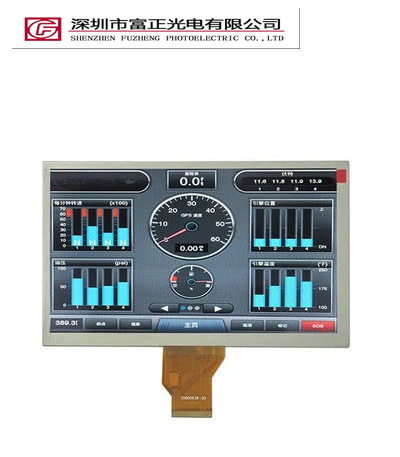

Z080TN64J product view 2

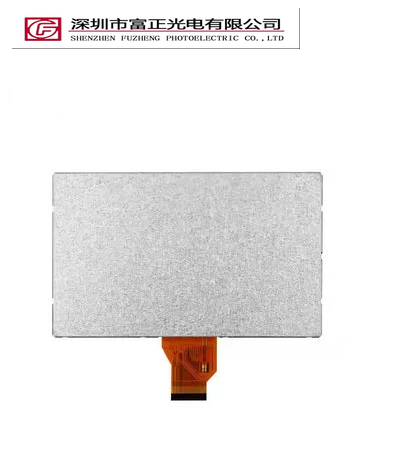

Z080TN64J product view 3

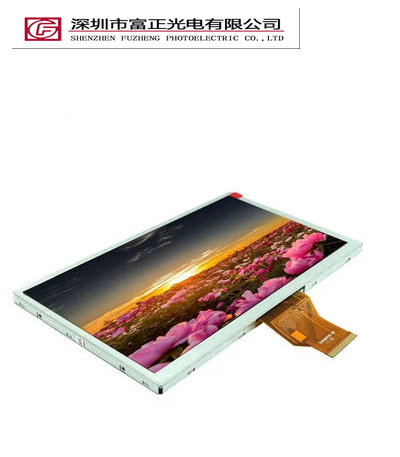

Z080TN64J product view 4

Z080TN64J product view 5

Z080TN64J product view 6

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z080TN64J against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z080TN64J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 8-inch display format with your available viewing area, then check 800 × 480 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z080TN64J configuration.

Z080TN64J frequently asked questions

What specifications are listed for Z080TN64J?

Interface: 24 BIT RGB; Operating Temperature: -20 to 70 °C; Resolution: 800 × 480 pixels; Brightness: 1000 cd/m²; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z080TN64J connect to a host system?

Z080TN64J lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z080TN64J?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z080TN64J so the exact assembly can be reviewed.

Where can I find the drawing for Z080TN64J?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z080TN64J sample?

Include the model Z080TN64J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
