Model no.Z080TN64

Z080TN64 8-Inch 800 × 480 Industrial TFT-LCD Display

24 BIT RGB
Resolution: 800 × 480 pixels
Module Dimensions: 192.8 × 116.9 × 6.4 mm
Interface: 24 BIT RGB
Brightness: 350 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Screen Size: 8 inch
Resolution: 800 × 480 pixels
Display Mode: Normally White TN,Transmissive
Interface: 24 BIT RGB

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z080TN64 product introduction

Z080TN64 is a 8-inch industrial tft-lcd display with 800 × 480 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 192.8 × 116.9 × 6.4 mm. Brightness: 350 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z080TN64 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 24 BIT RGB connection on Z080TN64 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z080TN64 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 480 pixels
Module Dimensions: 192.8 × 116.9 × 6.4 mm
Interface: 24 BIT RGB
Brightness: 350 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8 inch

Technical specifications

Z080TN64 technical parameters
Parameter	Value
Resolution	800 × 480 pixels
Module Dimensions	192.8 × 116.9 × 6.4 mm
Active Area	176.64 × 99.36 mm
Interface	24 BIT RGB
Brightness	350 cd/m²
Model Size (WHT)mm	192.8116.96.4mm
Display Mode	Normally White TN,Transmissive
Viewing	12:00 o'clock
Pin Count	50
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Screen Size	8 inch

Interface & pin definition

Use the Z080TN64 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z080TN64 technical parameters
Parameter	Value
Interface	24 BIT RGB
Pin Count	50

Product photographs

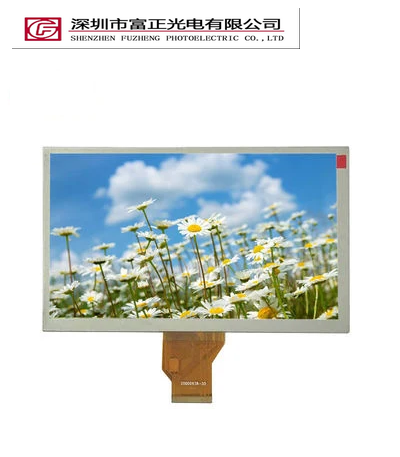

Z080TN64 product view 1

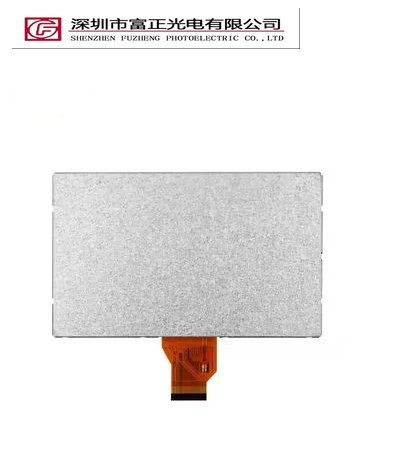

Z080TN64 product view 2

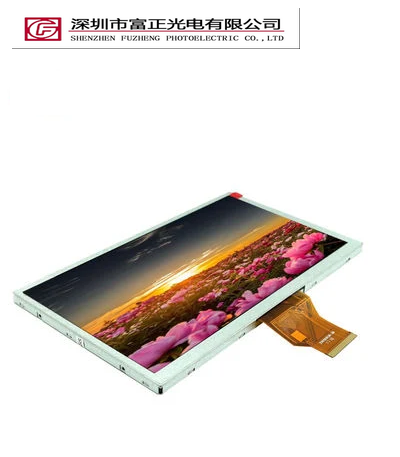

Z080TN64 product view 3

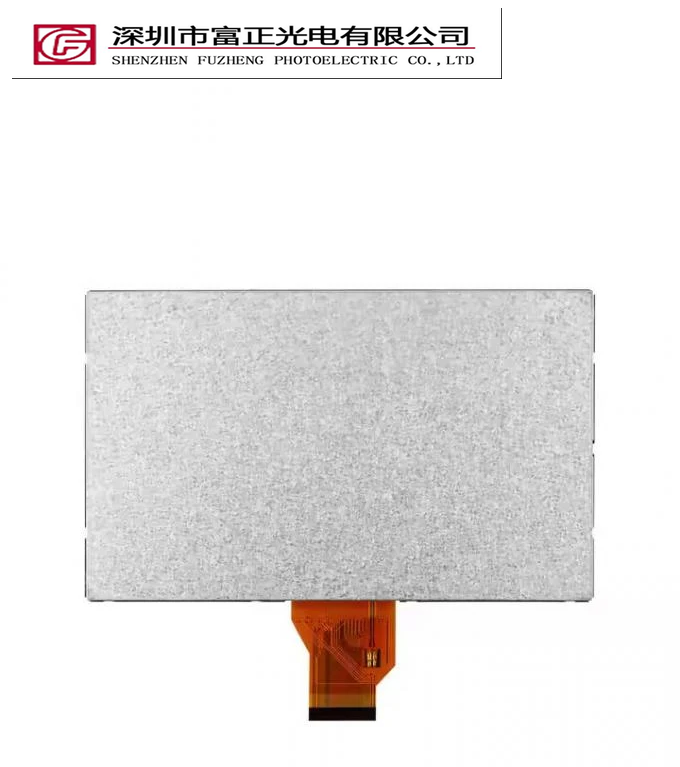

Z080TN64 product view 4

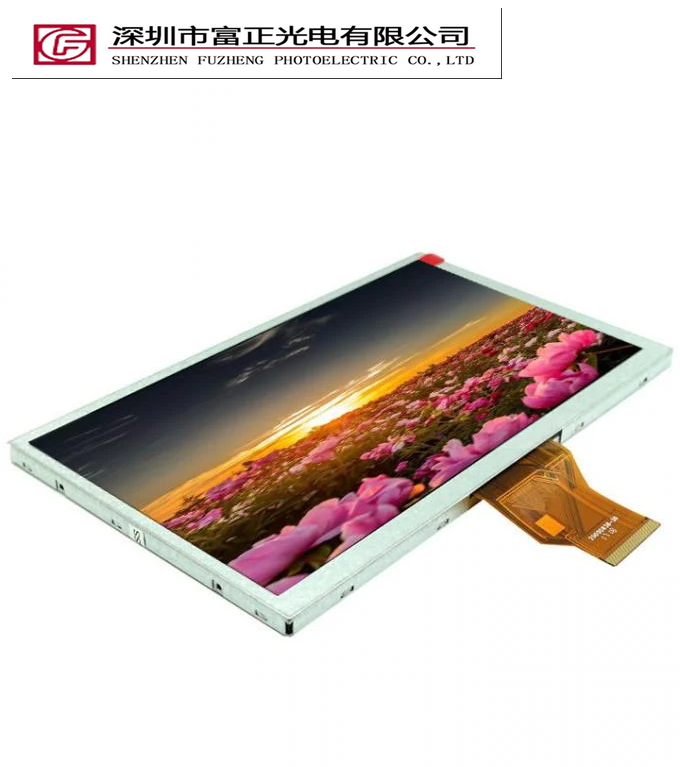

Z080TN64 product view 5

Mechanical drawings & documents

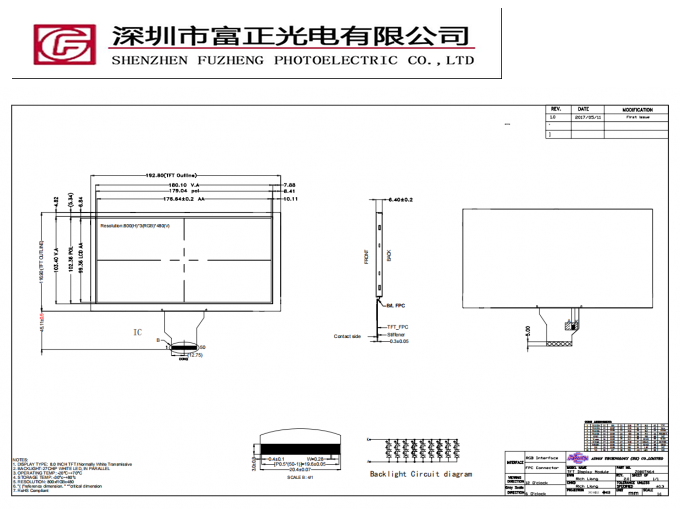

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z080TN64 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z080TN64 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 8-inch display format with your available viewing area, then check 800 × 480 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z080TN64 configuration.

Z080TN64 frequently asked questions

What specifications are listed for Z080TN64?

Resolution: 800 × 480 pixels; Module Dimensions: 192.8 × 116.9 × 6.4 mm; Interface: 24 BIT RGB; Brightness: 350 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z080TN64 connect to a host system?

Z080TN64 lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z080TN64?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z080TN64 so the exact assembly can be reviewed.

Where can I find the drawing for Z080TN64?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z080TN64 sample?

Include the model Z080TN64, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
