Model no.Z070WS03
Z070WS03 7-Inch 1024 × 600 Industrial TFT-LCD Display
Z070WS03 is a 7-inch industrial tft-lcd display with 1024 × 600 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB
- Resolution: 1024 × 600 pixels
- Module Dimensions: 164.9 × 100 × 3.5 mm
- Interface: RGB
- Brightness: 400 cd/m²
- Screen Size: 7 inch
- Screen Size
- 7 inch
- Resolution
- 1024 × 600 pixels
- Display Mode
- Normally White,Transmissive
- Interface
- RGB
Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.
Z070WS03 product introduction
Z070WS03 is a 7-inch industrial tft-lcd display with 1024 × 600 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 164.9 × 100 × 3.5 mm. Brightness: 400 cd/m². Use these published characteristics to compare Z070WS03 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB connection on Z070WS03 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z070WS03 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 600 pixels
- Module Dimensions: 164.9 × 100 × 3.5 mm
- Interface: RGB
- Brightness: 400 cd/m²
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1024 × 600 pixels |
| Module Dimensions | 164.9 × 100 × 3.5 mm |
| Active Area | 154.21 × 85.92 mm |
| Interface | RGB |
| Brightness | 400 cd/m² |
| Display Technology | TFT, Normally White, Transmissive |
| Contrast Ratio | 800:1 |
| Model Size (W*H*T) | 164.9*100*3.5 mm |
| Display Mode | Normally White,Transmissive |
| Viewing | 12 o'clock |
| Pin Count | 50 pin |
| Screen Size | 7 inch |
Confirm operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z070WS03 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB |
| Pin Count | 50 pin |

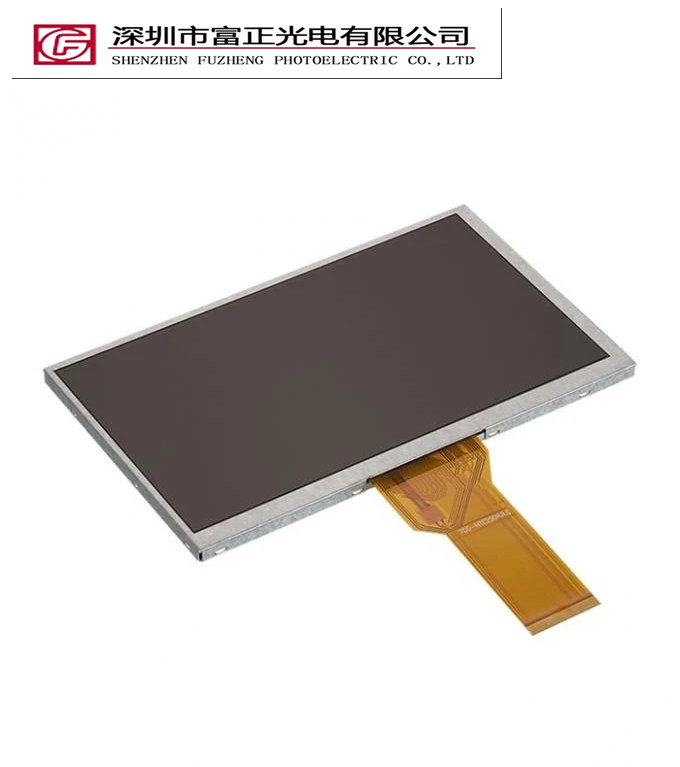

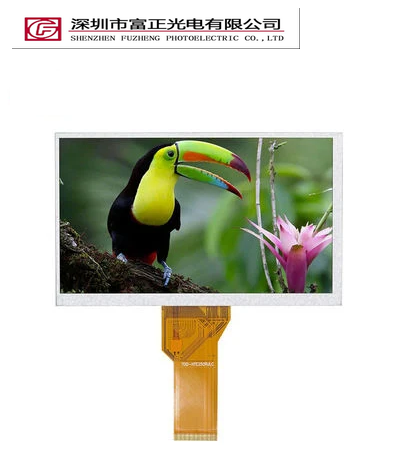

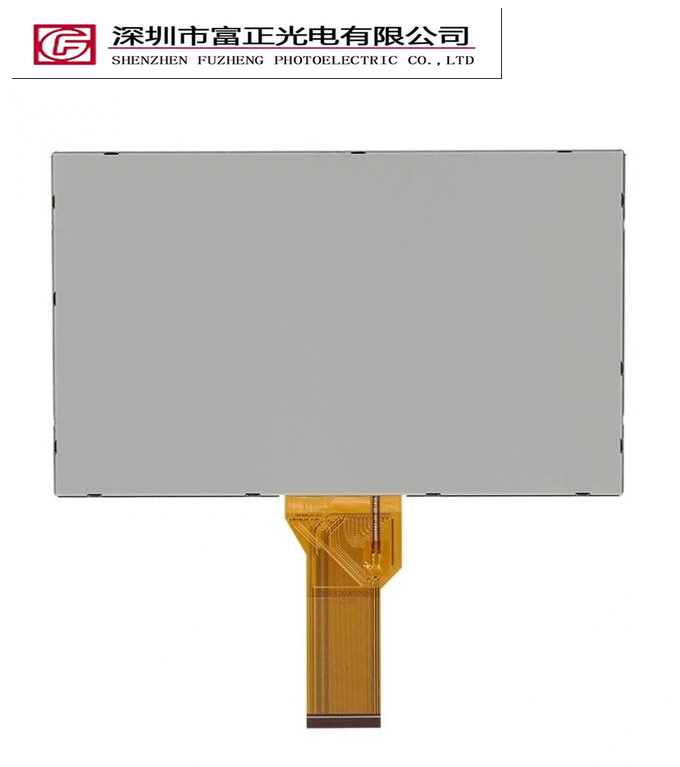

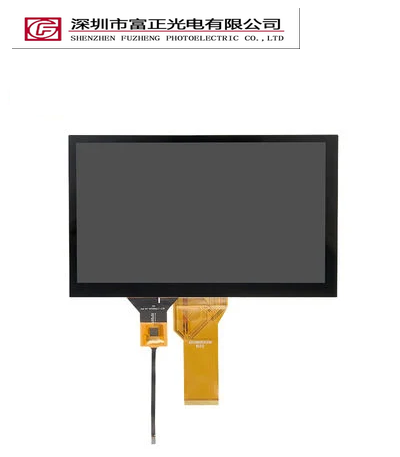

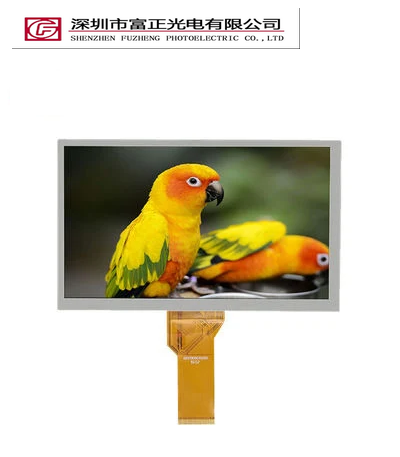

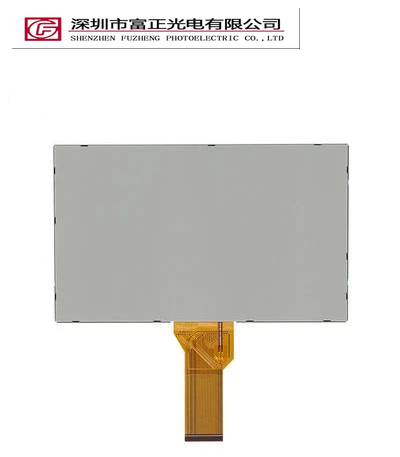

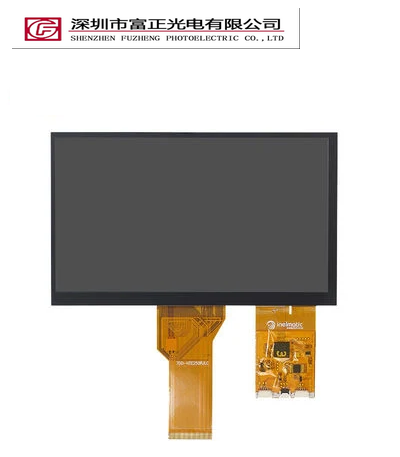

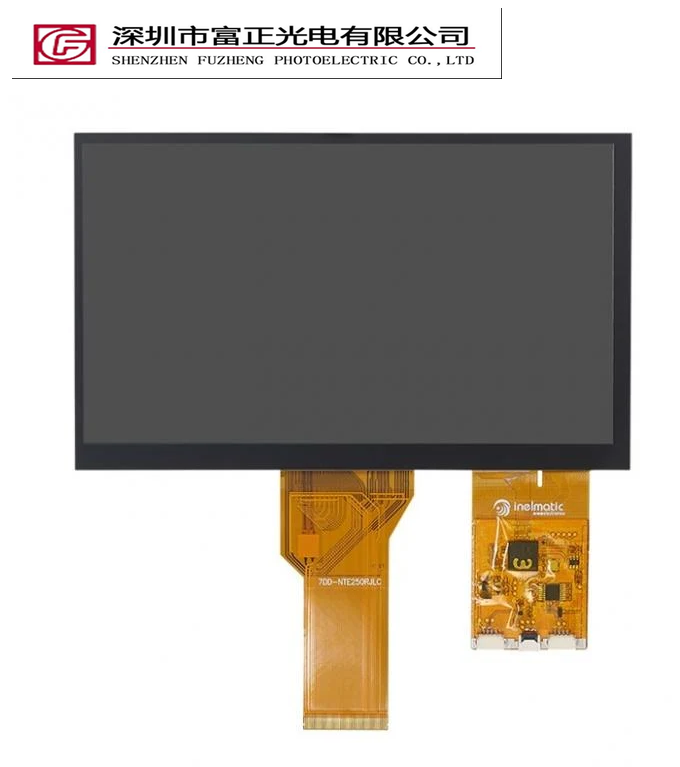

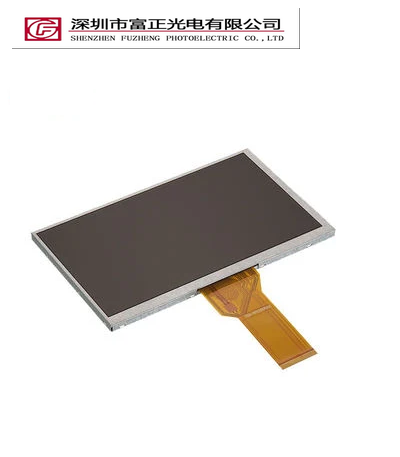

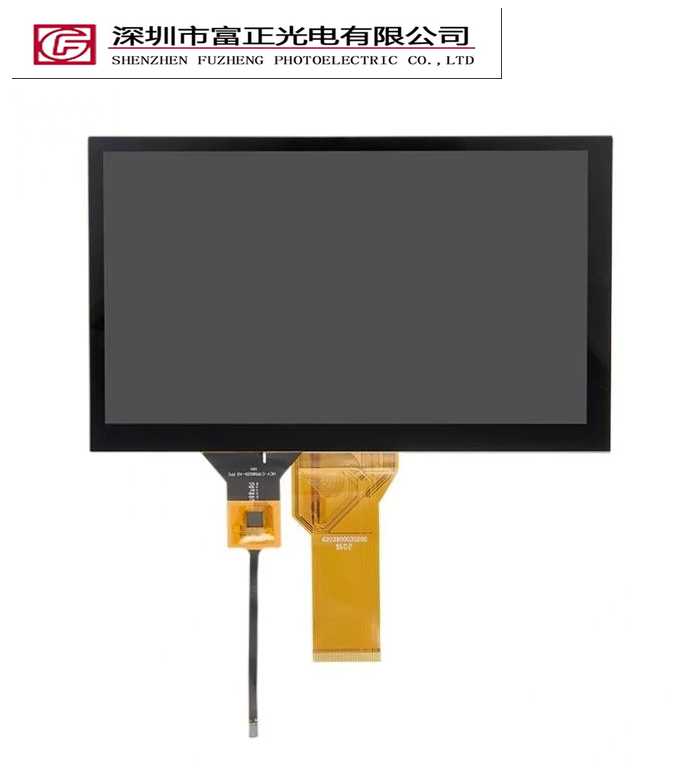

Product photographs

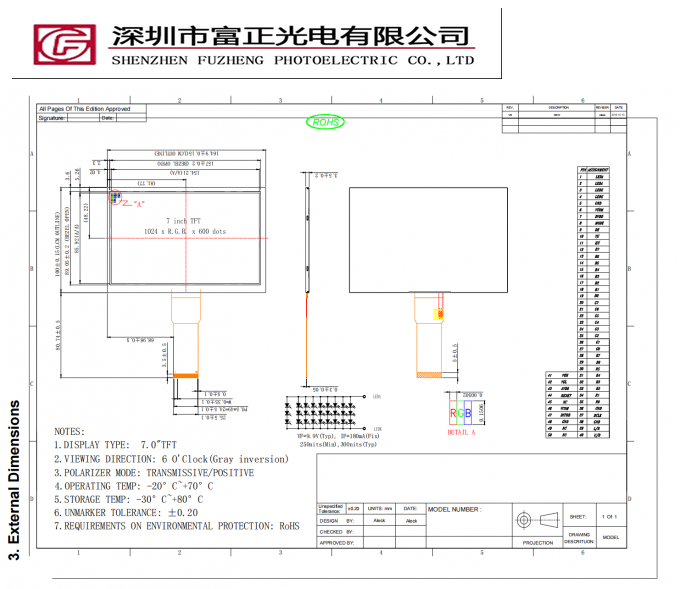

Mechanical drawings & documents
Request the Z070WS03 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z070WS03 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check 1024 × 600 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WS03 configuration.
Z070WS03 frequently asked questions
What specifications are listed for Z070WS03?
Resolution: 1024 × 600 pixels; Module Dimensions: 164.9 × 100 × 3.5 mm; Interface: RGB; Brightness: 400 cd/m²; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z070WS03 connect to a host system?
Z070WS03 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z070WS03?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WS03 so the exact assembly can be reviewed.
Where can I find the drawing for Z070WS03?
Request the mechanical drawing and electrical datasheet for Z070WS03. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z070WS03 sample?
Include the model Z070WS03, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z070WS03 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
