Model no.Z057Q01

Z057Q01 320 × 240 Industrial TFT-LCD Display

18 BIT RGB
Module Dimensions: 144.00 × 104.6 × 13.00 mm
Interface: 18 BIT RGB
Resolution: 320 × 240 pixels
Brightness: 750 cd/m²
Operating Temperature: -20 to 70 °C

Resolution: 320 × 240 pixels
Interface: 18 BIT RGB

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm viewing angle, display mode against the latest approved specification before design-in.

Z057Q01 product introduction

Z057Q01 is a industrial tft-lcd display with 320 × 240 resolution and a 18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 144.00 × 104.6 × 13.00 mm. Brightness: 750 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z057Q01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 18 BIT RGB connection on Z057Q01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z057Q01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Module Dimensions: 144.00 × 104.6 × 13.00 mm
Interface: 18 BIT RGB
Resolution: 320 × 240 pixels
Brightness: 750 cd/m²
Operating Temperature: -20 to 70 °C

Technical specifications

Z057Q01 technical parameters
Parameter	Value
Module Dimensions	144.00 × 104.6 × 13.00 mm
Active Area	115.20 × 86.40 mm
Interface	18 BIT RGB
Driver Controller	HX8218C04+HX8615C
Resolution	320 × 240 pixels
Model Size (WHT)mm	144.00104.613.00mm
Viewing	12:00 o'clock
Brightness	750 cd/m²
Pin Count	33
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C

Confirm viewing angle, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z057Q01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z057Q01 technical parameters
Parameter	Value
Interface	18 BIT RGB
Pin Count	33

Product photographs

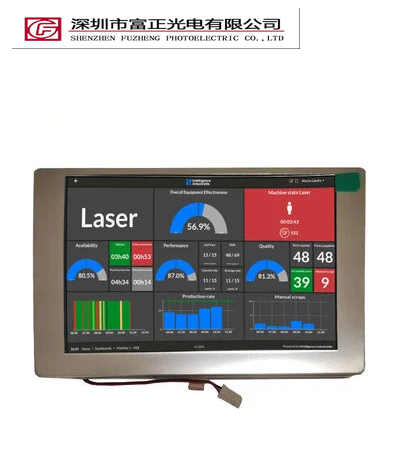

Z057Q01 product view 1

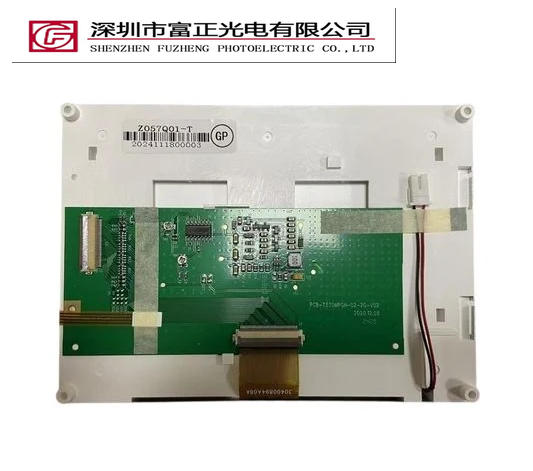

Z057Q01 product view 2

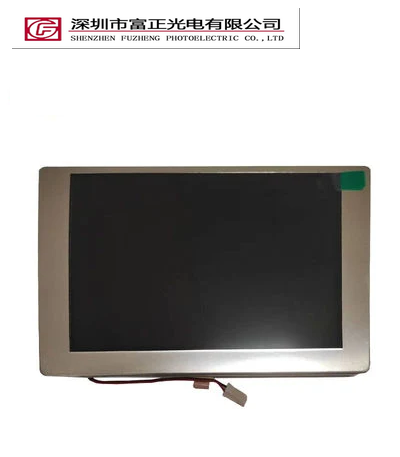

Z057Q01 product view 3

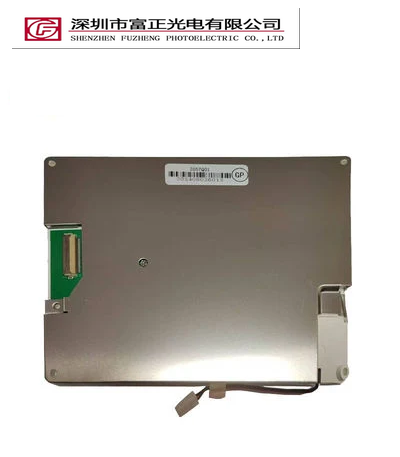

Z057Q01 product view 4

Z057Q01 product view 5

Z057Q01 product view 6

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z057Q01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z057Q01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the display format with your available viewing area, then check 320 × 240 pixel resolution, 18 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z057Q01 configuration.

Z057Q01 frequently asked questions

What specifications are listed for Z057Q01?

Module Dimensions: 144.00 × 104.6 × 13.00 mm; Interface: 18 BIT RGB; Resolution: 320 × 240 pixels; Brightness: 750 cd/m²; Operating Temperature: -20 to 70 °C. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z057Q01 connect to a host system?

Z057Q01 lists a 18 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z057Q01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z057Q01 so the exact assembly can be reviewed.

Where can I find the drawing for Z057Q01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z057Q01 sample?

Include the model Z057Q01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
