Model no.Z043WQ34J

Z043WQ34J 4.3-Inch 480 × 272 Industrial TFT-LCD Display

24 BIT RGB
Resolution: 480 × 272 pixels
Module Dimensions: 105.45 × 67.15 × 3 mm
Interface: 24 BIT RGB
Brightness: 1000 cd/m²
Driver IC: ILI6485
Screen Size: 4.3 inch

Screen Size: 4.3 inch
Resolution: 480 × 272 pixels
Display Mode: Normally black,Transmissive
Interface: 24 BIT RGB
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm operating temperature, storage temperature against the latest approved specification before design-in.

Z043WQ34J product introduction

Z043WQ34J is a 4.3-inch industrial tft-lcd display with 480 × 272 resolution and a 24 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The industrial tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 105.45 × 67.15 × 3 mm. Brightness: 1000 cd/m². Driver IC: ILI6485. Use these published characteristics to compare Z043WQ34J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 24 BIT RGB connection on Z043WQ34J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z043WQ34J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 480 × 272 pixels
Module Dimensions: 105.45 × 67.15 × 3 mm
Interface: 24 BIT RGB
Brightness: 1000 cd/m²
Driver IC: ILI6485
Screen Size: 4.3 inch

Technical specifications

Z043WQ34J technical parameters
Parameter	Value
Resolution	480 × 272 pixels
Module Dimensions	105.45 × 67.15 × 3 mm
Active Area	95.04 × 53.856 mm
Interface	24 BIT RGB
Brightness	1000 cd/m²
Model Size (WHT)	105.4567.153
Display Mode	Normally Black,Transmissive
Viewing Angle	85/85/85/85
Pin Count	40 pin
Driver IC	ILI6485
Screen Size	4.3 inch

Confirm operating temperature, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z043WQ34J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z043WQ34J technical parameters
Parameter	Value
Interface	24 BIT RGB
Pin Count	40 pin
Driver IC	ILI6485

Product photographs

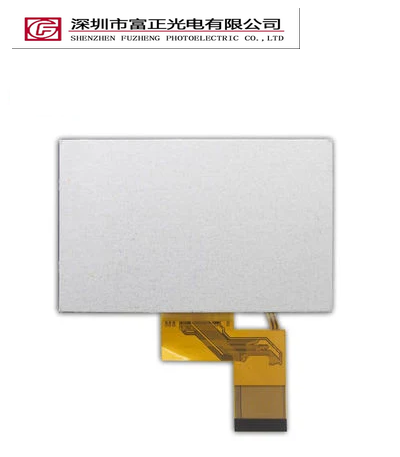

Z043WQ34J product view 1

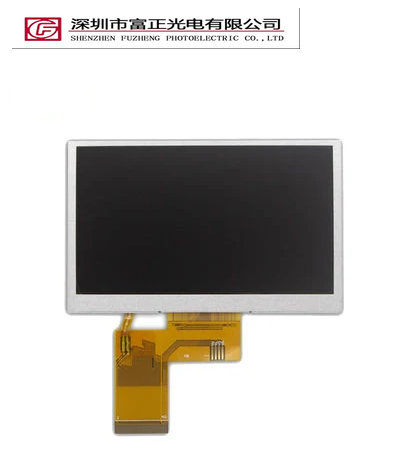

Z043WQ34J product view 2

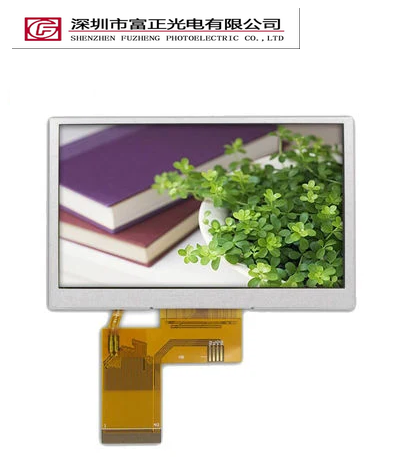

Z043WQ34J product view 3

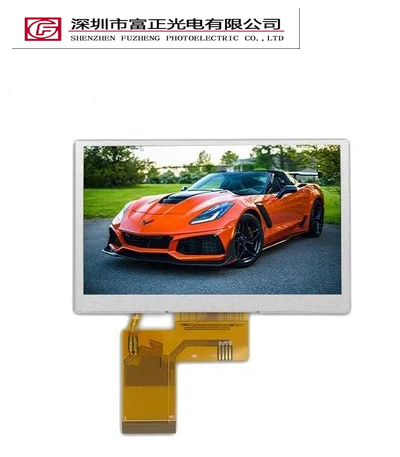

Z043WQ34J product view 4

Z043WQ34J product view 5

Mechanical drawings & documents

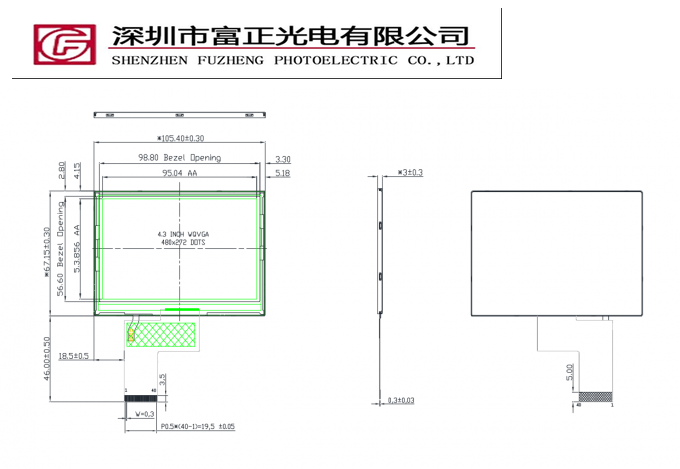

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z043WQ34J against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z043WQ34J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 4.3-inch display format with your available viewing area, then check 480 × 272 pixel resolution, 24 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z043WQ34J configuration.

Z043WQ34J frequently asked questions

What specifications are listed for Z043WQ34J?

Resolution: 480 × 272 pixels; Module Dimensions: 105.45 × 67.15 × 3 mm; Interface: 24 BIT RGB; Brightness: 1000 cd/m²; Driver IC: ILI6485; Screen Size: 4.3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z043WQ34J connect to a host system?

Z043WQ34J lists a 24 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z043WQ34J?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z043WQ34J so the exact assembly can be reviewed.

Where can I find the drawing for Z043WQ34J?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z043WQ34J sample?

Include the model Z043WQ34J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z043WQ34J reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
