Model no.RTD2660-V1.0N
RTD2660-V1.0N 7-Inch 1024 × 600 HDMI TFT-LCD Display — Ref 51819056
RTD2660-V1.0N is a 7-inch hdmi tft-lcd display with 1024 × 600 resolution and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- HDMI&USB
- capacitive touch
- Resolution: 1024 × 600 pixels
- Module Dimensions: 164.9 × 122.96 × 13.2 mm
- Interface: HDMI&USB
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: capacitive touch
- Screen Size
- 7 inch
- Resolution
- 1024 × 600 pixels
- Interface
- HDMI&USB
- Touch
- Capacitive touch
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
RTD2660-V1.0N product introduction
RTD2660-V1.0N is a 7-inch hdmi tft-lcd display with 1024 × 600 resolution and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 164.9 × 122.96 × 13.2 mm. Brightness: 450 cd/m². Operating Temperature: -20 to 70 °C. Touch: capacitive touch. Use these published characteristics to compare RTD2660-V1.0N with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The HDMI&USB connection on RTD2660-V1.0N should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following RTD2660-V1.0N attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 600 pixels
- Module Dimensions: 164.9 × 122.96 × 13.2 mm
- Interface: HDMI&USB
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: capacitive touch
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1024 × 600 pixels |
| Module Dimensions | 164.9 × 122.96 × 13.2 mm |
| Active Area | 154.08 × 85.92 mm |
| Interface | HDMI&USB |
| Viewing Angle | 85/85/85/85 |
| Brightness | 450 cd/m² |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T)mm | 164.9*122.96*13.2 |
| Viewing | All/IPS |
| Touch | capacitive touch |
| Screen Size | 7 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the RTD2660-V1.0N electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | HDMI&USB |
| Touch | capacitive touch |

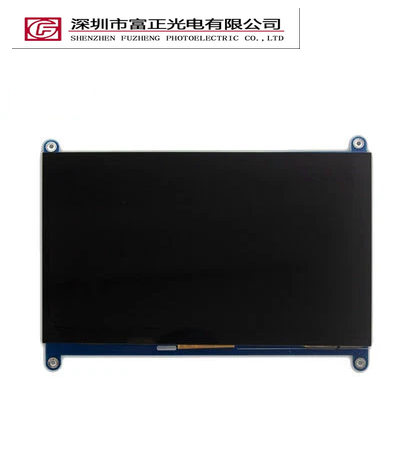

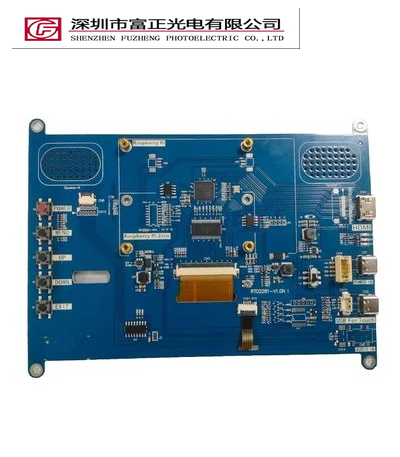

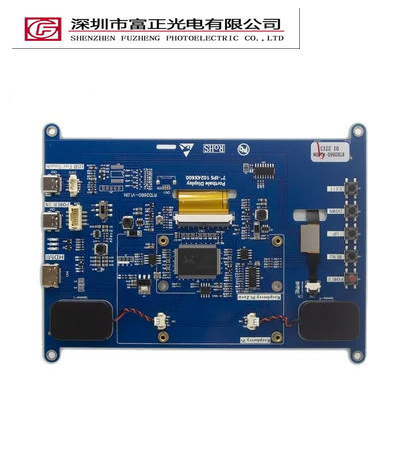

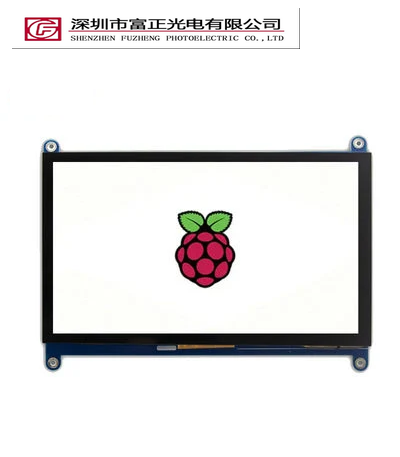

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of RTD2660-V1.0N against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
RTD2660-V1.0N can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check 1024 × 600 pixel resolution, HDMI&USB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected RTD2660-V1.0N configuration.
RTD2660-V1.0N frequently asked questions
What specifications are listed for RTD2660-V1.0N?
Resolution: 1024 × 600 pixels; Module Dimensions: 164.9 × 122.96 × 13.2 mm; Interface: HDMI&USB; Brightness: 450 cd/m²; Operating Temperature: -20 to 70 °C; Touch: capacitive touch; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should RTD2660-V1.0N connect to a host system?
RTD2660-V1.0N lists a HDMI&USB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for RTD2660-V1.0N?
The listed touch configuration is capacitive touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for RTD2660-V1.0N?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a RTD2660-V1.0N sample?
Include the model RTD2660-V1.0N, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
