Model no.RTD2660-V1.0N

RTD2660-V1.0N 7-Inch HDMI TFT-LCD Display — Ref 51812047

RTD2660-V1.0N is a 7-inch hdmi tft-lcd display and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample.

HDMI&USB
Module Dimensions: 164.9 × 122.96 × 13.2 mm
Operating Temperature: -20 to 70 °C
Interface: HDMI&USB
Brightness: 450 cd/m²
Screen Size: 7 inch

Screen Size: 7 inch
Display Mode: Normally black
Interface: HDMI&USB
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm resolution against the latest approved specification before design-in.

RTD2660-V1.0N product introduction

RTD2660-V1.0N is a 7-inch hdmi tft-lcd display and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 164.9 × 122.96 × 13.2 mm. Operating Temperature: -20 to 70 °C. Brightness: 450 cd/m². Use these published characteristics to compare RTD2660-V1.0N with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The HDMI&USB connection on RTD2660-V1.0N should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following RTD2660-V1.0N attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Module Dimensions: 164.9 × 122.96 × 13.2 mm
Operating Temperature: -20 to 70 °C
Interface: HDMI&USB
Brightness: 450 cd/m²
Screen Size: 7 inch

Technical specifications

RTD2660-V1.0N technical parameters
Parameter	Value
Module Dimensions	164.9 × 122.96 × 13.2 mm
Operating Temperature	-20 to 70 °C
Interface	HDMI&USB
Viewing Dire	ALL/IPS
Display Mode	Normally Black
Viewing Angle	85/85/85/85
Viewing Direction	ALL/IPS
Storage Temperature	-30 to 80 °C
Brightness	450 cd/m²
Active Area	154.08 × 85.92 mm
Screen Size	7 inch

Confirm resolution against the latest approved module specification before design-in.

Interface & pin definition

Use the RTD2660-V1.0N electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

RTD2660-V1.0N technical parameters
Parameter	Value
Interface	HDMI&USB

Product photographs

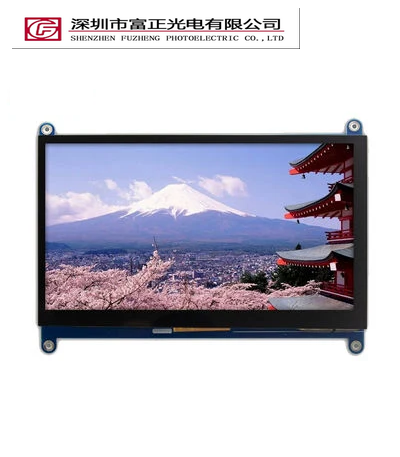

RTD2660-V1.0N product view 1

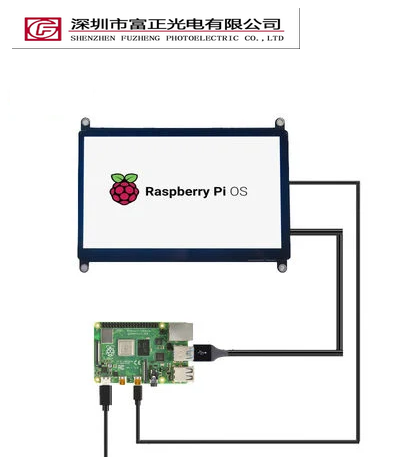

RTD2660-V1.0N product view 2

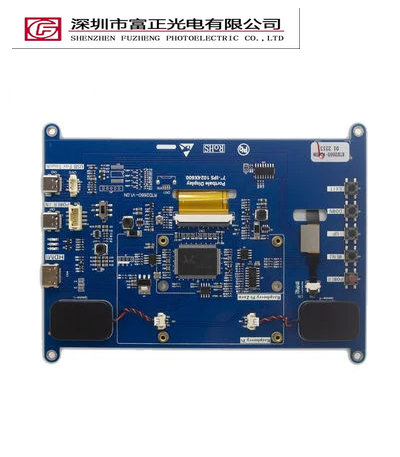

RTD2660-V1.0N product view 3

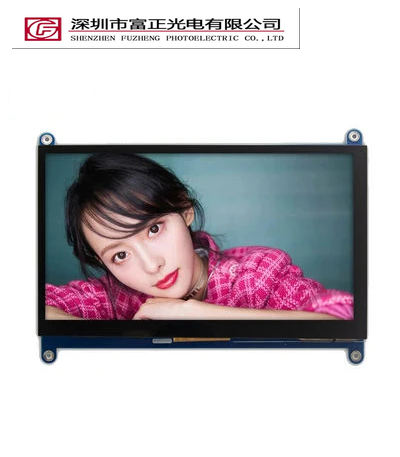

RTD2660-V1.0N product view 4

Mechanical drawings & documents

Request the RTD2660-V1.0N mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

RTD2660-V1.0N can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check HDMI&USB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected RTD2660-V1.0N configuration.

RTD2660-V1.0N frequently asked questions

What specifications are listed for RTD2660-V1.0N?

Module Dimensions: 164.9 × 122.96 × 13.2 mm; Operating Temperature: -20 to 70 °C; Interface: HDMI&USB; Brightness: 450 cd/m²; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should RTD2660-V1.0N connect to a host system?

RTD2660-V1.0N lists a HDMI&USB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for RTD2660-V1.0N?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for RTD2660-V1.0N so the exact assembly can be reviewed.

Where can I find the drawing for RTD2660-V1.0N?

Request the mechanical drawing and electrical datasheet for RTD2660-V1.0N. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.

What should I send when requesting a RTD2660-V1.0N sample?

Include the model RTD2660-V1.0N, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the RTD2660-V1.0N reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a RTD2660-V1.0N quote or evaluation sample →
