Model no.RTD2660-V1.0N

RTD2660-V1.0N 7-Inch 800 × 480 HDMI TFT-LCD Display — Ref 51812046

HDMI&USB
Operating Temperature: -20 to 70 °C
Module Dimensions: 164.9 × 122.96 × 13.2 mm
Brightness: 450 cd/m²
Interface: HDMI&USB
Resolution: 800 × 480 pixels
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 800 × 480 pixels
Display Mode: Normally black
Interface: HDMI&USB
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

RTD2660-V1.0N product introduction

RTD2660-V1.0N is a 7-inch hdmi tft-lcd display with 800 × 480 resolution and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Operating Temperature: -20 to 70 °C. Module Dimensions: 164.9 × 122.96 × 13.2 mm. Brightness: 450 cd/m². Use these published characteristics to compare RTD2660-V1.0N with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The HDMI&USB connection on RTD2660-V1.0N should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following RTD2660-V1.0N attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Operating Temperature: -20 to 70 °C
Module Dimensions: 164.9 × 122.96 × 13.2 mm
Brightness: 450 cd/m²
Interface: HDMI&USB
Resolution: 800 × 480 pixels
Screen Size: 7 inch

Technical specifications

RTD2660-V1.0N technical parameters
Parameter	Value
Active Area	154.08 × 85.92 mm
Operating Temperature	-20 to 70 °C
Viewing Angle	85/85/85/85
Module Dimensions	164.9 × 122.96 × 13.2 mm
Brightness	450 cd/m²
Storage Temperature	-30 to 80 °C
Interface	HDMI&USB
Viewing Direction	ALL/IPS
Resolution	800 × 480 pixels
Display Mode	Normally Black
Screen Size	7 inch

Interface & pin definition

Use the RTD2660-V1.0N electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

RTD2660-V1.0N technical parameters
Parameter	Value
Interface	HDMI&USB

Product photographs

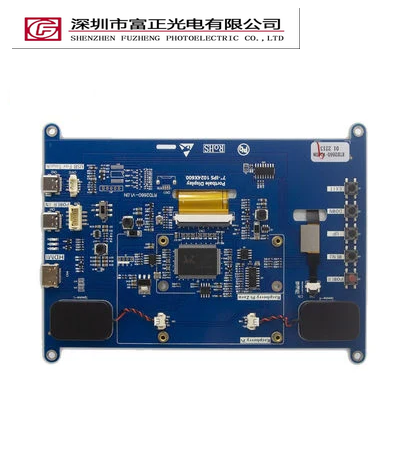

RTD2660-V1.0N product view 1

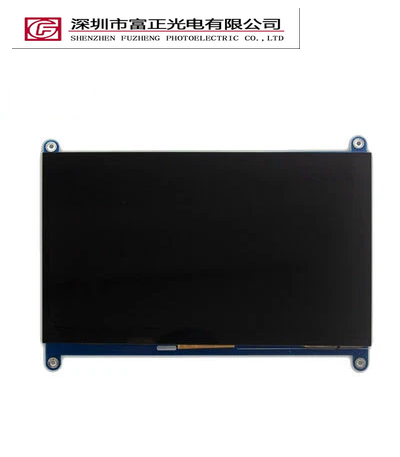

RTD2660-V1.0N product view 2

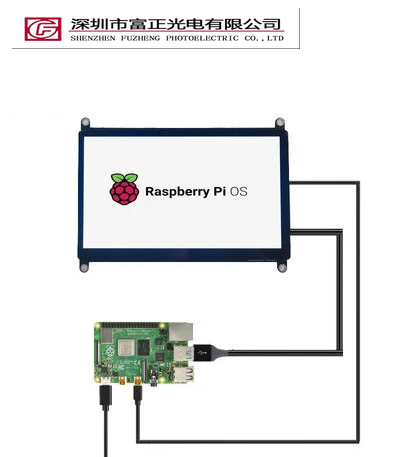

RTD2660-V1.0N product view 3

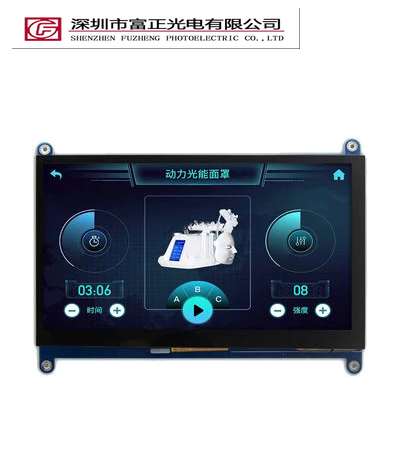

RTD2660-V1.0N product view 4

Mechanical drawings & documents

Request the RTD2660-V1.0N mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.

Application & selection guidance

RTD2660-V1.0N can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check 800 × 480 pixel resolution, HDMI&USB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected RTD2660-V1.0N configuration.

RTD2660-V1.0N frequently asked questions

What specifications are listed for RTD2660-V1.0N?

Operating Temperature: -20 to 70 °C; Module Dimensions: 164.9 × 122.96 × 13.2 mm; Brightness: 450 cd/m²; Interface: HDMI&USB; Resolution: 800 × 480 pixels; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
