Model no.RTD2281-V1.1K

RTD2281-V1.1K 5-Inch 800 × 480 HDMI TFT-LCD Display — Ref 51820942

HDMI&USB
capacitive touch
Resolution: 800 × 480 pixels
Interface: HDMI&USB
Brightness: 400 cd/m²
Operating Temperature: -20 to 70 °C
Touch: capacitive touch
Screen Size: 5 inch

Screen Size: 5 inch
Resolution: 800 × 480 pixels
Interface: HDMI&USB
Touch: Capacitive touch

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm module dimensions, active area, display mode against the latest approved specification before design-in.

RTD2281-V1.1K product introduction

RTD2281-V1.1K is a 5-inch hdmi tft-lcd display with 800 × 480 resolution and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 400 cd/m². Operating Temperature: -20 to 70 °C. Touch: capacitive touch. Use these published characteristics to compare RTD2281-V1.1K with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The HDMI&USB connection on RTD2281-V1.1K should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following RTD2281-V1.1K attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 480 pixels
Interface: HDMI&USB
Brightness: 400 cd/m²
Operating Temperature: -20 to 70 °C
Touch: capacitive touch
Screen Size: 5 inch

Technical specifications

RTD2281-V1.1K technical parameters
Parameter	Value
Resolution	800 × 480 pixels
Interface	HDMI&USB
Brightness	400 cd/m²
Operating Temperature	-20 to 70 °C
Model Size (WHT)mm	120.7x98x12.4mm
Viewing	All/IPS
Touch	capacitive touch
Storage Temperature	-30 to 80 °C
Screen Size	5 inch

Confirm module dimensions, active area, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the RTD2281-V1.1K electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

RTD2281-V1.1K technical parameters
Parameter	Value
Interface	HDMI&USB
Touch	capacitive touch

Product photographs

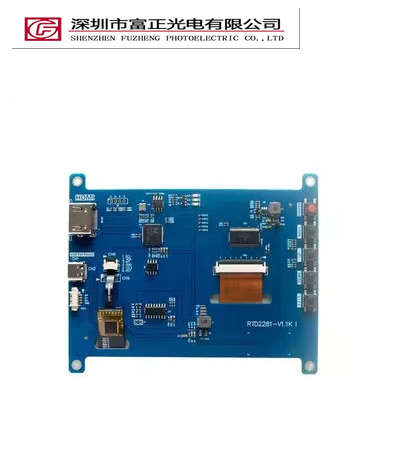

RTD2281-V1.1K product view 1

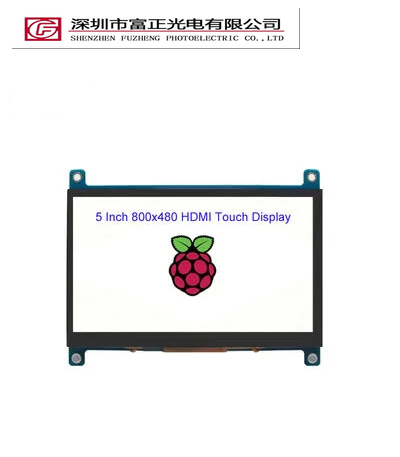

RTD2281-V1.1K product view 2

RTD2281-V1.1K product view 3

RTD2281-V1.1K product view 4

RTD2281-V1.1K product view 5

Mechanical drawings & documents

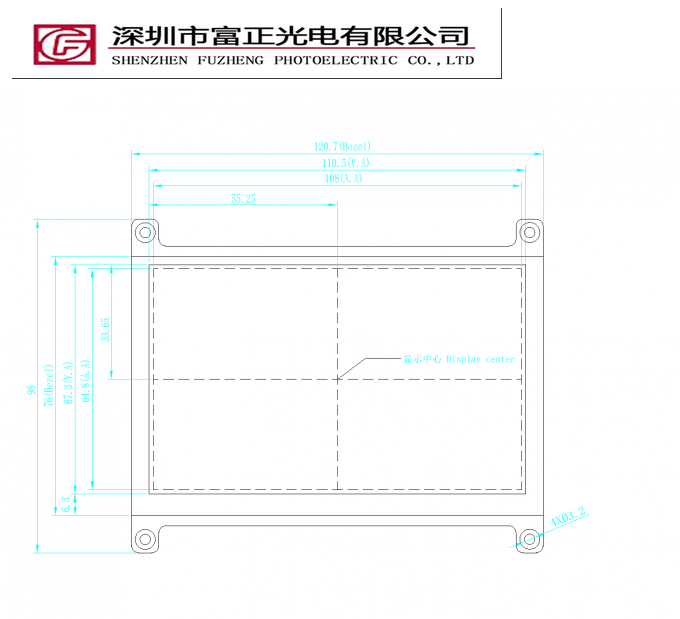

Mechanical reference 1 — open full size to inspect dimensions.

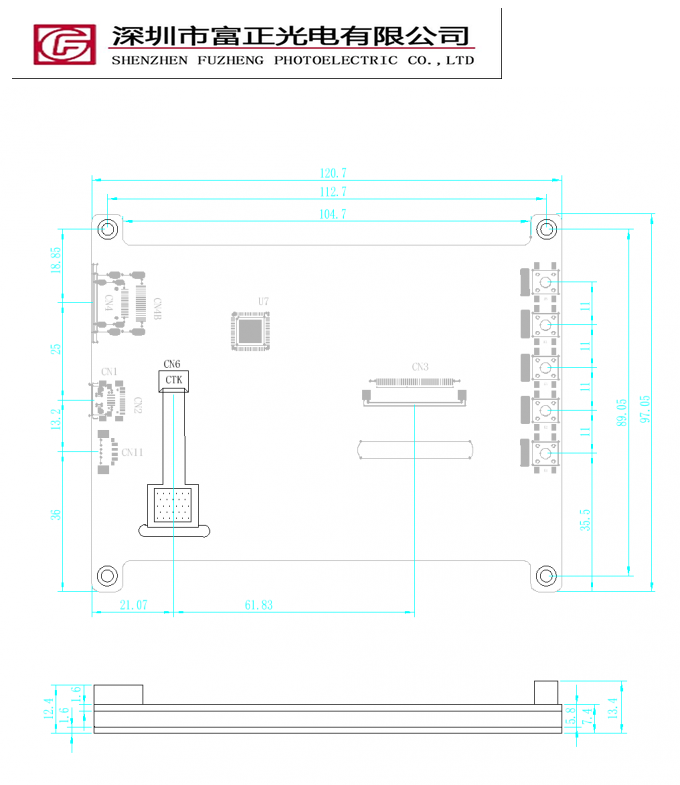

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of RTD2281-V1.1K against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

RTD2281-V1.1K can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 5-inch display format with your available viewing area, then check 800 × 480 pixel resolution, HDMI&USB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected RTD2281-V1.1K configuration.

RTD2281-V1.1K frequently asked questions

What specifications are listed for RTD2281-V1.1K?

Resolution: 800 × 480 pixels; Interface: HDMI&USB; Brightness: 400 cd/m²; Operating Temperature: -20 to 70 °C; Touch: capacitive touch; Screen Size: 5 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should RTD2281-V1.1K connect to a host system?

RTD2281-V1.1K lists a HDMI&USB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for RTD2281-V1.1K?

The listed touch configuration is capacitive touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for RTD2281-V1.1K?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a RTD2281-V1.1K sample?

Include the model RTD2281-V1.1K, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
