RTD2281-V1.0JI 4.3-Inch 800 × 480 HDMI TFT-LCD Display — Ref 53525333

RTD2281-V1.0JI product introduction

RTD2281-V1.0JI is a 4.3-inch hdmi tft-lcd display with 800 × 480 resolution and a HDMI&USB interface. Review the module specifications, product images and integration requirements before requesting a sample. The hdmi display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Operating Temperature: -20 to 70 °C. Brightness: 400 cd/m². Touch: capacitive touch. Use these published characteristics to compare RTD2281-V1.0JI with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The HDMI&USB connection on RTD2281-V1.0JI should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following RTD2281-V1.0JI attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

• Resolution: 800 × 480 pixels
• Interface: HDMI&USB
• Operating Temperature: -20 to 70 °C
• Brightness: 400 cd/m²
• Touch: capacitive touch
• Screen Size: 4.3 inch

Technical specifications

Confirm module dimensions, active area, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the RTD2281-V1.0JI electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

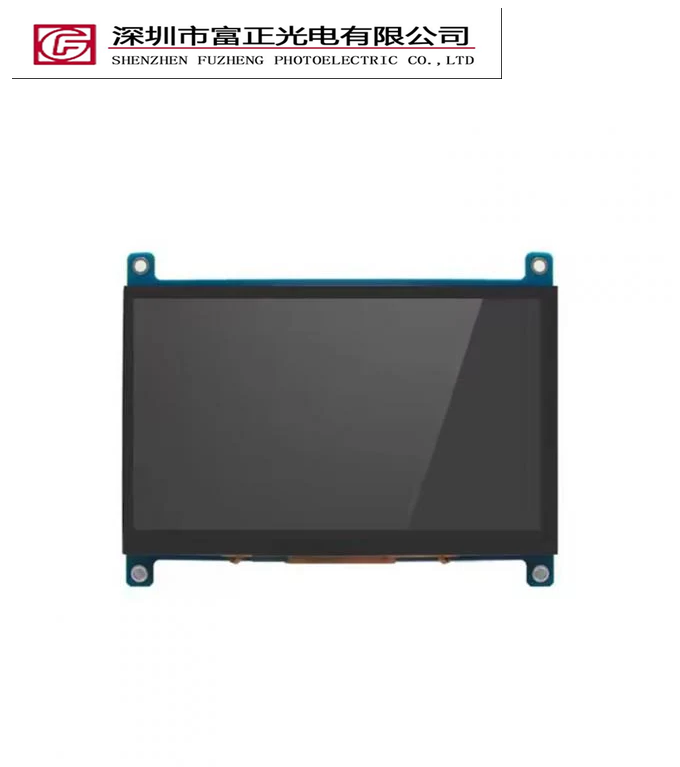

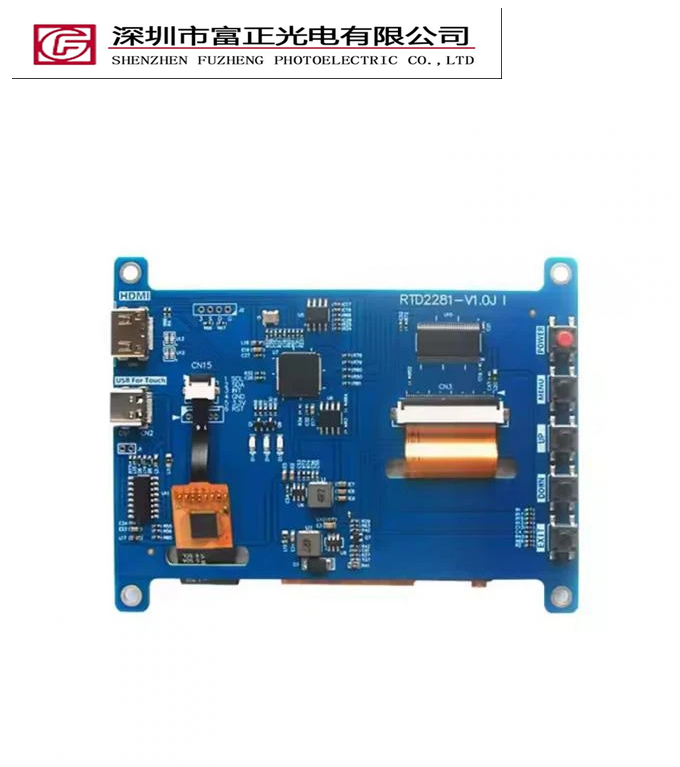

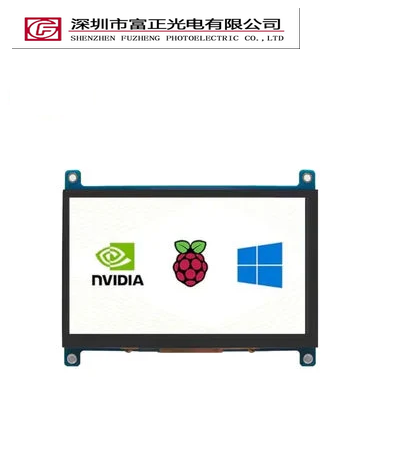

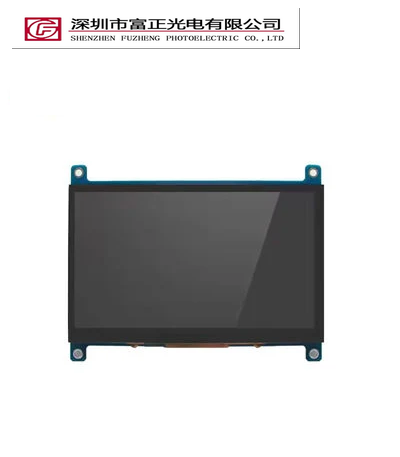

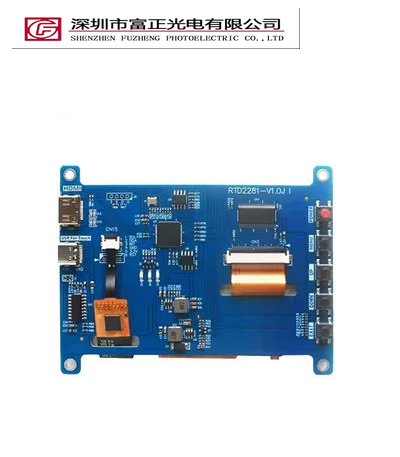

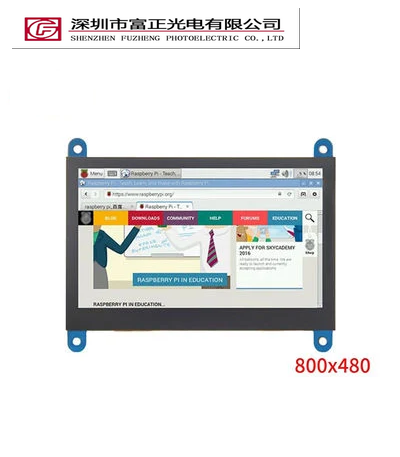

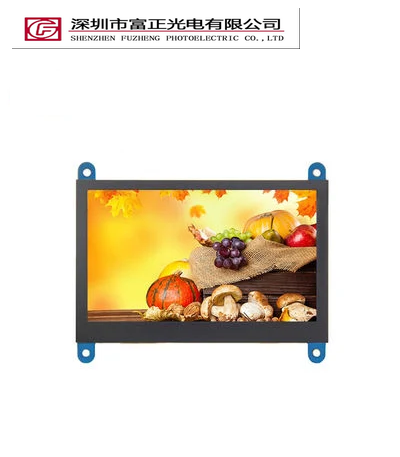

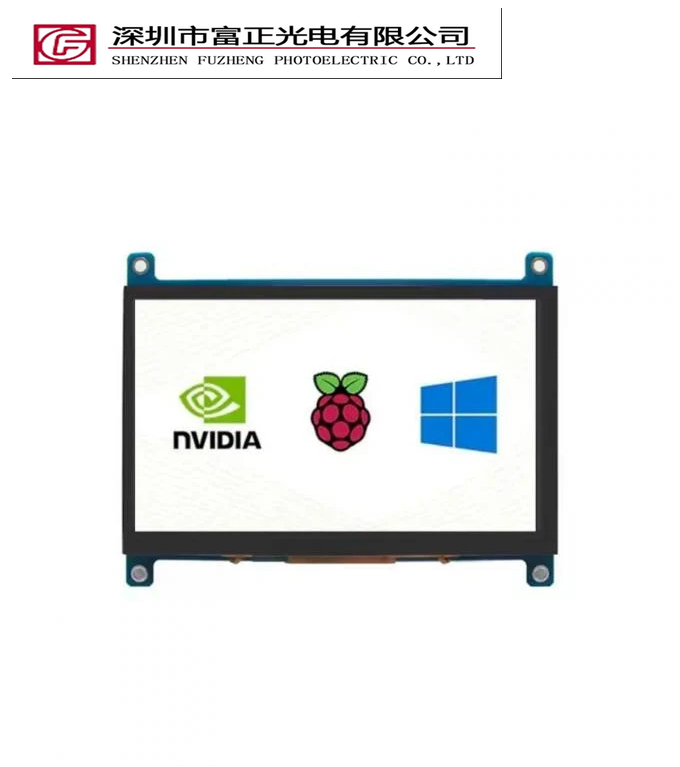

Product photographs

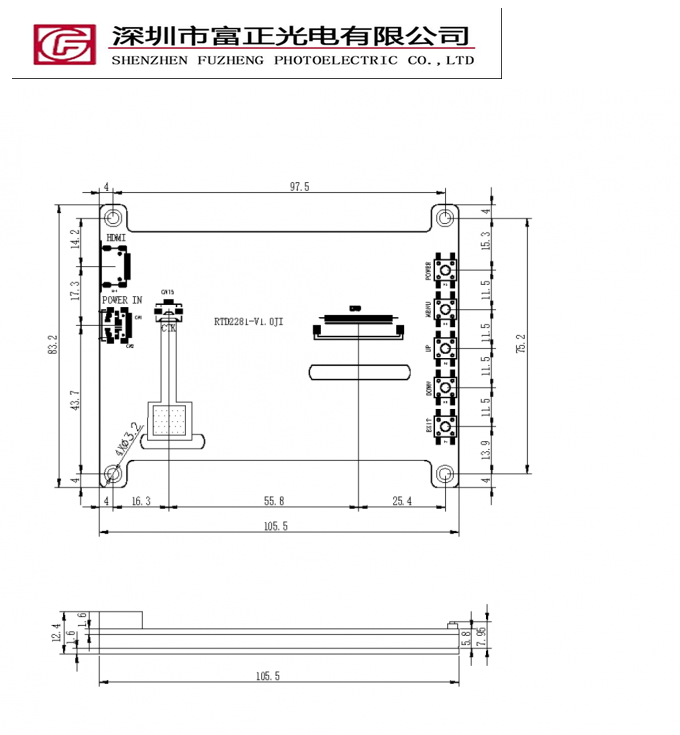

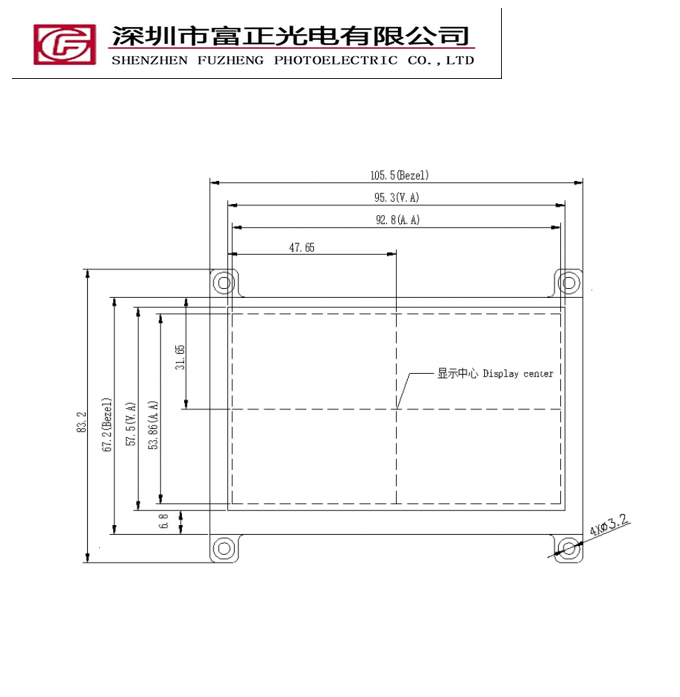

Mechanical drawings & documents

Check the dimensions, active area, connector position and cable clearance of RTD2281-V1.0JI against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

RTD2281-V1.0JI can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 4.3-inch display format with your available viewing area, then check 800 × 480 pixel resolution, HDMI&USB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected RTD2281-V1.0JI configuration.

Request a quotation or sample

Send the RTD2281-V1.0JI reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a RTD2281-V1.0JI quote or evaluation sample →
